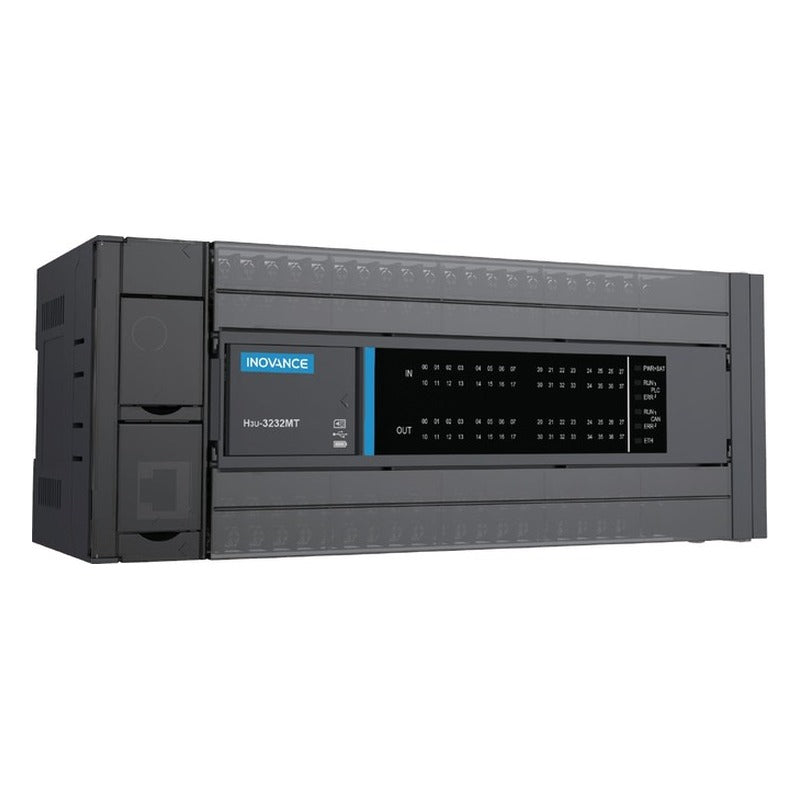

Inovance H3U Series High-Performance CAN Compact PLC

Inovance H3U Series High-Performance CAN Compact PLC

The H3U is a block-type compact PLC with built-in Ethernet and CAN for logic and point-to-point positioning control.

Key features

  • It provides 8 high-speed inputs and 5 high-speed pulse outputs at 200 kHz with S-curve acceleration and 2-axis linear/circular interpolation
  • CANopen and CANlink protocols control up to 16 axes of servo drives, while Ethernet supports Modbus TCP
  • Program memory is 64K steps with battery-free retentive areas, and scan speed is 1.5 times faster than H2U
  • Up to 8 GL10 local expansion modules can be added, including pulse output modules

Specifications

Communication Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB
Program capacity 64K steps
High-speed input 200 kHz x8
Local expansion modules max. 8
H3U-1616MT-XP-INT I/O: 16 DI (NPN/PNP) / 16 DO | Output type: Transistor (NPN) | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: 200 kHz x5 | Local expansion modules: max. 8 | Dimensions W x H x D: 180 x 90 x 90 mm | Certification: CE
H3U-1616MR-XP-INT I/O: 16 DI (NPN/PNP) / 16 DO | Output type: Relay | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: Not supported (relay) | Local expansion modules: max. 8 | Dimensions W x H x D: 180 x 90 x 90 mm | Certification: CE
H3U-2416MT-XP-INT I/O: 24 DI (NPN/PNP) / 16 DO | Output type: Transistor (NPN) | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: 200 kHz x5 | Local expansion modules: max. 8 | Dimensions W x H x D: 180 x 90 x 90 mm
H3U-2416MR-XP-INT I/O: 24 DI (NPN/PNP) / 16 DO | Output type: Relay | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: Not supported (relay) | Local expansion modules: max. 8 | Dimensions W x H x D: 180 x 90 x 90 mm
H3U-3624MT-INT I/O: 36 DI (NPN/PNP) / 24 DO | Output type: Transistor (NPN) | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: 200 kHz x5 | Local expansion modules: max. 8 | Dimensions W x H x D: 230 x 90 x 95 mm
H3U-3624MR-INT I/O: 36 DI (NPN/PNP) / 24 DO | Output type: Relay | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: Not supported (relay) | Local expansion modules: max. 8 | Dimensions W x H x D: 230 x 90 x 95 mm
H3U-3232MT-INT I/O: 32 DI (NPN/PNP) / 32 DO | Output type: Transistor (NPN) | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: 200 kHz x5 | Local expansion modules: max. 8 | Dimensions W x H x D: 230 x 90 x 95 mm | Certification: CE
H3U-3232MR-INT I/O: 32 DI (NPN/PNP) / 32 DO | Output type: Relay | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: Not supported (relay) | Local expansion modules: max. 8 | Dimensions W x H x D: 230 x 90 x 95 mm | Certification: CE
PLCsInovance
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance H3U Series High-Performance CAN Compact PLC

Brand Inovance·PLCs

Available part numbers (8)

H3U-1616MT-XP-INT, H3U-1616MR-XP-INT, H3U-2416MT-XP-INT, H3U-2416MR-XP-INT, H3U-3624MT-INT, H3U-3624MR-INT, H3U-3232MT-INT, H3U-3232MR-INT

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
H3U-1616MT-XP-INTI/O: 16 DI (NPN/PNP) / 16 DO | Output type: Transistor (NPN) | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: 200 kHz x5 | Local expansion modules: max. 8 | Dimensions W x H x D: 180 x 90 x 90 mm | Certification: CE
H3U-1616MR-XP-INTI/O: 16 DI (NPN/PNP) / 16 DO | Output type: Relay | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: Not supported (relay) | Local expansion modules: max. 8 | Dimensions W x H x D: 180 x 90 x 90 mm | Certification: CE
H3U-2416MT-XP-INTI/O: 24 DI (NPN/PNP) / 16 DO | Output type: Transistor (NPN) | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: 200 kHz x5 | Local expansion modules: max. 8 | Dimensions W x H x D: 180 x 90 x 90 mm
H3U-2416MR-XP-INTI/O: 24 DI (NPN/PNP) / 16 DO | Output type: Relay | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: Not supported (relay) | Local expansion modules: max. 8 | Dimensions W x H x D: 180 x 90 x 90 mm
H3U-3624MT-INTI/O: 36 DI (NPN/PNP) / 24 DO | Output type: Transistor (NPN) | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: 200 kHz x5 | Local expansion modules: max. 8 | Dimensions W x H x D: 230 x 90 x 95 mm
H3U-3624MR-INTI/O: 36 DI (NPN/PNP) / 24 DO | Output type: Relay | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: Not supported (relay) | Local expansion modules: max. 8 | Dimensions W x H x D: 230 x 90 x 95 mm
H3U-3232MT-INTI/O: 32 DI (NPN/PNP) / 32 DO | Output type: Transistor (NPN) | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: 200 kHz x5 | Local expansion modules: max. 8 | Dimensions W x H x D: 230 x 90 x 95 mm | Certification: CE
H3U-3232MR-INTI/O: 32 DI (NPN/PNP) / 32 DO | Output type: Relay | Communication: Ethernet x1, CAN (CANopen/CANlink), RS485 x1, RS422 x1, USB | Program capacity: 64K steps | High-speed input: 200 kHz x8 | High-speed output: Not supported (relay) | Local expansion modules: max. 8 | Dimensions W x H x D: 230 x 90 x 95 mm | Certification: CE
