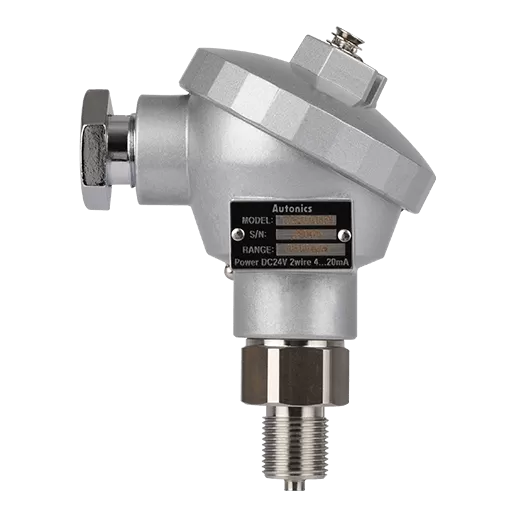

Autonics TPS20 Series Non-Indicating Pressure Transmitters

Non-indicating (no display) pressure transmitters.

Key features

Compact body for general pressure measurement
Various pressure ranges from 100 kPa to 50 MPa. 4-20 mA and 0-10 V output options
G1/4 and 1/4 NPT process connections
IP65 rated

TPS20-100KP-G14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-100 kPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
TPS20-100KP-N14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-100 kPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
TPS20-100KP-V		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-100 kPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
TPS20-500KP-G14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-500 kPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
TPS20-500KP-N14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-500 kPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
TPS20-500KP-V		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-500 kPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
TPS20-1MP-G14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-1 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
TPS20-1MP-N14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-1 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
TPS20-1MP-V		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-1 MPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
TPS20-2MP-G14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-2 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
TPS20-2MP-N14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-2 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
TPS20-2MP-V		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-2 MPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
TPS20-5MP-G14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-5 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
TPS20-5MP-N14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-5 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
TPS20-5MP-V		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-5 MPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
TPS20-10MP-G14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-10 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
TPS20-10MP-N14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-10 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
TPS20-10MP-V		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-10 MPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
TPS20-20MP-G14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-20 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
TPS20-20MP-N14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-20 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
TPS20-20MP-V		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-20 MPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
TPS20-35MP-G14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-35 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
TPS20-35MP-N14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-35 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
TPS20-35MP-V		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-35 MPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
TPS20-50MP-G14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-50 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
TPS20-50MP-N14		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-50 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
TPS20-50MP-V		Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-50 MPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage

Pressure TransmitterAutonics

27 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics TPS20 Series Non-Indicating Pressure Transmitters

Brand Autonics·Pressure Transmitter

Available part numbers (27)

TPS20-100KP-G14, TPS20-100KP-N14, TPS20-100KP-V, TPS20-500KP-G14, TPS20-500KP-N14, TPS20-500KP-V, TPS20-1MP-G14, TPS20-1MP-N14, TPS20-1MP-V, TPS20-2MP-G14 + 17 more — see full table ↓

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	TPS20-100KP-G14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-100 kPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
	TPS20-100KP-N14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-100 kPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
	TPS20-100KP-V	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-100 kPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
	TPS20-500KP-G14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-500 kPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
	TPS20-500KP-N14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-500 kPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
	TPS20-500KP-V	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-500 kPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
	TPS20-1MP-G14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-1 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
	TPS20-1MP-N14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-1 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
	TPS20-1MP-V	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-1 MPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
	TPS20-2MP-G14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-2 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
	TPS20-2MP-N14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-2 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
	TPS20-2MP-V	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-2 MPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
	TPS20-5MP-G14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-5 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
	TPS20-5MP-N14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-5 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
	TPS20-5MP-V	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-5 MPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
	TPS20-10MP-G14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-10 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
	TPS20-10MP-N14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-10 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
	TPS20-10MP-V	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-10 MPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
	TPS20-20MP-G14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-20 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
	TPS20-20MP-N14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-20 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
	TPS20-20MP-V	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-20 MPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
	TPS20-35MP-G14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-35 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
	TPS20-35MP-N14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-35 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
	TPS20-35MP-V	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-35 MPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
	TPS20-50MP-G14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-50 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating G1/4
	TPS20-50MP-N14	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-50 MPa \| 4-20 mA 2-wire \| 12-32 VDC \| 1/4 NPT thread \| IP65 \| non-indicating 1/4 NPT
	TPS20-50MP-V	Pressure transmitter \| TPS20 Series \| Non-indicating \| 0-50 MPa \| 0-10 V analog \| 12-32 VDC \| G1/4 thread \| IP65 \| non-indicating voltage
