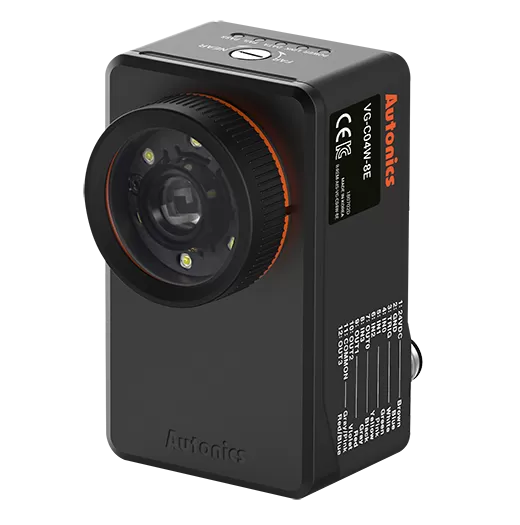

Autonics VG Series 0.4MP Monochrome / Color Vision Sensors

Autonics VG Series 0.4MP Monochrome / Color Vision Sensors

0.4 MP (752 x 480 pixel) vision sensors with integrated LED lighting.

Key features

  • Monochrome and color variants. 3 focal length options (8 mm, 16 mm, 25 mm). 1/3 inch CMOS sensor, global shutter for accurate motion capture
  • Up to 60 fps
  • White/Red/Green/Blue light modes. 32 work groups, free Vision Master software
  • Light interference prevention technology
  • IP67 rated
VG-M040-08E Vision sensor | VG Series | 0.4MP monochrome integrated LED | 752x480 60fps focal 8 mm min 50 mm | NPN/PNP open collector software config | 24 VDC | M12 12-pin | IP67 | global shutter integrated illumination
VG-M040-16E Vision sensor | VG Series | 0.4MP monochrome integrated LED | 752x480 60fps focal 16 mm min 100 mm | NPN/PNP open collector software config | 24 VDC | M12 12-pin | IP67 | global shutter integrated illumination
VG-M040-25E Vision sensor | VG Series | 0.4MP monochrome integrated LED | 752x480 60fps focal 25 mm min 200 mm | NPN/PNP open collector software config | 24 VDC | M12 12-pin | IP67 | global shutter integrated illumination
VG-C040-08E Vision sensor | VG Series | 0.4MP color integrated LED | 752x480 60fps focal 8 mm min 50 mm | NPN/PNP open collector software config | 24 VDC | M12 12-pin | IP67 | global shutter integrated illumination
VG-C040-16E Vision sensor | VG Series | 0.4MP color integrated LED | 752x480 60fps focal 16 mm min 100 mm | NPN/PNP open collector software config | 24 VDC | M12 12-pin | IP67 | global shutter integrated illumination
VG-C040-25E Vision sensor | VG Series | 0.4MP color integrated LED | 752x480 60fps focal 25 mm min 200 mm | NPN/PNP open collector software config | 24 VDC | M12 12-pin | IP67 | global shutter integrated illumination
Vision SensorAutonics
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Autonics VG Series 0.4MP Monochrome / Color Vision Sensors

Brand Autonics·Vision Sensor

Available part numbers (6)

VG-M040-08E, VG-M040-16E, VG-M040-25E, VG-C040-08E, VG-C040-16E, VG-C040-25E

How to order

Send the Autonics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VG-M040-08EVision sensor | VG Series | 0.4MP monochrome integrated LED | 752x480 60fps focal 8 mm min 50 mm | NPN/PNP open collector software config | 24 VDC | M12 12-pin | IP67 | global shutter integrated illumination
VG-M040-16EVision sensor | VG Series | 0.4MP monochrome integrated LED | 752x480 60fps focal 16 mm min 100 mm | NPN/PNP open collector software config | 24 VDC | M12 12-pin | IP67 | global shutter integrated illumination
VG-M040-25EVision sensor | VG Series | 0.4MP monochrome integrated LED | 752x480 60fps focal 25 mm min 200 mm | NPN/PNP open collector software config | 24 VDC | M12 12-pin | IP67 | global shutter integrated illumination
VG-C040-08EVision sensor | VG Series | 0.4MP color integrated LED | 752x480 60fps focal 8 mm min 50 mm | NPN/PNP open collector software config | 24 VDC | M12 12-pin | IP67 | global shutter integrated illumination
VG-C040-16EVision sensor | VG Series | 0.4MP color integrated LED | 752x480 60fps focal 16 mm min 100 mm | NPN/PNP open collector software config | 24 VDC | M12 12-pin | IP67 | global shutter integrated illumination
VG-C040-25EVision sensor | VG Series | 0.4MP color integrated LED | 752x480 60fps focal 25 mm min 200 mm | NPN/PNP open collector software config | 24 VDC | M12 12-pin | IP67 | global shutter integrated illumination
