CBK AL / ALL Lock Plates for AN / ANL Nuts (Size 44-100)

CBK AL / ALL Lock Plates for AN / ANL Nuts (Size 44-100)

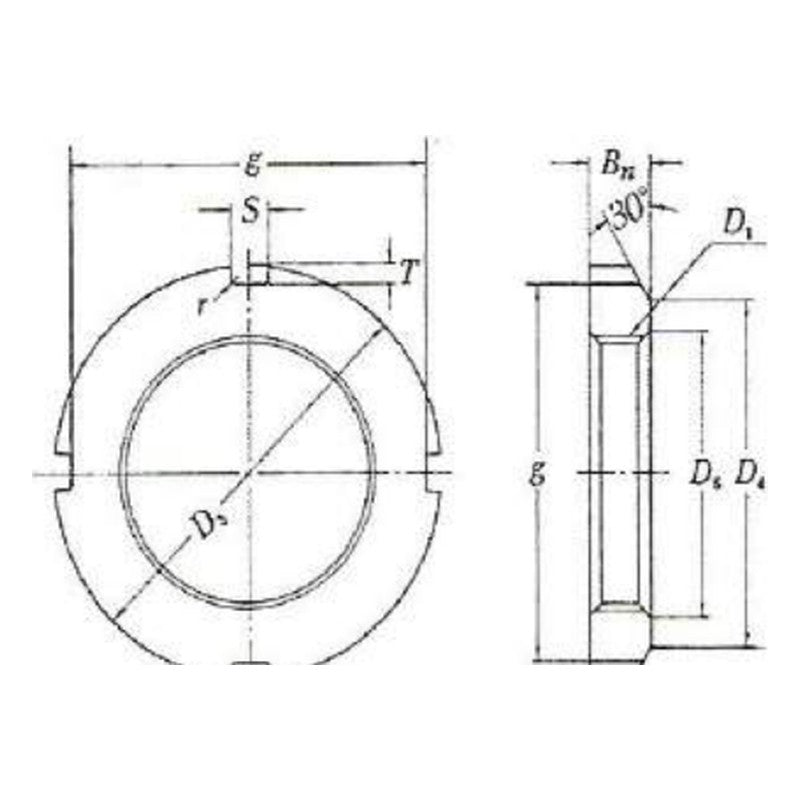

CBK AL and ALL toggle-type lock plates used in place of tab washers to secure large AN and ANL lock nuts (size 44 and up).

Key features

  • Screw-fixed lock plate engaging a slot of the lock nut
  • AL for AN series, ALL for ANL series nuts
  • One plate size serves one or two nut sizes as listed
  • Mass given per 100 pieces

Specifications

Product Lock nut locking plate
Series AL / ALL
Brand CBK
Product type Lock Nuts & Washers
Designations listed 20 codes
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 224
AL44 Thickness: 4 mm | Width S: 20 mm | Mass: 2.6 kg/100 pcs | For nut: AN44, AN48
AL52 Thickness: 4 mm | Width S: 24 mm | Mass: 3.4 kg/100 pcs | For nut: AN52, AN56
AL60 Thickness: 4 mm | Width S: 24 mm | Mass: 3.8 kg/100 pcs | For nut: AN60
AL64 Thickness: 5 mm | Width S: 24 mm | Mass: 5.35 kg/100 pcs | For nut: AN64
AL68 Thickness: 5 mm | Width S: 28 mm | Mass: 6.65 kg/100 pcs | For nut: AN68, AN72
AL76 Thickness: 5 mm | Width S: 32 mm | Mass: 7.95 kg/100 pcs | For nut: AN76
AL80 Thickness: 5 mm | Width S: 32 mm | Mass: 8.2 kg/100 pcs | For nut: AN80, AN84
AL88 Thickness: 5 mm | Width S: 36 mm | Mass: 9 kg/100 pcs | For nut: AN88, AN92
AL96 Thickness: 5 mm | Width S: 36 mm | Mass: 10.4 kg/100 pcs | For nut: AN96
AL100 Thickness: 5 mm | Width S: 40 mm | Mass: 10.5 kg/100 pcs | For nut: AN100
ALL44 Thickness: 4 mm | Width S: 20 mm | Mass: 2.12 kg/100 pcs | For nut: ANL44
ALL48 Thickness: 4 mm | Width S: 20 mm | Mass: 2.29 kg/100 pcs | For nut: ANL48, ANL52
ALL56 Thickness: 4 mm | Width S: 24 mm | Mass: 2.92 kg/100 pcs | For nut: ANL56
ALL60 Thickness: 4 mm | Width S: 24 mm | Mass: 3.15 kg/100 pcs | For nut: ANL60
ALL64 Thickness: 5 mm | Width S: 24 mm | Mass: 4.55 kg/100 pcs | For nut: ANL64, ANL68
ALL72 Thickness: 5 mm | Width S: 28 mm | Mass: 5.05 kg/100 pcs | For nut: ANL72
ALL76 Thickness: 5 mm | Width S: 28 mm | Mass: 5.3 kg/100 pcs | For nut: ANL76, ANL80
ALL84 Thickness: 5 mm | Width S: 32 mm | Mass: 6.1 kg/100 pcs | For nut: ANL84
ALL88 Thickness: 5 mm | Width S: 32 mm | Mass: 6.45 kg/100 pcs | For nut: ANL88, ANL92
ALL96 Thickness: 5 mm | Width S: 36 mm | Mass: 7.3 kg/100 pcs | For nut: ANL96, ANL100
Lock Nuts & WashersCBK
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK AL / ALL Lock Plates for AN / ANL Nuts (Size 44-100)

Brand CBK·Lock Nuts & Washers

Available part numbers (20)

AL44, AL52, AL60, AL64, AL68, AL76, AL80, AL88, AL96, AL100 + 10 more — see full table ↓

How to order

Send the CBK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AL44Thickness: 4 mm | Width S: 20 mm | Mass: 2.6 kg/100 pcs | For nut: AN44, AN48
AL52Thickness: 4 mm | Width S: 24 mm | Mass: 3.4 kg/100 pcs | For nut: AN52, AN56
AL60Thickness: 4 mm | Width S: 24 mm | Mass: 3.8 kg/100 pcs | For nut: AN60
AL64Thickness: 5 mm | Width S: 24 mm | Mass: 5.35 kg/100 pcs | For nut: AN64
AL68Thickness: 5 mm | Width S: 28 mm | Mass: 6.65 kg/100 pcs | For nut: AN68, AN72
AL76Thickness: 5 mm | Width S: 32 mm | Mass: 7.95 kg/100 pcs | For nut: AN76
AL80Thickness: 5 mm | Width S: 32 mm | Mass: 8.2 kg/100 pcs | For nut: AN80, AN84
AL88Thickness: 5 mm | Width S: 36 mm | Mass: 9 kg/100 pcs | For nut: AN88, AN92
AL96Thickness: 5 mm | Width S: 36 mm | Mass: 10.4 kg/100 pcs | For nut: AN96
AL100Thickness: 5 mm | Width S: 40 mm | Mass: 10.5 kg/100 pcs | For nut: AN100
ALL44Thickness: 4 mm | Width S: 20 mm | Mass: 2.12 kg/100 pcs | For nut: ANL44
ALL48Thickness: 4 mm | Width S: 20 mm | Mass: 2.29 kg/100 pcs | For nut: ANL48, ANL52
ALL56Thickness: 4 mm | Width S: 24 mm | Mass: 2.92 kg/100 pcs | For nut: ANL56
ALL60Thickness: 4 mm | Width S: 24 mm | Mass: 3.15 kg/100 pcs | For nut: ANL60
ALL64Thickness: 5 mm | Width S: 24 mm | Mass: 4.55 kg/100 pcs | For nut: ANL64, ANL68
ALL72Thickness: 5 mm | Width S: 28 mm | Mass: 5.05 kg/100 pcs | For nut: ANL72
ALL76Thickness: 5 mm | Width S: 28 mm | Mass: 5.3 kg/100 pcs | For nut: ANL76, ANL80
ALL84Thickness: 5 mm | Width S: 32 mm | Mass: 6.1 kg/100 pcs | For nut: ANL84
ALL88Thickness: 5 mm | Width S: 32 mm | Mass: 6.45 kg/100 pcs | For nut: ANL88, ANL92
ALL96Thickness: 5 mm | Width S: 36 mm | Mass: 7.3 kg/100 pcs | For nut: ANL96, ANL100
