THK SRG-A/LA/C/LC Roller Retainer LM Guide (Flange, Size 15-30)

THK SRG-A/LA/C/LC Roller Retainer LM Guide (Flange, Size 15-30)

THK SRG roller-retainer LM Guide with flange-type LM block (SRG-A/LA in sizes 15-20, SRG-C/LC in sizes 25-30) for super-high rigidity applications such as machine tools.

Key features

  • Caged roller (roller retainer) design for super-high rigidity
  • Rollers at 45° contact angle: equal load in four directions
  • Low friction, smooth motion and long maintenance-free operation
  • L-type long blocks for higher load (size 20-30)
  • Clearance normal/C1/C0; accuracy H, P, SP, UP

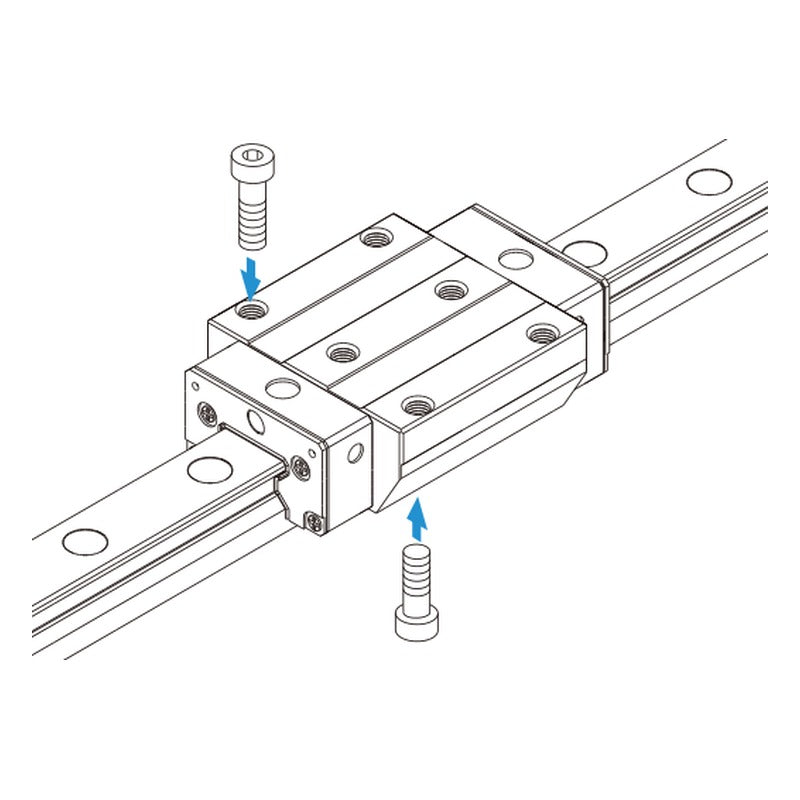

  • Flange block can be mounted from the top or the bottom

Specifications

Series SRG
Block Flange (A/LA, C/LC)
Sizes 15, 20, 25, 30
Rolling element Caged rollers
Contact angle 45°
Max. rail length 3000 mm
Clearance options Normal, C1, C0
Accuracy options P, SP, UP
Seal options Dust-control symbols, see p. A1-494
Source THK LM Guide General Catalog (A Product Descriptions), p. A1-402-403
SRG15A M: 24 mm | W: 47 mm | L: 69.2 mm | C: 11.3 kN | C0: 25.8 kN
SRG20A M: 30 mm | W: 63 mm | L: 86.2 mm | C: 21 kN | C0: 46.9 kN
SRG20LA M: 30 mm | W: 63 mm | L: 106.2 mm | C: 26.7 kN | C0: 63.8 kN
SRG25C M: 36 mm | W: 70 mm | L: 95.5 mm | C: 27.9 kN | C0: 57.5 kN
SRG25LC M: 36 mm | W: 70 mm | L: 115.1 mm | C: 34.2 kN | C0: 75 kN
SRG30C M: 42 mm | W: 90 mm | L: 111 mm | C: 39.3 kN | C0: 82.5 kN
SRG30LC M: 42 mm | W: 90 mm | L: 135 mm | C: 48.3 kN | C0: 108 kN
