CBK AW / AWL Bearing Lock Washers (Bent and Straight Tab)

CBK AW / AWL Bearing Lock Washers (Bent and Straight Tab)

CBK AW and AWL tab lock washers for securing AN / ANL lock nuts on adapter sleeves and shafts.

Key features

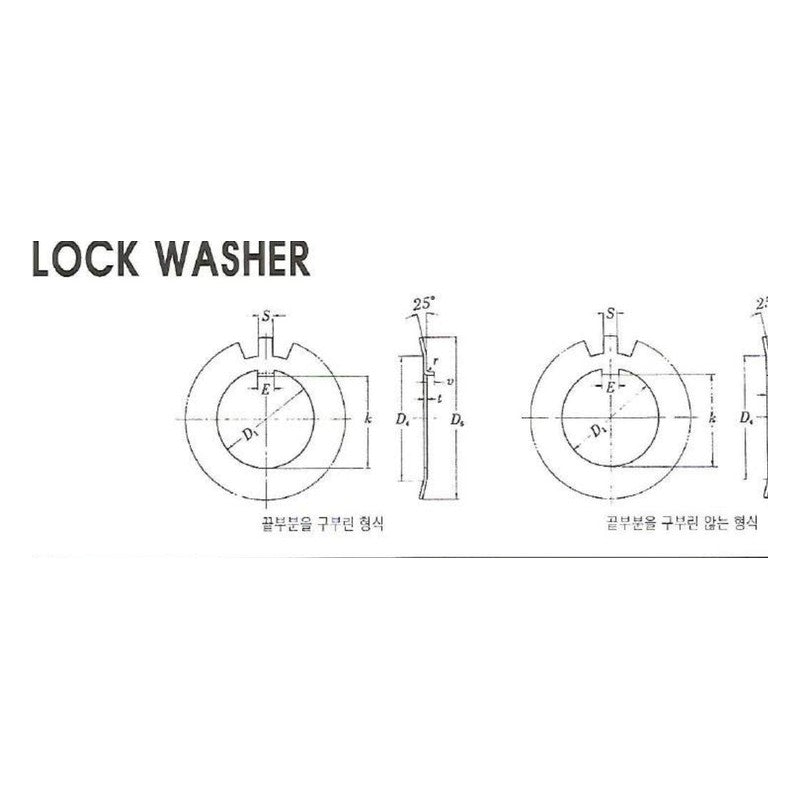

  • AW..: bent (formed) tab type; AW..X: straight tab type
  • AW for A31 / A23 adapter sleeve series; AWL for A30 series
  • Internal key engages the shaft or sleeve slot; external tabs lock the nut
  • Sizes from 15 mm to 200 mm bore

Specifications

Product Bearing lock washer
Series AW / AWL
Mass basis kg per 100 pcs in catalogue
Brand CBK
Product type Lock Nuts & Washers
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 225-227
AW02 Bore d1: 15 mm | Outer D5: 28 mm | Thickness: 1 mm | Tab: Bent tab | Lock nut: AN02
AW02X Bore d1: 15 mm | Outer D5: 28 mm | Thickness: 1 mm | Tab: Straight tab | Lock nut: AN02
AW03 Bore d1: 17 mm | Outer D5: 32 mm | Thickness: 1 mm | Tab: Bent tab | Lock nut: AN03
AW03X Bore d1: 17 mm | Outer D5: 32 mm | Thickness: 1 mm | Tab: Straight tab | Lock nut: AN03
AW04 Bore d1: 20 mm | Outer D5: 36 mm | Thickness: 1 mm | Tab: Bent tab | Lock nut: AN04
AW04X Bore d1: 20 mm | Outer D5: 36 mm | Thickness: 1 mm | Tab: Straight tab | Lock nut: AN04
AW05 Bore d1: 25 mm | Outer D5: 42 mm | Thickness: 1.2 mm | Tab: Bent tab | Lock nut: AN05
AW05X Bore d1: 25 mm | Outer D5: 42 mm | Thickness: 1.2 mm | Tab: Straight tab | Lock nut: AN05
AW06 Bore d1: 30 mm | Outer D5: 49 mm | Thickness: 1.2 mm | Tab: Bent tab | Lock nut: AN06
AW06X Bore d1: 30 mm | Outer D5: 49 mm | Thickness: 1.2 mm | Tab: Straight tab | Lock nut: AN06
AW07 Bore d1: 35 mm | Outer D5: 57 mm | Thickness: 1.2 mm | Tab: Bent tab | Lock nut: AN07
AW07X Bore d1: 35 mm | Outer D5: 57 mm | Thickness: 1.2 mm | Tab: Straight tab | Lock nut: AN07
AW08 Bore d1: 40 mm | Outer D5: 62 mm | Thickness: 1.2 mm | Tab: Bent tab | Lock nut: AN08
AW08X Bore d1: 40 mm | Outer D5: 62 mm | Thickness: 1.2 mm | Tab: Straight tab | Lock nut: AN08
AW09 Bore d1: 45 mm | Outer D5: 69 mm | Thickness: 1.2 mm | Tab: Bent tab | Lock nut: AN09
AW09X Bore d1: 45 mm | Outer D5: 69 mm | Thickness: 1.2 mm | Tab: Straight tab | Lock nut: AN09
AW10 Bore d1: 50 mm | Outer D5: 74 mm | Thickness: 1.2 mm | Tab: Bent tab | Lock nut: AN10
AW10X Bore d1: 50 mm | Outer D5: 74 mm | Thickness: 1.2 mm | Tab: Straight tab | Lock nut: AN10
AW11 Bore d1: 55 mm | Outer D5: 81 mm | Thickness: 1.2 mm | Tab: Bent tab | Lock nut: AN11
AW11X Bore d1: 55 mm | Outer D5: 81 mm | Thickness: 1.2 mm | Tab: Straight tab | Lock nut: AN11
AW12 Bore d1: 60 mm | Outer D5: 86 mm | Thickness: 1.5 mm | Tab: Bent tab | Lock nut: AN12
AW12X Bore d1: 60 mm | Outer D5: 86 mm | Thickness: 1.5 mm | Tab: Straight tab | Lock nut: AN12
AW13 Bore d1: 65 mm | Outer D5: 92 mm | Thickness: 1.5 mm | Tab: Bent tab | Lock nut: AN13
AW13X Bore d1: 65 mm | Outer D5: 92 mm | Thickness: 1.5 mm | Tab: Straight tab | Lock nut: AN13
AW14 Bore d1: 70 mm | Outer D5: 98 mm | Thickness: 1.5 mm | Tab: Bent tab | Lock nut: AN14
AW14X Bore d1: 70 mm | Outer D5: 98 mm | Thickness: 1.5 mm | Tab: Straight tab | Lock nut: AN14
AW15 Bore d1: 75 mm | Outer D5: 104 mm | Thickness: 1.5 mm | Tab: Bent tab | Lock nut: AN15
AW15X Bore d1: 75 mm | Outer D5: 104 mm | Thickness: 1.5 mm | Tab: Straight tab | Lock nut: AN15
AW16 Bore d1: 80 mm | Outer D5: 112 mm | Thickness: 1.8 mm | Tab: Bent tab | Lock nut: AN16
AW16X Bore d1: 80 mm | Outer D5: 112 mm | Thickness: 1.8 mm | Tab: Straight tab | Lock nut: AN16
AW17 Bore d1: 85 mm | Outer D5: 119 mm | Thickness: 1.8 mm | Tab: Bent tab | Lock nut: AN17
AW17X Bore d1: 85 mm | Outer D5: 119 mm | Thickness: 1.8 mm | Tab: Straight tab | Lock nut: AN17
AW18 Bore d1: 90 mm | Outer D5: 126 mm | Thickness: 1.8 mm | Tab: Bent tab | Lock nut: AN18
AW18X Bore d1: 90 mm | Outer D5: 126 mm | Thickness: 1.8 mm | Tab: Straight tab | Lock nut: AN18
AW19 Bore d1: 95 mm | Outer D5: 133 mm | Thickness: 1.8 mm | Tab: Bent tab | Lock nut: AN19
AW19X Bore d1: 95 mm | Outer D5: 133 mm | Thickness: 1.8 mm | Tab: Straight tab | Lock nut: AN19
AW20 Bore d1: 100 mm | Outer D5: 142 mm | Thickness: 1.8 mm | Tab: Bent tab | Lock nut: AN20
AW20X Bore d1: 100 mm | Outer D5: 142 mm | Thickness: 1.8 mm | Tab: Straight tab | Lock nut: AN20
AW21 Bore d1: 105 mm | Outer D5: 145 mm | Thickness: 1.8 mm | Tab: Bent tab | Lock nut: AN21
AW21X Bore d1: 105 mm | Outer D5: 145 mm | Thickness: 1.8 mm | Tab: Straight tab | Lock nut: AN21
AW22 Bore d1: 110 mm | Outer D5: 154 mm | Thickness: 1.8 mm | Tab: Bent tab | Lock nut: AN22
AW22X Bore d1: 110 mm | Outer D5: 154 mm | Thickness: 1.8 mm | Tab: Straight tab | Lock nut: AN22
AW23 Bore d1: 115 mm | Outer D5: 159 mm | Thickness: 2 mm | Tab: Bent tab | Lock nut: AN23
AW23X Bore d1: 115 mm | Outer D5: 159 mm | Thickness: 2 mm | Tab: Straight tab | Lock nut: AN23
AW24 Bore d1: 120 mm | Outer D5: 164 mm | Thickness: 2 mm | Tab: Bent tab | Lock nut: AN24
AW24X Bore d1: 120 mm | Outer D5: 164 mm | Thickness: 2 mm | Tab: Straight tab | Lock nut: AN24
AW25 Bore d1: 125 mm | Outer D5: 170 mm | Thickness: 2 mm | Tab: Bent tab | Lock nut: AN25
AW25X Bore d1: 125 mm | Outer D5: 170 mm | Thickness: 2 mm | Tab: Straight tab | Lock nut: AN25
AW26 Bore d1: 130 mm | Outer D5: 175 mm | Thickness: 2 mm | Tab: Bent tab | Lock nut: AN26
AW26X Bore d1: 130 mm | Outer D5: 175 mm | Thickness: 2 mm | Tab: Straight tab | Lock nut: AN26
AW27 Bore d1: 135 mm | Outer D5: 185 mm | Thickness: 2 mm | Tab: Bent tab | Lock nut: AN27
AW27X Bore d1: 135 mm | Outer D5: 185 mm | Thickness: 2 mm | Tab: Straight tab | Lock nut: AN27
AW28 Bore d1: 140 mm | Outer D5: 192 mm | Thickness: 2 mm | Tab: Bent tab | Lock nut: AN28
AW28X Bore d1: 140 mm | Outer D5: 192 mm | Thickness: 2 mm | Tab: Straight tab | Lock nut: AN28
AW29 Bore d1: 145 mm | Outer D5: 202 mm | Thickness: 2 mm | Tab: Bent tab | Lock nut: AN29
AW29X Bore d1: 145 mm | Outer D5: 202 mm | Thickness: 2 mm | Tab: Straight tab | Lock nut: AN29
AW30 Bore d1: 150 mm | Outer D5: 205 mm | Thickness: 2 mm | Tab: Bent tab | Lock nut: AN30
AW30X Bore d1: 150 mm | Outer D5: 205 mm | Thickness: 2 mm | Tab: Straight tab | Lock nut: AN30
AW31 Bore d1: 155 mm | Outer D5: 212 mm | Thickness: 2.5 mm | Tab: Bent tab | Lock nut: AN31
AW31X Bore d1: 155 mm | Outer D5: 212 mm | Thickness: 2.5 mm | Tab: Straight tab | Lock nut: AN31
AW32 Bore d1: 160 mm | Outer D5: 217 mm | Thickness: 2.5 mm | Tab: Bent tab | Lock nut: AN32
AW32X Bore d1: 160 mm | Outer D5: 217 mm | Thickness: 2.5 mm | Tab: Straight tab | Lock nut: AN32
AW33 Bore d1: 165 mm | Outer D5: 222 mm | Thickness: 2.5 mm | Tab: Bent tab | Lock nut: AN33
AW33X Bore d1: 165 mm | Outer D5: 222 mm | Thickness: 2.5 mm | Tab: Straight tab | Lock nut: AN33
AW34 Bore d1: 170 mm | Outer D5: 232 mm | Thickness: 2.5 mm | Tab: Bent tab | Lock nut: AN34
AW34X Bore d1: 170 mm | Outer D5: 232 mm | Thickness: 2.5 mm | Tab: Straight tab | Lock nut: AN34
AW36 Bore d1: 180 mm | Outer D5: 242 mm | Thickness: 2.5 mm | Tab: Bent tab | Lock nut: AN36
AW36X Bore d1: 180 mm | Outer D5: 242 mm | Thickness: 2.5 mm | Tab: Straight tab | Lock nut: AN36
AW38 Bore d1: 190 mm | Outer D5: 252 mm | Thickness: 2.5 mm | Tab: Bent tab | Lock nut: AN38
AW38X Bore d1: 190 mm | Outer D5: 252 mm | Thickness: 2.5 mm | Tab: Straight tab | Lock nut: AN38
AW40 Bore d1: 200 mm | Outer D5: 262 mm | Thickness: 2.5 mm | Tab: Bent tab | Lock nut: AN40
AW40X Bore d1: 200 mm | Outer D5: 262 mm | Thickness: 2.5 mm | Tab: Straight tab | Lock nut: AN40
AWL24 Bore d1: 120 mm | Outer D5: 155 mm | Thickness: 2 mm | Tab: Bent tab | Lock nut: ANL24
AWL24X Bore d1: 120 mm | Outer D5: 155 mm | Thickness: 2 mm | Tab: Straight tab | Lock nut: ANL24
AWL26 Bore d1: 130 mm | Outer D5: 165 mm | Thickness: 2 mm | Tab: Bent tab | Lock nut: ANL26
AWL26X Bore d1: 130 mm | Outer D5: 165 mm | Thickness: 2 mm | Tab: Straight tab | Lock nut: ANL26
AWL28 Bore d1: 140 mm | Outer D5: 175 mm | Thickness: 2 mm | Tab: Bent tab | Lock nut: ANL28
AWL28X Bore d1: 140 mm | Outer D5: 175 mm | Thickness: 2 mm | Tab: Straight tab | Lock nut: ANL28
AWL30 Bore d1: 150 mm | Outer D5: 190 mm | Thickness: 2 mm | Tab: Bent tab | Lock nut: ANL30
AWL30X Bore d1: 150 mm | Outer D5: 190 mm | Thickness: 2 mm | Tab: Straight tab | Lock nut: ANL30
AWL32 Bore d1: 160 mm | Outer D5: 200 mm | Thickness: 2.5 mm | Tab: Bent tab | Lock nut: ANL32
AWL32X Bore d1: 160 mm | Outer D5: 200 mm | Thickness: 2.5 mm | Tab: Straight tab | Lock nut: ANL32
AWL34 Bore d1: 170 mm | Outer D5: 210 mm | Thickness: 2.5 mm | Tab: Bent tab | Lock nut: ANL34
AWL34X Bore d1: 170 mm | Outer D5: 210 mm | Thickness: 2.5 mm | Tab: Straight tab | Lock nut: ANL34
AWL36 Bore d1: 180 mm | Outer D5: 220 mm | Thickness: 2.5 mm | Tab: Bent tab | Lock nut: ANL36
AWL36X Bore d1: 180 mm | Outer D5: 220 mm | Thickness: 2.5 mm | Tab: Straight tab | Lock nut: ANL36
AWL38 Bore d1: 190 mm | Outer D5: 230 mm | Thickness: 2.5 mm | Tab: Bent tab | Lock nut: ANL38
AWL38X Bore d1: 190 mm | Outer D5: 230 mm | Thickness: 2.5 mm | Tab: Straight tab | Lock nut: ANL38
AWL40 Bore d1: 200 mm | Outer D5: 250 mm | Thickness: 2.5 mm | Tab: Bent tab | Lock nut: ANL40
AWL40X Bore d1: 200 mm | Outer D5: 250 mm | Thickness: 2.5 mm | Tab: Straight tab | Lock nut: ANL40
