• CBK H2300 / HS / HE Adapter Sleeves for UK Bearing Units
1 1

CBK H2300 / HS / HE Adapter Sleeves for UK Bearing Units

CBK H2300 / HS / HE Adapter Sleeves for UK Bearing Units

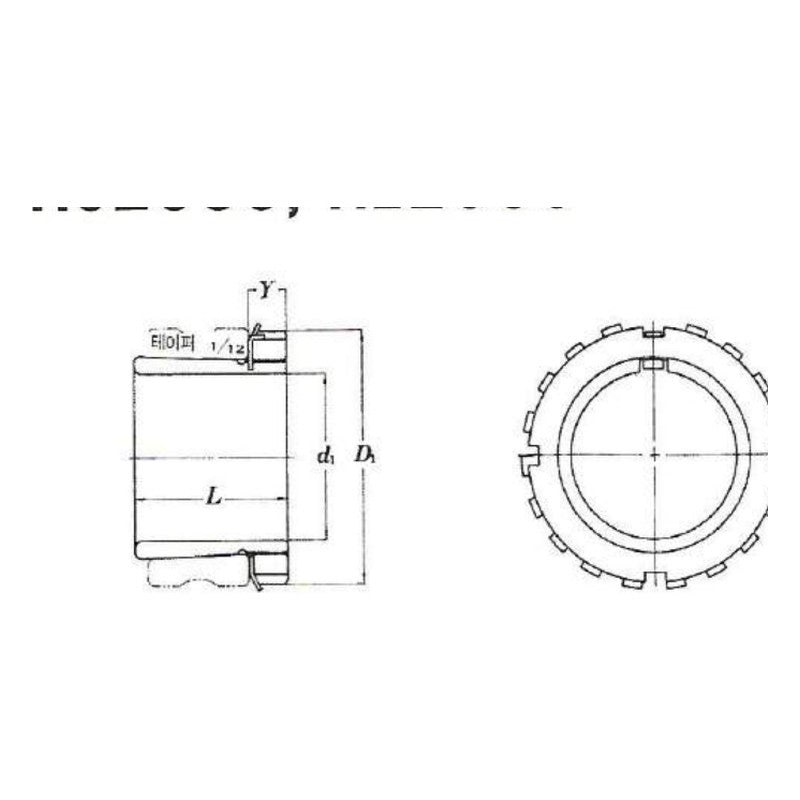

CBK H2300-series adapter sleeve assemblies (H metric, HS/HE inch shaft) for mounting UK tapered-bore insert bearings on plain shafts.

Key features

  • Tapered (1:12) slotted sleeve with lock nut and lock washer
  • H = metric shaft; HS and HE = inch shaft executions of the same size group
  • Matching AN lock nut and AW lock washer listed per size
  • For UK2 / UKX / UK3 insert bearings in pillow block, flange and take-up housings

Specifications

Product Adapter sleeve assembly
Series H2300
Taper 1:12
Variants H (metric), HS / HE (inch shafts)
Note Size d1 is the metric group bore; HS/HE bores are inch
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 109
HE2305X Size d1: 20 mm | B1: 35 mm | d2: 38 mm | Lock nut: AN05 | Mass: 0.085 kg
H2305X Size d1: 20 mm | B1: 35 mm | d2: 38 mm | Lock nut: AN05 | Mass: 0.095 kg
H2306X Size d1: 25 mm | B1: 38 mm | d2: 45 mm | Lock nut: AN06 | Mass: 0.13 kg
HE2306X Size d1: 25 mm | B1: 38 mm | d2: 45 mm | Lock nut: AN06 | Mass: 0.12 kg
HS2307X Size d1: 30 mm | B1: 43 mm | d2: 52 mm | Lock nut: AN07 | Mass: 0.19 kg
H2307X Size d1: 30 mm | B1: 43 mm | d2: 52 mm | Lock nut: AN07 | Mass: 0.17 kg
HE2308X Size d1: 35 mm | B1: 46 mm | d2: 58 mm | Lock nut: AN08 | Mass: 0.28 kg
HS2308X Size d1: 35 mm | B1: 46 mm | d2: 58 mm | Lock nut: AN08 | Mass: 0.22 kg
H2308X Size d1: 35 mm | B1: 46 mm | d2: 58 mm | Lock nut: AN08 | Mass: 0.22 kg
HE2309X Size d1: 40 mm | B1: 50 mm | d2: 65 mm | Lock nut: AN09 | Mass: 0.32 kg
H2309X Size d1: 40 mm | B1: 50 mm | d2: 65 mm | Lock nut: AN09 | Mass: 0.28 kg
HS2309X Size d1: 40 mm | B1: 50 mm | d2: 65 mm | Lock nut: AN09 | Mass: 0.25 kg
HE2310X Size d1: 45 mm | B1: 55 mm | d2: 70 mm | Lock nut: AN10 | Mass: 0.37 kg
H2310X Size d1: 45 mm | B1: 55 mm | d2: 70 mm | Lock nut: AN10 | Mass: 0.36 kg
HE2311X Size d1: 50 mm | B1: 59 mm | d2: 75 mm | Lock nut: AN11 | Mass: 0.5 kg
H2311X Size d1: 50 mm | B1: 59 mm | d2: 75 mm | Lock nut: AN11 | Mass: 0.42 kg
HS2311X Size d1: 50 mm | B1: 59 mm | d2: 75 mm | Lock nut: AN11 | Mass: 0.4 kg
HE2312X Size d1: 55 mm | B1: 62 mm | d2: 80 mm | Lock nut: AN12 | Mass: 0.52 kg
H2312X Size d1: 55 mm | B1: 62 mm | d2: 80 mm | Lock nut: AN12 | Mass: 0.48 kg
HE2313X Size d1: 60 mm | B1: 65 mm | d2: 85 mm | Lock nut: AN13 | Mass: 0.69 kg
H2313X Size d1: 60 mm | B1: 65 mm | d2: 85 mm | Lock nut: AN13 | Mass: 0.56 kg
HS2313X Size d1: 60 mm | B1: 65 mm | d2: 85 mm | Lock nut: AN13 | Mass: 0.55 kg
HE2315X Size d1: 65 mm | B1: 73 mm | d2: 98 mm | Lock nut: AN15 | Mass: 1.15 kg
H2315X Size d1: 65 mm | B1: 73 mm | d2: 98 mm | Lock nut: AN15 | Mass: 1.05 kg
HE2316X Size d1: 70 mm | B1: 78 mm | d2: 105 mm | Lock nut: AN16 | Mass: 1.3 kg
H2316X Size d1: 70 mm | B1: 78 mm | d2: 105 mm | Lock nut: AN16 | Mass: 1.3 kg
H2317X Size d1: 75 mm | B1: 82 mm | d2: 110 mm | Lock nut: AN17 | Mass: 1.45 kg
HE2317X Size d1: 75 mm | B1: 82 mm | d2: 110 mm | Lock nut: AN17 | Mass: 1.35 kg
H2318X Size d1: 80 mm | B1: 86 mm | d2: 120 mm | Lock nut: AN18 | Mass: 1.7 kg
HE2319X Size d1: 85 mm | B1: 90 mm | d2: 125 mm | Lock nut: AN19 | Mass: 2.15 kg
H2319X Size d1: 85 mm | B1: 90 mm | d2: 125 mm | Lock nut: AN19 | Mass: 1.95 kg
HE2320X Size d1: 90 mm | B1: 97 mm | d2: 130 mm | Lock nut: AN20 | Mass: 2.3 kg
H2320X Size d1: 90 mm | B1: 97 mm | d2: 130 mm | Lock nut: AN20 | Mass: 2.2 kg
H2322X Size d1: 100 mm | B1: 105 mm | d2: 145 mm | Lock nut: AN22 | Mass: 2.75 kg
HE2322X Size d1: 100 mm | B1: 105 mm | d2: 145 mm | Lock nut: AN22 | Mass: 2.55 kg
H2324X Size d1: 100 mm | B1: 112 mm | d2: 155 mm | Lock nut: AN24 | Mass: 3.2 kg
HE2326X Size d1: 115 mm | B1: 121 mm | d2: 165 mm | Lock nut: AN26 | Mass: 4.7 kg
H2326X Size d1: 115 mm | B1: 121 mm | d2: 165 mm | Lock nut: AN26 | Mass: 4.6 kg
H2328X Size d1: 125 mm | B1: 131 mm | d2: 180 mm | Lock nut: AN28 | Mass: 5.5 kg
Bearing AccessoriesCBK
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
