CBK H300 / HS / HE Adapter Sleeves for UK Bearing Units

CBK H300 / HS / HE Adapter Sleeves for UK Bearing Units

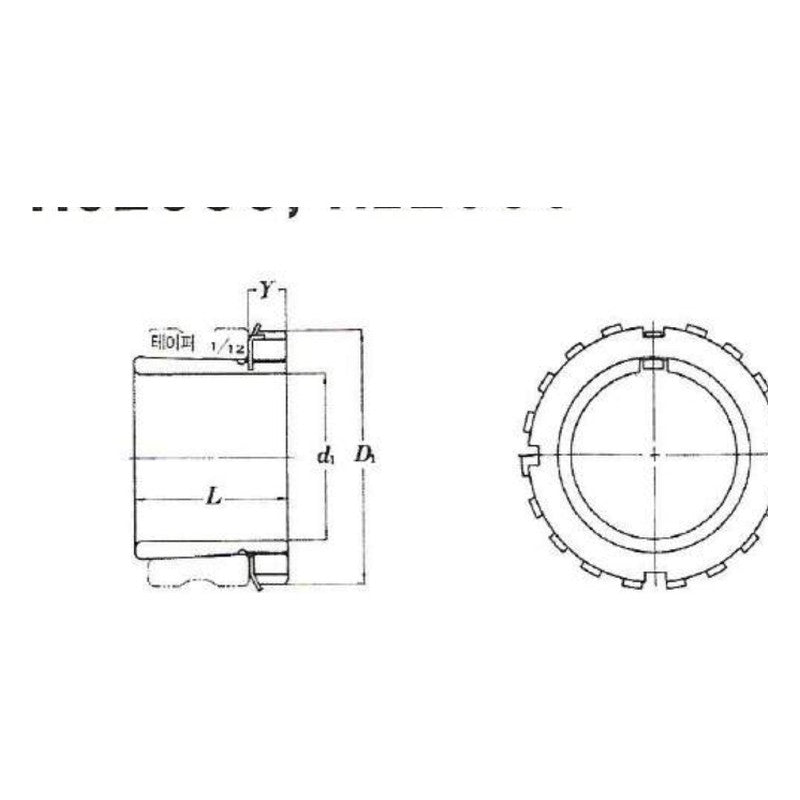

CBK H300-series adapter sleeve assemblies (H metric, HS/HE inch shaft) for mounting UK tapered-bore insert bearings on plain shafts.

Key features

  • Tapered (1:12) slotted sleeve with lock nut and lock washer
  • H = metric shaft; HS and HE = inch shaft executions of the same size group
  • Matching AN lock nut and AW lock washer listed per size
  • For UK2 / UKX / UK3 insert bearings in pillow block, flange and take-up housings

Specifications

Product Adapter sleeve assembly
Series H300
Taper 1:12
Variants H (metric), HS / HE (inch shafts)
Note Size d1 is the metric group bore; HS/HE bores are inch
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 110
HE305X Size d1: 20 mm | B1: 29 mm | d2: 38 mm | Lock nut: AN05 | Mass: 0.08 kg
H305X Size d1: 20 mm | B1: 29 mm | d2: 38 mm | Lock nut: AN05 | Mass: 0.075 kg
H306X Size d1: 25 mm | B1: 31 mm | d2: 45 mm | Lock nut: AN06 | Mass: 0.11 kg
HE306X Size d1: 25 mm | B1: 31 mm | d2: 45 mm | Lock nut: AN06 | Mass: 0.105 kg
HS307X Size d1: 30 mm | B1: 35 mm | d2: 52 mm | Lock nut: AN07 | Mass: 0.15 kg
H307X Size d1: 30 mm | B1: 35 mm | d2: 52 mm | Lock nut: AN07 | Mass: 0.14 kg
HE308X Size d1: 35 mm | B1: 36 mm | d2: 58 mm | Lock nut: AN08 | Mass: 0.23 kg
HS308X Size d1: 35 mm | B1: 36 mm | d2: 58 mm | Lock nut: AN08 | Mass: 0.19 kg
H308X Size d1: 35 mm | B1: 36 mm | d2: 58 mm | Lock nut: AN08 | Mass: 0.19 kg
HE309X Size d1: 40 mm | B1: 39 mm | d2: 65 mm | Lock nut: AN09 | Mass: 0.28 kg
H309X Size d1: 40 mm | B1: 39 mm | d2: 65 mm | Lock nut: AN09 | Mass: 0.25 kg
HS309X Size d1: 40 mm | B1: 39 mm | d2: 65 mm | Lock nut: AN09 | Mass: 0.23 kg
HE310X Size d1: 45 mm | B1: 42 mm | d2: 70 mm | Lock nut: AN10 | Mass: 0.31 kg
H310X Size d1: 45 mm | B1: 42 mm | d2: 70 mm | Lock nut: AN10 | Mass: 0.3 kg
HE311X Size d1: 50 mm | B1: 45 mm | d2: 75 mm | Lock nut: AN11 | Mass: 0.41 kg
H311X Size d1: 50 mm | B1: 45 mm | d2: 75 mm | Lock nut: AN11 | Mass: 0.35 kg
HS311X Size d1: 50 mm | B1: 45 mm | d2: 75 mm | Lock nut: AN11 | Mass: 0.33 kg
HE312X Size d1: 55 mm | B1: 47 mm | d2: 80 mm | Lock nut: AN12 | Mass: 0.4 kg
H312X Size d1: 55 mm | B1: 47 mm | d2: 80 mm | Lock nut: AN12 | Mass: 0.43 kg
HE313X Size d1: 60 mm | B1: 50 mm | d2: 85 mm | Lock nut: AN13 | Mass: 0.56 kg
H313X Size d1: 60 mm | B1: 50 mm | d2: 85 mm | Lock nut: AN13 | Mass: 0.46 kg
HS313X Size d1: 60 mm | B1: 50 mm | d2: 85 mm | Lock nut: AN13 | Mass: 0.45 kg
HE315X Size d1: 65 mm | B1: 55 mm | d2: 98 mm | Lock nut: AN15 | Mass: 0.89 kg
H315X Size d1: 65 mm | B1: 55 mm | d2: 98 mm | Lock nut: AN15 | Mass: 0.83 kg
HE316X Size d1: 70 mm | B1: 59 mm | d2: 105 mm | Lock nut: AN16 | Mass: 1.05 kg
H316X Size d1: 70 mm | B1: 59 mm | d2: 105 mm | Lock nut: AN16 | Mass: 1.05 kg
H317X Size d1: 75 mm | B1: 63 mm | d2: 110 mm | Lock nut: AN17 | Mass: 1.2 kg
HE317X Size d1: 75 mm | B1: 63 mm | d2: 110 mm | Lock nut: AN17 | Mass: 1.1 kg
H318X Size d1: 80 mm | B1: 95 mm | d2: 120 mm | Lock nut: AN18 | Mass: 1.4 kg
