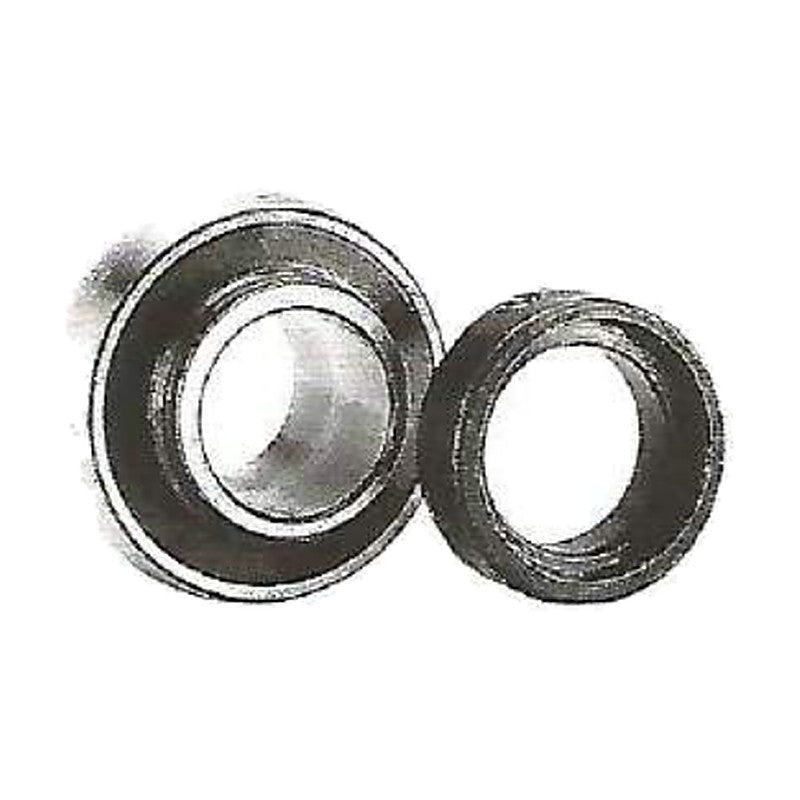

CBK HC2 Insert Bearings (Eccentric Collar)

CBK HC2 Insert Bearings (Eccentric Collar)

CBK HC2 insert ball bearings (eccentric locking collar, extended inner ring) for use in mounted bearing unit housings.

Key features

  • Eccentric locking collar, extended inner ring
  • Spherical outside diameter allows self-alignment in the housing
  • Double-sealed and grease-filled for maintenance-free operation
  • Interchangeable with standard bearing unit housings of the same series
  • Dimensions, load ratings (kgf) and mass as listed per size

Specifications

Product Ball bearing insert for mounted units
Series HC2
Design eccentric locking collar, extended inner ring
Sealing Sealed, pre-lubricated
Load rating unit kgf
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 98
HC201 d: 12 mm | D: 47 mm | B: 43.7 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.29 kg
HC201-8 d: 1/2 in | D: 47 mm | B: 43.7 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.29 kg
HC202 d: 15 mm | D: 47 mm | B: 43.7 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.27 kg
HC202-10 d: 5/8 in | D: 47 mm | B: 43.7 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.26 kg
HC203 d: 17 mm | D: 47 mm | B: 43.7 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.25 kg
HC204-12 d: 3/4 in | D: 47 mm | B: 43.7 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.23 kg
HC204 d: 20 mm | D: 47 mm | B: 43.7 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
HC205-14 d: 7/8 in | D: 52 mm | B: 44.4 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.29 kg
HC205-15 d: 15/16 in | D: 52 mm | B: 44.4 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.27 kg
HC205 d: 25 mm | D: 52 mm | B: 44.4 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.25 kg
HC205-16 d: 1 in | D: 52 mm | B: 44.4 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.25 kg
HC206-18 d: 1-1/8 in | D: 62 mm | B: 48.4 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.43 kg
HC206 d: 30 mm | D: 62 mm | B: 48.4 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.41 kg
HC206-19 d: 1-3/16 in | D: 62 mm | B: 48.4 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.41 kg
HC206-20 d: 1-1/4 in | D: 62 mm | B: 48.4 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.38 kg
HC207-20 d: 1-1/4 in | D: 72 mm | B: 51.2 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.68 kg
HC207-22 d: 1-3/8 in | D: 72 mm | B: 51.2 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.61 kg
HC207 d: 35 mm | D: 72 mm | B: 51.2 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.61 kg
HC207-23 d: 1-7/16 in | D: 72 mm | B: 51.2 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.58 kg
HC208-24 d: 1-1/2 in | D: 80 mm | B: 56.4 mm | C: 2910 kgf | C0: 1650 kgf | Mass: 0.83 kg
HC208 d: 40 mm | D: 80 mm | B: 56.4 mm | C: 2910 kgf | C0: 1650 kgf | Mass: 0.79 kg
HC209-26 d: 1-5/8 in | D: 85 mm | B: 56.4 mm | C: 3200 kgf | C0: 1850 kgf | Mass: 0.96 kg
HC209-27 d: 1-11/16 in | D: 85 mm | B: 56.4 mm | C: 3200 kgf | C0: 1850 kgf | Mass: 0.91 kg
HC209-28 d: 1-3/4 in | D: 85 mm | B: 56.4 mm | C: 3200 kgf | C0: 1850 kgf | Mass: 0.87 kg
HC209 d: 45 mm | D: 85 mm | B: 56.4 mm | C: 3200 kgf | C0: 1850 kgf | Mass: 0.85 kg
HC210-31 d: 1-15/16 in | D: 90 mm | B: 62.7 mm | C: 3510 kgf | C0: 2100 kgf | Mass: 1.04 kg
HC210 d: 50 mm | D: 90 mm | B: 62.7 mm | C: 3510 kgf | C0: 2100 kgf | Mass: 1.01 kg
HC211-32 d: 2 in | D: 100 mm | B: 71.4 mm | C: 4330 kgf | C0: 2660 kgf | Mass: 1.58 kg
HC211 d: 55 mm | D: 100 mm | B: 71.4 mm | C: 4330 kgf | C0: 2660 kgf | Mass: 1.39 kg
HC211-35 d: 2-3/16 in | D: 100 mm | B: 71.4 mm | C: 4330 kgf | C0: 2660 kgf | Mass: 1.36 kg
HC212-36 d: 2-1/4 in | D: 110 mm | B: 77.8 mm | C: 5240 kgf | C0: 3300 kgf | Mass: 2.03 kg
HC212 d: 60 mm | D: 110 mm | B: 77.8 mm | C: 5240 kgf | C0: 3300 kgf | Mass: 1.87 kg
HC212-39 d: 2-7/16 in | D: 110 mm | B: 77.8 mm | C: 5240 kgf | C0: 3300 kgf | Mass: 1.76 kg
HC213-40 d: 2-1/2 in | D: 120 mm | B: 85.7 mm | C: 5720 kgf | C0: 3650 kgf | Mass: 2.51 kg
HC214-44 d: 2-3/4 in | D: 125 mm | B: 85.7 mm | C: 6220 kgf | C0: 4000 kgf | Mass: 2.65 kg
HC214 d: 70 mm | D: 125 mm | B: 85.7 mm | C: 6220 kgf | C0: 4000 kgf
HC215-47 d: 2-15/16 in | D: 130 mm | B: 92.1 mm | C: 6740 kgf | C0: 4820 kgf | Mass: 2.74 kg
