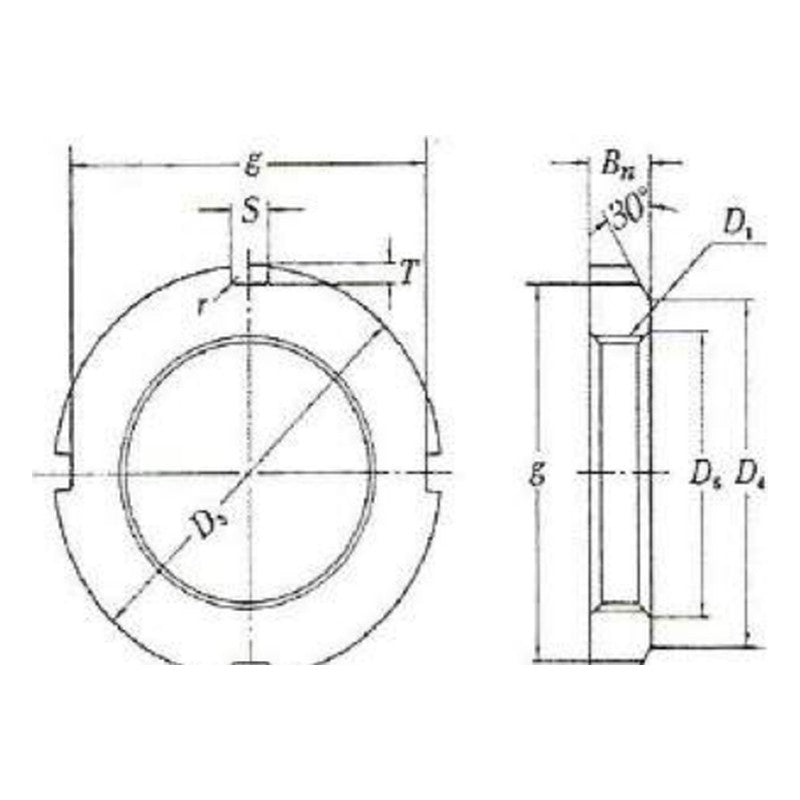

CBK HN / HNL Lock Nuts for Withdrawal Sleeves (Tr205-Tr550)

CBK HN / HNL Lock Nuts for Withdrawal Sleeves (Tr205-Tr550)

CBK HN and HNL trapezoidal-thread lock nuts used with AH / AHX withdrawal sleeves for large spherical roller bearings.

Key features

  • Trapezoidal (Tr) thread from Tr205 to Tr550
  • HN for AH31/AH32/AH23 series sleeves; HNL for AH30 series
  • Slotted outer diameter for hook spanner
  • Dimensions and mass listed per size

Specifications

Product Withdrawal sleeve lock nut
Series HN / HNL
Thread Trapezoidal (JIS B 0216)
Brand CBK
Product type Lock Nuts & Washers
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 222
HN42 Thread: Tr210x4 | Outer dia: 270 mm | Width: 30 mm | Mass: 4.75 kg
HN44 Thread: Tr220x4 | Outer dia: 280 mm | Width: 32 mm | Mass: 5.35 kg
HN48 Thread: Tr240x4 | Outer dia: 300 mm | Width: 34 mm | Mass: 6.2 kg
HN52 Thread: Tr260x4 | Outer dia: 330 mm | Width: 36 mm | Mass: 8.55 kg
HN58 Thread: Tr290x4 | Outer dia: 370 mm | Width: 40 mm | Mass: 11.8 kg
HN62 Thread: Tr310x5 | Outer dia: 390 mm | Width: 42 mm | Mass: 13.4 kg
HN66 Thread: Tr330x5 | Outer dia: 420 mm | Width: 52 mm | Mass: 20.4 kg
HN70 Thread: Tr350x5 | Outer dia: 450 mm | Width: 55 mm | Mass: 25.2 kg
HN74 Thread: Tr370x5 | Outer dia: 470 mm | Width: 58 mm | Mass: 28.2 kg
HN80 Thread: Tr400x5 | Outer dia: 520 mm | Width: 62 mm | Mass: 40 kg
HN84 Thread: Tr420x5 | Outer dia: 540 mm | Width: 70 mm | Mass: 46.9 kg
HN88 Thread: Tr440x5 | Outer dia: 560 mm | Width: 70 mm | Mass: 48.5 kg
HN92 Thread: Tr460x5 | Outer dia: 580 mm | Width: 75 mm | Mass: 55 kg
HN96 Thread: Tr480x5 | Outer dia: 620 mm | Width: 75 mm | Mass: 67 kg
HN102 Thread: Tr510x5 | Outer dia: 650 mm | Width: 80 mm | Mass: 75 kg
HN106 Thread: Tr530x5 | Outer dia: 670 mm | Width: 80 mm | Mass: 78 kg
HN110 Thread: Tr550x5 | Outer dia: 700 mm | Width: 80 mm | Mass: 92.5 kg
HNL41 Thread: Tr205x4 | Outer dia: 250 mm | Width: 30 mm | Mass: 3.45 kg
HNL43 Thread: Tr215x4 | Outer dia: 260 mm | Width: 30 mm | Mass: 3.7 kg
HNL47 Thread: Tr235x4 | Outer dia: 280 mm | Width: 34 mm | Mass: 4.6 kg
HNL52 Thread: Tr260x4 | Outer dia: 310 mm | Width: 34 mm | Mass: 5.8 kg
HNL56 Thread: Tr280x4 | Outer dia: 330 mm | Width: 38 mm | Mass: 6.7 kg
HNL60 Thread: Tr300x4 | Outer dia: 360 mm | Width: 42 mm | Mass: 9.6 kg
HNL64 Thread: Tr320x5 | Outer dia: 380 mm | Width: 42 mm | Mass: 10.3 kg
HNL69 Thread: Tr345x5 | Outer dia: 410 mm | Width: 45 mm | Mass: 11.5 kg
HNL73 Thread: Tr365x5 | Outer dia: 430 mm | Width: 48 mm | Mass: 14.2 kg
HNL77 Thread: Tr385x5 | Outer dia: 450 mm | Width: 48 mm | Mass: 15 kg
HNL82 Thread: Tr410x5 | Outer dia: 480 mm | Width: 52 mm | Mass: 19 kg
HNL86 Thread: Tr430x5 | Outer dia: 500 mm | Width: 52 mm | Mass: 19.8 kg
HNL90 Thread: Tr450x5 | Outer dia: 520 mm | Width: 60 mm | Mass: 23.8 kg
HNL94 Thread: Tr470x5 | Outer dia: 540 mm | Width: 60 mm | Mass: 25 kg
HNL98 Thread: Tr490x5 | Outer dia: 580 mm | Width: 60 mm | Mass: 34 kg
HNL104 Thread: Tr520x5 | Outer dia: 600 mm | Width: 68 mm | Mass: 37 kg
HNL108 Thread: Tr540x5 | Outer dia: 630 mm | Width: 68 mm | Mass: 43.5 kg
