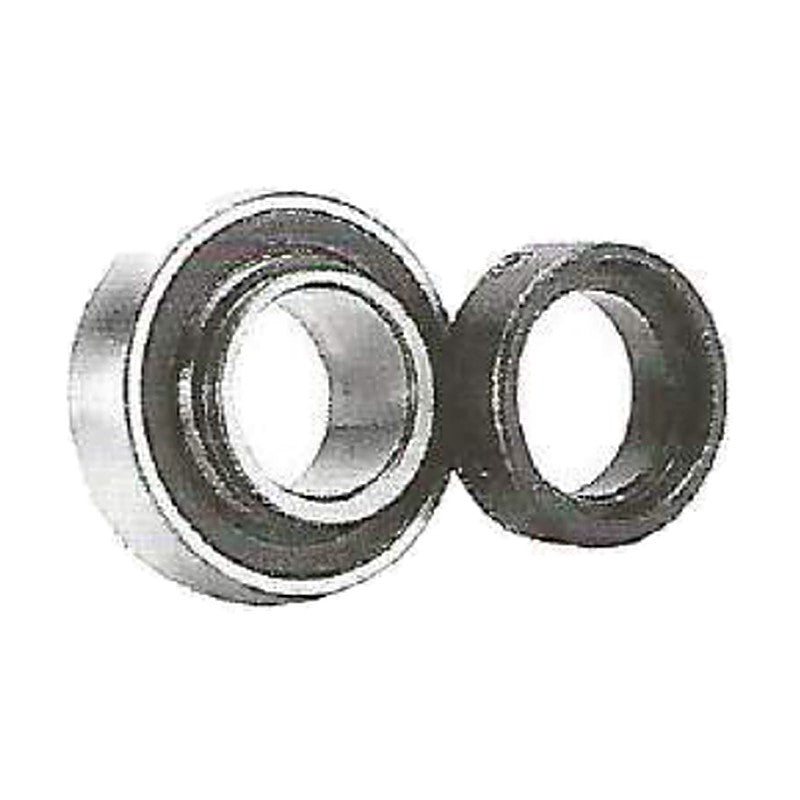

CBK SA2 Insert Bearings (Eccentric Collar)

CBK SA2 Insert Bearings (Eccentric Collar)

CBK SA2 insert ball bearings (eccentric locking collar, narrow light series) for use in mounted bearing unit housings.

Key features

  • Eccentric locking collar, narrow light series
  • Spherical outside diameter allows self-alignment in the housing
  • Double-sealed and grease-filled for maintenance-free operation
  • Interchangeable with standard bearing unit housings of the same series
  • Dimensions, load ratings (kgf) and mass as listed per size

Specifications

Product Ball bearing insert for mounted units
Series SA2
Design eccentric locking collar, narrow light series
Sealing Sealed, pre-lubricated
Load rating unit kgf
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 106
SA201 d: 12 mm | D: 40 mm | B: 19.1 mm | C: 960 kgf | C0: 460 kgf | Mass: 0.13 kg
SA201-8 d: 1/2 in | D: 40 mm | B: 19.1 mm | C: 960 kgf | C0: 460 kgf | Mass: 0.13 kg
SA202 d: 15 mm | D: 40 mm | B: 19.1 mm | C: 960 kgf | C0: 460 kgf | Mass: 0.13 kg
SA202-10 d: 5/8 in | D: 40 mm | B: 19.1 mm | C: 960 kgf | C0: 460 kgf | Mass: 0.13 kg
SA203 d: 17 mm | D: 40 mm | B: 19.1 mm | C: 960 kgf | C0: 460 kgf | Mass: 0.13 kg
SA204-12 d: 3/4 in | D: 47 mm | B: 21.4 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.15 kg
SA204 d: 20 mm | D: 47 mm | B: 21.4 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.15 kg
SA205-14 d: 7/8 in | D: 52 mm | B: 21.5 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.22 kg
SA205 d: 25 mm | D: 52 mm | B: 21.5 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.22 kg
SA205-16 d: 1 in | D: 52 mm | B: 21.5 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.22 kg
SA206-18 d: 1-1/8 in | D: 62 mm | B: 23.8 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.3 kg
SA206 d: 30 mm | D: 62 mm | B: 23.8 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.3 kg
SA206-19 d: 1-3/16 in | D: 62 mm | B: 23.8 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.3 kg
SA206-20 d: 1-1/4 in | D: 62 mm | B: 23.8 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.3 kg
SA207-20 d: 1-1/4 in | D: 72 mm | B: 25.4 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.5 kg
SA207-22 d: 1-3/8 in | D: 72 mm | B: 25.4 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.5 kg
SA207 d: 35 mm | D: 72 mm | B: 25.4 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.5 kg
SA207-23 d: 1-7/16 in | D: 72 mm | B: 25.4 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.5 kg
SA208-24 d: 1-1/2 in | D: 80 mm | B: 30.2 mm | C: 2910 kgf | C0: 1650 kgf | Mass: 0.67 kg
SA208 d: 40 mm | D: 80 mm | B: 30.2 mm | C: 2910 kgf | C0: 1650 kgf | Mass: 0.67 kg
SA209-26 d: 1-5/8 in | D: 85 mm | B: 30.2 mm | C: 3200 kgf | C0: 1650 kgf
SA209-27 d: 1-11/16 in | D: 85 mm | B: 30.2 mm | C: 3200 kgf | C0: 1650 kgf
SA209-28 d: 1-3/4 in | D: 85 mm | B: 30.2 mm | C: 3200 kgf | C0: 1650 kgf
SA209 d: 45 mm | D: 85 mm | B: 30.2 mm | C: 3200 kgf | C0: 1650 kgf
SA210-30 d: 1-7/8 in | D: 90 mm | B: 30.2 mm | C: 3510 kgf | C0: 2100 kgf
SA210-31 d: 1-15/16 in | D: 90 mm | B: 30.2 mm | C: 3510 kgf | C0: 2100 kgf
SA210 d: 50 mm | D: 90 mm | B: 30.2 mm | C: 3510 kgf | C0: 2100 kgf
SA211-32 d: 2 in | D: 100 mm | B: 32.5 mm | C: 4330 kgf | C0: 2660 kgf
SA211 d: 55 mm | D: 100 mm | B: 32.5 mm | C: 4330 kgf | C0: 2660 kgf
SA211-35 d: 2-3/16 in | D: 100 mm | B: 32.5 mm | C: 4330 kgf | C0: 2660 kgf
SA212-36 d: 2-1/4 in | D: 110 mm | B: 37.2 mm | C: 5240 kgf | C0: 3300 kgf
SA212 d: 60 mm | D: 110 mm | B: 37.2 mm | C: 5240 kgf | C0: 3300 kgf
SA212-39 d: 2-7/16 in | D: 110 mm | B: 37.2 mm | C: 5240 kgf | C0: 3300 kgf
Insert BearingsCBK
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK SA2 Insert Bearings (Eccentric Collar)

Brand CBK·Insert Bearings

Available part numbers (33)

SA201, SA201-8, SA202, SA202-10, SA203, SA204-12, SA204, SA205-14, SA205, SA205-16 + 23 more — see full table ↓
