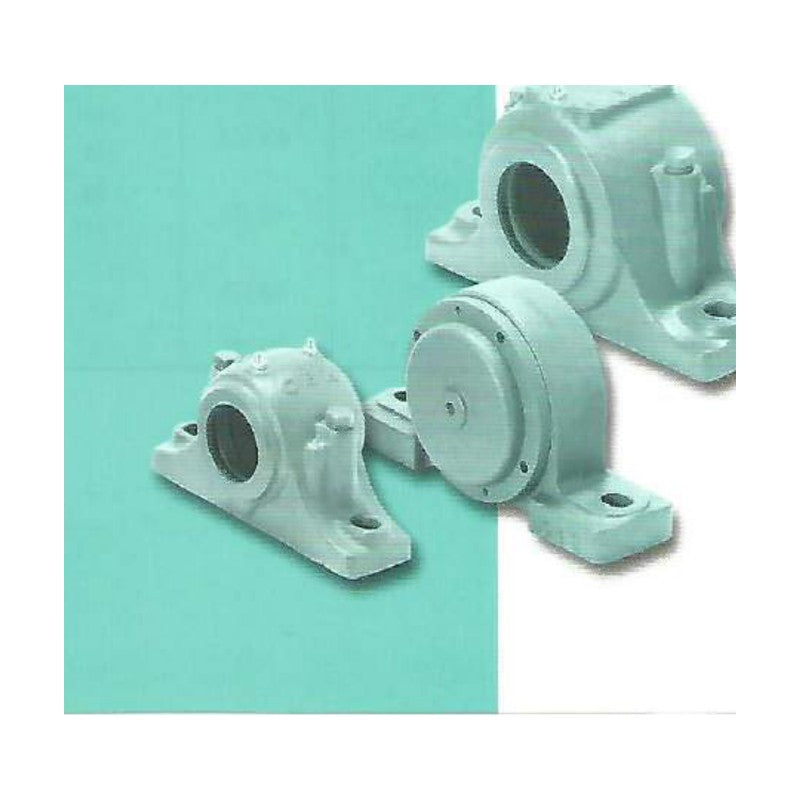

CBK SAF5D Split Plummer Block Housings (Inch-Height Series)

CBK SAF5D Split Plummer Block Housings (Inch-Height Series)

CBK SAF5D Split split plummer block housings in cast iron; shaft 40-200 mm; for adapter-sleeve spherical roller bearings.

Key features

  • Two-piece (split) cast housing for easy bearing installation and inspection
  • Accepts self-aligning ball and spherical roller bearings
  • Seals and locating rings ordered according to arrangement
  • Dimensions and mass per size as listed in the catalogue

Specifications

Product Split plummer block housing
Series SAF5D
Material Cast iron
Application shaft 40-200 mm; for adapter-sleeve spherical roller bearings
Brand CBK
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 197
SAF509D Shaft: 40 mm | Bearing OD: 85 mm | H: 57.15 mm | L: 210 mm | Mass: 4.8 kg
SAF510D Shaft: 45 mm | Bearing OD: 90 mm | H: 63.5 mm | L: 210 mm | Mass: 5.2 kg
SAF511D Shaft: 50 mm | Bearing OD: 100 mm | H: 69.85 mm | L: 245 mm | Mass: 6.1 kg
SAF513D Shaft: 60 mm | Bearing OD: 120 mm | H: 76.2 mm | L: 280 mm | Mass: 9.5 kg
SAF515D Shaft: 65 mm | Bearing OD: 130 mm | H: 82.55 mm | L: 286 mm | Mass: 11 kg
SAF516D Shaft: 70 mm | Bearing OD: 140 mm | H: 88.9 mm | L: 330 mm | Mass: 17 kg
SAF517D Shaft: 75 mm | Bearing OD: 150 mm | H: 92.25 mm | L: 330 mm | Mass: 18 kg
SAF518D Shaft: 80 mm | Bearing OD: 160 mm | H: 101.6 mm | L: 350 mm | Mass: 22 kg
SAF520D Shaft: 90 mm | Bearing OD: 180 mm | H: 114.3 mm | L: 387 mm | Mass: 29 kg
SAF522D Shaft: 100 mm | Bearing OD: 200 mm | H: 125.4 mm | L: 420 mm | Mass: 37 kg
SAF524D Shaft: 110 mm | Bearing OD: 215 mm | H: 133.35 mm | L: 420 mm | Mass: 43 kg
SAF526D Shaft: 115 mm | Bearing OD: 230 mm | H: 152.4 mm | L: 467 mm | Mass: 62 kg
SAF528D Shaft: 125 mm | Bearing OD: 250 mm | H: 152.4 mm | L: 510 mm | Mass: 72 kg
SAF530D Shaft: 135 mm | Bearing OD: 270 mm | H: 160.34 mm | L: 540 mm | Mass: 86 kg
SAF532D Shaft: 140 mm | Bearing OD: 290 mm | H: 169.8 mm | L: 560 mm | Mass: 100 kg
SAF534D Shaft: 150 mm | Bearing OD: 310 mm | H: 179.4 mm | L: 630 mm | Mass: 140 kg
SAF536D Shaft: 160 mm | Bearing OD: 320 mm | H: 190.5 mm | L: 680 mm | Mass: 150 kg
SAF538D Shaft: 170 mm | Bearing OD: 340 mm | H: 200 mm | L: 710 mm | Mass: 170 kg
SAF540D Shaft: 180 mm | Bearing OD: 360 mm | H: 209.55 mm | L: 750 mm | Mass: 200 kg
SAF544D Shaft: 200 mm | Bearing OD: 400 mm | H: 241.3 mm | L: 832 mm | Mass: 300 kg
