CBK SALF2 Flange Units (Light Series, Eccentric Collar)

CBK SALF2 Flange Units (Light Series, Eccentric Collar)

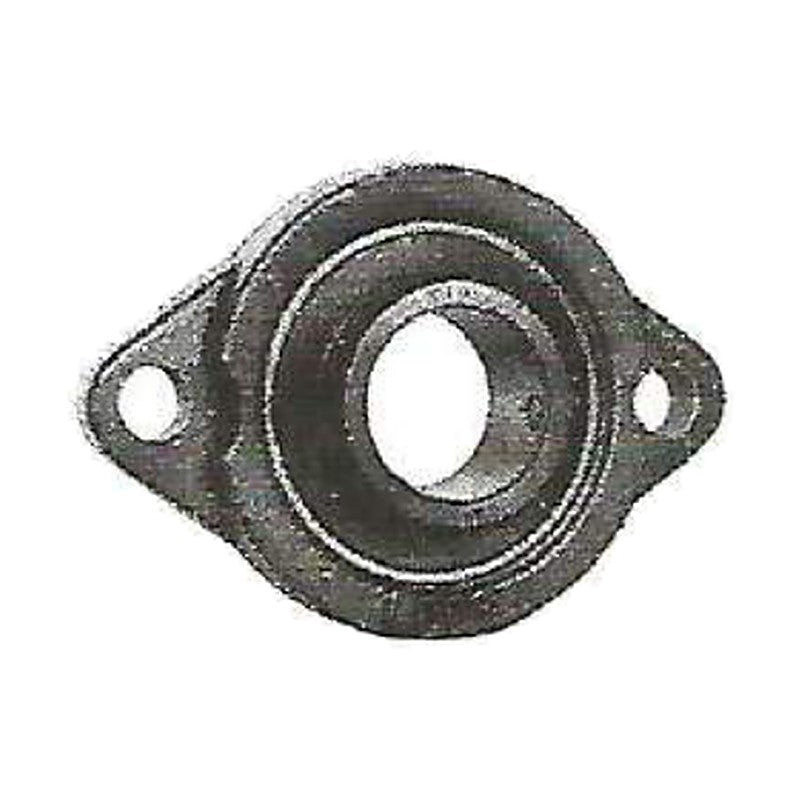

CBK SALF2 flange units combine a pressed steel 2-bolt flange (LF) housing with a SA eccentric locking collar insert bearing. Shaft sizes and housing designations follow the CBK dimension tables.

Key features

  • Pressed steel 2-bolt flange (LF) housing with SA eccentric-collar insert
  • Fitted with SA eccentric locking collar insert bearing
  • Compact light-duty unit for conveyors, agricultural and general machinery
  • Pre-greased, sealed deep groove ball bearing insert
  • Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product Mounted ball bearing unit (flange unit)
Unit series SALF2
Housing pressed steel 2-bolt flange (LF) housing
Insert bearing SA eccentric locking collar insert bearing
Codes 18 sizes
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 93
SALF201 Shaft: 12 mm | Bearing: SA201 | Housing: LF203 | Mass: 0.28 kg
SALF201-8 Shaft: 1/2 in | Bearing: SA201-8 | Housing: LF203 | Mass: 0.28 kg
SALF202 Shaft: 15 mm | Bearing: SA202 | Housing: LF203 | Mass: 0.28 kg
SALF202-10 Shaft: 5/8 in | Bearing: SA202-10 | Housing: LF203 | Mass: 0.28 kg
SALF203 Shaft: 17 mm | Bearing: SA203 | Housing: LF203 | Mass: 0.28 kg
SALF204-12 Shaft: 3/4 in | Bearing: SA204-12 | Housing: LF204 | Mass: 0.33 kg
SALF204 Shaft: 20 mm | Bearing: SA204 | Housing: LF204 | Mass: 0.33 kg
SALF205-14 Shaft: 7/8 in | Bearing: SA205-14 | Housing: LF205 | Mass: 0.42 kg
SALF205 Shaft: 25 mm | Bearing: SA205 | Housing: LF205 | Mass: 0.42 kg
SALF205-16 Shaft: 1 in | Bearing: SA205-16 | Housing: LF205 | Mass: 0.42 kg
SALF206-18 Shaft: 1-1/8 in | Bearing: SA206-18 | Housing: LF206 | Mass: 0.6 kg
SALF206 Shaft: 30 mm | Bearing: SA206 | Housing: LF206 | Mass: 0.6 kg
SALF206-19 Shaft: 1-3/16 in | Bearing: SA206-19 | Housing: LF206 | Mass: 0.6 kg
SALF206-20 Shaft: 1-1/4 in | Bearing: SA206-20 | Housing: LF206 | Mass: 0.6 kg
SALF207-20 Shaft: 1-1/4 in | Bearing: SA207-20 | Housing: LF207 | Mass: 0.85 kg
SALF207-22 Shaft: 1-3/8 in | Bearing: SA207-22 | Housing: LF207 | Mass: 0.85 kg
SALF207 Shaft: 35 mm | Bearing: SA207 | Housing: LF207 | Mass: 0.85 kg
SALF207-23 Shaft: 1-7/16 in | Bearing: SA207-23 | Housing: LF207 | Mass: 0.85 kg
Mounted Bearing UnitsCBK
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK SALF2 Flange Units (Light Series, Eccentric Collar)

Brand CBK·Mounted Bearing Units

Available part numbers (18)

SALF201, SALF201-8, SALF202, SALF202-10, SALF203, SALF204-12, SALF204, SALF205-14, SALF205, SALF205-16 + 8 more — see full table ↓

How to order

Send the CBK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SALF201Shaft: 12 mm | Bearing: SA201 | Housing: LF203 | Mass: 0.28 kg
SALF201-8Shaft: 1/2 in | Bearing: SA201-8 | Housing: LF203 | Mass: 0.28 kg
SALF202Shaft: 15 mm | Bearing: SA202 | Housing: LF203 | Mass: 0.28 kg
SALF202-10Shaft: 5/8 in | Bearing: SA202-10 | Housing: LF203 | Mass: 0.28 kg
SALF203Shaft: 17 mm | Bearing: SA203 | Housing: LF203 | Mass: 0.28 kg
SALF204-12Shaft: 3/4 in | Bearing: SA204-12 | Housing: LF204 | Mass: 0.33 kg
SALF204Shaft: 20 mm | Bearing: SA204 | Housing: LF204 | Mass: 0.33 kg
SALF205-14Shaft: 7/8 in | Bearing: SA205-14 | Housing: LF205 | Mass: 0.42 kg
SALF205Shaft: 25 mm | Bearing: SA205 | Housing: LF205 | Mass: 0.42 kg
SALF205-16Shaft: 1 in | Bearing: SA205-16 | Housing: LF205 | Mass: 0.42 kg
SALF206-18Shaft: 1-1/8 in | Bearing: SA206-18 | Housing: LF206 | Mass: 0.6 kg
SALF206Shaft: 30 mm | Bearing: SA206 | Housing: LF206 | Mass: 0.6 kg
SALF206-19Shaft: 1-3/16 in | Bearing: SA206-19 | Housing: LF206 | Mass: 0.6 kg
SALF206-20Shaft: 1-1/4 in | Bearing: SA206-20 | Housing: LF206 | Mass: 0.6 kg
SALF207-20Shaft: 1-1/4 in | Bearing: SA207-20 | Housing: LF207 | Mass: 0.85 kg
SALF207-22Shaft: 1-3/8 in | Bearing: SA207-22 | Housing: LF207 | Mass: 0.85 kg
SALF207Shaft: 35 mm | Bearing: SA207 | Housing: LF207 | Mass: 0.85 kg
SALF207-23Shaft: 1-7/16 in | Bearing: SA207-23 | Housing: LF207 | Mass: 0.85 kg
