CBK SAPFL2 Flange Units (Light Series, Eccentric Collar)

CBK SAPFL2 Flange Units (Light Series, Eccentric Collar)

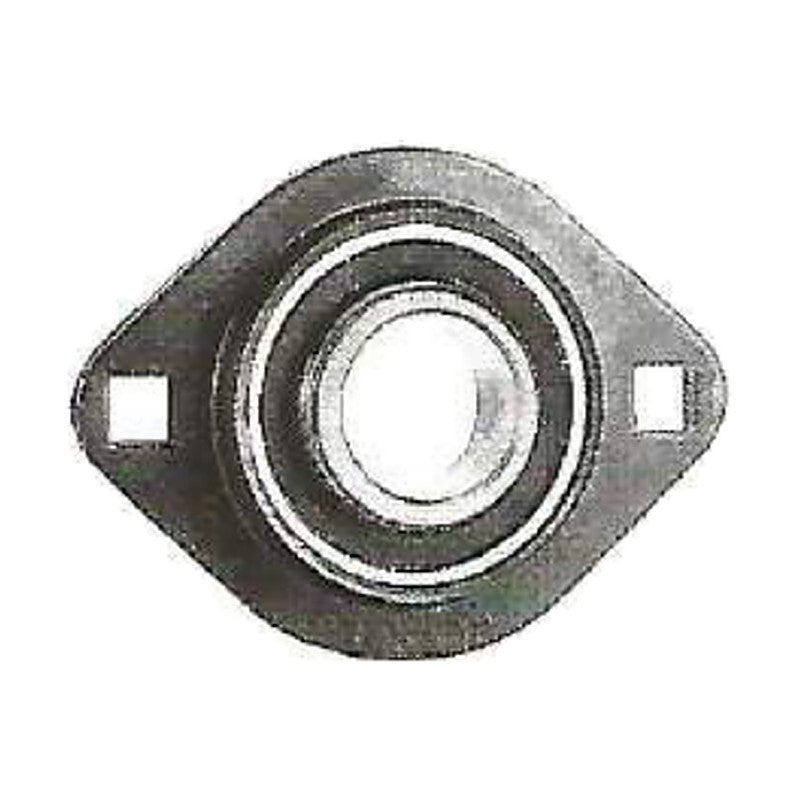

CBK SAPFL2 flange units combine a pressed steel 2-bolt flange (PFL) housing with a SA eccentric locking collar insert bearing. Shaft sizes and housing designations follow the CBK dimension tables.

Key features

  • Pressed steel 2-bolt flange (PFL) housing with SA eccentric-collar insert
  • Fitted with SA eccentric locking collar insert bearing
  • Compact light-duty unit for conveyors, agricultural and general machinery
  • Pre-greased, sealed deep groove ball bearing insert
  • Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product Mounted ball bearing unit (flange unit)
Unit series SAPFL2
Housing pressed steel 2-bolt flange (PFL) housing
Insert bearing SA eccentric locking collar insert bearing
Codes 14 sizes
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 96
SAPFL201 Shaft: 12 mm | Bearing: SA201 | Housing: PFL203 | Mass: 0.22 kg
SAPFL201-8 Shaft: 1/2 in | Bearing: SA201-8 | Housing: PFL203 | Mass: 0.22 kg
SAPFL202 Shaft: 15 mm | Bearing: SA202 | Housing: PFL203 | Mass: 0.22 kg
SAPFL202-10 Shaft: 5/8 in | Bearing: SA202-10 | Housing: PFL203 | Mass: 0.22 kg
SAPFL203 Shaft: 17 mm | Bearing: SA203 | Housing: PFL203 | Mass: 0.22 kg
SAPFL204-12 Shaft: 3/4 in | Bearing: SA204-12 | Housing: PFL204 | Mass: 0.24 kg
SAPFL204 Shaft: 20 mm | Bearing: SA204 | Housing: PFL204 | Mass: 0.24 kg
SAPFL205-14 Shaft: 7/8 in | Bearing: SA205-14 | Housing: PFL205 | Mass: 0.32 kg
SAPFL205 Shaft: 25 mm | Bearing: SA205 | Housing: PFL205 | Mass: 0.32 kg
SAPFL205-16 Shaft: 1 in | Bearing: SA205-16 | Housing: PFL205 | Mass: 0.32 kg
SAPFL206-18 Shaft: 1-1/8 in | Bearing: SA206-18 | Housing: PFL206 | Mass: 0.41 kg
SAPFL206 Shaft: 30 mm | Bearing: SA206 | Housing: PFL206 | Mass: 0.41 kg
SAPFL206-19 Shaft: 1-3/16 in | Bearing: SA206-19 | Housing: PFL206 | Mass: 0.41 kg
SAPFL206-20 Shaft: 1-1/4 in | Bearing: SA206-20 | Housing: PFL206 | Mass: 0.41 kg
Mounted Bearing UnitsCBK
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK SAPFL2 Flange Units (Light Series, Eccentric Collar)

Brand CBK·Mounted Bearing Units

Available part numbers (14)

SAPFL201, SAPFL201-8, SAPFL202, SAPFL202-10, SAPFL203, SAPFL204-12, SAPFL204, SAPFL205-14, SAPFL205, SAPFL205-16 + 4 more — see full table ↓

How to order

Send the CBK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SAPFL201Shaft: 12 mm | Bearing: SA201 | Housing: PFL203 | Mass: 0.22 kg
SAPFL201-8Shaft: 1/2 in | Bearing: SA201-8 | Housing: PFL203 | Mass: 0.22 kg
SAPFL202Shaft: 15 mm | Bearing: SA202 | Housing: PFL203 | Mass: 0.22 kg
SAPFL202-10Shaft: 5/8 in | Bearing: SA202-10 | Housing: PFL203 | Mass: 0.22 kg
SAPFL203Shaft: 17 mm | Bearing: SA203 | Housing: PFL203 | Mass: 0.22 kg
SAPFL204-12Shaft: 3/4 in | Bearing: SA204-12 | Housing: PFL204 | Mass: 0.24 kg
SAPFL204Shaft: 20 mm | Bearing: SA204 | Housing: PFL204 | Mass: 0.24 kg
SAPFL205-14Shaft: 7/8 in | Bearing: SA205-14 | Housing: PFL205 | Mass: 0.32 kg
SAPFL205Shaft: 25 mm | Bearing: SA205 | Housing: PFL205 | Mass: 0.32 kg
SAPFL205-16Shaft: 1 in | Bearing: SA205-16 | Housing: PFL205 | Mass: 0.32 kg
SAPFL206-18Shaft: 1-1/8 in | Bearing: SA206-18 | Housing: PFL206 | Mass: 0.41 kg
SAPFL206Shaft: 30 mm | Bearing: SA206 | Housing: PFL206 | Mass: 0.41 kg
SAPFL206-19Shaft: 1-3/16 in | Bearing: SA206-19 | Housing: PFL206 | Mass: 0.41 kg
SAPFL206-20Shaft: 1-1/4 in | Bearing: SA206-20 | Housing: PFL206 | Mass: 0.41 kg
