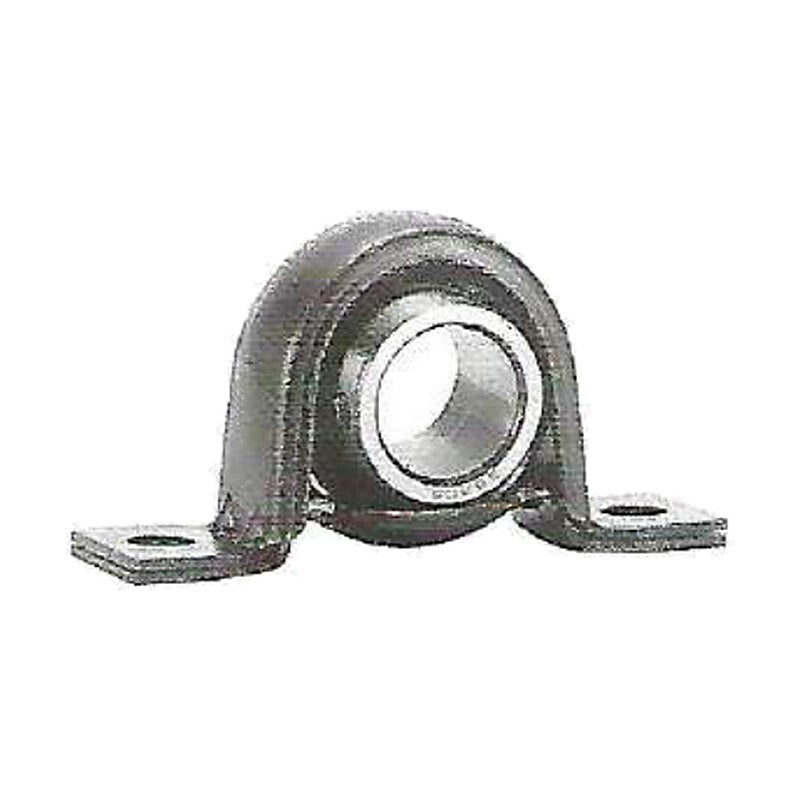

CBK SAPP2 Pillow Block Units (Light Series, Eccentric Collar)

CBK SAPP2 pillow block units combine a pressed steel pillow block (PP) housing with a SA eccentric locking collar insert bearing. Shaft sizes and housing designations follow the CBK dimension tables.

Key features

Pressed steel pillow block (PP) housing with SA eccentric-collar insert
Fitted with SA eccentric locking collar insert bearing
Compact light-duty unit for conveyors, agricultural and general machinery
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (pillow block unit)
Unit series	SAPP2
Housing	pressed steel pillow block (PP) housing
Insert bearing	SA eccentric locking collar insert bearing
Codes	18 sizes
Source	CBK Bearing Housing & Ball Bearing Units catalogue, p. 94

SAPP201		Shaft: 12 mm \| Bearing: SA201 \| Housing: PP203 \| Mass: 0.19 kg
SAPP201-8		Shaft: 1/2 in \| Bearing: SA201-8 \| Housing: PP203 \| Mass: 0.19 kg
SAPP202		Shaft: 15 mm \| Bearing: SA202 \| Housing: PP203 \| Mass: 0.19 kg
SAPP202-10		Shaft: 5/8 in \| Bearing: SA202-10 \| Housing: PP203 \| Mass: 0.19 kg
SAPP203		Shaft: 17 mm \| Bearing: SA203 \| Housing: PP203 \| Mass: 0.19 kg
SAPP204-12		Shaft: 3/4 in \| Bearing: SA204-12 \| Housing: PP204 \| Mass: 0.23 kg
SAPP204		Shaft: 20 mm \| Bearing: SA204 \| Housing: PP204 \| Mass: 0.23 kg
SAPP205-14		Shaft: 7/8 in \| Bearing: SA205-14 \| Housing: PP205 \| Mass: 0.32 kg
SAPP205		Shaft: 25 mm \| Bearing: SA205 \| Housing: PP205 \| Mass: 0.32 kg
SAPP205-16		Shaft: 1 in \| Bearing: SA205-16 \| Housing: PP205 \| Mass: 0.32 kg
SAPP206-18		Shaft: 1-1/8 in \| Bearing: SA206-18 \| Housing: PP206 \| Mass: 0.5 kg
SAPP206		Shaft: 30 mm \| Bearing: SA206 \| Housing: PP206 \| Mass: 0.5 kg
SAPP206-19		Shaft: 1-3/16 in \| Bearing: SA206-19 \| Housing: PP206 \| Mass: 0.5 kg
SAPP206-20		Shaft: 1-1/4 in \| Bearing: SA206-20 \| Housing: PP206 \| Mass: 0.5 kg
SAPP207-20		Shaft: 1-1/4 in \| Bearing: SA207-20 \| Housing: PP207 \| Mass: 0.71 kg
SAPP207-22		Shaft: 1-3/8 in \| Bearing: SA207-22 \| Housing: PP207 \| Mass: 0.71 kg
SAPP207		Shaft: 35 mm \| Bearing: SA207 \| Housing: PP207 \| Mass: 0.71 kg
SAPP207-23		Shaft: 1-7/16 in \| Bearing: SA207-23 \| Housing: PP207 \| Mass: 0.71 kg

Mounted Bearing UnitsCBK

18 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK SAPP2 Pillow Block Units (Light Series, Eccentric Collar)

Brand CBK·Mounted Bearing Units

Available part numbers (18)

SAPP201, SAPP201-8, SAPP202, SAPP202-10, SAPP203, SAPP204-12, SAPP204, SAPP205-14, SAPP205, SAPP205-16 + 8 more — see full table ↓
