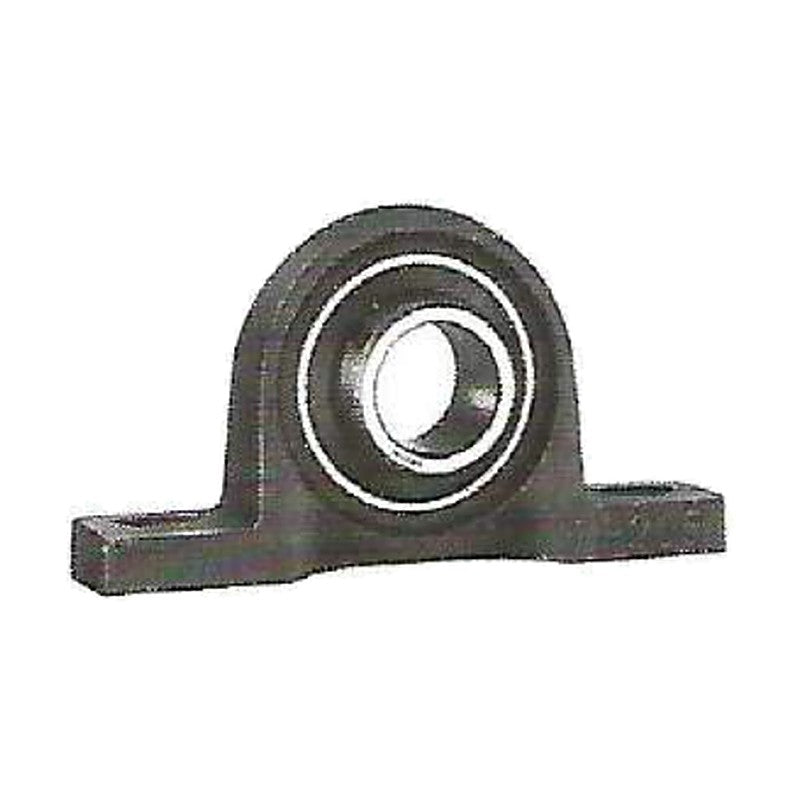

CBK SBLP2 Pillow Block Units (Light Series, Set Screw)

CBK SBLP2 pillow block units combine a pressed steel pillow block (LP) housing with a SB set-screw insert bearing. Shaft sizes and housing designations follow the CBK dimension tables.

Key features

Pressed steel pillow block (LP) housing with SB set-screw insert
Fitted with SB set-screw insert bearing
Compact light-duty unit for conveyors, agricultural and general machinery
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (pillow block unit)
Unit series	SBLP2
Housing	pressed steel pillow block (LP) housing
Insert bearing	SB set-screw insert bearing
Codes	19 sizes
Source	CBK Bearing Housing & Ball Bearing Units catalogue, p. 92

SBLP201		Shaft: 12 mm \| Bearing: SB201 \| Housing: LP203 \| Mass: 0.36 kg
SBLP201-8		Shaft: 1/2 in \| Bearing: SB201-8 \| Housing: LP203 \| Mass: 0.36 kg
SBLP202		Shaft: 15 mm \| Bearing: SB202 \| Housing: LP203 \| Mass: 0.36 kg
SBLP202-10		Shaft: 5/8 in \| Bearing: SB202-10 \| Housing: LP203 \| Mass: 0.36 kg
SBLP203		Shaft: 17 mm \| Bearing: SB203 \| Housing: LP203 \| Mass: 0.36 kg
SBLP204-12		Shaft: 3/4 in \| Bearing: SB204-12 \| Housing: LP204 \| Mass: 0.51 kg
SBLP204		Shaft: 20 mm \| Bearing: SB204 \| Housing: LP204 \| Mass: 0.51 kg
SBLP205-14		Shaft: 7/8 in \| Bearing: SB205-14 \| Housing: LP205 \| Mass: 0.57 kg
SBLP205		Shaft: 25 mm \| Bearing: SB205 \| Housing: LP205 \| Mass: 0.57 kg
SBLP205-16		Shaft: 1 in \| Bearing: SB205-16 \| Housing: LP205 \| Mass: 0.57 kg
SBLP206-18		Shaft: 1-1/8 in \| Bearing: SB206-18 \| Housing: LP206 \| Mass: 0.69 kg
SBLP206		Shaft: 30 mm \| Bearing: SB206 \| Housing: LP206 \| Mass: 0.69 kg
SBLP206-19		Shaft: 1-3/16 in \| Bearing: SB206-19 \| Housing: LP206 \| Mass: 0.69 kg
SBLP207-20		Shaft: 1-1/4 in \| Bearing: SB207-20 \| Housing: LP207 \| Mass: 0.94 kg
SBLP207-22		Shaft: 1-3/8 in \| Bearing: SB207-22 \| Housing: LP207 \| Mass: 0.94 kg
SBLP207		Shaft: 35 mm \| Bearing: SB207 \| Housing: LP207 \| Mass: 0.94 kg
SBLP207-23		Shaft: 1-7/16 in \| Bearing: SB207-23 \| Housing: LP207 \| Mass: 0.94 kg
SBLP208-24		Shaft: 1-1/2 in \| Bearing: SB208-24 \| Housing: LP208 \| Mass: 1.8 kg
SBLP208		Shaft: 40 mm \| Bearing: SB208 \| Housing: LP208 \| Mass: 1.8 kg

Mounted Bearing UnitsCBK

19 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK SBLP2 Pillow Block Units (Light Series, Set Screw)

Brand CBK·Mounted Bearing Units

Available part numbers (19)

SBLP201, SBLP201-8, SBLP202, SBLP202-10, SBLP203, SBLP204-12, SBLP204, SBLP205-14, SBLP205, SBLP205-16 + 9 more — see full table ↓
