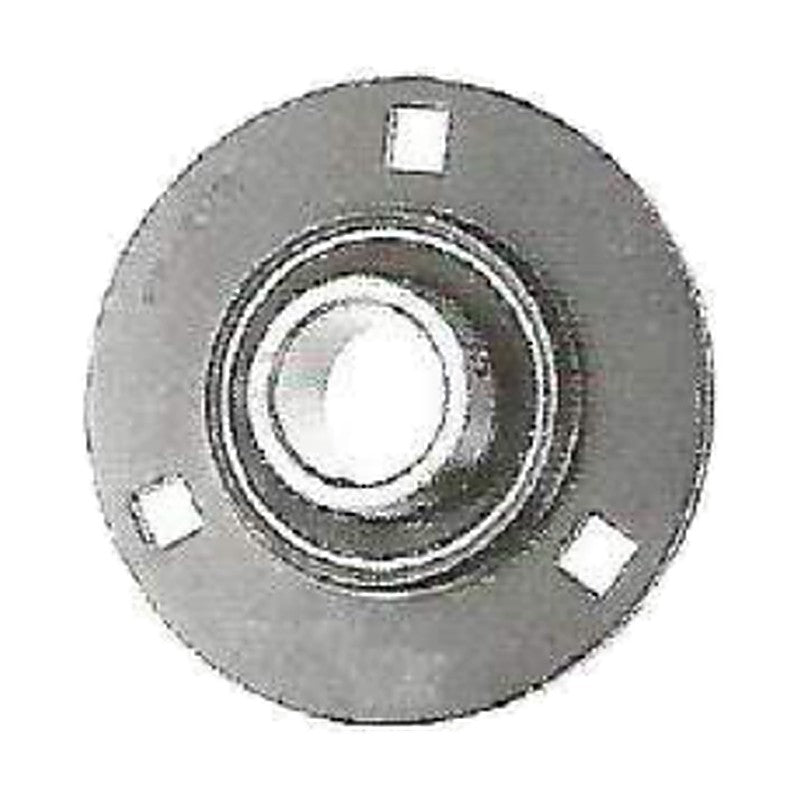

CBK SBPF2 Flange Units (Light Series, Set Screw)

CBK SBPF2 flange units combine a pressed steel 3-bolt round flange (PF) housing with a SB set-screw insert bearing. Shaft sizes and housing designations follow the CBK dimension tables.

Key features

Pressed steel 3-bolt round flange (PF) housing with SB set-screw insert
Fitted with SB set-screw insert bearing
Compact light-duty unit for conveyors, agricultural and general machinery
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (flange unit)
Unit series	SBPF2
Housing	pressed steel 3-bolt round flange (PF) housing
Insert bearing	SB set-screw insert bearing
Codes	17 sizes
Source	CBK Bearing Housing & Ball Bearing Units catalogue, p. 95

SBPF201		Shaft: 12 mm \| Bearing: SB201 \| Housing: PF203 \| Mass: 0.27 kg
SBPF201-8		Shaft: 1/2 in \| Bearing: SB201-8 \| Housing: PF203 \| Mass: 0.27 kg
SBPF202		Shaft: 15 mm \| Bearing: SB202 \| Housing: PF203 \| Mass: 0.27 kg
SBPF202-10		Shaft: 5/8 in \| Bearing: SB202-10 \| Housing: PF203 \| Mass: 0.27 kg
SBPF203		Shaft: 17 mm \| Bearing: SB203 \| Housing: PF203 \| Mass: 0.27 kg
SBPF204-12		Shaft: 3/4 in \| Bearing: SB204-12 \| Housing: PF204 \| Mass: 0.33 kg
SBPF204		Shaft: 20 mm \| Bearing: SB204 \| Housing: PF204 \| Mass: 0.33 kg
SBPF205-14		Shaft: 7/8 in \| Bearing: SB205-14 \| Housing: PF205 \| Mass: 0.38 kg
SBPF205		Shaft: 25 mm \| Bearing: SB205 \| Housing: PF205 \| Mass: 0.38 kg
SBPF205-16		Shaft: 1 in \| Bearing: SB205-16 \| Housing: PF205 \| Mass: 0.38 kg
SBPF206-18		Shaft: 1-1/8 in \| Bearing: SB206-18 \| Housing: PF206 \| Mass: 0.62 kg
SBPF206		Shaft: 30 mm \| Bearing: SB206 \| Housing: PF206 \| Mass: 0.62 kg
SBPF206-19		Shaft: 1-3/16 in \| Bearing: SB206-19 \| Housing: PF206 \| Mass: 0.62 kg
SBPF207-20		Shaft: 1-1/4 in \| Bearing: SB207-20 \| Housing: PF207 \| Mass: 0.82 kg
SBPF207-22		Shaft: 1-3/8 in \| Bearing: SB207-22 \| Housing: PF207 \| Mass: 0.82 kg
SBPF207		Shaft: 35 mm \| Bearing: SB207 \| Housing: PF207 \| Mass: 0.82 kg
SBPF207-23		Shaft: 1-7/16 in \| Bearing: SB207-23 \| Housing: PF207 \| Mass: 0.82 kg
