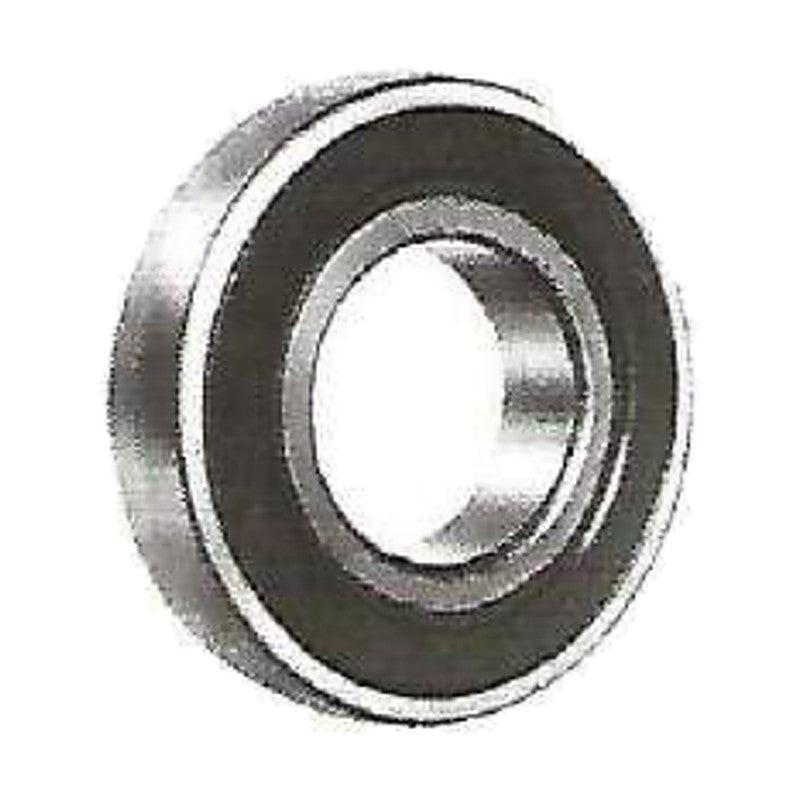

CBK SC2 Insert Bearings (Plain Bore)

CBK SC2 Insert Bearings (Plain Bore)

CBK SC2 insert ball bearings (plain cylindrical bore, spherical OD, no locking device) for use in mounted bearing unit housings.

Key features

  • Plain cylindrical bore, spherical OD, no locking device
  • Spherical outside diameter allows self-alignment in the housing
  • Double-sealed and grease-filled for maintenance-free operation
  • Interchangeable with standard bearing unit housings of the same series
  • Dimensions, load ratings (kgf) and mass as listed per size

Specifications

Product Ball bearing insert for mounted units
Series SC2
Design plain cylindrical bore, spherical OD, no locking device
Sealing Sealed, pre-lubricated
Load rating unit kgf
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 108
SC200 d: 10 mm | D: 30 mm | B: 9 mm | C: 510 kgf | C0: 230 kgf | Mass: 0.03 kg
SC201 d: 12 mm | D: 32 mm | B: 10 mm | C: 690 kgf | C0: 305 kgf | Mass: 0.035 kg
SC202 d: 15 mm | D: 35 mm | B: 11 mm | C: 760 kgf | C0: 360 kgf | Mass: 0.04 kg
SC203 d: 17 mm | D: 40 mm | B: 12 mm | C: 960 kgf | C0: 460 kgf | Mass: 0.07 kg
SC204 d: 20 mm | D: 47 mm | B: 14 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.11 kg
SC205 d: 25 mm | D: 52 mm | B: 15 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.18 kg
SC206 d: 30 mm | D: 62 mm | B: 16 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.2 kg
SC207 d: 35 mm | D: 72 mm | B: 17 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.3 kg
Insert BearingsCBK
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK SC2 Insert Bearings (Plain Bore)

Brand CBK·Insert Bearings

Available part numbers (8)

SC200, SC201, SC202, SC203, SC204, SC205, SC206, SC207

How to order

Send the CBK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
