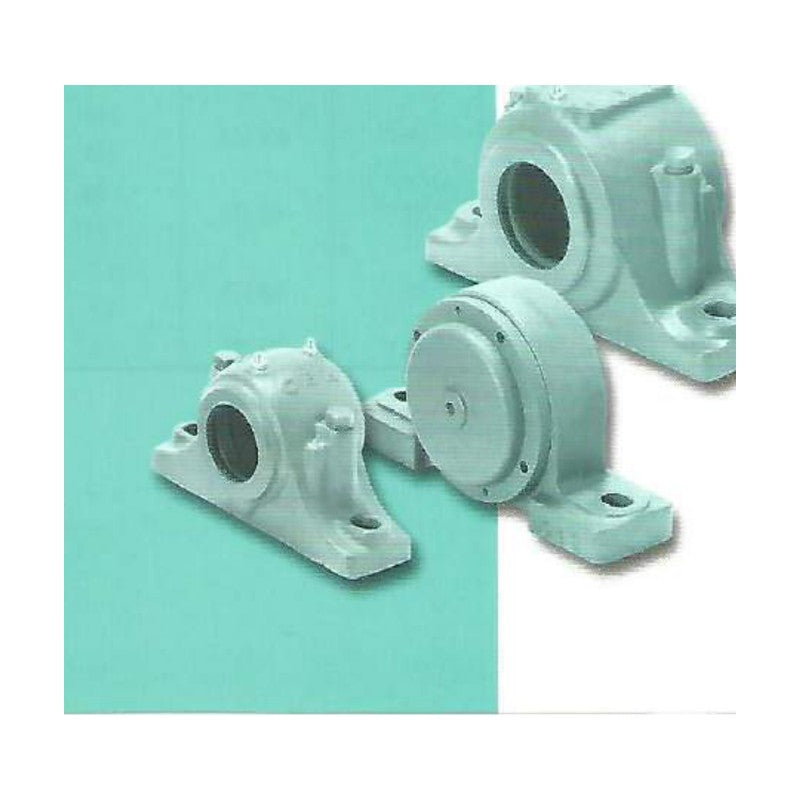

CBK SD32TS / SD32TSG Plummer Blocks (Split, Taconite Seal Type)

CBK SD32TS / SD32TSG Plummer Blocks (Split, Taconite Seal Type)

CBK SD32TS / SD32TSG split plummer block housings in cast iron; shaft 150-380 mm; free (TS) and fixed (TSG) types.

Key features

  • Two-piece (split) cast housing for easy bearing installation and inspection
  • Accepts self-aligning ball and spherical roller bearings
  • Seals and locating rings ordered according to arrangement
  • Dimensions and mass per size as listed in the catalogue

Specifications

Product Split plummer block housing
Series SD32TS
Material Cast iron
Application shaft 150-380 mm; free (TS) and fixed (TSG) types
Brand CBK
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 195
SD3234TS Shaft: 150 mm | Bearing OD: 310 mm | H: 190 mm | L: 560 mm | Mass: 110 kg
SD3234TSG Shaft: 150 mm | Bearing OD: 310 mm | H: 190 mm | L: 560 mm | Mass: 110 kg
SD3236TS Shaft: 160 mm | Bearing OD: 320 mm | H: 190 mm | L: 560 mm | Mass: 100 kg
SD3236TSG Shaft: 160 mm | Bearing OD: 320 mm | H: 190 mm | L: 560 mm | Mass: 100 kg
SD3238TS Shaft: 170 mm | Bearing OD: 340 mm | H: 210 mm | L: 610 mm | Mass: 130 kg
SD3238TSG Shaft: 170 mm | Bearing OD: 340 mm | H: 210 mm | L: 610 mm | Mass: 130 kg
SD3240TS Shaft: 180 mm | Bearing OD: 360 mm | H: 220 mm | L: 640 mm | Mass: 150 kg
SD3240TSG Shaft: 180 mm | Bearing OD: 360 mm | H: 220 mm | L: 640 mm | Mass: 150 kg
SD3244TS Shaft: 200 mm | Bearing OD: 400 mm | H: 240 mm | L: 700 mm | Mass: 200 kg
SD3244TSG Shaft: 200 mm | Bearing OD: 400 mm | H: 240 mm | L: 700 mm | Mass: 200 kg
SD3248TS Shaft: 220 mm | Bearing OD: 440 mm | H: 260 mm | L: 770 mm | Mass: 230 kg
SD3248TSG Shaft: 220 mm | Bearing OD: 440 mm | H: 260 mm | L: 770 mm | Mass: 230 kg
SD3252TS Shaft: 240 mm | Bearing OD: 480 mm | H: 300 mm | L: 830 mm | Mass: 320 kg
SD3252TSG Shaft: 240 mm | Bearing OD: 480 mm | H: 300 mm | L: 830 mm | Mass: 320 kg
SD3256TS Shaft: 260 mm | Bearing OD: 500 mm | H: 300 mm | L: 830 mm | Mass: 310 kg
SD3256TSG Shaft: 260 mm | Bearing OD: 500 mm | H: 300 mm | L: 830 mm | Mass: 310 kg
SD3260TS Shaft: 280 mm | Bearing OD: 540 mm | H: 320 mm | L: 880 mm | Mass: 360 kg
SD3260TSG Shaft: 280 mm | Bearing OD: 540 mm | H: 320 mm | L: 880 mm | Mass: 360 kg
SD3264TS Shaft: 300 mm | Bearing OD: 580 mm | H: 360 mm | L: 1000 mm | Mass: 560 kg
SD3264TSG Shaft: 300 mm | Bearing OD: 580 mm | H: 360 mm | L: 1000 mm | Mass: 560 kg
SD3268TS Shaft: 320 mm | Bearing OD: 620 mm | H: 390 mm | L: 1120 mm | Mass: 720 kg
SD3268TSG Shaft: 320 mm | Bearing OD: 620 mm | H: 390 mm | L: 1120 mm | Mass: 720 kg
SD3272TS Shaft: 340 mm | Bearing OD: 650 mm | H: 390 mm | L: 1120 mm | Mass: 680 kg
SD3272TSG Shaft: 340 mm | Bearing OD: 650 mm | H: 390 mm | L: 1120 mm | Mass: 680 kg
SD3276TS Shaft: 360 mm | Bearing OD: 680 mm | H: 425 mm | L: 1200 mm | Mass: 890 kg
SD3276TSG Shaft: 360 mm | Bearing OD: 680 mm | H: 425 mm | L: 1200 mm | Mass: 890 kg
SD3280TS Shaft: 380 mm | Bearing OD: 720 mm | H: 425 mm | L: 1200 mm | Mass: 840 kg
SD3280TSG Shaft: 380 mm | Bearing OD: 720 mm | H: 425 mm | L: 1200 mm | Mass: 840 kg
Bearing HousingsCBK
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK SD32TS / SD32TSG Plummer Blocks (Split, Taconite Seal Type)

Brand CBK·Bearing Housings

Available part numbers (28)

SD3234TS, SD3234TSG, SD3236TS, SD3236TSG, SD3238TS, SD3238TSG, SD3240TS, SD3240TSG, SD3244TS, SD3244TSG + 18 more — see full table ↓

How to order

Send the CBK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
