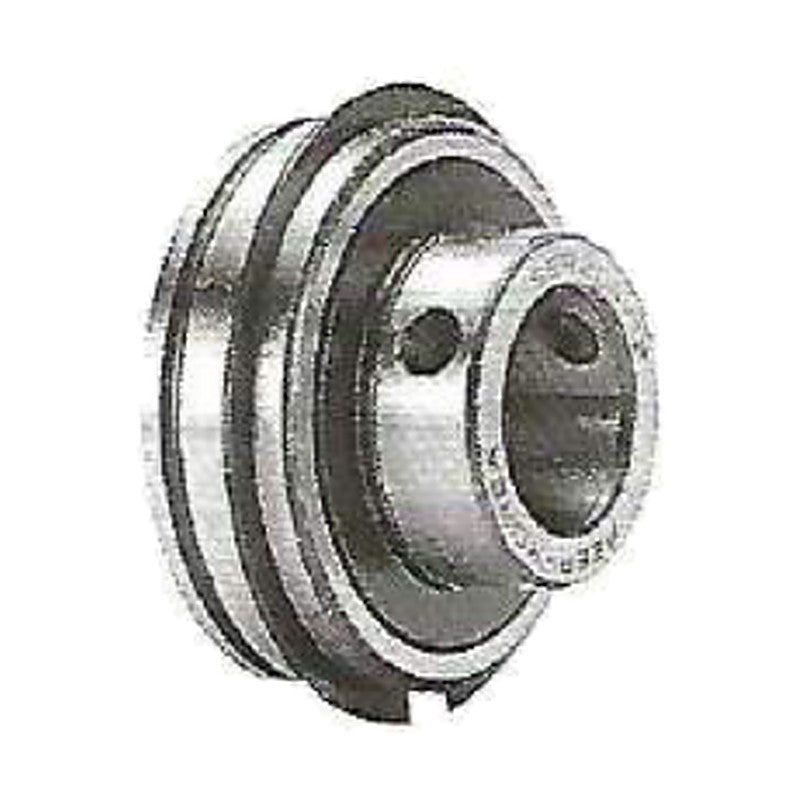

CBK SER2 Insert Bearings (Snap Ring)

CBK SER2 Insert Bearings (Snap Ring)

CBK SER2 insert ball bearings (set-screw locking with snap ring on outer ring) for use in mounted bearing unit housings.

Key features

  • Set-screw locking with snap ring on outer ring
  • Spherical outside diameter allows self-alignment in the housing
  • Double-sealed and grease-filled for maintenance-free operation
  • Interchangeable with standard bearing unit housings of the same series
  • Dimensions, load ratings (kgf) and mass as listed per size

Specifications

Product Ball bearing insert for mounted units
Series SER2
Design set-screw locking with snap ring on outer ring
Sealing Sealed, pre-lubricated
Load rating unit kgf
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 105
SER201 d: 12 mm | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
SER201-8 d: 1/2 in | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
SER202 d: 15 mm | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
SER202-10 d: 5/8 in | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
SER203 d: 17 mm | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
SER204-12 d: 3/4 in | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.21 kg
SER204 d: 20 mm | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.21 kg
SER205-14 d: 7/8 in | D: 52 mm | B: 34 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.27 kg
SER205-15 d: 15/16 in | D: 52 mm | B: 34 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.27 kg
SER205 d: 25 mm | D: 52 mm | B: 34 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.27 kg
SER205-16 d: 1 in | D: 52 mm | B: 34 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.27 kg
SER206-18 d: 1-1/8 in | D: 62 mm | B: 38.1 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.39 kg
SER206 d: 30 mm | D: 62 mm | B: 38.1 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.39 kg
SER206-19 d: 1-3/16 in | D: 62 mm | B: 38.1 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.39 kg
SER207-20 d: 1-1/4 in | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.63 kg
SER207-22 d: 1-3/8 in | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.63 kg
SER207 d: 35 mm | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.63 kg
SER207-23 d: 1-7/16 in | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.63 kg
SER208-24 d: 1-1/2 in | D: 80 mm | B: 49.2 mm | C: 2910 kgf | C0: 1650 kgf | Mass: 0.81 kg
SER208 d: 40 mm | D: 80 mm | B: 49.2 mm | C: 2910 kgf | C0: 1650 kgf | Mass: 0.81 kg
SER209-26 d: 1-5/8 in | D: 85 mm | B: 49.2 mm | C: 3200 kgf | C0: 1850 kgf | Mass: 0.9 kg
SER209-27 d: 1-11/16 in | D: 85 mm | B: 49.2 mm | C: 3200 kgf | C0: 1850 kgf | Mass: 0.9 kg
SER209-28 d: 1-3/4 in | D: 85 mm | B: 49.2 mm | C: 3200 kgf | C0: 1850 kgf | Mass: 0.9 kg
SER209 d: 45 mm | D: 85 mm | B: 49.2 mm | C: 3200 kgf | C0: 1850 kgf | Mass: 0.9 kg
SER210-30 d: 1-7/8 in | D: 90 mm | B: 51.6 mm | C: 3510 kgf | C0: 2100 kgf | Mass: 0.98 kg
SER210-31 d: 1-15/16 in | D: 90 mm | B: 51.6 mm | C: 3510 kgf | C0: 2100 kgf | Mass: 0.98 kg
SER210 d: 50 mm | D: 90 mm | B: 51.6 mm | C: 3510 kgf | C0: 2100 kgf | Mass: 0.98 kg
SER211-32 d: 2 in | D: 100 mm | B: 55.6 mm | C: 4330 kgf | C0: 2660 kgf | Mass: 1.41 kg
SER211 d: 55 mm | D: 100 mm | B: 55.6 mm | C: 4330 kgf | C0: 2660 kgf | Mass: 1.41 kg
SER211-35 d: 2-3/16 in | D: 100 mm | B: 55.6 mm | C: 4330 kgf | C0: 2660 kgf | Mass: 1.41 kg
SER212-36 d: 2-1/4 in | D: 110 mm | B: 65.1 mm | C: 5240 kgf | C0: 3300 kgf | Mass: 1.89 kg
SER212 d: 60 mm | D: 110 mm | B: 65.1 mm | C: 5240 kgf | C0: 3300 kgf | Mass: 1.89 kg
SER212-39 d: 2-7/16 in | D: 110 mm | B: 65.1 mm | C: 5240 kgf | C0: 3300 kgf | Mass: 1.89 kg
