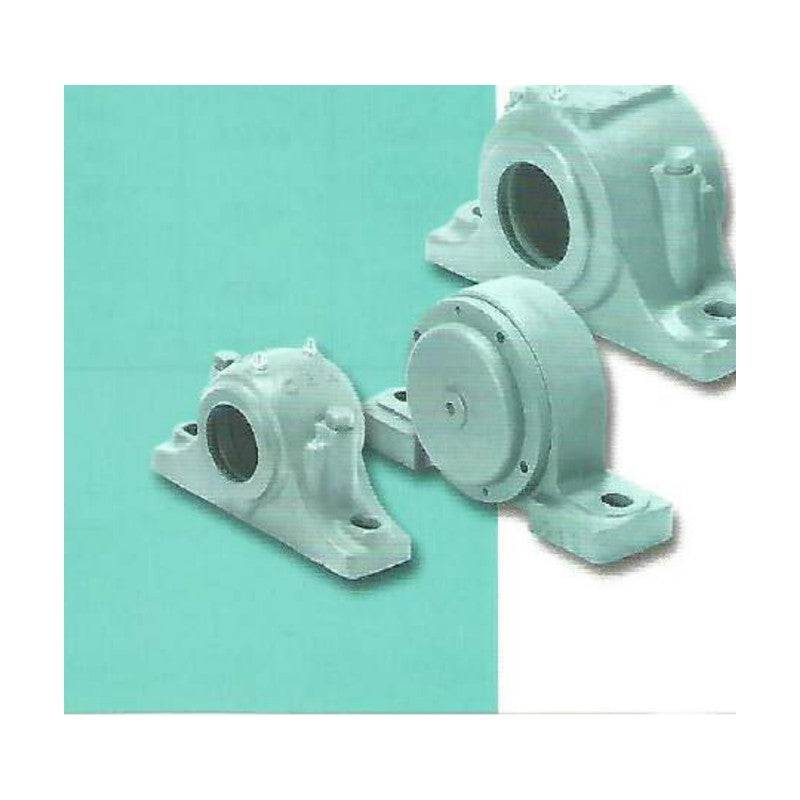

CBK SN5 Standard Plummer Block Housings

CBK SN5 Standard Plummer Block Housings

CBK SN5 Standard split plummer block housings in cast iron; shaft 20-140 mm; for adapter-sleeve bearings.

Key features

  • Two-piece (split) cast housing for easy bearing installation and inspection
  • Accepts self-aligning ball and spherical roller bearings
  • Seals and locating rings ordered according to arrangement
  • Dimensions and mass per size as listed in the catalogue

Specifications

Product Split plummer block housing
Series SN5
Material Cast iron
Application shaft 20-140 mm; for adapter-sleeve bearings
Brand CBK
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 153
SN505 Shaft: 20 mm | Bearing OD: 52 mm | H: 40 mm | L: 165 mm | Mass: 1.2 kg
SN506 Shaft: 25 mm | Bearing OD: 62 mm | H: 50 mm | L: 185 mm | Mass: 1.7 kg
SN507 Shaft: 30 mm | Bearing OD: 72 mm | H: 50 mm | L: 185 mm | Mass: 2.2 kg
SN508 Shaft: 35 mm | Bearing OD: 80 mm | H: 60 mm | L: 205 mm | Mass: 2.6 kg
SN509 Shaft: 40 mm | Bearing OD: 85 mm | H: 60 mm | L: 205 mm | Mass: 2.8 kg
SN510 Shaft: 45 mm | Bearing OD: 90 mm | H: 60 mm | L: 205 mm | Mass: 3 kg
SN511 Shaft: 50 mm | Bearing OD: 100 mm | H: 70 mm | L: 255 mm | Mass: 4 kg
SN512 Shaft: 55 mm | Bearing OD: 110 mm | H: 70 mm | L: 255 mm | Mass: 4.5 kg
SN513 Shaft: 60 mm | Bearing OD: 120 mm | H: 80 mm | L: 275 mm | Mass: 5.6 kg
SN515 Shaft: 65 mm | Bearing OD: 130 mm | H: 80 mm | L: 280 mm | Mass: 6 kg
SN516 Shaft: 70 mm | Bearing OD: 140 mm | H: 95 mm | L: 315 mm | Mass: 9 kg
SN517 Shaft: 75 mm | Bearing OD: 150 mm | H: 95 mm | L: 320 mm | Mass: 9.3 kg
SN518 Shaft: 80 mm | Bearing OD: 160 mm | H: 100 mm | L: 345 mm | Mass: 12 kg
SN519 Shaft: 85 mm | Bearing OD: 170 mm | H: 112 mm | L: 345 mm | Mass: 14 kg
SN520 Shaft: 90 mm | Bearing OD: 180 mm | H: 112 mm | L: 380 mm | Mass: 17 kg
SN522 Shaft: 100 mm | Bearing OD: 200 mm | H: 125 mm | L: 410 mm | Mass: 20 kg
SN524 Shaft: 110 mm | Bearing OD: 215 mm | H: 140 mm | L: 410 mm | Mass: 23 kg
SN526 Shaft: 115 mm | Bearing OD: 230 mm | H: 150 mm | L: 445 mm | Mass: 29 kg
SN528 Shaft: 125 mm | Bearing OD: 250 mm | H: 150 mm | L: 500 mm | Mass: 37 kg
SN530 Shaft: 135 mm | Bearing OD: 270 mm | H: 160 mm | L: 530 mm | Mass: 42 kg
SN532 Shaft: 140 mm | Bearing OD: 290 mm | H: 170 mm | L: 550 mm | Mass: 48 kg
