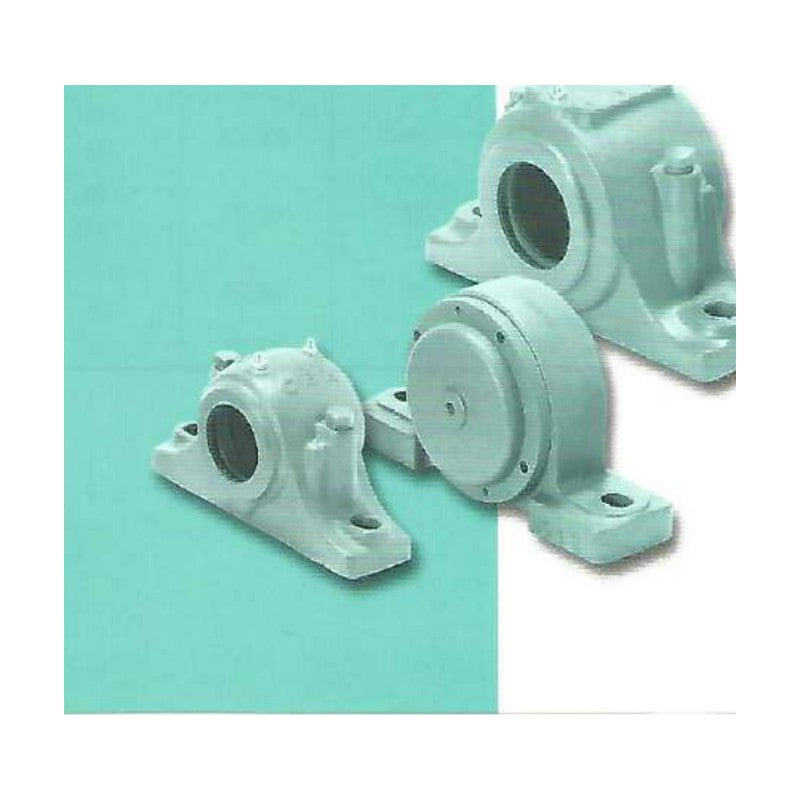

CBK SV35 Plummer Block Housings (Split, Labyrinth Seal)

CBK SV35 Plummer Block Housings (Split, Labyrinth Seal)

CBK SV35 split plummer block housings in cast iron; shaft 110-360 mm; for 230 series cylindrical-bore spherical roller bearings.

Key features

  • Two-piece (split) cast housing for easy bearing installation and inspection
  • Accepts self-aligning ball and spherical roller bearings
  • Seals and locating rings ordered according to arrangement
  • Dimensions and mass per size as listed in the catalogue

Specifications

Product Split plummer block housing
Series SV35
Material Cast iron
Application shaft 110-360 mm; for 230 series cylindrical-bore spherical roller bearings
Brand CBK
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 217
SV3522 Shaft: 110 mm | Bearing OD: 170 mm | H: 112 mm | L: 345 mm | Mass: 20 kg
SV3524 Shaft: 120 mm | Bearing OD: 180 mm | H: 125 mm | L: 380 mm | Mass: 26 kg
SV3526 Shaft: 130 mm | Bearing OD: 200 mm | H: 132 mm | L: 410 mm | Mass: 30 kg
SV3528 Shaft: 140 mm | Bearing OD: 210 mm | H: 140 mm | L: 410 mm | Mass: 33 kg
SV3530 Shaft: 150 mm | Bearing OD: 225 mm | H: 150 mm | L: 450 mm | Mass: 40 kg
SV3532 Shaft: 160 mm | Bearing OD: 240 mm | H: 160 mm | L: 470 mm | Mass: 48 kg
SV3534 Shaft: 170 mm | Bearing OD: 260 mm | H: 170 mm | L: 540 mm | Mass: 57 kg
SV3536 Shaft: 180 mm | Bearing OD: 280 mm | H: 180 mm | L: 560 mm | Mass: 69 kg
SV3538 Shaft: 190 mm | Bearing OD: 290 mm | H: 190 mm | L: 560 mm | Mass: 75 kg
SV3540 Shaft: 200 mm | Bearing OD: 310 mm | H: 200 mm | L: 660 mm | Mass: 87 kg
SV3544 Shaft: 220 mm | Bearing OD: 340 mm | H: 212 mm | L: 680 mm | Mass: 110 kg
SV3548 Shaft: 240 mm | Bearing OD: 360 mm | H: 224 mm | L: 740 mm | Mass: 138 kg
SV3552 Shaft: 260 mm | Bearing OD: 400 mm | H: 250 mm | L: 820 mm | Mass: 190 kg
SV3564 Shaft: 320 mm | Bearing OD: 480 mm | H: 300 mm | L: 940 mm | Mass: 298 kg
SV3572 Shaft: 360 mm | Bearing OD: 540 mm | H: 335 mm | L: 1060 mm | Mass: 383 kg
Bearing HousingsCBK
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK SV35 Plummer Block Housings (Split, Labyrinth Seal)

Brand CBK·Bearing Housings

Available part numbers (15)

SV3522, SV3524, SV3526, SV3528, SV3530, SV3532, SV3534, SV3536, SV3538, SV3540 + 5 more — see full table ↓

How to order

Send the CBK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SV3522Shaft: 110 mm | Bearing OD: 170 mm | H: 112 mm | L: 345 mm | Mass: 20 kg
SV3524Shaft: 120 mm | Bearing OD: 180 mm | H: 125 mm | L: 380 mm | Mass: 26 kg
SV3526Shaft: 130 mm | Bearing OD: 200 mm | H: 132 mm | L: 410 mm | Mass: 30 kg
SV3528Shaft: 140 mm | Bearing OD: 210 mm | H: 140 mm | L: 410 mm | Mass: 33 kg
SV3530Shaft: 150 mm | Bearing OD: 225 mm | H: 150 mm | L: 450 mm | Mass: 40 kg
SV3532Shaft: 160 mm | Bearing OD: 240 mm | H: 160 mm | L: 470 mm | Mass: 48 kg
SV3534Shaft: 170 mm | Bearing OD: 260 mm | H: 170 mm | L: 540 mm | Mass: 57 kg
SV3536Shaft: 180 mm | Bearing OD: 280 mm | H: 180 mm | L: 560 mm | Mass: 69 kg
SV3538Shaft: 190 mm | Bearing OD: 290 mm | H: 190 mm | L: 560 mm | Mass: 75 kg
SV3540Shaft: 200 mm | Bearing OD: 310 mm | H: 200 mm | L: 660 mm | Mass: 87 kg
SV3544Shaft: 220 mm | Bearing OD: 340 mm | H: 212 mm | L: 680 mm | Mass: 110 kg
SV3548Shaft: 240 mm | Bearing OD: 360 mm | H: 224 mm | L: 740 mm | Mass: 138 kg
SV3552Shaft: 260 mm | Bearing OD: 400 mm | H: 250 mm | L: 820 mm | Mass: 190 kg
SV3564Shaft: 320 mm | Bearing OD: 480 mm | H: 300 mm | L: 940 mm | Mass: 298 kg
SV3572Shaft: 360 mm | Bearing OD: 540 mm | H: 335 mm | L: 1060 mm | Mass: 383 kg
