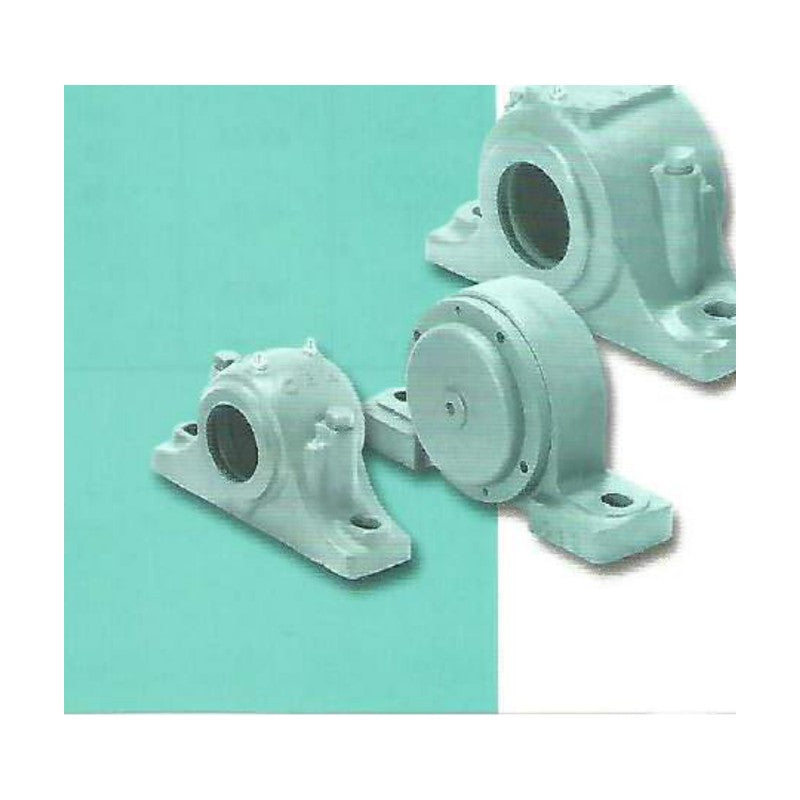

CBK SV5 Plummer Block Housings (Split, Labyrinth Seal, Adapter Type)

CBK SV5 Plummer Block Housings (Split, Labyrinth Seal, Adapter Type)

CBK SV5 split plummer block housings in cast iron; shaft 20-170 mm; for adapter-sleeve bearings.

Key features

  • Two-piece (split) cast housing for easy bearing installation and inspection
  • Accepts self-aligning ball and spherical roller bearings
  • Seals and locating rings ordered according to arrangement
  • Dimensions and mass per size as listed in the catalogue

Specifications

Product Split plummer block housing
Series SV5
Material Cast iron
Application shaft 20-170 mm; for adapter-sleeve bearings
Brand CBK
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 209-213
SV505 Shaft: 20 mm | Bearing OD: 52 mm | H: 45 mm | L: 165 mm | Mass: 2.1 kg
SV506 Shaft: 25 mm | Bearing OD: 62 mm | H: 50 mm | L: 185 mm | Mass: 2.7 kg
SV507 Shaft: 30 mm | Bearing OD: 72 mm | H: 56 mm | L: 185 mm | Mass: 3.3 kg
SV508 Shaft: 35 mm | Bearing OD: 80 mm | H: 60 mm | L: 205 mm | Mass: 4.5 kg
SV509 Shaft: 40 mm | Bearing OD: 85 mm | H: 63 mm | L: 205 mm | Mass: 4.5 kg
SV510 Shaft: 45 mm | Bearing OD: 90 mm | H: 67 mm | L: 205 mm | Mass: 4.8 kg
SV511 Shaft: 50 mm | Bearing OD: 100 mm | H: 71 mm | L: 255 mm | Mass: 5.8 kg
SV512 Shaft: 55 mm | Bearing OD: 110 mm | H: 80 mm | L: 255 mm | Mass: 6.8 kg
SV513 Shaft: 60 mm | Bearing OD: 120 mm | H: 85 mm | L: 275 mm | Mass: 9.5 kg
SV515 Shaft: 65 mm | Bearing OD: 130 mm | H: 90 mm | L: 280 mm | Mass: 10 kg
SV516 Shaft: 70 mm | Bearing OD: 140 mm | H: 100 mm | L: 315 mm | Mass: 14 kg
SV517 Shaft: 75 mm | Bearing OD: 150 mm | H: 100 mm | L: 315 mm | Mass: 15 kg
SV518 Shaft: 80 mm | Bearing OD: 160 mm | H: 112 mm | L: 345 mm | Mass: 20 kg
SV519 Shaft: 85 mm | Bearing OD: 170 mm | H: 112 mm | L: 345 mm | Mass: 20 kg
SV520 Shaft: 90 mm | Bearing OD: 180 mm | H: 125 mm | L: 380 mm | Mass: 26 kg
SV522 Shaft: 100 mm | Bearing OD: 200 mm | H: 132 mm | L: 410 mm | Mass: 30 kg
SV524 Shaft: 110 mm | Bearing OD: 215 mm | H: 140 mm | L: 410 mm | Mass: 36 kg
SV526 Shaft: 115 mm | Bearing OD: 230 mm | H: 150 mm | L: 450 mm | Mass: 45 kg
SV528 Shaft: 125 mm | Bearing OD: 250 mm | H: 160 mm | L: 500 mm | Mass: 53 kg
SV530 Shaft: 135 mm | Bearing OD: 270 mm | H: 170 mm | L: 540 mm | Mass: 63 kg
SV532 Shaft: 140 mm | Bearing OD: 290 mm | H: 190 mm | L: 560 mm | Mass: 76 kg
SV534 Shaft: 150 mm | Bearing OD: 310 mm | H: 200 mm | L: 660 mm | Mass: 89 kg
SV536 Shaft: 160 mm | Bearing OD: 320 mm | H: 200 mm | L: 660 mm | Mass: 100 kg
SV538 Shaft: 170 mm | Bearing OD: 340 mm | H: 212 mm | L: 680 mm | Mass: 110 kg
SV540 Shaft: 180 mm | Bearing OD: 360 mm | H: 224 mm | L: 740 mm | Mass: 130 kg
SV544 Shaft: 200 mm | Bearing OD: 400 mm | H: 250 mm | L: 820 mm | Mass: 196 kg
SV548 Shaft: 220 mm | Bearing OD: 440 mm | H: 280 mm | L: 880 mm | Mass: 260 kg
SV552 Shaft: 240 mm | Bearing OD: 480 mm | H: 300 mm | L: 940 mm | Mass: 318 kg
SV556 Shaft: 260 mm | Bearing OD: 500 mm | H: 315 mm | L: 990 mm | Mass: 336 kg
SV560 Shaft: 280 mm | Bearing OD: 540 mm | H: 335 mm | L: 1060 mm | Mass: 433 kg
SV564 Shaft: 300 mm | Bearing OD: 580 mm | H: 355 mm | L: 1110 mm | Mass: 507 kg
Bearing HousingsCBK
31 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK SV5 Plummer Block Housings (Split, Labyrinth Seal, Adapter Type)

Brand CBK·Bearing Housings

Available part numbers (31)

SV505, SV506, SV507, SV508, SV509, SV510, SV511, SV512, SV513, SV515 + 21 more — see full table ↓

How to order

Send the CBK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SV505Shaft: 20 mm | Bearing OD: 52 mm | H: 45 mm | L: 165 mm | Mass: 2.1 kg
SV506Shaft: 25 mm | Bearing OD: 62 mm | H: 50 mm | L: 185 mm | Mass: 2.7 kg
SV507Shaft: 30 mm | Bearing OD: 72 mm | H: 56 mm | L: 185 mm | Mass: 3.3 kg
SV508Shaft: 35 mm | Bearing OD: 80 mm | H: 60 mm | L: 205 mm | Mass: 4.5 kg
SV509Shaft: 40 mm | Bearing OD: 85 mm | H: 63 mm | L: 205 mm | Mass: 4.5 kg
SV510Shaft: 45 mm | Bearing OD: 90 mm | H: 67 mm | L: 205 mm | Mass: 4.8 kg
SV511Shaft: 50 mm | Bearing OD: 100 mm | H: 71 mm | L: 255 mm | Mass: 5.8 kg
SV512Shaft: 55 mm | Bearing OD: 110 mm | H: 80 mm | L: 255 mm | Mass: 6.8 kg
SV513Shaft: 60 mm | Bearing OD: 120 mm | H: 85 mm | L: 275 mm | Mass: 9.5 kg
SV515Shaft: 65 mm | Bearing OD: 130 mm | H: 90 mm | L: 280 mm | Mass: 10 kg
SV516Shaft: 70 mm | Bearing OD: 140 mm | H: 100 mm | L: 315 mm | Mass: 14 kg
SV517Shaft: 75 mm | Bearing OD: 150 mm | H: 100 mm | L: 315 mm | Mass: 15 kg
SV518Shaft: 80 mm | Bearing OD: 160 mm | H: 112 mm | L: 345 mm | Mass: 20 kg
SV519Shaft: 85 mm | Bearing OD: 170 mm | H: 112 mm | L: 345 mm | Mass: 20 kg
SV520Shaft: 90 mm | Bearing OD: 180 mm | H: 125 mm | L: 380 mm | Mass: 26 kg
SV522Shaft: 100 mm | Bearing OD: 200 mm | H: 132 mm | L: 410 mm | Mass: 30 kg
SV524Shaft: 110 mm | Bearing OD: 215 mm | H: 140 mm | L: 410 mm | Mass: 36 kg
SV526Shaft: 115 mm | Bearing OD: 230 mm | H: 150 mm | L: 450 mm | Mass: 45 kg
SV528Shaft: 125 mm | Bearing OD: 250 mm | H: 160 mm | L: 500 mm | Mass: 53 kg
SV530Shaft: 135 mm | Bearing OD: 270 mm | H: 170 mm | L: 540 mm | Mass: 63 kg
SV532Shaft: 140 mm | Bearing OD: 290 mm | H: 190 mm | L: 560 mm | Mass: 76 kg
SV534Shaft: 150 mm | Bearing OD: 310 mm | H: 200 mm | L: 660 mm | Mass: 89 kg
SV536Shaft: 160 mm | Bearing OD: 320 mm | H: 200 mm | L: 660 mm | Mass: 100 kg
SV538Shaft: 170 mm | Bearing OD: 340 mm | H: 212 mm | L: 680 mm | Mass: 110 kg
SV540Shaft: 180 mm | Bearing OD: 360 mm | H: 224 mm | L: 740 mm | Mass: 130 kg
SV544Shaft: 200 mm | Bearing OD: 400 mm | H: 250 mm | L: 820 mm | Mass: 196 kg
SV548Shaft: 220 mm | Bearing OD: 440 mm | H: 280 mm | L: 880 mm | Mass: 260 kg
SV552Shaft: 240 mm | Bearing OD: 480 mm | H: 300 mm | L: 940 mm | Mass: 318 kg
SV556Shaft: 260 mm | Bearing OD: 500 mm | H: 315 mm | L: 990 mm | Mass: 336 kg
SV560Shaft: 280 mm | Bearing OD: 540 mm | H: 335 mm | L: 1060 mm | Mass: 433 kg
SV564Shaft: 300 mm | Bearing OD: 580 mm | H: 355 mm | L: 1110 mm | Mass: 507 kg
