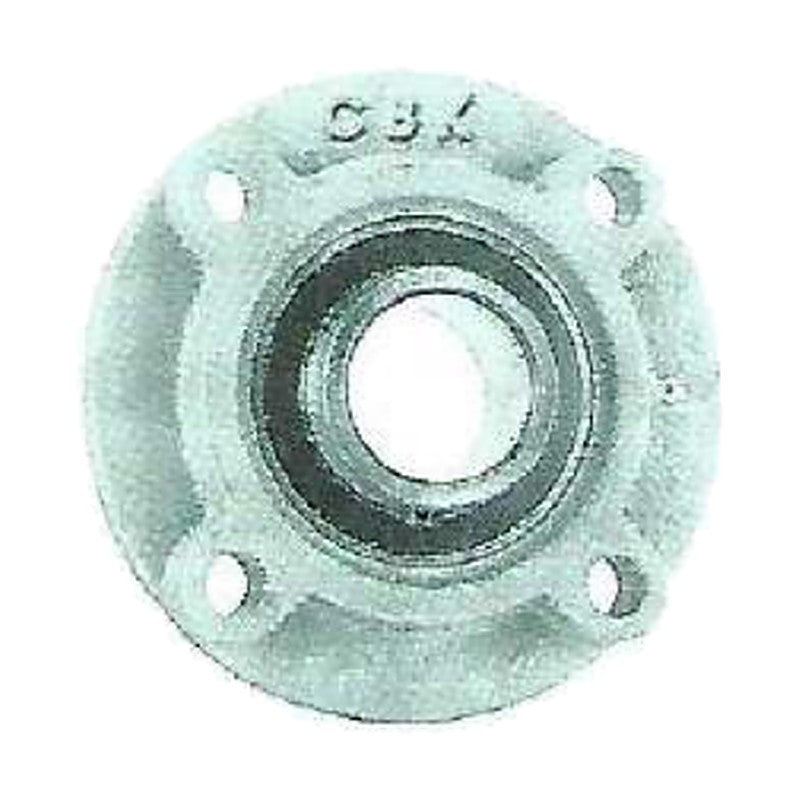

CBK UCFC2 Round Flange Units (Light Series, Set Screw)

CBK UCFC2 round flange units combine a cast iron round flange cartridge (FC) housing with a UC set-screw insert bearing. Shaft sizes and housing designations follow the CBK dimension tables.

Key features

Cast iron round flange cartridge (FC) housing with spigot
Fitted with UC set-screw insert bearing
Self-aligning spherical outside diameter compensates for shaft misalignment
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (round flange unit)
Unit series	UCFC2
Housing	cast iron round flange cartridge (FC) housing
Insert bearing	UC set-screw insert bearing
Codes	48 sizes
Source	CBK Bearing Housing & Ball Bearing Units catalogue, p. 62

UCFC201		Shaft: 12 mm \| Bearing: UC201 \| Housing: FC204 \| Mass: 0.78 kg
UCFC201-8		Shaft: 1/2 in \| Bearing: UC201-8 \| Housing: FC204 \| Mass: 0.78 kg
UCFC202		Shaft: 15 mm \| Bearing: UC202 \| Housing: FC204 \| Mass: 0.78 kg
UCFC202-10		Shaft: 5/8 in \| Bearing: UC202-10 \| Housing: FC204 \| Mass: 0.78 kg
UCFC203		Shaft: 17 mm \| Bearing: UC203 \| Housing: FC204 \| Mass: 0.78 kg
UCFC204-12		Shaft: 3/4 in \| Bearing: UC204-12 \| Housing: FC204 \| Mass: 0.78 kg
UCFC204		Shaft: 20 mm \| Bearing: UC204 \| Housing: FC204 \| Mass: 0.78 kg
UCFC205-14		Shaft: 7/8 in \| Bearing: UC205-14 \| Housing: FC205 \| Mass: 0.95 kg
UCFC205-15		Shaft: 15/16 in \| Bearing: UC205-15 \| Housing: FC205 \| Mass: 0.95 kg
UCFC205		Shaft: 25 mm \| Bearing: UC205 \| Housing: FC205 \| Mass: 0.95 kg
UCFC205-16		Shaft: 1 in \| Bearing: UC205-16 \| Housing: FC205 \| Mass: 0.95 kg
UCFC206-18		Shaft: 1-1/8 in \| Bearing: UC206-18 \| Housing: FC206 \| Mass: 1.3 kg
UCFC206		Shaft: 30 mm \| Bearing: UC206 \| Housing: FC206 \| Mass: 1.3 kg
UCFC206-19		Shaft: 1-3/16 in \| Bearing: UC206-19 \| Housing: FC206 \| Mass: 1.3 kg
UCFC207-20		Shaft: 1-1/4 in \| Bearing: UC207-20 \| Housing: FC207 \| Mass: 1.7 kg
UCFC207-21		Shaft: 1-5/16 in \| Bearing: UC207-21 \| Housing: FC207 \| Mass: 1.7 kg
UCFC207-22		Shaft: 1-3/8 in \| Bearing: UC207-22 \| Housing: FC207 \| Mass: 1.7 kg
UCFC207		Shaft: 35 mm \| Bearing: UC207 \| Housing: FC207 \| Mass: 1.7 kg
UCFC207-23		Shaft: 1-7/16 in \| Bearing: UC207-23 \| Housing: FC207 \| Mass: 1.7 kg
UCFC208-24		Shaft: 1-1/2 in \| Bearing: UC208-24 \| Housing: FC208 \| Mass: 2 kg
UCFC208-25		Shaft: 1-9/16 in \| Bearing: UC208-25 \| Housing: FC208 \| Mass: 2 kg
UCFC208		Shaft: 40 mm \| Bearing: UC208 \| Housing: FC208 \| Mass: 2 kg
UCFC209-26		Shaft: 1-5/8 in \| Bearing: UC209-26 \| Housing: FC209 \| Mass: 2.6 kg
UCFC209-27		Shaft: 1-11/16 in \| Bearing: UC209-27 \| Housing: FC209 \| Mass: 2.6 kg
UCFC209-28		Shaft: 1-3/4 in \| Bearing: UC209-28 \| Housing: FC209 \| Mass: 2.6 kg
UCFC209		Shaft: 45 mm \| Bearing: UC209 \| Housing: FC209 \| Mass: 2.6 kg
UCFC210-30		Shaft: 1-7/8 in \| Bearing: UC210-30 \| Housing: FC210 \| Mass: 2.9 kg
UCFC210-31		Shaft: 1-15/16 in \| Bearing: UC210-31 \| Housing: FC210 \| Mass: 2.9 kg
UCFC210		Shaft: 50 mm \| Bearing: UC210 \| Housing: FC210 \| Mass: 2.9 kg
UCFC211-32		Shaft: 2 in \| Bearing: UC211-32 \| Housing: FC211 \| Mass: 4.2 kg
UCFC211-34		Shaft: 2-1/8 in \| Bearing: UC211-34 \| Housing: FC211 \| Mass: 4.2 kg
UCFC211		Shaft: 55 mm \| Bearing: UC211 \| Housing: FC211 \| Mass: 4.2 kg
UCFC211-35		Shaft: 2-3/16 in \| Bearing: UC211-35 \| Housing: FC211 \| Mass: 4.2 kg
UCFC212-36		Shaft: 2-1/4 in \| Bearing: UC212-36 \| Housing: FC212 \| Mass: 5 kg
UCFC212		Shaft: 60 mm \| Bearing: UC212 \| Housing: FC212 \| Mass: 5 kg
UCFC212-38		Shaft: 2-3/8 in \| Bearing: UC212-38 \| Housing: FC212 \| Mass: 5 kg
UCFC212-39		Shaft: 2-7/16 in \| Bearing: UC212-39 \| Housing: FC212 \| Mass: 5 kg
UCFC213-40		Shaft: 2-1/2 in \| Bearing: UC213-40 \| Housing: FC213 \| Mass: 5.6 kg
UCFC213		Shaft: 65 mm \| Bearing: UC213 \| Housing: FC213 \| Mass: 5.6 kg
UCFC214-44		Shaft: 2-3/4 in \| Bearing: UC214-44 \| Housing: FC214 \| Mass: 6.8 kg
UCFC214		Shaft: 70 mm \| Bearing: UC214 \| Housing: FC214 \| Mass: 6.8 kg
UCFC215		Shaft: 75 mm \| Bearing: UC215 \| Housing: FC215 \| Mass: 7.2 kg
UCFC215-48		Shaft: 3 in \| Bearing: UC215-48 \| Housing: FC215 \| Mass: 7.2 kg
UCFC216		Shaft: 80 mm \| Bearing: UC216 \| Housing: FC216 \| Mass: 8.7 kg
UCFC217-52		Shaft: 3-1/4 in \| Bearing: UC217-52 \| Housing: FC217 \| Mass: 10.3 kg
UCFC217		Shaft: 85 mm \| Bearing: UC217 \| Housing: FC217 \| Mass: 10.3 kg
UCFC218-56		Shaft: 3-1/2 in \| Bearing: UC218-56 \| Housing: FC218 \| Mass: 13.3 kg
UCFC218		Shaft: 90 mm \| Bearing: UC218 \| Housing: FC218 \| Mass: 13.3 kg

Mounted Bearing UnitsCBK

48 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK UCFC2 Round Flange Units (Light Series, Set Screw)

Brand CBK·Mounted Bearing Units

Available part numbers (48)

UCFC201, UCFC201-8, UCFC202, UCFC202-10, UCFC203, UCFC204-12, UCFC204, UCFC205-14, UCFC205-15, UCFC205 + 38 more — see full table ↓

How to order

Send the CBK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	UCFC201	Shaft: 12 mm \| Bearing: UC201 \| Housing: FC204 \| Mass: 0.78 kg
	UCFC201-8	Shaft: 1/2 in \| Bearing: UC201-8 \| Housing: FC204 \| Mass: 0.78 kg
	UCFC202	Shaft: 15 mm \| Bearing: UC202 \| Housing: FC204 \| Mass: 0.78 kg
	UCFC202-10	Shaft: 5/8 in \| Bearing: UC202-10 \| Housing: FC204 \| Mass: 0.78 kg
	UCFC203	Shaft: 17 mm \| Bearing: UC203 \| Housing: FC204 \| Mass: 0.78 kg
	UCFC204-12	Shaft: 3/4 in \| Bearing: UC204-12 \| Housing: FC204 \| Mass: 0.78 kg
	UCFC204	Shaft: 20 mm \| Bearing: UC204 \| Housing: FC204 \| Mass: 0.78 kg
	UCFC205-14	Shaft: 7/8 in \| Bearing: UC205-14 \| Housing: FC205 \| Mass: 0.95 kg
	UCFC205-15	Shaft: 15/16 in \| Bearing: UC205-15 \| Housing: FC205 \| Mass: 0.95 kg
	UCFC205	Shaft: 25 mm \| Bearing: UC205 \| Housing: FC205 \| Mass: 0.95 kg
	UCFC205-16	Shaft: 1 in \| Bearing: UC205-16 \| Housing: FC205 \| Mass: 0.95 kg
	UCFC206-18	Shaft: 1-1/8 in \| Bearing: UC206-18 \| Housing: FC206 \| Mass: 1.3 kg
	UCFC206	Shaft: 30 mm \| Bearing: UC206 \| Housing: FC206 \| Mass: 1.3 kg
	UCFC206-19	Shaft: 1-3/16 in \| Bearing: UC206-19 \| Housing: FC206 \| Mass: 1.3 kg
	UCFC207-20	Shaft: 1-1/4 in \| Bearing: UC207-20 \| Housing: FC207 \| Mass: 1.7 kg
	UCFC207-21	Shaft: 1-5/16 in \| Bearing: UC207-21 \| Housing: FC207 \| Mass: 1.7 kg
	UCFC207-22	Shaft: 1-3/8 in \| Bearing: UC207-22 \| Housing: FC207 \| Mass: 1.7 kg
	UCFC207	Shaft: 35 mm \| Bearing: UC207 \| Housing: FC207 \| Mass: 1.7 kg
	UCFC207-23	Shaft: 1-7/16 in \| Bearing: UC207-23 \| Housing: FC207 \| Mass: 1.7 kg
	UCFC208-24	Shaft: 1-1/2 in \| Bearing: UC208-24 \| Housing: FC208 \| Mass: 2 kg
	UCFC208-25	Shaft: 1-9/16 in \| Bearing: UC208-25 \| Housing: FC208 \| Mass: 2 kg
	UCFC208	Shaft: 40 mm \| Bearing: UC208 \| Housing: FC208 \| Mass: 2 kg
	UCFC209-26	Shaft: 1-5/8 in \| Bearing: UC209-26 \| Housing: FC209 \| Mass: 2.6 kg
	UCFC209-27	Shaft: 1-11/16 in \| Bearing: UC209-27 \| Housing: FC209 \| Mass: 2.6 kg
	UCFC209-28	Shaft: 1-3/4 in \| Bearing: UC209-28 \| Housing: FC209 \| Mass: 2.6 kg
	UCFC209	Shaft: 45 mm \| Bearing: UC209 \| Housing: FC209 \| Mass: 2.6 kg
	UCFC210-30	Shaft: 1-7/8 in \| Bearing: UC210-30 \| Housing: FC210 \| Mass: 2.9 kg
	UCFC210-31	Shaft: 1-15/16 in \| Bearing: UC210-31 \| Housing: FC210 \| Mass: 2.9 kg
	UCFC210	Shaft: 50 mm \| Bearing: UC210 \| Housing: FC210 \| Mass: 2.9 kg
	UCFC211-32	Shaft: 2 in \| Bearing: UC211-32 \| Housing: FC211 \| Mass: 4.2 kg
	UCFC211-34	Shaft: 2-1/8 in \| Bearing: UC211-34 \| Housing: FC211 \| Mass: 4.2 kg
	UCFC211	Shaft: 55 mm \| Bearing: UC211 \| Housing: FC211 \| Mass: 4.2 kg
	UCFC211-35	Shaft: 2-3/16 in \| Bearing: UC211-35 \| Housing: FC211 \| Mass: 4.2 kg
	UCFC212-36	Shaft: 2-1/4 in \| Bearing: UC212-36 \| Housing: FC212 \| Mass: 5 kg
	UCFC212	Shaft: 60 mm \| Bearing: UC212 \| Housing: FC212 \| Mass: 5 kg
	UCFC212-38	Shaft: 2-3/8 in \| Bearing: UC212-38 \| Housing: FC212 \| Mass: 5 kg
	UCFC212-39	Shaft: 2-7/16 in \| Bearing: UC212-39 \| Housing: FC212 \| Mass: 5 kg
	UCFC213-40	Shaft: 2-1/2 in \| Bearing: UC213-40 \| Housing: FC213 \| Mass: 5.6 kg
	UCFC213	Shaft: 65 mm \| Bearing: UC213 \| Housing: FC213 \| Mass: 5.6 kg
	UCFC214-44	Shaft: 2-3/4 in \| Bearing: UC214-44 \| Housing: FC214 \| Mass: 6.8 kg
	UCFC214	Shaft: 70 mm \| Bearing: UC214 \| Housing: FC214 \| Mass: 6.8 kg
	UCFC215	Shaft: 75 mm \| Bearing: UC215 \| Housing: FC215 \| Mass: 7.2 kg
	UCFC215-48	Shaft: 3 in \| Bearing: UC215-48 \| Housing: FC215 \| Mass: 7.2 kg
	UCFC216	Shaft: 80 mm \| Bearing: UC216 \| Housing: FC216 \| Mass: 8.7 kg
	UCFC217-52	Shaft: 3-1/4 in \| Bearing: UC217-52 \| Housing: FC217 \| Mass: 10.3 kg
	UCFC217	Shaft: 85 mm \| Bearing: UC217 \| Housing: FC217 \| Mass: 10.3 kg
	UCFC218-56	Shaft: 3-1/2 in \| Bearing: UC218-56 \| Housing: FC218 \| Mass: 13.3 kg
	UCFC218	Shaft: 90 mm \| Bearing: UC218 \| Housing: FC218 \| Mass: 13.3 kg
