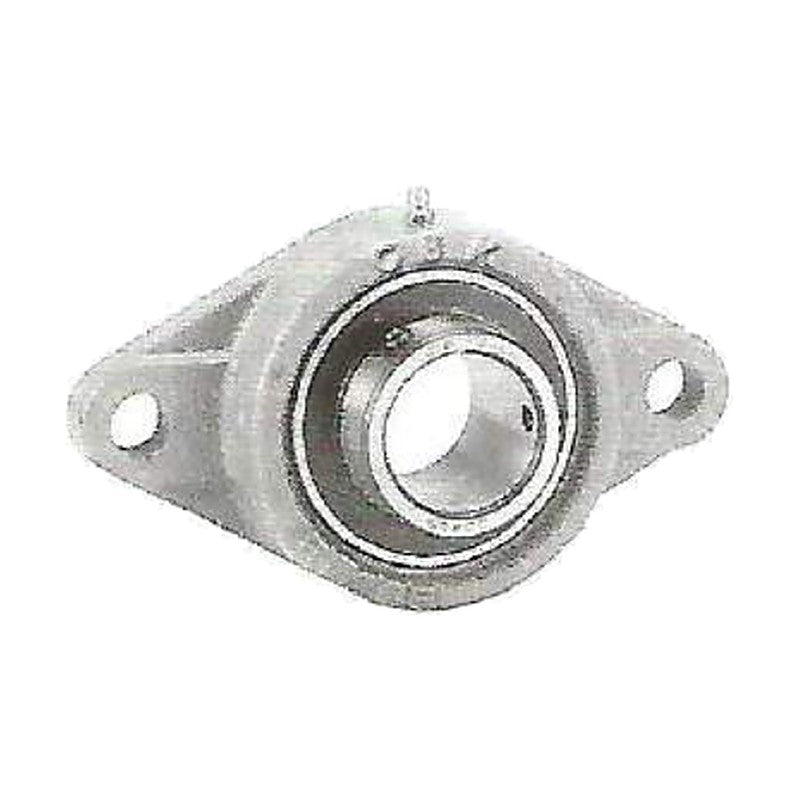

CBK UCFL2 Oval Flange Units (Light Series, Set Screw)

CBK UCFL2 oval flange units combine a cast iron 2-bolt oval flange (FL) housing with a UC set-screw insert bearing. Shaft sizes and housing designations follow the CBK dimension tables.

Key features

Cast iron 2-bolt oval flange (FL) housing
Fitted with UC set-screw insert bearing
Self-aligning spherical outside diameter compensates for shaft misalignment
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (oval flange unit)
Unit series	UCFL2
Housing	cast iron 2-bolt oval flange (FL) housing
Insert bearing	UC set-screw insert bearing
Codes	48 sizes
Source	CBK Bearing Housing & Ball Bearing Units catalogue, p. 68

UCFL201		Shaft: 12 mm \| Bearing: UC201 \| Housing: FL204 \| Mass: 0.48 kg
UCFL201-8		Shaft: 1/2 in \| Bearing: UC201-8 \| Housing: FL204 \| Mass: 0.48 kg
UCFL202		Shaft: 15 mm \| Bearing: UC202 \| Housing: FL204 \| Mass: 0.48 kg
UCFL202-10		Shaft: 5/8 in \| Bearing: UC202-10 \| Housing: FL204 \| Mass: 0.48 kg
UCFL203		Shaft: 17 mm \| Bearing: UC203 \| Housing: FL204 \| Mass: 0.48 kg
UCFL204-12		Shaft: 3/4 in \| Bearing: UC204-12 \| Housing: FL204 \| Mass: 0.48 kg
UCFL204		Shaft: 20 mm \| Bearing: UC204 \| Housing: FL204 \| Mass: 0.48 kg
UCFL205-14		Shaft: 7/8 in \| Bearing: UC205-14 \| Housing: FL205 \| Mass: 0.64 kg
UCFL205-15		Shaft: 15/16 in \| Bearing: UC205-15 \| Housing: FL205 \| Mass: 0.64 kg
UCFL205		Shaft: 25 mm \| Bearing: UC205 \| Housing: FL205 \| Mass: 0.64 kg
UCFL205-16		Shaft: 1 in \| Bearing: UC205-16 \| Housing: FL205 \| Mass: 0.64 kg
UCFL206-18		Shaft: 1-1/8 in \| Bearing: UC206-18 \| Housing: FL206 \| Mass: 0.93 kg
UCFL206		Shaft: 30 mm \| Bearing: UC206 \| Housing: FL206 \| Mass: 0.93 kg
UCFL206-19		Shaft: 1-3/16 in \| Bearing: UC206-19 \| Housing: FL206 \| Mass: 0.93 kg
UCFL207-20		Shaft: 1-1/4 in \| Bearing: UC207-20 \| Housing: FL207 \| Mass: 1.2 kg
UCFL207-21		Shaft: 1-5/16 in \| Bearing: UC207-21 \| Housing: FL207 \| Mass: 1.2 kg
UCFL207-22		Shaft: 1-3/8 in \| Bearing: UC207-22 \| Housing: FL207 \| Mass: 1.2 kg
UCFL207		Shaft: 35 mm \| Bearing: UC207 \| Housing: FL207 \| Mass: 1.2 kg
UCFL207-23		Shaft: 1-7/16 in \| Bearing: UC207-23 \| Housing: FL207 \| Mass: 1.2 kg
UCFL208-24		Shaft: 1-1/2 in \| Bearing: UC208-24 \| Housing: FL208 \| Mass: 1.6 kg
UCFL208-25		Shaft: 1-9/16 in \| Bearing: UC208-25 \| Housing: FL208 \| Mass: 1.6 kg
UCFL208		Shaft: 40 mm \| Bearing: UC208 \| Housing: FL208 \| Mass: 1.6 kg
UCFL209-26		Shaft: 1-5/8 in \| Bearing: UC209-26 \| Housing: FL209 \| Mass: 1.9 kg
UCFL209-27		Shaft: 1-11/16 in \| Bearing: UC209-27 \| Housing: FL209 \| Mass: 1.9 kg
UCFL209-28		Shaft: 1-3/4 in \| Bearing: UC209-28 \| Housing: FL209 \| Mass: 1.9 kg
UCFL209		Shaft: 45 mm \| Bearing: UC209 \| Housing: FL209 \| Mass: 1.9 kg
UCFL210-30		Shaft: 1-7/8 in \| Bearing: UC210-30 \| Housing: FL210 \| Mass: 2.2 kg
UCFL210-31		Shaft: 1-15/16 in \| Bearing: UC210-31 \| Housing: FL210 \| Mass: 2.2 kg
UCFL210		Shaft: 50 mm \| Bearing: UC210 \| Housing: FL210 \| Mass: 2.2 kg
UCFL211-32		Shaft: 2 in \| Bearing: UC211-32 \| Housing: FL211 \| Mass: 3.3 kg
UCFL211-34		Shaft: 2-1/8 in \| Bearing: UC211-34 \| Housing: FL211 \| Mass: 3.3 kg
UCFL211		Shaft: 55 mm \| Bearing: UC211 \| Housing: FL211 \| Mass: 3.3 kg
UCFL211-35		Shaft: 2-3/16 in \| Bearing: UC211-35 \| Housing: FL211 \| Mass: 3.3 kg
UCFL212-36		Shaft: 2-1/4 in \| Bearing: UC212-36 \| Housing: FL212 \| Mass: 4.2 kg
UCFL212		Shaft: 60 mm \| Bearing: UC212 \| Housing: FL212 \| Mass: 4.2 kg
UCFL212-38		Shaft: 2-3/8 in \| Bearing: UC212-38 \| Housing: FL212 \| Mass: 4.2 kg
UCFL212-39		Shaft: 2-7/16 in \| Bearing: UC212-39 \| Housing: FL212 \| Mass: 4.2 kg
UCFL213-40		Shaft: 2-1/2 in \| Bearing: UC213-40 \| Housing: FL213 \| Mass: 5.1 kg
UCFL213		Shaft: 65 mm \| Bearing: UC213 \| Housing: FL213 \| Mass: 5.1 kg
UCFL214-44		Shaft: 2-3/4 in \| Bearing: UC214-44 \| Housing: FL214 \| Mass: 5.7 kg
UCFL214		Shaft: 70 mm \| Bearing: UC214 \| Housing: FL214 \| Mass: 5.7 kg
UCFL215		Shaft: 75 mm \| Bearing: UC215 \| Housing: FL215 \| Mass: 6.4 kg
UCFL215-48		Shaft: 3 in \| Bearing: UC215-48 \| Housing: FL215 \| Mass: 6.4 kg
UCFL216		Shaft: 80 mm \| Bearing: UC216 \| Housing: FL216 \| Mass: 7.8 kg
UCFL217-52		Shaft: 3-1/4 in \| Bearing: UC217-52 \| Housing: FL217 \| Mass: 9.8 kg
UCFL217		Shaft: 85 mm \| Bearing: UC217 \| Housing: FL217 \| Mass: 9.8 kg
UCFL218-56		Shaft: 3-1/2 in \| Bearing: UC218-56 \| Housing: FL218 \| Mass: 12.3 kg
UCFL218		Shaft: 90 mm \| Bearing: UC218 \| Housing: FL218 \| Mass: 12.3 kg

Mounted Bearing UnitsCBK

48 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK UCFL2 Oval Flange Units (Light Series, Set Screw)

Brand CBK·Mounted Bearing Units

Available part numbers (48)

UCFL201, UCFL201-8, UCFL202, UCFL202-10, UCFL203, UCFL204-12, UCFL204, UCFL205-14, UCFL205-15, UCFL205 + 38 more — see full table ↓

How to order

Send the CBK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	UCFL201	Shaft: 12 mm \| Bearing: UC201 \| Housing: FL204 \| Mass: 0.48 kg
	UCFL201-8	Shaft: 1/2 in \| Bearing: UC201-8 \| Housing: FL204 \| Mass: 0.48 kg
	UCFL202	Shaft: 15 mm \| Bearing: UC202 \| Housing: FL204 \| Mass: 0.48 kg
	UCFL202-10	Shaft: 5/8 in \| Bearing: UC202-10 \| Housing: FL204 \| Mass: 0.48 kg
	UCFL203	Shaft: 17 mm \| Bearing: UC203 \| Housing: FL204 \| Mass: 0.48 kg
	UCFL204-12	Shaft: 3/4 in \| Bearing: UC204-12 \| Housing: FL204 \| Mass: 0.48 kg
	UCFL204	Shaft: 20 mm \| Bearing: UC204 \| Housing: FL204 \| Mass: 0.48 kg
	UCFL205-14	Shaft: 7/8 in \| Bearing: UC205-14 \| Housing: FL205 \| Mass: 0.64 kg
	UCFL205-15	Shaft: 15/16 in \| Bearing: UC205-15 \| Housing: FL205 \| Mass: 0.64 kg
	UCFL205	Shaft: 25 mm \| Bearing: UC205 \| Housing: FL205 \| Mass: 0.64 kg
	UCFL205-16	Shaft: 1 in \| Bearing: UC205-16 \| Housing: FL205 \| Mass: 0.64 kg
	UCFL206-18	Shaft: 1-1/8 in \| Bearing: UC206-18 \| Housing: FL206 \| Mass: 0.93 kg
	UCFL206	Shaft: 30 mm \| Bearing: UC206 \| Housing: FL206 \| Mass: 0.93 kg
	UCFL206-19	Shaft: 1-3/16 in \| Bearing: UC206-19 \| Housing: FL206 \| Mass: 0.93 kg
	UCFL207-20	Shaft: 1-1/4 in \| Bearing: UC207-20 \| Housing: FL207 \| Mass: 1.2 kg
	UCFL207-21	Shaft: 1-5/16 in \| Bearing: UC207-21 \| Housing: FL207 \| Mass: 1.2 kg
	UCFL207-22	Shaft: 1-3/8 in \| Bearing: UC207-22 \| Housing: FL207 \| Mass: 1.2 kg
	UCFL207	Shaft: 35 mm \| Bearing: UC207 \| Housing: FL207 \| Mass: 1.2 kg
	UCFL207-23	Shaft: 1-7/16 in \| Bearing: UC207-23 \| Housing: FL207 \| Mass: 1.2 kg
	UCFL208-24	Shaft: 1-1/2 in \| Bearing: UC208-24 \| Housing: FL208 \| Mass: 1.6 kg
	UCFL208-25	Shaft: 1-9/16 in \| Bearing: UC208-25 \| Housing: FL208 \| Mass: 1.6 kg
	UCFL208	Shaft: 40 mm \| Bearing: UC208 \| Housing: FL208 \| Mass: 1.6 kg
	UCFL209-26	Shaft: 1-5/8 in \| Bearing: UC209-26 \| Housing: FL209 \| Mass: 1.9 kg
	UCFL209-27	Shaft: 1-11/16 in \| Bearing: UC209-27 \| Housing: FL209 \| Mass: 1.9 kg
	UCFL209-28	Shaft: 1-3/4 in \| Bearing: UC209-28 \| Housing: FL209 \| Mass: 1.9 kg
	UCFL209	Shaft: 45 mm \| Bearing: UC209 \| Housing: FL209 \| Mass: 1.9 kg
	UCFL210-30	Shaft: 1-7/8 in \| Bearing: UC210-30 \| Housing: FL210 \| Mass: 2.2 kg
	UCFL210-31	Shaft: 1-15/16 in \| Bearing: UC210-31 \| Housing: FL210 \| Mass: 2.2 kg
	UCFL210	Shaft: 50 mm \| Bearing: UC210 \| Housing: FL210 \| Mass: 2.2 kg
	UCFL211-32	Shaft: 2 in \| Bearing: UC211-32 \| Housing: FL211 \| Mass: 3.3 kg
	UCFL211-34	Shaft: 2-1/8 in \| Bearing: UC211-34 \| Housing: FL211 \| Mass: 3.3 kg
	UCFL211	Shaft: 55 mm \| Bearing: UC211 \| Housing: FL211 \| Mass: 3.3 kg
	UCFL211-35	Shaft: 2-3/16 in \| Bearing: UC211-35 \| Housing: FL211 \| Mass: 3.3 kg
	UCFL212-36	Shaft: 2-1/4 in \| Bearing: UC212-36 \| Housing: FL212 \| Mass: 4.2 kg
	UCFL212	Shaft: 60 mm \| Bearing: UC212 \| Housing: FL212 \| Mass: 4.2 kg
	UCFL212-38	Shaft: 2-3/8 in \| Bearing: UC212-38 \| Housing: FL212 \| Mass: 4.2 kg
	UCFL212-39	Shaft: 2-7/16 in \| Bearing: UC212-39 \| Housing: FL212 \| Mass: 4.2 kg
	UCFL213-40	Shaft: 2-1/2 in \| Bearing: UC213-40 \| Housing: FL213 \| Mass: 5.1 kg
	UCFL213	Shaft: 65 mm \| Bearing: UC213 \| Housing: FL213 \| Mass: 5.1 kg
	UCFL214-44	Shaft: 2-3/4 in \| Bearing: UC214-44 \| Housing: FL214 \| Mass: 5.7 kg
	UCFL214	Shaft: 70 mm \| Bearing: UC214 \| Housing: FL214 \| Mass: 5.7 kg
	UCFL215	Shaft: 75 mm \| Bearing: UC215 \| Housing: FL215 \| Mass: 6.4 kg
	UCFL215-48	Shaft: 3 in \| Bearing: UC215-48 \| Housing: FL215 \| Mass: 6.4 kg
	UCFL216	Shaft: 80 mm \| Bearing: UC216 \| Housing: FL216 \| Mass: 7.8 kg
	UCFL217-52	Shaft: 3-1/4 in \| Bearing: UC217-52 \| Housing: FL217 \| Mass: 9.8 kg
	UCFL217	Shaft: 85 mm \| Bearing: UC217 \| Housing: FL217 \| Mass: 9.8 kg
	UCFL218-56	Shaft: 3-1/2 in \| Bearing: UC218-56 \| Housing: FL218 \| Mass: 12.3 kg
	UCFL218	Shaft: 90 mm \| Bearing: UC218 \| Housing: FL218 \| Mass: 12.3 kg
