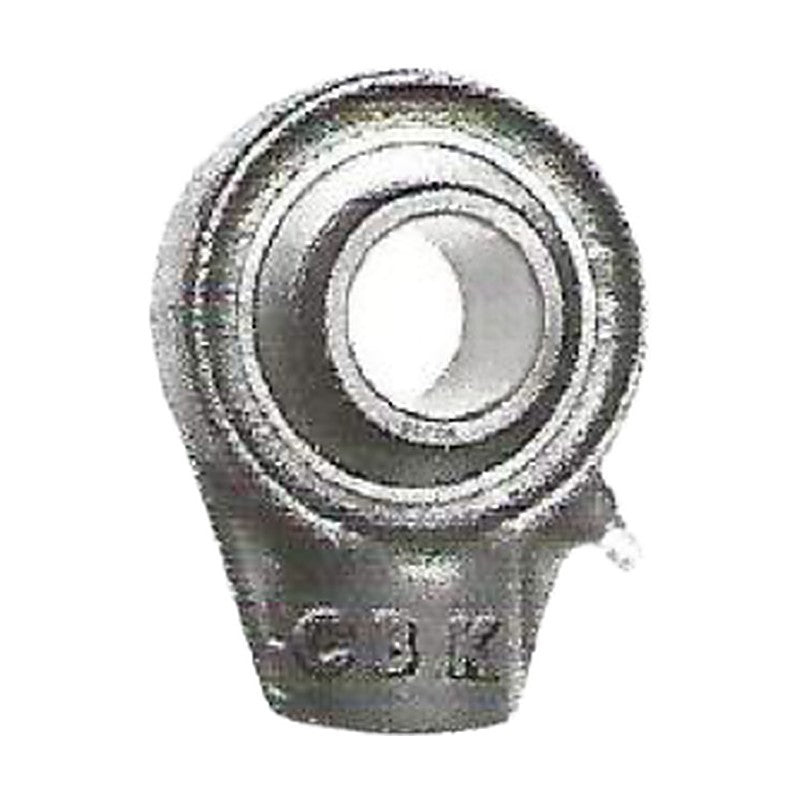

CBK UCHA2 Hanger Units (Light Series, Set Screw)

CBK UCHA2 Hanger Units (Light Series, Set Screw)

CBK UCHA2 hanger units combine a hanger (HA) housing with a UC set-screw insert bearing. Shaft sizes and housing designations follow the CBK dimension tables.

Key features

  • Hanger (HA) housing
  • Fitted with UC set-screw insert bearing
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product Mounted ball bearing unit (hanger unit)
Unit series UCHA2
Housing hanger (HA) housing
Insert bearing UC set-screw insert bearing
Codes 43 sizes
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 91
UCHA201 Shaft: 12 mm | Bearing: UC201 | Housing: HA204 | Mass: 0.77 kg
UCHA201-8 Shaft: 1/2 in | Bearing: UC201-8 | Housing: HA204 | Mass: 0.77 kg
UCHA202 Shaft: 15 mm | Bearing: UC202 | Housing: HA204 | Mass: 0.77 kg
UCHA202-10 Shaft: 5/8 in | Bearing: UC202-10 | Housing: HA204 | Mass: 0.77 kg
UCHA203 Shaft: 17 mm | Bearing: UC203 | Housing: HA204 | Mass: 0.77 kg
UCHA204-12 Shaft: 3/4 in | Bearing: UC204-12 | Housing: HA204 | Mass: 0.77 kg
UCHA204 Shaft: 20 mm | Bearing: UC204 | Housing: HA204 | Mass: 0.77 kg
UCHA205-14 Shaft: 7/8 in | Bearing: UC205-14 | Housing: HA205 | Mass: 0.87 kg
UCHA205-15 Shaft: 15/16 in | Bearing: UC205-15 | Housing: HA205 | Mass: 0.87 kg
UCHA205 Shaft: 25 mm | Bearing: UC205 | Housing: HA205 | Mass: 0.87 kg
UCHA205-16 Shaft: 1 in | Bearing: UC205-16 | Housing: HA205 | Mass: 0.87 kg
UCHA206-18 Shaft: 1-1/8 in | Bearing: UC206-18 | Housing: HA206 | Mass: 0.83 kg
UCHA206 Shaft: 30 mm | Bearing: UC206 | Housing: HA206 | Mass: 0.83 kg
UCHA206-19 Shaft: 1-3/16 in | Bearing: UC206-19 | Housing: HA206 | Mass: 0.83 kg
UCHA207-20 Shaft: 1-1/4 in | Bearing: UC207-20 | Housing: HA207 | Mass: 1.2 kg
UCHA207-21 Shaft: 1-5/16 in | Bearing: UC207-21 | Housing: HA207 | Mass: 1.2 kg
UCHA207-22 Shaft: 1-3/8 in | Bearing: UC207-22 | Housing: HA207 | Mass: 1.2 kg
UCHA207 Shaft: 35 mm | Bearing: UC207 | Housing: HA207 | Mass: 1.2 kg
UCHA207-23 Shaft: 1-7/16 in | Bearing: UC207-23 | Housing: HA207 | Mass: 1.2 kg
UCHA208-24 Shaft: 1-1/2 in | Bearing: UC208-24 | Housing: HA208 | Mass: 1.3 kg
UCHA208-25 Shaft: 1-9/16 in | Bearing: UC208-25 | Housing: HA208 | Mass: 1.3 kg
UCHA208 Shaft: 40 mm | Bearing: UC208 | Housing: HA208 | Mass: 1.3 kg
UCHA209-26 Shaft: 1-5/8 in | Bearing: UC209-26 | Housing: HA209 | Mass: 1.7 kg
UCHA209-27 Shaft: 1-11/16 in | Bearing: UC209-27 | Housing: HA209 | Mass: 1.7 kg
UCHA209-28 Shaft: 1-3/4 in | Bearing: UC209-28 | Housing: HA209 | Mass: 1.7 kg
UCHA209 Shaft: 45 mm | Bearing: UC209 | Housing: HA209 | Mass: 1.7 kg
UCHA210-30 Shaft: 1-7/8 in | Bearing: UC210-30 | Housing: HA210 | Mass: 2.1 kg
UCHA210-31 Shaft: 1-15/16 in | Bearing: UC210-31 | Housing: HA210 | Mass: 2.1 kg
UCHA210 Shaft: 50 mm | Bearing: UC210 | Housing: HA210 | Mass: 2.1 kg
UCHA211-32 Shaft: 2 in | Bearing: UC211-32 | Housing: HA211 | Mass: 2.8 kg
UCHA211-34 Shaft: 2-1/8 in | Bearing: UC211-34 | Housing: HA211 | Mass: 2.8 kg
UCHA211 Shaft: 55 mm | Bearing: UC211 | Housing: HA211 | Mass: 2.8 kg
UCHA211-35 Shaft: 2-3/16 in | Bearing: UC211-35 | Housing: HA211 | Mass: 2.8 kg
UCHA212-36 Shaft: 2-1/4 in | Bearing: UC212-36 | Housing: HA212 | Mass: 3.9 kg
UCHA212 Shaft: 60 mm | Bearing: UC212 | Housing: HA212 | Mass: 3.9 kg
UCHA212-38 Shaft: 2-3/8 in | Bearing: UC212-38 | Housing: HA212 | Mass: 3.9 kg
UCHA212-39 Shaft: 2-7/16 in | Bearing: UC212-39 | Housing: HA212 | Mass: 3.9 kg
UCHA213-40 Shaft: 2-1/2 in | Bearing: UC213-40 | Housing: HA213 | Mass: 5.8 kg
UCHA213 Shaft: 65 mm | Bearing: UC213 | Housing: HA213 | Mass: 5.8 kg
UCHA214-44 Shaft: 2-3/4 in | Bearing: UC214-44 | Housing: HA214 | Mass: 5.9 kg
UCHA214 Shaft: 70 mm | Bearing: UC214 | Housing: HA214 | Mass: 5.9 kg
UCHA215 Shaft: 75 mm | Bearing: UC215 | Housing: HA215 | Mass: 5.6 kg
UCHA215-48 Shaft: 3 in | Bearing: UC215-48 | Housing: HA215 | Mass: 5.6 kg
