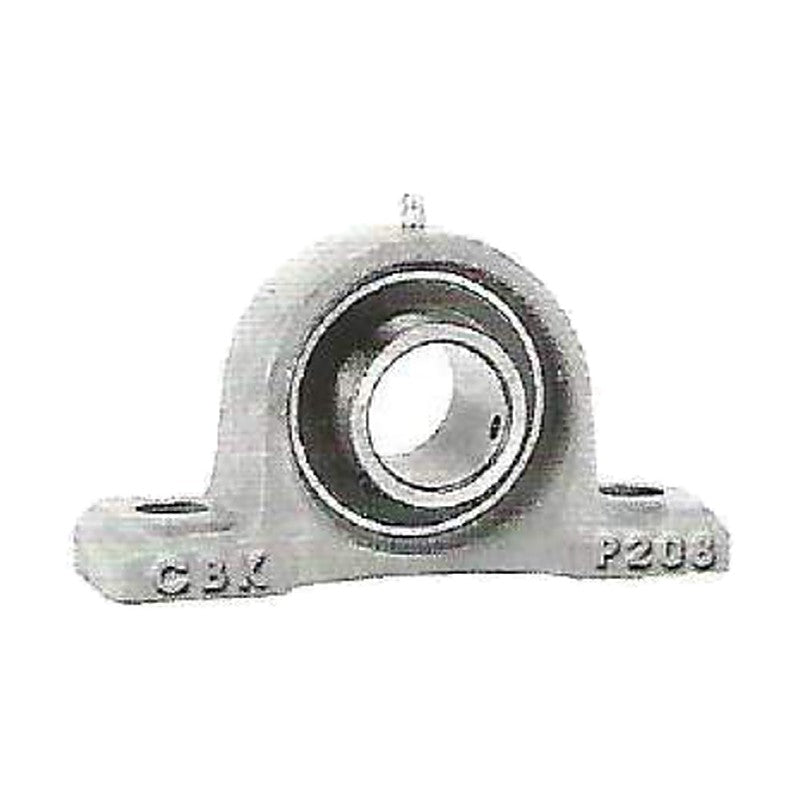

CBK UCP2 Pillow Block Units (Light Series, Set Screw)

CBK UCP2 pillow block units combine a cast iron pillow block (P) housing with a UC set-screw insert bearing. Shaft sizes and housing designations follow the CBK dimension tables.

Key features

Cast iron pillow block (P) housing
Fitted with UC set-screw insert bearing
Self-aligning spherical outside diameter compensates for shaft misalignment
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (pillow block unit)
Unit series	UCP2
Housing	cast iron pillow block (P) housing
Insert bearing	UC set-screw insert bearing
Codes	48 sizes
Source	CBK Bearing Housing & Ball Bearing Units catalogue, p. 45

UCP201		Shaft: 12 mm \| Bearing: UC201 \| Housing: P203 \| Mass: 0.61 kg
UCP201-8		Shaft: 1/2 in \| Bearing: UC201-8 \| Housing: P203 \| Mass: 0.61 kg
UCP202		Shaft: 15 mm \| Bearing: UC202 \| Housing: P203 \| Mass: 0.61 kg
UCP202-10		Shaft: 5/8 in \| Bearing: UC202-10 \| Housing: P203 \| Mass: 0.61 kg
UCP203		Shaft: 17 mm \| Bearing: UC203 \| Housing: P203 \| Mass: 0.61 kg
UCP204-12		Shaft: 3/4 in \| Bearing: UC204-12 \| Housing: P204 \| Mass: 0.66 kg
UCP204		Shaft: 20 mm \| Bearing: UC204 \| Housing: P204 \| Mass: 0.66 kg
UCP205-14		Shaft: 7/8 in \| Bearing: UC205-14 \| Housing: P205 \| Mass: 0.8 kg
UCP205-15		Shaft: 15/16 in \| Bearing: UC205-15 \| Housing: P205 \| Mass: 0.8 kg
UCP205		Shaft: 25 mm \| Bearing: UC205 \| Housing: P205 \| Mass: 0.8 kg
UCP205-16		Shaft: 1 in \| Bearing: UC205-16 \| Housing: P205 \| Mass: 0.8 kg
UCP206-18		Shaft: 1-1/8 in \| Bearing: UC206-18 \| Housing: P206 \| Mass: 1.3 kg
UCP206		Shaft: 30 mm \| Bearing: UC206 \| Housing: P206 \| Mass: 1.3 kg
UCP206-19		Shaft: 1-3/16 in \| Bearing: UC206-19 \| Housing: P206 \| Mass: 1.3 kg
UCP207-20		Shaft: 1-1/4 in \| Bearing: UC207-20 \| Housing: P207 \| Mass: 1.6 kg
UCP207-21		Shaft: 1-5/16 in \| Bearing: UC207-21 \| Housing: P207 \| Mass: 1.6 kg
UCP207-22		Shaft: 1-3/8 in \| Bearing: UC207-22 \| Housing: P207 \| Mass: 1.6 kg
UCP207		Shaft: 35 mm \| Bearing: UC207 \| Housing: P207 \| Mass: 1.6 kg
UCP207-23		Shaft: 1-7/16 in \| Bearing: UC207-23 \| Housing: P207 \| Mass: 1.6 kg
UCP208-24		Shaft: 1-1/2 in \| Bearing: UC208-24 \| Housing: P208 \| Mass: 2 kg
UCP208-25		Shaft: 1-9/16 in \| Bearing: UC208-25 \| Housing: P208 \| Mass: 2 kg
UCP208		Shaft: 40 mm \| Bearing: UC208 \| Housing: P208 \| Mass: 2 kg
UCP209-26		Shaft: 1-5/8 in \| Bearing: UC209-26 \| Housing: P209 \| Mass: 2.2 kg
UCP209-27		Shaft: 1-11/16 in \| Bearing: UC209-27 \| Housing: P209 \| Mass: 2.2 kg
UCP209-28		Shaft: 1-3/4 in \| Bearing: UC209-28 \| Housing: P209 \| Mass: 2.2 kg
UCP209		Shaft: 45 mm \| Bearing: UC209 \| Housing: P209 \| Mass: 2.2 kg
UCP210-30		Shaft: 1-7/8 in \| Bearing: UC210-30 \| Housing: P210 \| Mass: 2.9 kg
UCP210-31		Shaft: 1-15/16 in \| Bearing: UC210-31 \| Housing: P210 \| Mass: 2.9 kg
UCP210		Shaft: 50 mm \| Bearing: UC210 \| Housing: P210 \| Mass: 2.9 kg
UCP211-32		Shaft: 2 in \| Bearing: UC211-32 \| Housing: P211 \| Mass: 3.6 kg
UCP211-34		Shaft: 2-1/8 in \| Bearing: UC211-34 \| Housing: P211 \| Mass: 3.6 kg
UCP211		Shaft: 55 mm \| Bearing: UC211 \| Housing: P211 \| Mass: 3.6 kg
UCP211-35		Shaft: 2-3/16 in \| Bearing: UC211-35 \| Housing: P211 \| Mass: 3.6 kg
UCP212-36		Shaft: 2-1/4 in \| Bearing: UC212-36 \| Housing: P212 \| Mass: 4.9 kg
UCP212		Shaft: 60 mm \| Bearing: UC212 \| Housing: P212 \| Mass: 4.9 kg
UCP212-38		Shaft: 2-3/8 in \| Bearing: UC212-38 \| Housing: P212 \| Mass: 4.9 kg
UCP212-39		Shaft: 2-7/16 in \| Bearing: UC212-39 \| Housing: P212 \| Mass: 4.9 kg
UCP213-40		Shaft: 2-1/2 in \| Bearing: UC213-40 \| Housing: P213 \| Mass: 5.9 kg
UCP213		Shaft: 65 mm \| Bearing: UC213 \| Housing: P213 \| Mass: 5.9 kg
UCP214-44		Shaft: 2-3/4 in \| Bearing: UC214-44 \| Housing: P214 \| Mass: 6.8 kg
UCP214		Shaft: 70 mm \| Bearing: UC214 \| Housing: P214 \| Mass: 6.8 kg
UCP215		Shaft: 75 mm \| Bearing: UC215 \| Housing: P215 \| Mass: 7.4 kg
UCP215-48		Shaft: 3 in \| Bearing: UC215-48 \| Housing: P215 \| Mass: 7.4 kg
UCP216		Shaft: 80 mm \| Bearing: UC216 \| Housing: P216 \| Mass: 9 kg
UCP217-52		Shaft: 3-1/4 in \| Bearing: UC217-52 \| Housing: P217 \| Mass: 10.8 kg
UCP217		Shaft: 85 mm \| Bearing: UC217 \| Housing: P217 \| Mass: 10.8 kg
UCP218-56		Shaft: 3-1/2 in \| Bearing: UC218-56 \| Housing: P218 \| Mass: 13.9 kg
UCP218		Shaft: 90 mm \| Bearing: UC218 \| Housing: P218 \| Mass: 13.9 kg
