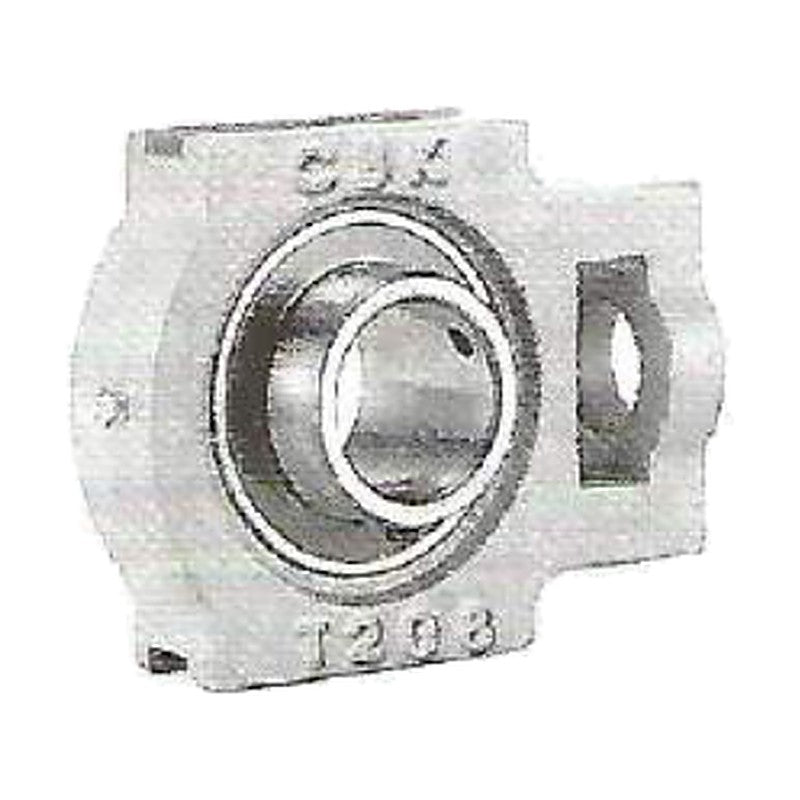

CBK UCT3 Take-Up Units (Medium-Heavy Series, Set Screw)

CBK UCT3 take-up units combine a cast iron take-up (T) housing with a UC set-screw insert bearing. Shaft sizes and housing designations follow the CBK dimension tables.

Key features

Cast iron take-up (T) housing
Fitted with UC set-screw insert bearing
Self-aligning spherical outside diameter compensates for shaft misalignment
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (take-up unit)
Unit series	UCT3
Housing	cast iron take-up (T) housing
Insert bearing	UC set-screw insert bearing
Codes	35 sizes
Source	CBK Bearing Housing & Ball Bearing Units catalogue, p. 78

UCT305		Shaft: 25 mm \| Bearing: UC305 \| Housing: T305 \| Mass: 1.4 kg
UCT305-16		Shaft: 1 in \| Bearing: UC305-16 \| Housing: T305 \| Mass: 1.4 kg
UCT306-18		Shaft: 1-1/8 in \| Bearing: UC306-18 \| Housing: T306 \| Mass: 1.8 kg
UCT306		Shaft: 30 mm \| Bearing: UC306 \| Housing: T306 \| Mass: 1.8 kg
UCT307-20		Shaft: 1-1/4 in \| Bearing: UC307-20 \| Housing: T307 \| Mass: 2.3 kg
UCT307-22		Shaft: 1-3/8 in \| Bearing: UC307-22 \| Housing: T307 \| Mass: 2.3 kg
UCT307		Shaft: 35 mm \| Bearing: UC307 \| Housing: T307 \| Mass: 2.3 kg
UCT307-23		Shaft: 1-7/16 in \| Bearing: UC307-23 \| Housing: T307 \| Mass: 2.3 kg
UCT308-24		Shaft: 1-1/2 in \| Bearing: UC308-24 \| Housing: T308 \| Mass: 3 kg
UCT308		Shaft: 40 mm \| Bearing: UC308 \| Housing: T308 \| Mass: 3 kg
UCT309-28		Shaft: 1-3/4 in \| Bearing: UC309-28 \| Housing: T309 \| Mass: 4.1 kg
UCT309		Shaft: 45 mm \| Bearing: UC309 \| Housing: T309 \| Mass: 4.1 kg
UCT310-31		Shaft: 1-15/16 in \| Bearing: UC310-31 \| Housing: T310 \| Mass: 4.9 kg
UCT310		Shaft: 50 mm \| Bearing: UC310 \| Housing: T310 \| Mass: 4.9 kg
UCT311-32		Shaft: 2 in \| Bearing: UC311-32 \| Housing: T311 \| Mass: 6.1 kg
UCT311		Shaft: 55 mm \| Bearing: UC311 \| Housing: T311 \| Mass: 6.1 kg
UCT312		Shaft: 60 mm \| Bearing: UC312 \| Housing: T312 \| Mass: 7.6 kg
UCT313-40		Shaft: 2-1/2 in \| Bearing: UC313-40 \| Housing: T313 \| Mass: 9.3 kg
UCT313		Shaft: 65 mm \| Bearing: UC313 \| Housing: T313 \| Mass: 9.3 kg
UCT314-44		Shaft: 2-3/4 in \| Bearing: UC314-44 \| Housing: T314 \| Mass: 11.1 kg
UCT314		Shaft: 70 mm \| Bearing: UC314 \| Housing: T314 \| Mass: 11.1 kg
UCT315		Shaft: 75 mm \| Bearing: UC315 \| Housing: T315 \| Mass: 13 kg
UCT315-48		Shaft: 3 in \| Bearing: UC315-48 \| Housing: T315 \| Mass: 13 kg
UCT316		Shaft: 80 mm \| Bearing: UC316 \| Housing: T316 \| Mass: 16.2 kg
UCT317		Shaft: 85 mm \| Bearing: UC317 \| Housing: T317 \| Mass: 19 kg
UCT318-56		Shaft: 3-1/2 in \| Bearing: UC318-56 \| Housing: T318 \| Mass: 21.6 kg
UCT318		Shaft: 90 mm \| Bearing: UC318 \| Housing: T318 \| Mass: 21.6 kg
UCT319		Shaft: 95 mm \| Bearing: UC319 \| Housing: T319 \| Mass: 24.9 kg
UCT320		Shaft: 100 mm \| Bearing: UC320 \| Housing: T320 \| Mass: 30.7 kg
UCT320-64		Shaft: 4 in \| Bearing: UC320-64 \| Housing: T320 \| Mass: 30.7 kg
UCT321		Shaft: 105 mm \| Bearing: UC321 \| Housing: T321 \| Mass: 36.7 kg
UCT322		Shaft: 110 mm \| Bearing: UC322 \| Housing: T322 \| Mass: 39.7 kg
UCT324		Shaft: 120 mm \| Bearing: UC324 \| Housing: T324 \| Mass: 54.4 kg
UCT326		Shaft: 130 mm \| Bearing: UC326 \| Housing: T326 \| Mass: 69.3 kg
UCT328		Shaft: 140 mm \| Bearing: UC328 \| Housing: T328 \| Mass: 85.1 kg

Mounted Bearing UnitsCBK

35 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK UCT3 Take-Up Units (Medium-Heavy Series, Set Screw)

Brand CBK·Mounted Bearing Units

Available part numbers (35)

UCT305, UCT305-16, UCT306-18, UCT306, UCT307-20, UCT307-22, UCT307, UCT307-23, UCT308-24, UCT308 + 25 more — see full table ↓

How to order

Send the CBK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	UCT305	Shaft: 25 mm \| Bearing: UC305 \| Housing: T305 \| Mass: 1.4 kg
	UCT305-16	Shaft: 1 in \| Bearing: UC305-16 \| Housing: T305 \| Mass: 1.4 kg
	UCT306-18	Shaft: 1-1/8 in \| Bearing: UC306-18 \| Housing: T306 \| Mass: 1.8 kg
	UCT306	Shaft: 30 mm \| Bearing: UC306 \| Housing: T306 \| Mass: 1.8 kg
	UCT307-20	Shaft: 1-1/4 in \| Bearing: UC307-20 \| Housing: T307 \| Mass: 2.3 kg
	UCT307-22	Shaft: 1-3/8 in \| Bearing: UC307-22 \| Housing: T307 \| Mass: 2.3 kg
	UCT307	Shaft: 35 mm \| Bearing: UC307 \| Housing: T307 \| Mass: 2.3 kg
	UCT307-23	Shaft: 1-7/16 in \| Bearing: UC307-23 \| Housing: T307 \| Mass: 2.3 kg
	UCT308-24	Shaft: 1-1/2 in \| Bearing: UC308-24 \| Housing: T308 \| Mass: 3 kg
	UCT308	Shaft: 40 mm \| Bearing: UC308 \| Housing: T308 \| Mass: 3 kg
	UCT309-28	Shaft: 1-3/4 in \| Bearing: UC309-28 \| Housing: T309 \| Mass: 4.1 kg
	UCT309	Shaft: 45 mm \| Bearing: UC309 \| Housing: T309 \| Mass: 4.1 kg
	UCT310-31	Shaft: 1-15/16 in \| Bearing: UC310-31 \| Housing: T310 \| Mass: 4.9 kg
	UCT310	Shaft: 50 mm \| Bearing: UC310 \| Housing: T310 \| Mass: 4.9 kg
	UCT311-32	Shaft: 2 in \| Bearing: UC311-32 \| Housing: T311 \| Mass: 6.1 kg
	UCT311	Shaft: 55 mm \| Bearing: UC311 \| Housing: T311 \| Mass: 6.1 kg
	UCT312	Shaft: 60 mm \| Bearing: UC312 \| Housing: T312 \| Mass: 7.6 kg
	UCT313-40	Shaft: 2-1/2 in \| Bearing: UC313-40 \| Housing: T313 \| Mass: 9.3 kg
	UCT313	Shaft: 65 mm \| Bearing: UC313 \| Housing: T313 \| Mass: 9.3 kg
	UCT314-44	Shaft: 2-3/4 in \| Bearing: UC314-44 \| Housing: T314 \| Mass: 11.1 kg
	UCT314	Shaft: 70 mm \| Bearing: UC314 \| Housing: T314 \| Mass: 11.1 kg
	UCT315	Shaft: 75 mm \| Bearing: UC315 \| Housing: T315 \| Mass: 13 kg
	UCT315-48	Shaft: 3 in \| Bearing: UC315-48 \| Housing: T315 \| Mass: 13 kg
	UCT316	Shaft: 80 mm \| Bearing: UC316 \| Housing: T316 \| Mass: 16.2 kg
	UCT317	Shaft: 85 mm \| Bearing: UC317 \| Housing: T317 \| Mass: 19 kg
	UCT318-56	Shaft: 3-1/2 in \| Bearing: UC318-56 \| Housing: T318 \| Mass: 21.6 kg
	UCT318	Shaft: 90 mm \| Bearing: UC318 \| Housing: T318 \| Mass: 21.6 kg
	UCT319	Shaft: 95 mm \| Bearing: UC319 \| Housing: T319 \| Mass: 24.9 kg
	UCT320	Shaft: 100 mm \| Bearing: UC320 \| Housing: T320 \| Mass: 30.7 kg
	UCT320-64	Shaft: 4 in \| Bearing: UC320-64 \| Housing: T320 \| Mass: 30.7 kg
	UCT321	Shaft: 105 mm \| Bearing: UC321 \| Housing: T321 \| Mass: 36.7 kg
	UCT322	Shaft: 110 mm \| Bearing: UC322 \| Housing: T322 \| Mass: 39.7 kg
	UCT324	Shaft: 120 mm \| Bearing: UC324 \| Housing: T324 \| Mass: 54.4 kg
	UCT326	Shaft: 130 mm \| Bearing: UC326 \| Housing: T326 \| Mass: 69.3 kg
	UCT328	Shaft: 140 mm \| Bearing: UC328 \| Housing: T328 \| Mass: 85.1 kg
