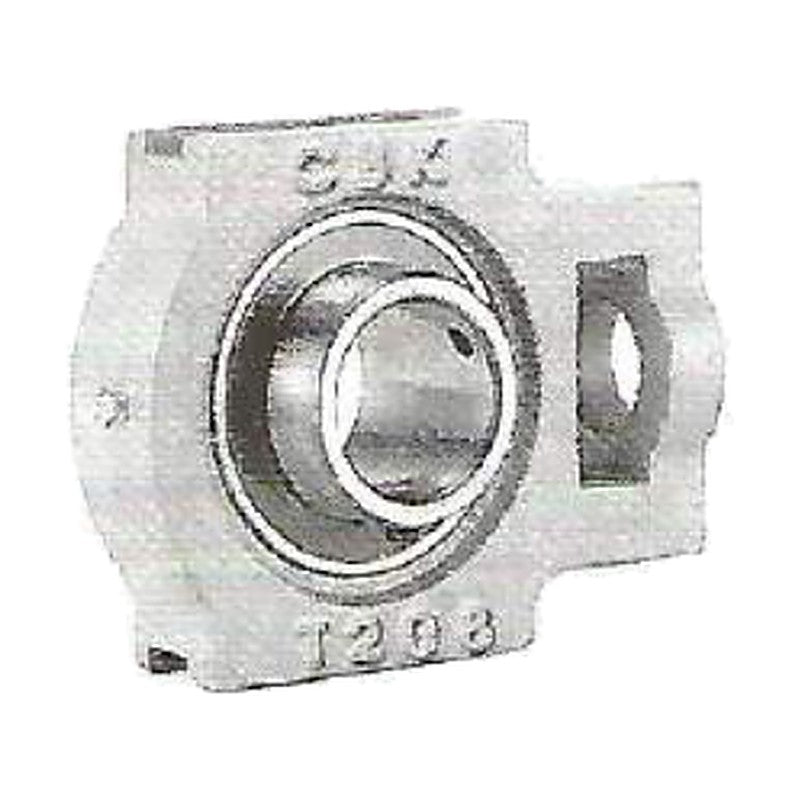

CBK UCTX Take-Up Units (Medium Series, Set Screw)

CBK UCTX take-up units combine a cast iron take-up (T) housing with a UC set-screw insert bearing. Shaft sizes and housing designations follow the CBK dimension tables.

Key features

Cast iron take-up (T) housing
Fitted with UC set-screw insert bearing
Self-aligning spherical outside diameter compensates for shaft misalignment
Pre-greased, sealed deep groove ball bearing insert
Metric and inch shaft sizes as listed (inch sizes marked with -dash numbers in 1/16 in)

Specifications

Product	Mounted ball bearing unit (take-up unit)
Unit series	UCTX
Housing	cast iron take-up (T) housing
Insert bearing	UC set-screw insert bearing
Codes	30 sizes
Source	CBK Bearing Housing & Ball Bearing Units catalogue, p. 76

UCTX05		Shaft: 25 mm \| Bearing: UCX05 \| Housing: TX05 \| Mass: 1.4 kg
UCTX05-16		Shaft: 1 in \| Bearing: UCX05-16 \| Housing: TX05 \| Mass: 1.4 kg
UCTX06		Shaft: 30 mm \| Bearing: UCX06 \| Housing: TX06 \| Mass: 1.7 kg
UCTX06-19		Shaft: 1-3/16 in \| Bearing: UCX06-19 \| Housing: TX06 \| Mass: 1.7 kg
UCTX06-20		Shaft: 1-1/4 in \| Bearing: UCX06-20 \| Housing: TX06 \| Mass: 1.7 kg
UCTX07-22		Shaft: 1-3/8 in \| Bearing: UCX07-22 \| Housing: TX07 \| Mass: 2.7 kg
UCTX07		Shaft: 35 mm \| Bearing: UCX07 \| Housing: TX07 \| Mass: 2.7 kg
UCTX07-23		Shaft: 1-7/16 in \| Bearing: UCX07-23 \| Housing: TX07 \| Mass: 2.7 kg
UCTX08-24		Shaft: 1-1/2 in \| Bearing: UCX08-24 \| Housing: TX08 \| Mass: 2.6 kg
UCTX08		Shaft: 40 mm \| Bearing: UCX08 \| Housing: TX08 \| Mass: 2.6 kg
UCTX09-27		Shaft: 1-11/16 in \| Bearing: UCX09-27 \| Housing: TX09 \| Mass: 2.9 kg
UCTX09-28		Shaft: 1-3/4 in \| Bearing: UCX09-28 \| Housing: TX09 \| Mass: 2.9 kg
UCTX09		Shaft: 45 mm \| Bearing: UCX09 \| Housing: TX09 \| Mass: 2.9 kg
UCTX10-31		Shaft: 1-15/16 in \| Bearing: UCX10-31 \| Housing: TX10 \| Mass: 4.4 kg
UCTX10		Shaft: 50 mm \| Bearing: UCX10 \| Housing: TX10 \| Mass: 4.4 kg
UCTX10-32		Shaft: 2 in \| Bearing: UCX10-32 \| Housing: TX10 \| Mass: 4.4 kg
UCTX11		Shaft: 55 mm \| Bearing: UCX11 \| Housing: TX11 \| Mass: 5.3 kg
UCTX11-35		Shaft: 2-3/16 in \| Bearing: UCX11-35 \| Housing: TX11 \| Mass: 5.3 kg
UCTX11-36		Shaft: 2-1/4 in \| Bearing: UCX11-36 \| Housing: TX11 \| Mass: 5.3 kg
UCTX12		Shaft: 60 mm \| Bearing: UCX12 \| Housing: TX12 \| Mass: 7.4 kg
UCTX12-38		Shaft: 2-3/8 in \| Bearing: UCX12-38 \| Housing: TX12 \| Mass: 7.4 kg
UCTX12-39		Shaft: 2-7/16 in \| Bearing: UCX12-39 \| Housing: TX12 \| Mass: 7.4 kg
UCTX13-40		Shaft: 2-1/2 in \| Bearing: UCX13-40 \| Housing: TX13 \| Mass: 7.6 kg
UCTX13		Shaft: 65 mm \| Bearing: UCX13 \| Housing: TX13 \| Mass: 7.6 kg
UCTX14-44		Shaft: 2-3/4 in \| Bearing: UCX14-44 \| Housing: TX14 \| Mass: 7.9 kg
UCTX14		Shaft: 70 mm \| Bearing: UCX14 \| Housing: TX14 \| Mass: 7.9 kg
UCTX15		Shaft: 75 mm \| Bearing: UCX15 \| Housing: TX15 \| Mass: 8.7 kg
UCTX15-48		Shaft: 3 in \| Bearing: UCX15-48 \| Housing: TX15 \| Mass: 8.7 kg
UCTX16		Shaft: 80 mm \| Bearing: UCX16 \| Housing: TX16 \| Mass: 11.7 kg
UCTX17		Shaft: 85 mm \| Bearing: UCX17 \| Housing: TX17 \| Mass: 11.7 kg
