CBK UKFCX Round Flange Units (Medium Series, Adapter Mount)

CBK UKFCX Round Flange Units (Medium Series, Adapter Mount)

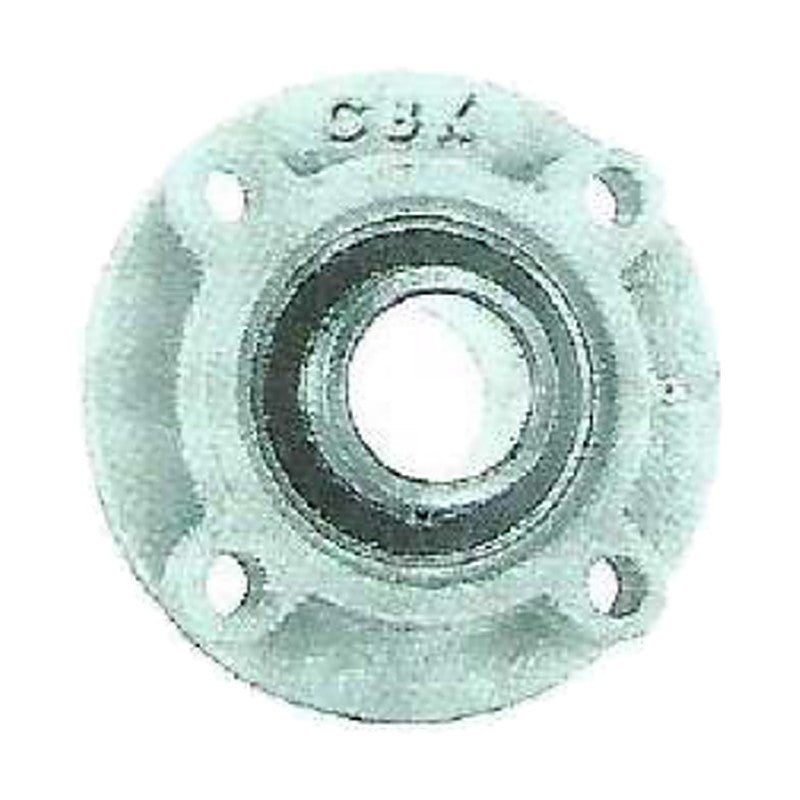

CBK UKFCX round flange units combine a cast iron round flange cartridge (FC) housing with a UK tapered-bore insert bearing on adapter sleeve. Shaft sizes and housing designations follow the CBK dimension tables.

Key features

  • Cast iron round flange cartridge (FC) housing with adapter-mounted insert
  • Fitted with UK tapered-bore insert bearing on adapter sleeve
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Adapter sleeve mounting locks the bearing on plain shafts without set screws

Specifications

Product Mounted ball bearing unit (round flange unit)
Unit series UKFCX
Housing cast iron round flange cartridge (FC) housing
Insert bearing UK tapered-bore insert bearing on adapter sleeve
Codes 14 sizes
Adapter sleeve H23 series (ordered separately or as set)
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 65
UKFCX05 Shaft: 20 mm (adapter) | Bearing: UKX05 | Housing: FCX05 | Mass: 1.2 kg
UKFCX06 Shaft: 25 mm (adapter) | Bearing: UKX06 | Housing: FCX06 | Mass: 1.5 kg
UKFCX07 Shaft: 30 mm (adapter) | Bearing: UKX07 | Housing: FCX07 | Mass: 1.9 kg
UKFCX08 Shaft: 35 mm (adapter) | Bearing: UKX08 | Housing: FCX08 | Mass: 1.9 kg
UKFCX09 Shaft: 40 mm (adapter) | Bearing: UKX09 | Housing: FCX09 | Mass: 2.6 kg
UKFCX10 Shaft: 45 mm (adapter) | Bearing: UKX10 | Housing: FCX10 | Mass: 3.1 kg
UKFCX11 Shaft: 50 mm (adapter) | Bearing: UKX11 | Housing: FCX11 | Mass: 4 kg
UKFCX12 Shaft: 55 mm (adapter) | Bearing: UKX12 | Housing: FCX12 | Mass: 5.1 kg
UKFCX13 Shaft: 60 mm (adapter) | Bearing: UKX13 | Housing: FCX13 | Mass: 5.3 kg
UKFCX15 Shaft: 65 mm (adapter) | Bearing: UKX15 | Housing: FCX15 | Mass: 7.7 kg
UKFCX16 Shaft: 70 mm (adapter) | Bearing: UKX16 | Housing: FCX16 | Mass: 11.4 kg
UKFCX17 Shaft: 75 mm (adapter) | Bearing: UKX17 | Housing: FCX17 | Mass: 12.6 kg
UKFCX18 Shaft: 80 mm (adapter) | Bearing: UKX18 | Housing: FCX18 | Mass: 14 kg
UKFCX20 Shaft: 90 mm (adapter) | Bearing: UKX20 | Housing: FCX20 | Mass: 15 kg
Mounted Bearing UnitsCBK
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK UKFCX Round Flange Units (Medium Series, Adapter Mount)

Brand CBK·Mounted Bearing Units

Available part numbers (14)

UKFCX05, UKFCX06, UKFCX07, UKFCX08, UKFCX09, UKFCX10, UKFCX11, UKFCX12, UKFCX13, UKFCX15 + 4 more — see full table ↓

How to order

Send the CBK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UKFCX05Shaft: 20 mm (adapter) | Bearing: UKX05 | Housing: FCX05 | Mass: 1.2 kg
UKFCX06Shaft: 25 mm (adapter) | Bearing: UKX06 | Housing: FCX06 | Mass: 1.5 kg
UKFCX07Shaft: 30 mm (adapter) | Bearing: UKX07 | Housing: FCX07 | Mass: 1.9 kg
UKFCX08Shaft: 35 mm (adapter) | Bearing: UKX08 | Housing: FCX08 | Mass: 1.9 kg
UKFCX09Shaft: 40 mm (adapter) | Bearing: UKX09 | Housing: FCX09 | Mass: 2.6 kg
UKFCX10Shaft: 45 mm (adapter) | Bearing: UKX10 | Housing: FCX10 | Mass: 3.1 kg
UKFCX11Shaft: 50 mm (adapter) | Bearing: UKX11 | Housing: FCX11 | Mass: 4 kg
UKFCX12Shaft: 55 mm (adapter) | Bearing: UKX12 | Housing: FCX12 | Mass: 5.1 kg
UKFCX13Shaft: 60 mm (adapter) | Bearing: UKX13 | Housing: FCX13 | Mass: 5.3 kg
UKFCX15Shaft: 65 mm (adapter) | Bearing: UKX15 | Housing: FCX15 | Mass: 7.7 kg
UKFCX16Shaft: 70 mm (adapter) | Bearing: UKX16 | Housing: FCX16 | Mass: 11.4 kg
UKFCX17Shaft: 75 mm (adapter) | Bearing: UKX17 | Housing: FCX17 | Mass: 12.6 kg
UKFCX18Shaft: 80 mm (adapter) | Bearing: UKX18 | Housing: FCX18 | Mass: 14 kg
UKFCX20Shaft: 90 mm (adapter) | Bearing: UKX20 | Housing: FCX20 | Mass: 15 kg
