CBK UKFL3 Oval Flange Units (Medium-Heavy Series, Adapter Mount)

CBK UKFL3 Oval Flange Units (Medium-Heavy Series, Adapter Mount)

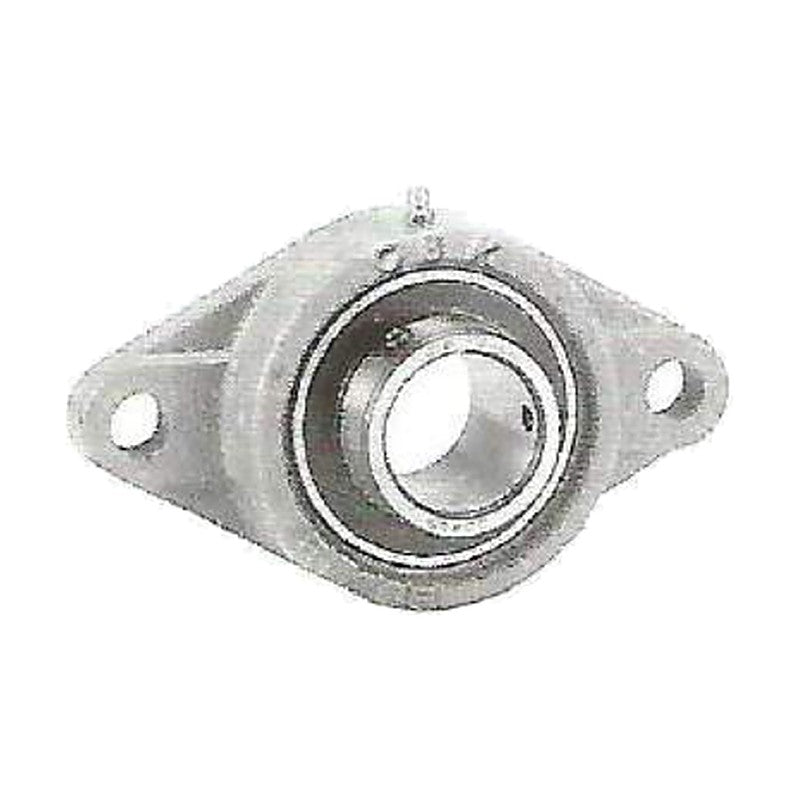

CBK UKFL3 oval flange units combine a cast iron 2-bolt oval flange (FL) housing with a UK tapered-bore insert bearing on adapter sleeve. Shaft sizes and housing designations follow the CBK dimension tables.

Key features

  • Cast iron 2-bolt oval flange (FL) housing with adapter-mounted insert
  • Fitted with UK tapered-bore insert bearing on adapter sleeve
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Adapter sleeve mounting locks the bearing on plain shafts without set screws

Specifications

Product Mounted ball bearing unit (oval flange unit)
Unit series UKFL3
Housing cast iron 2-bolt oval flange (FL) housing
Insert bearing UK tapered-bore insert bearing on adapter sleeve
Codes 19 sizes
Adapter sleeve H23 series (ordered separately or as set)
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 73
UKFL305 Shaft: 20 mm (adapter) | Bearing: UK305 | Housing: FL305 | Mass: 1.1 kg
UKFL306 Shaft: 25 mm (adapter) | Bearing: UK306 | Housing: FL306 | Mass: 1.5 kg
UKFL307 Shaft: 30 mm (adapter) | Bearing: UK307 | Housing: FL307 | Mass: 1.8 kg
UKFL308 Shaft: 35 mm (adapter) | Bearing: UK308 | Housing: FL308 | Mass: 2.5 kg
UKFL309 Shaft: 40 mm (adapter) | Bearing: UK309 | Housing: FL309 | Mass: 3.5 kg
UKFL310 Shaft: 45 mm (adapter) | Bearing: UK310 | Housing: FL310 | Mass: 4.4 kg
UKFL311 Shaft: 50 mm (adapter) | Bearing: UK311 | Housing: FL311 | Mass: 5.3 kg
UKFL312 Shaft: 55 mm (adapter) | Bearing: UK312 | Housing: FL312 | Mass: 6.5 kg
UKFL313 Shaft: 60 mm (adapter) | Bearing: UK313 | Housing: FL313 | Mass: 8.5 kg
UKFL315 Shaft: 65 mm (adapter) | Bearing: UK315 | Housing: FL315 | Mass: 11.3 kg
UKFL316 Shaft: 70 mm (adapter) | Bearing: UK316 | Housing: FL316 | Mass: 14.4 kg
UKFL317 Shaft: 75 mm (adapter) | Bearing: UK317 | Housing: FL317 | Mass: 16 kg
UKFL318 Shaft: 80 mm (adapter) | Bearing: UK318 | Housing: FL318 | Mass: 19 kg
UKFL319 Shaft: 85 mm (adapter) | Bearing: UK319 | Housing: FL319 | Mass: 24.6 kg
UKFL320 Shaft: 90 mm (adapter) | Bearing: UK320 | Housing: FL320 | Mass: 29.4 kg
UKFL322 Shaft: 100 mm (adapter) | Bearing: UK322 | Housing: FL322 | Mass: 36.2 kg
UKFL324 Shaft: 110 mm (adapter) | Bearing: UK324 | Housing: FL324 | Mass: 51.6 kg
UKFL326 Shaft: 115 mm (adapter) | Bearing: UK326 | Housing: FL326 | Mass: 61.6 kg
UKFL328 Shaft: 125 mm (adapter) | Bearing: UK328 | Housing: FL328 | Mass: 68.4 kg
