CBK UKFLX Oval Flange Units (Medium Series, Adapter Mount)

CBK UKFLX Oval Flange Units (Medium Series, Adapter Mount)

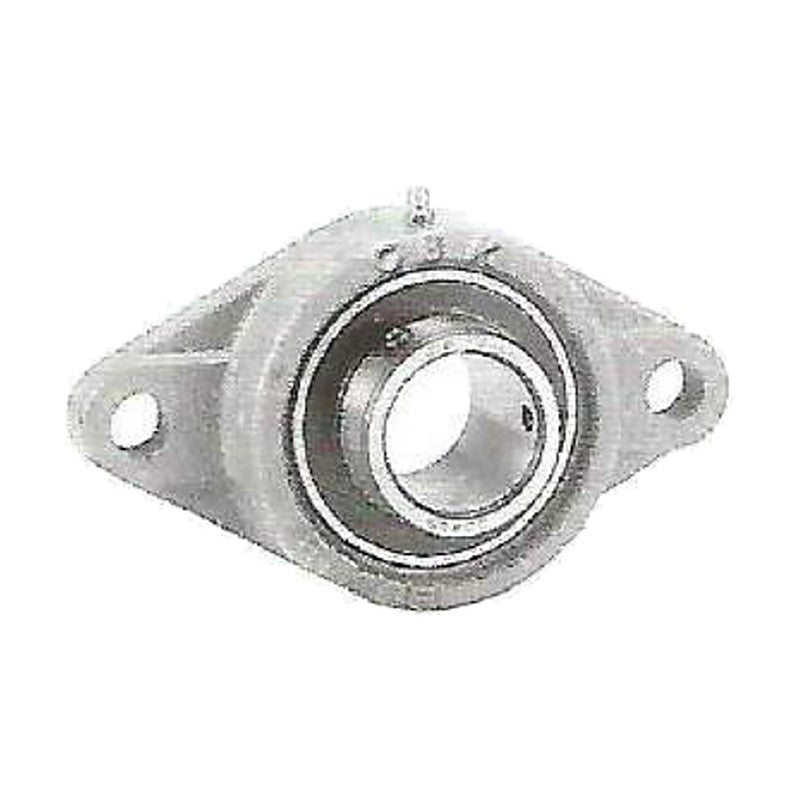

CBK UKFLX oval flange units combine a cast iron 2-bolt oval flange (FL) housing with a UK tapered-bore insert bearing on adapter sleeve. Shaft sizes and housing designations follow the CBK dimension tables.

Key features

  • Cast iron 2-bolt oval flange (FL) housing with adapter-mounted insert
  • Fitted with UK tapered-bore insert bearing on adapter sleeve
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Adapter sleeve mounting locks the bearing on plain shafts without set screws

Specifications

Product Mounted ball bearing unit (oval flange unit)
Unit series UKFLX
Housing cast iron 2-bolt oval flange (FL) housing
Insert bearing UK tapered-bore insert bearing on adapter sleeve
Codes 6 sizes
Adapter sleeve H23 series (ordered separately or as set)
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 71
UKFLX05 Shaft: 20 mm (adapter) | Bearing: UKX05 | Housing: FLX05 | Mass: 1 kg
UKFLX06 Shaft: 25 mm (adapter) | Bearing: UKX06 | Housing: FLX06 | Mass: 1.5 kg
UKFLX07 Shaft: 30 mm (adapter) | Bearing: UKX07 | Housing: FLX07 | Mass: 1.8 kg
UKFLX08 Shaft: 35 mm (adapter) | Bearing: UKX08 | Housing: FLX08 | Mass: 2.1 kg
UKFLX09 Shaft: 40 mm (adapter) | Bearing: UKX09 | Housing: FLX09 | Mass: 2.5 kg
UKFLX10 Shaft: 45 mm (adapter) | Bearing: UKX10 | Housing: FLX10 | Mass: 3.7 kg
Mounted Bearing UnitsCBK
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK UKFLX Oval Flange Units (Medium Series, Adapter Mount)

Brand CBK·Mounted Bearing Units

Available part numbers (6)

UKFLX05, UKFLX06, UKFLX07, UKFLX08, UKFLX09, UKFLX10

How to order

Send the CBK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UKFLX05Shaft: 20 mm (adapter) | Bearing: UKX05 | Housing: FLX05 | Mass: 1 kg
UKFLX06Shaft: 25 mm (adapter) | Bearing: UKX06 | Housing: FLX06 | Mass: 1.5 kg
UKFLX07Shaft: 30 mm (adapter) | Bearing: UKX07 | Housing: FLX07 | Mass: 1.8 kg
UKFLX08Shaft: 35 mm (adapter) | Bearing: UKX08 | Housing: FLX08 | Mass: 2.1 kg
UKFLX09Shaft: 40 mm (adapter) | Bearing: UKX09 | Housing: FLX09 | Mass: 2.5 kg
UKFLX10Shaft: 45 mm (adapter) | Bearing: UKX10 | Housing: FLX10 | Mass: 3.7 kg
