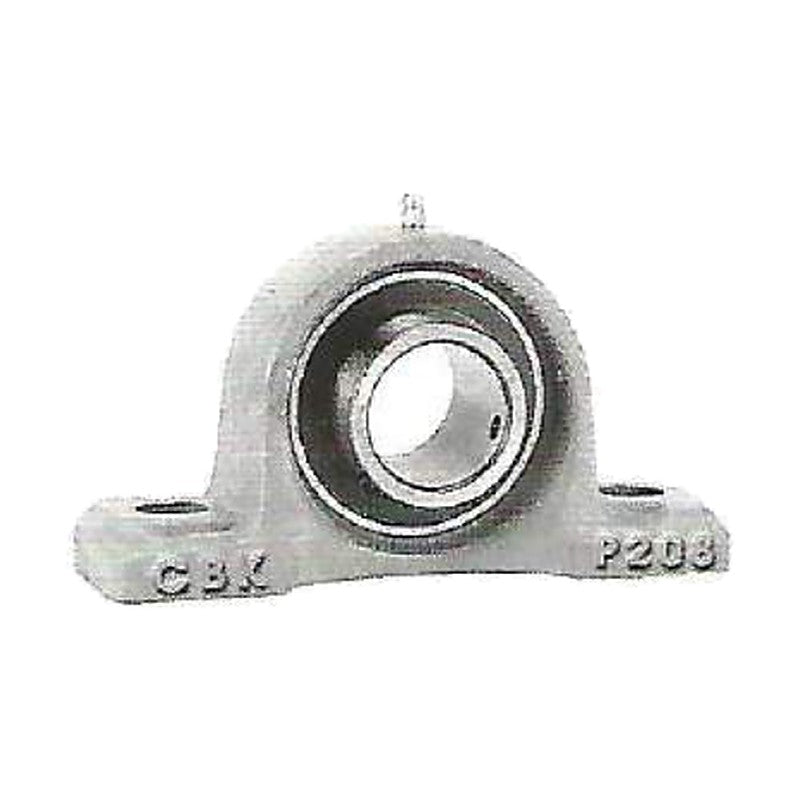

CBK UKP2 Pillow Block Units (Light Series, Adapter Mount)

CBK UKP2 Pillow Block Units (Light Series, Adapter Mount)

CBK UKP2 pillow block units combine a cast iron pillow block (P) housing with a UK tapered-bore insert bearing on adapter sleeve. Shaft sizes and housing designations follow the CBK dimension tables.

Key features

  • Cast iron pillow block (P) housing with tapered-bore insert on adapter sleeve
  • Fitted with UK tapered-bore insert bearing on adapter sleeve
  • Self-aligning spherical outside diameter compensates for shaft misalignment
  • Pre-greased, sealed deep groove ball bearing insert
  • Adapter sleeve mounting locks the bearing on plain shafts without set screws

Specifications

Product Mounted ball bearing unit (pillow block unit)
Unit series UKP2
Housing cast iron pillow block (P) housing
Insert bearing UK tapered-bore insert bearing on adapter sleeve
Codes 13 sizes
Adapter sleeve H3 series (ordered separately or as set)
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 47
UKP205 Shaft: 20 mm (adapter) | Bearing: UK205 | Housing: P205 | Mass: 0.84 kg
UKP206 Shaft: 25 mm (adapter) | Bearing: UK206 | Housing: P206 | Mass: 1.4 kg
UKP207 Shaft: 30 mm (adapter) | Bearing: UK207 | Housing: P207 | Mass: 1.7 kg
UKP208 Shaft: 35 mm (adapter) | Bearing: UK208 | Housing: P208 | Mass: 2 kg
UKP209 Shaft: 40 mm (adapter) | Bearing: UK209 | Housing: P209 | Mass: 2.3 kg
UKP210 Shaft: 45 mm (adapter) | Bearing: UK210 | Housing: P210 | Mass: 3 kg
UKP211 Shaft: 50 mm (adapter) | Bearing: UK211 | Housing: P211 | Mass: 3.7 kg
UKP212 Shaft: 55 mm (adapter) | Bearing: UK212 | Housing: P212 | Mass: 4.8 kg
UKP213 Shaft: 60 mm (adapter) | Bearing: UK213 | Housing: P213 | Mass: 5.8 kg
UKP215 Shaft: 65 mm (adapter) | Bearing: UK215 | Housing: P215 | Mass: 7.7 kg
UKP216 Shaft: 70 mm (adapter) | Bearing: UK216 | Housing: P216 | Mass: 9.2 kg
UKP217 Shaft: 75 mm (adapter) | Bearing: UK217 | Housing: P217 | Mass: 11 kg
UKP218 Shaft: 80 mm (adapter) | Bearing: UK218 | Housing: P218 | Mass: 13.8 kg
Mounted Bearing UnitsCBK
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK UKP2 Pillow Block Units (Light Series, Adapter Mount)

Brand CBK·Mounted Bearing Units

Available part numbers (13)

UKP205, UKP206, UKP207, UKP208, UKP209, UKP210, UKP211, UKP212, UKP213, UKP215 + 3 more — see full table ↓

How to order

Send the CBK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UKP205Shaft: 20 mm (adapter) | Bearing: UK205 | Housing: P205 | Mass: 0.84 kg
UKP206Shaft: 25 mm (adapter) | Bearing: UK206 | Housing: P206 | Mass: 1.4 kg
UKP207Shaft: 30 mm (adapter) | Bearing: UK207 | Housing: P207 | Mass: 1.7 kg
UKP208Shaft: 35 mm (adapter) | Bearing: UK208 | Housing: P208 | Mass: 2 kg
UKP209Shaft: 40 mm (adapter) | Bearing: UK209 | Housing: P209 | Mass: 2.3 kg
UKP210Shaft: 45 mm (adapter) | Bearing: UK210 | Housing: P210 | Mass: 3 kg
UKP211Shaft: 50 mm (adapter) | Bearing: UK211 | Housing: P211 | Mass: 3.7 kg
UKP212Shaft: 55 mm (adapter) | Bearing: UK212 | Housing: P212 | Mass: 4.8 kg
UKP213Shaft: 60 mm (adapter) | Bearing: UK213 | Housing: P213 | Mass: 5.8 kg
UKP215Shaft: 65 mm (adapter) | Bearing: UK215 | Housing: P215 | Mass: 7.7 kg
UKP216Shaft: 70 mm (adapter) | Bearing: UK216 | Housing: P216 | Mass: 9.2 kg
UKP217Shaft: 75 mm (adapter) | Bearing: UK217 | Housing: P217 | Mass: 11 kg
UKP218Shaft: 80 mm (adapter) | Bearing: UK218 | Housing: P218 | Mass: 13.8 kg
