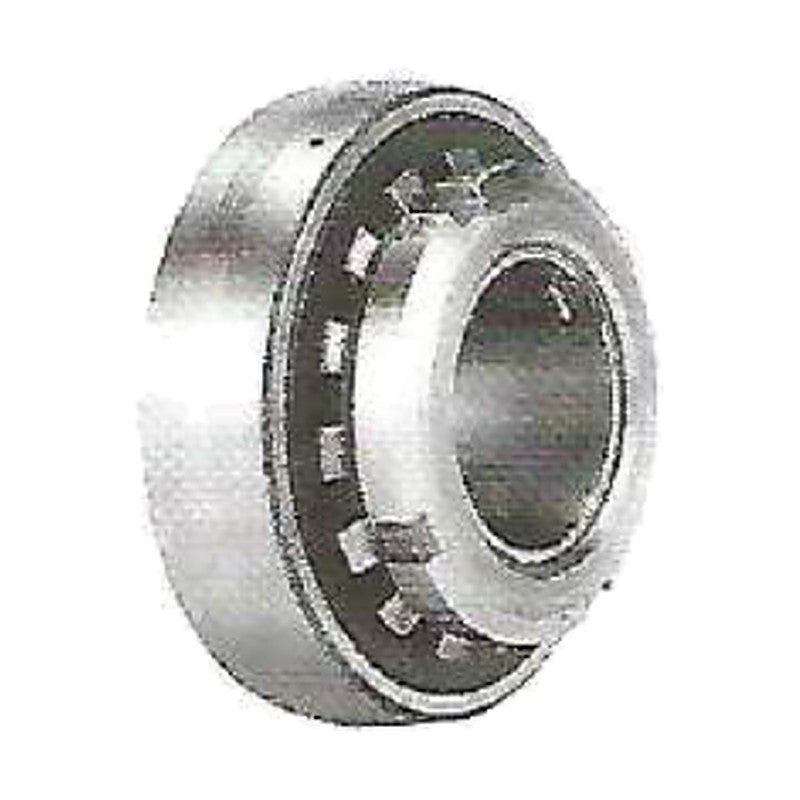

CBK UKX Insert Bearings (Tapered Bore)

CBK UKX Insert Bearings (Tapered Bore)

CBK UKX insert ball bearings (tapered bore (1:12) for adapter sleeve mounting) for use in mounted bearing unit housings.

Key features

  • Tapered bore (1:12) for adapter sleeve mounting
  • Spherical outside diameter allows self-alignment in the housing
  • Double-sealed and grease-filled for maintenance-free operation
  • Interchangeable with standard bearing unit housings of the same series
  • Dimensions, load ratings (kgf) and mass as listed per size

Specifications

Product Ball bearing insert for mounted units
Series UKX
Design tapered bore (1:12) for adapter sleeve mounting
Sealing Sealed, pre-lubricated
Load rating unit kgf
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 102
UKX05 d: 25 mm | D: 62 mm | B: 24 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.27 kg
UKX06 d: 30 mm | D: 72 mm | B: 26 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.43 kg
UKX07 d: 35 mm | D: 80 mm | B: 27 mm | C: 2910 kgf | C0: 1650 kgf | Mass: 0.53 kg
UKX08 d: 40 mm | D: 85 mm | B: 28 mm | C: 3200 kgf | C0: 1850 kgf | Mass: 0.58 kg
UKX09 d: 45 mm | D: 90 mm | B: 30 mm | C: 3510 kgf | C0: 2100 kgf | Mass: 0.67 kg
UKX10 d: 50 mm | D: 100 mm | B: 32 mm | C: 4330 kgf | C0: 2660 kgf | Mass: 0.89 kg
UKX11 d: 55 mm | D: 110 mm | B: 34 mm | C: 5240 kgf | C0: 3300 kgf | Mass: 1.15 kg
UKX12 d: 60 mm | D: 120 mm | B: 37 mm | C: 5720 kgf | C0: 3650 kgf | Mass: 1.45 kg
UKX13 d: 65 mm | D: 125 mm | B: 40 mm | C: 6220 kgf | C0: 4000 kgf | Mass: 1.62 kg
UKX15 d: 75 mm | D: 140 mm | B: 40 mm | C: 7260 kgf | C0: 4750 kgf | Mass: 2.1 kg
UKX16 d: 80 mm | D: 150 mm | B: 43 mm | C: 8390 kgf | C0: 5600 kgf | Mass: 2.64 kg
UKX17 d: 85 mm | D: 160 mm | B: 46 mm | C: 9600 kgf | C0: 6450 kgf | Mass: 3.25 kg
Insert BearingsCBK
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK UKX Insert Bearings (Tapered Bore)

Brand CBK·Insert Bearings

Available part numbers (12)

UKX05, UKX06, UKX07, UKX08, UKX09, UKX10, UKX11, UKX12, UKX13, UKX15 + 2 more — see full table ↓

How to order

Send the CBK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UKX05d: 25 mm | D: 62 mm | B: 24 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.27 kg
UKX06d: 30 mm | D: 72 mm | B: 26 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.43 kg
UKX07d: 35 mm | D: 80 mm | B: 27 mm | C: 2910 kgf | C0: 1650 kgf | Mass: 0.53 kg
UKX08d: 40 mm | D: 85 mm | B: 28 mm | C: 3200 kgf | C0: 1850 kgf | Mass: 0.58 kg
UKX09d: 45 mm | D: 90 mm | B: 30 mm | C: 3510 kgf | C0: 2100 kgf | Mass: 0.67 kg
UKX10d: 50 mm | D: 100 mm | B: 32 mm | C: 4330 kgf | C0: 2660 kgf | Mass: 0.89 kg
UKX11d: 55 mm | D: 110 mm | B: 34 mm | C: 5240 kgf | C0: 3300 kgf | Mass: 1.15 kg
UKX12d: 60 mm | D: 120 mm | B: 37 mm | C: 5720 kgf | C0: 3650 kgf | Mass: 1.45 kg
UKX13d: 65 mm | D: 125 mm | B: 40 mm | C: 6220 kgf | C0: 4000 kgf | Mass: 1.62 kg
UKX15d: 75 mm | D: 140 mm | B: 40 mm | C: 7260 kgf | C0: 4750 kgf | Mass: 2.1 kg
UKX16d: 80 mm | D: 150 mm | B: 43 mm | C: 8390 kgf | C0: 5600 kgf | Mass: 2.64 kg
UKX17d: 85 mm | D: 160 mm | B: 46 mm | C: 9600 kgf | C0: 6450 kgf | Mass: 3.25 kg
