• CBK UR2 Insert Bearings (Set Screw)
1 1

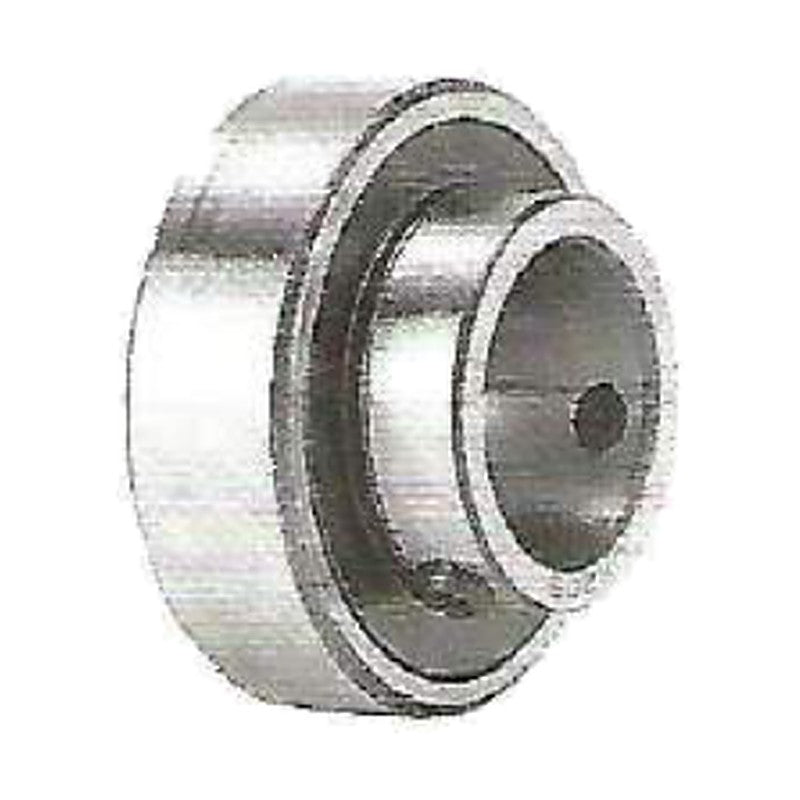

CBK UR2 Insert Bearings (Set Screw)

CBK UR2 Insert Bearings (Set Screw)

CBK UR2 insert ball bearings (set-screw locking, wide inner ring, cylindrical OD) for use in mounted bearing unit housings.

Key features

  • Set-screw locking, wide inner ring, cylindrical OD
  • Cylindrical outside diameter for direct housing fit
  • Double-sealed and grease-filled for maintenance-free operation
  • Interchangeable with standard bearing unit housings of the same series
  • Dimensions, load ratings (kgf) and mass as listed per size

Specifications

Product Ball bearing insert for mounted units
Series UR2
Design set-screw locking, wide inner ring, cylindrical OD
Sealing Sealed, pre-lubricated
Load rating unit kgf
Source CBK Bearing Housing & Ball Bearing Units catalogue, p. 104
UR201 d: 12 mm | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
UR201-8 d: 1/2 in | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
UR202 d: 15 mm | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
UR202-10 d: 5/8 in | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
UR203 d: 17 mm | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
UR204-12 d: 3/4 in | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.21 kg
UR204 d: 20 mm | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.21 kg
UR205-14 d: 7/8 in | D: 52 mm | B: 34 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.26 kg
UR205-15 d: 15/16 in | D: 52 mm | B: 34 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.26 kg
UR205 d: 25 mm | D: 52 mm | B: 34 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.26 kg
UR205-16 d: 1 in | D: 52 mm | B: 34 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.26 kg
UR206-18 d: 1-1/8 in | D: 62 mm | B: 38.1 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.38 kg
UR206 d: 30 mm | D: 62 mm | B: 38.1 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.38 kg
UR206-19 d: 1-3/16 in | D: 62 mm | B: 38.1 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.38 kg
UR207-20 d: 1-1/4 in | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.62 kg
UR207-22 d: 1-3/8 in | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.62 kg
UR207 d: 35 mm | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.62 kg
UR207-23 d: 1-7/16 in | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.62 kg
UR208-24 d: 1-1/2 in | D: 80 mm | B: 49.2 mm | C: 2910 kgf | C0: 1650 kgf | Mass: 0.78 kg
UR208 d: 40 mm | D: 80 mm | B: 49.2 mm | C: 2910 kgf | C0: 1650 kgf | Mass: 0.78 kg
Insert BearingsCBK
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CBK UR2 Insert Bearings (Set Screw)

Brand CBK·Insert Bearings

Available part numbers (20)

UR201, UR201-8, UR202, UR202-10, UR203, UR204-12, UR204, UR205-14, UR205-15, UR205 + 10 more — see full table ↓

How to order

Send the CBK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UR201d: 12 mm | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
UR201-8d: 1/2 in | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
UR202d: 15 mm | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
UR202-10d: 5/8 in | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
UR203d: 17 mm | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.22 kg
UR204-12d: 3/4 in | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.21 kg
UR204d: 20 mm | D: 47 mm | B: 31 mm | C: 1280 kgf | C0: 650 kgf | Mass: 0.21 kg
UR205-14d: 7/8 in | D: 52 mm | B: 34 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.26 kg
UR205-15d: 15/16 in | D: 52 mm | B: 34 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.26 kg
UR205d: 25 mm | D: 52 mm | B: 34 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.26 kg
UR205-16d: 1 in | D: 52 mm | B: 34 mm | C: 1400 kgf | C0: 730 kgf | Mass: 0.26 kg
UR206-18d: 1-1/8 in | D: 62 mm | B: 38.1 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.38 kg
UR206d: 30 mm | D: 62 mm | B: 38.1 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.38 kg
UR206-19d: 1-3/16 in | D: 62 mm | B: 38.1 mm | C: 1950 kgf | C0: 1050 kgf | Mass: 0.38 kg
UR207-20d: 1-1/4 in | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.62 kg
UR207-22d: 1-3/8 in | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.62 kg
UR207d: 35 mm | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.62 kg
UR207-23d: 1-7/16 in | D: 72 mm | B: 42.9 mm | C: 2570 kgf | C0: 1430 kgf | Mass: 0.62 kg
UR208-24d: 1-1/2 in | D: 80 mm | B: 49.2 mm | C: 2910 kgf | C0: 1650 kgf | Mass: 0.78 kg
UR208d: 40 mm | D: 80 mm | B: 49.2 mm | C: 2910 kgf | C0: 1650 kgf | Mass: 0.78 kg
