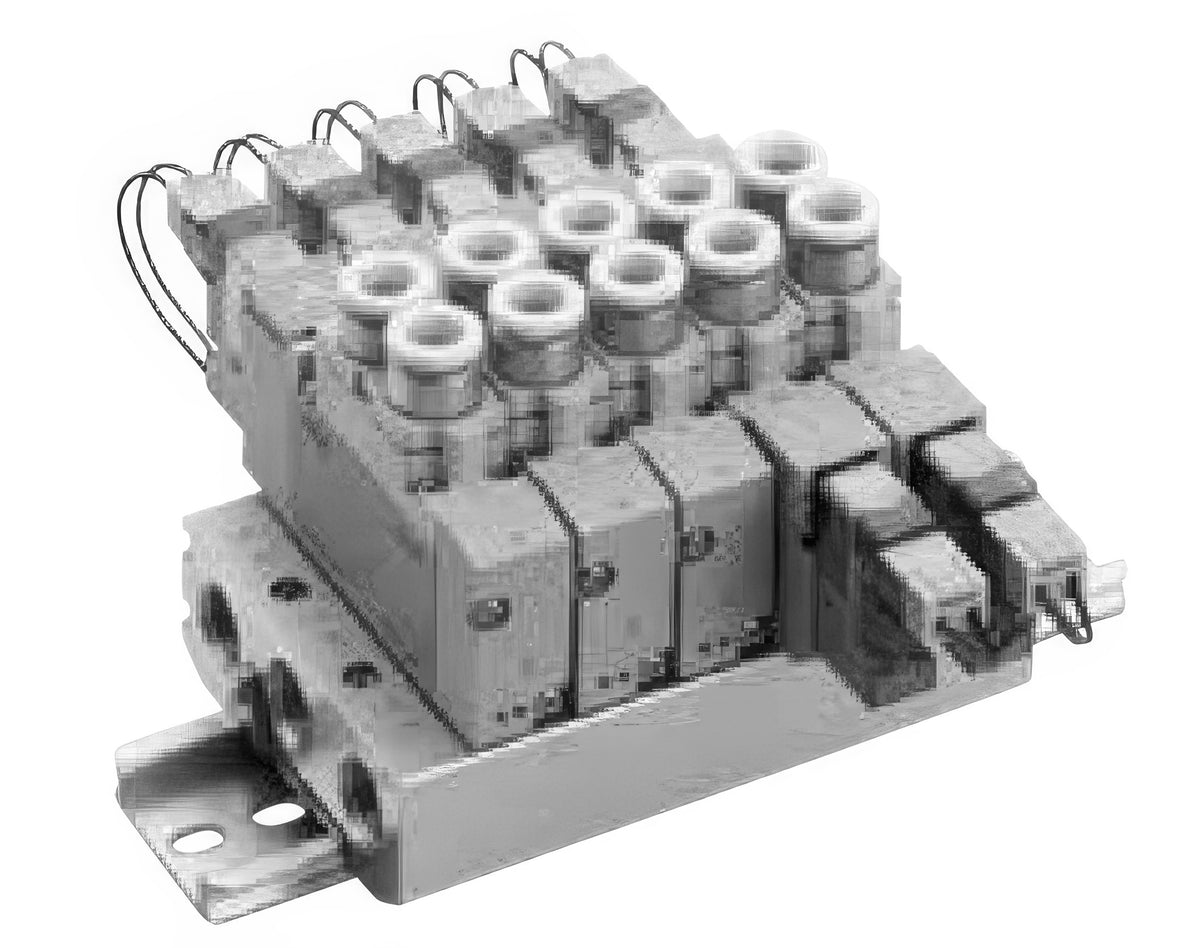

CKD 4GA/4GB Series Manifold Parts and Accessories (M4GA/M4GB Manifolds)

CKD 4GA/4GB Series Manifold Parts and Accessories (M4GA/M4GB Manifolds)

Replacement parts and accessories for M4GA/M4GB individual wiring and wiring-reduced manifolds.

Key features

  • Includes cartridge one-touch fittings (straight and elbow), masking plates, spacer type pilot check valves, silencers, blanking plugs and port plugs listed in the catalog part tables

Specifications

Series group M4GA/M4GB (M3GA/M3GB)
4G1R-MP Part: Masking plate | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 192
4G2R-MP Part: Masking plate | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 192
4G3R-MP Part: Masking plate | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 192
4G1R-JOINT-C8 Part: Cartridge one-touch fitting, straight | Tube OD: 8 mm | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 193
4G1R-JOINT-CL18 Part: Cartridge one-touch fitting, elbow | Tube OD: 1.8 mm | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 193
4G1R-JOINT-CL4 Part: Cartridge one-touch fitting, elbow | Tube OD: 4 mm | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 193
4G1R-JOINT-CL6 Part: Cartridge one-touch fitting, elbow | Tube OD: 6 mm | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 193
4G1R-JOINT-CL3N Part: Cartridge one-touch fitting, elbow | Tube OD: 1/8 in | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 193
4G1R-JOINT-CL4N Part: Cartridge one-touch fitting, elbow | Tube OD: 5/32 in | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 193
4G2R-JOINT-C10 Part: Cartridge one-touch fitting, straight | Tube OD: 10 mm | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 193
4G2R-JOINT-CL6 Part: Cartridge one-touch fitting, elbow | Tube OD: 6 mm | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 193
4G2R-JOINT-CL8 Part: Cartridge one-touch fitting, elbow | Tube OD: 8 mm | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 193
4G2R-JOINT-CL6N Part: Cartridge one-touch fitting, elbow | Tube OD: 1/4 in | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 193
4G2R-JOINT-CL8N Part: Cartridge one-touch fitting, elbow | Tube OD: 5/16 in | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 193
4G3R-JOINT-CL8 Part: Cartridge one-touch fitting, elbow | Tube OD: 8 mm | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 193
4G3R-JOINT-CL10 Part: Cartridge one-touch fitting, elbow | Tube OD: 10 mm | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 193
4G1R-PC-M Part: Pilot check valve (spacer type) | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 269
4G2R-PC-M Part: Pilot check valve (spacer type) | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 269
4G2R-PCS Part: Pilot check valve (spacer type) | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 270
SLM-M5 Part: Silencer | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
SLW-6S Part: Silencer | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
SLW-6A Part: Silencer | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
SLW-8S Part: Silencer | Port / size: R1/4 | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
GWP8-B Part: Blanking plug | Port / size: φ8 | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
GWP10-B Part: Blanking plug | Port / size: φ10 | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
PG-P2-B Part: Blanking plug | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
SLW-8A Part: Silencer | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
SLW-10A Part: Silencer | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
SLW-10L Part: Silencer | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
4G1R-M5P Port / size: M5 | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
FPL-M5 Part: Plug | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
4G2R-06P Port / size: Rc1/8 | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
4G3R-08P Port / size: Rc1/4 | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
4G3R-10P Port / size: Rc3/8 | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
4G2R-06NP Port / size: NPT1/8 | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
4G3R-08NP Port / size: NPT1/4 | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
4G3R-10NP Port / size: NPT3/8 | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
4G2R-06GP Port / size: G1/8 | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
4G3R-08GP Port / size: G1/4 | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
4G3R-10GP Port / size: G3/8 | Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
4GR-EOT18-4 Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
4GR-EOT4-6 Series group: M4GA/M4GB (M3GA/M3GB) | Catalog page (PDF): 274
Valve Parts & AccessoriesCKD
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD 4GA/4GB Series Manifold Parts and Accessories (M4GA/M4GB Manifolds)

Brand CKD·Valve Parts & Accessories

Available part numbers (42)

4G1R-MP, 4G2R-MP, 4G3R-MP, 4G1R-JOINT-C8, 4G1R-JOINT-CL18, 4G1R-JOINT-CL4, 4G1R-JOINT-CL6, 4G1R-JOINT-CL3N, 4G1R-JOINT-CL4N, 4G2R-JOINT-C10 + 32 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
