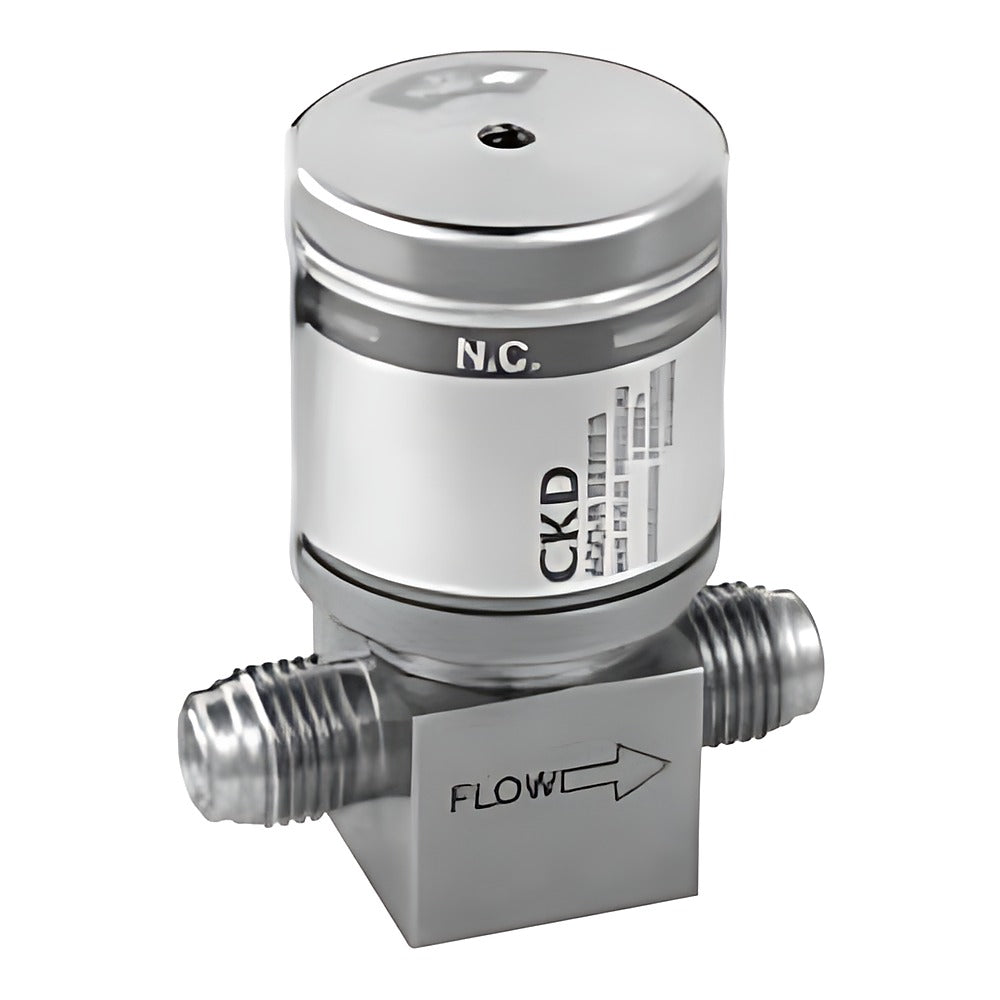

CKD AGD R Air Operated Valve Body Options (3-Port/Twin, Made to Order)

CKD AGD R Air Operated Valve Body Options (3-Port/Twin, Made to Order)

Made-to-order body configurations of the CKD AGD0/1/2 R metal diaphragm air operated valves: weld and bearing-nut fittings, mixed male/female ports, 3-port branch and twin 3-port valves.

Key features

  • 2-port valves with JXR female (with bearing), auto-weld or mixed male/female fittings
  • 3-port branch valves with F/M/W port combinations
  • Twin 3-port valves in selector (Y) or divider (T) flow with any NC/NO combination of V1/V2
  • Free port combinations (F/M/W mixed beyond the listed sets) available on request
  • Same metal diaphragm valve performance as the standard AGD R series

Specifications

Fluid Inert gas / process gas
Diaphragm Ni-Co alloy metal diaphragm
Wetted body material SUS316L, electropolished
Valve seat PCTFE
Fluid / ambient temperature 5 to 80 C
Seat leakage 1.0x10^-10 Pa.m3/s (He) or less
External leakage 2.8x10^-12 Pa.m3/s (He) or less
Operating air pressure NC 0.4-0.6 MPa, NO 0.4-0.5 MPa
Operation port M5
Availability Made to order
Source CKD Korea catalog CB-035K, p. 30-41
AGD01R-4RJ Size: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD01R-4W Size: AGD0 | Operation: NC (normally closed) | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port
AGD01R-4S Size: AGD0 | Operation: NC (normally closed) | Connection: 1/4" bite fitting | Port layout: Straight 2-port
AGD01R-4RJ-MF Size: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD01R-4R-MF Size: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female
AGD01R-4RJ-FM Size: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD01R-4R-FM Size: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male
AGD01R-4RJ-FFF Size: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F
AGD01R-4R-FFF Size: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F
AGD01R-4RJ-FFM Size: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M
AGD01R-4R-FFM Size: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M
AGD01R-4RJ-FMM Size: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M
AGD01R-4R-FMM Size: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M
AGD01R-4RM-MMM Size: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M
AGD01R-4W-WWW Size: AGD0 | Operation: NC (normally closed) | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3
AGD02R-4RJ Size: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD02R-4W Size: AGD0 | Operation: NO (normally open) | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port
AGD02R-4S Size: AGD0 | Operation: NO (normally open) | Connection: 1/4" bite fitting | Port layout: Straight 2-port
AGD02R-4RJ-MF Size: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD02R-4R-MF Size: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female
AGD02R-4RJ-FM Size: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD02R-4R-FM Size: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male
AGD02R-4RJ-FFF Size: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F
AGD02R-4R-FFF Size: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F
AGD02R-4RJ-FFM Size: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M
AGD02R-4R-FFM Size: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M
AGD02R-4RJ-FMM Size: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M
AGD02R-4R-FMM Size: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M
AGD02R-4RM-MMM Size: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M
AGD02R-4W-WWW Size: AGD0 | Operation: NO (normally open) | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3
AGD11R-4RJ Size: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD11R-4W Size: AGD1 | Operation: NC (normally closed) | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port
AGD11R-4RJ-MF Size: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD11R-4R-MF Size: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female
AGD11R-4RJ-FM Size: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD11R-4R-FM Size: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male
AGD11R-4RJ-FFF Size: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F
AGD11R-4R-FFF Size: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F
AGD11R-4RJ-FFM Size: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M
AGD11R-4R-FFM Size: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M
AGD11R-4RJ-FMM Size: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M
AGD11R-4R-FMM Size: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M
AGD11R-4RM-MMM Size: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M
AGD11R-4W-WWW Size: AGD1 | Operation: NC (normally closed) | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3
AGD12R-4RJ Size: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD12R-4W Size: AGD1 | Operation: NO (normally open) | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port
AGD12R-4RJ-MF Size: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD12R-4R-MF Size: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female
AGD12R-4RJ-FM Size: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD12R-4R-FM Size: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male
AGD12R-4RJ-FFF Size: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F
AGD12R-4R-FFF Size: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F
AGD12R-4RJ-FFM Size: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M
AGD12R-4R-FFM Size: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M
AGD12R-4RJ-FMM Size: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M
AGD12R-4R-FMM Size: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M
AGD12R-4RM-MMM Size: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M
AGD12R-4W-WWW Size: AGD1 | Operation: NO (normally open) | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3
AGD21R-6RJ Size: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD21R-6W Size: AGD2 | Operation: NC (normally closed) | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port
AGD21R-6RJ-MF Size: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD21R-6R-MF Size: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female
AGD21R-6RJ-FM Size: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD21R-6R-FM Size: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male
AGD21R-6RJ-FFF Size: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F
AGD21R-6R-FFF Size: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F
AGD21R-6RJ-FFM Size: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M
AGD21R-6R-FFM Size: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M
AGD21R-6RJ-FMM Size: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M
AGD21R-6R-FMM Size: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M
AGD21R-6RM-MMM Size: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M
AGD21R-6W-WWW Size: AGD2 | Operation: NC (normally closed) | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3
AGD21R-8RJ Size: AGD2 | Operation: NC (normally closed) | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD21R-8R Size: AGD2 | Operation: NC (normally closed) | Connection: 1/2" JXR female | Port layout: Straight 2-port
AGD21R-8RM Size: AGD2 | Operation: NC (normally closed) | Connection: 1/2" JXR male | Port layout: Straight 2-port
AGD21R-8W Size: AGD2 | Operation: NC (normally closed) | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port
AGD21R-8S Size: AGD2 | Operation: NC (normally closed) | Connection: 1/2" bite fitting | Port layout: Straight 2-port
AGD21R-8RJ-MF Size: AGD2 | Operation: NC (normally closed) | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD21R-8R-MF Size: AGD2 | Operation: NC (normally closed) | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female
AGD21R-8RJ-FM Size: AGD2 | Operation: NC (normally closed) | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD21R-8R-FM Size: AGD2 | Operation: NC (normally closed) | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male
AGD22R-6RJ Size: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD22R-6W Size: AGD2 | Operation: NO (normally open) | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port
AGD22R-6RJ-MF Size: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD22R-6R-MF Size: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female
AGD22R-6RJ-FM Size: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD22R-6R-FM Size: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male
AGD22R-6RJ-FFF Size: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F
AGD22R-6R-FFF Size: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F
AGD22R-6RJ-FFM Size: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M
AGD22R-6R-FFM Size: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M
AGD22R-6RJ-FMM Size: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M
AGD22R-6R-FMM Size: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M
AGD22R-6RM-MMM Size: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M
AGD22R-6W-WWW Size: AGD2 | Operation: NO (normally open) | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3
AGD22R-8RJ Size: AGD2 | Operation: NO (normally open) | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD22R-8R Size: AGD2 | Operation: NO (normally open) | Connection: 1/2" JXR female | Port layout: Straight 2-port
AGD22R-8RM Size: AGD2 | Operation: NO (normally open) | Connection: 1/2" JXR male | Port layout: Straight 2-port
AGD22R-8W Size: AGD2 | Operation: NO (normally open) | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port
AGD22R-8S Size: AGD2 | Operation: NO (normally open) | Connection: 1/2" bite fitting | Port layout: Straight 2-port
AGD22R-8RJ-MF Size: AGD2 | Operation: NO (normally open) | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD22R-8R-MF Size: AGD2 | Operation: NO (normally open) | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female
AGD22R-8RJ-FM Size: AGD2 | Operation: NO (normally open) | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD22R-8R-FM Size: AGD2 | Operation: NO (normally open) | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male
AGD01R-Y11-4RJ-FFF Size: AGD0 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-Y11-4R-FFF Size: AGD0 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-Y11-4RM-MMM Size: AGD0 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD01R-Y12-4RJ-FFF Size: AGD0 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-Y12-4R-FFF Size: AGD0 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-Y12-4RM-MMM Size: AGD0 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD01R-Y21-4RJ-FFF Size: AGD0 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-Y21-4R-FFF Size: AGD0 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-Y21-4RM-MMM Size: AGD0 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD01R-Y22-4RJ-FFF Size: AGD0 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-Y22-4R-FFF Size: AGD0 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-Y22-4RM-MMM Size: AGD0 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD01R-T11-4RJ-FFF Size: AGD0 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-T11-4R-FFF Size: AGD0 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-T11-4RM-MMM Size: AGD0 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD01R-T12-4RJ-FFF Size: AGD0 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-T12-4R-FFF Size: AGD0 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-T12-4RM-MMM Size: AGD0 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD01R-T21-4RJ-FFF Size: AGD0 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-T21-4R-FFF Size: AGD0 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-T21-4RM-MMM Size: AGD0 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD01R-T22-4RJ-FFF Size: AGD0 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-T22-4R-FFF Size: AGD0 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-T22-4RM-MMM Size: AGD0 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-Y11-4RJ-FFF Size: AGD1 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-Y11-4R-FFF Size: AGD1 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-Y11-4RM-MMM Size: AGD1 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-Y12-4RJ-FFF Size: AGD1 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-Y12-4R-FFF Size: AGD1 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-Y12-4RM-MMM Size: AGD1 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-Y21-4RJ-FFF Size: AGD1 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-Y21-4R-FFF Size: AGD1 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-Y21-4RM-MMM Size: AGD1 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-Y22-4RJ-FFF Size: AGD1 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-Y22-4R-FFF Size: AGD1 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-Y22-4RM-MMM Size: AGD1 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-T11-4RJ-FFF Size: AGD1 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-T11-4R-FFF Size: AGD1 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-T11-4RM-MMM Size: AGD1 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-T12-4RJ-FFF Size: AGD1 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-T12-4R-FFF Size: AGD1 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-T12-4RM-MMM Size: AGD1 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-T21-4RJ-FFF Size: AGD1 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-T21-4R-FFF Size: AGD1 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-T21-4RM-MMM Size: AGD1 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-T22-4RJ-FFF Size: AGD1 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-T22-4R-FFF Size: AGD1 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-T22-4RM-MMM Size: AGD1 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-Y11-6RJ-FFF Size: AGD2 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-Y11-6R-FFF Size: AGD2 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-Y11-6RM-MMM Size: AGD2 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-Y12-6RJ-FFF Size: AGD2 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-Y12-6R-FFF Size: AGD2 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-Y12-6RM-MMM Size: AGD2 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-Y21-6RJ-FFF Size: AGD2 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-Y21-6R-FFF Size: AGD2 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-Y21-6RM-MMM Size: AGD2 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-Y22-6RJ-FFF Size: AGD2 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-Y22-6R-FFF Size: AGD2 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-Y22-6RM-MMM Size: AGD2 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-T11-6RJ-FFF Size: AGD2 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-T11-6R-FFF Size: AGD2 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-T11-6RM-MMM Size: AGD2 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-T12-6RJ-FFF Size: AGD2 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-T12-6R-FFF Size: AGD2 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-T12-6RM-MMM Size: AGD2 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-T21-6RJ-FFF Size: AGD2 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-T21-6R-FFF Size: AGD2 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-T21-6RM-MMM Size: AGD2 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-T22-6RJ-FFF Size: AGD2 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-T22-6R-FFF Size: AGD2 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-T22-6RM-MMM Size: AGD2 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M
Process Gas ValvesCKD
176 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD AGD R Air Operated Valve Body Options (3-Port/Twin, Made to Order)

Brand CKD·Process Gas Valves

Available part numbers (176)

AGD01R-4RJ, AGD01R-4W, AGD01R-4S, AGD01R-4RJ-MF, AGD01R-4R-MF, AGD01R-4RJ-FM, AGD01R-4R-FM, AGD01R-4RJ-FFF, AGD01R-4R-FFF, AGD01R-4RJ-FFM + 166 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AGD01R-4RJSize: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD01R-4WSize: AGD0 | Operation: NC (normally closed) | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port
AGD01R-4SSize: AGD0 | Operation: NC (normally closed) | Connection: 1/4" bite fitting | Port layout: Straight 2-port
AGD01R-4RJ-MFSize: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD01R-4R-MFSize: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female
AGD01R-4RJ-FMSize: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD01R-4R-FMSize: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male
AGD01R-4RJ-FFFSize: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F
AGD01R-4R-FFFSize: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F
AGD01R-4RJ-FFMSize: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M
AGD01R-4R-FFMSize: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M
AGD01R-4RJ-FMMSize: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M
AGD01R-4R-FMMSize: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M
AGD01R-4RM-MMMSize: AGD0 | Operation: NC (normally closed) | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M
AGD01R-4W-WWWSize: AGD0 | Operation: NC (normally closed) | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3
AGD02R-4RJSize: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD02R-4WSize: AGD0 | Operation: NO (normally open) | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port
AGD02R-4SSize: AGD0 | Operation: NO (normally open) | Connection: 1/4" bite fitting | Port layout: Straight 2-port
AGD02R-4RJ-MFSize: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD02R-4R-MFSize: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female
AGD02R-4RJ-FMSize: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD02R-4R-FMSize: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male
AGD02R-4RJ-FFFSize: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F
AGD02R-4R-FFFSize: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F
AGD02R-4RJ-FFMSize: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M
AGD02R-4R-FFMSize: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M
AGD02R-4RJ-FMMSize: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M
AGD02R-4R-FMMSize: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M
AGD02R-4RM-MMMSize: AGD0 | Operation: NO (normally open) | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M
AGD02R-4W-WWWSize: AGD0 | Operation: NO (normally open) | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3
AGD11R-4RJSize: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD11R-4WSize: AGD1 | Operation: NC (normally closed) | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port
AGD11R-4RJ-MFSize: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD11R-4R-MFSize: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female
AGD11R-4RJ-FMSize: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD11R-4R-FMSize: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male
AGD11R-4RJ-FFFSize: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F
AGD11R-4R-FFFSize: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F
AGD11R-4RJ-FFMSize: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M
AGD11R-4R-FFMSize: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M
AGD11R-4RJ-FMMSize: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M
AGD11R-4R-FMMSize: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M
AGD11R-4RM-MMMSize: AGD1 | Operation: NC (normally closed) | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M
AGD11R-4W-WWWSize: AGD1 | Operation: NC (normally closed) | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3
AGD12R-4RJSize: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD12R-4WSize: AGD1 | Operation: NO (normally open) | Connection: 1/4" auto-weld fitting | Port layout: Straight 2-port
AGD12R-4RJ-MFSize: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD12R-4R-MFSize: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 2-port, IN male / OUT female
AGD12R-4RJ-FMSize: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD12R-4R-FMSize: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 2-port, IN female / OUT male
AGD12R-4RJ-FFFSize: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-F
AGD12R-4R-FFFSize: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-F
AGD12R-4RJ-FFMSize: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-F-M
AGD12R-4R-FFMSize: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 3-port, F-F-M
AGD12R-4RJ-FMMSize: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female (w/ bearing) | Port layout: 3-port, F-M-M
AGD12R-4R-FMMSize: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR female | Port layout: 3-port, F-M-M
AGD12R-4RM-MMMSize: AGD1 | Operation: NO (normally open) | Connection: 1/4" JXR male | Port layout: 3-port, M-M-M
AGD12R-4W-WWWSize: AGD1 | Operation: NO (normally open) | Connection: 1/4" auto-weld fitting | Port layout: 3-port, weld x3
AGD21R-6RJSize: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD21R-6WSize: AGD2 | Operation: NC (normally closed) | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port
AGD21R-6RJ-MFSize: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD21R-6R-MFSize: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female
AGD21R-6RJ-FMSize: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD21R-6R-FMSize: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male
AGD21R-6RJ-FFFSize: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F
AGD21R-6R-FFFSize: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F
AGD21R-6RJ-FFMSize: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M
AGD21R-6R-FFMSize: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M
AGD21R-6RJ-FMMSize: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M
AGD21R-6R-FMMSize: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M
AGD21R-6RM-MMMSize: AGD2 | Operation: NC (normally closed) | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M
AGD21R-6W-WWWSize: AGD2 | Operation: NC (normally closed) | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3
AGD21R-8RJSize: AGD2 | Operation: NC (normally closed) | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD21R-8RSize: AGD2 | Operation: NC (normally closed) | Connection: 1/2" JXR female | Port layout: Straight 2-port
AGD21R-8RMSize: AGD2 | Operation: NC (normally closed) | Connection: 1/2" JXR male | Port layout: Straight 2-port
AGD21R-8WSize: AGD2 | Operation: NC (normally closed) | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port
AGD21R-8SSize: AGD2 | Operation: NC (normally closed) | Connection: 1/2" bite fitting | Port layout: Straight 2-port
AGD21R-8RJ-MFSize: AGD2 | Operation: NC (normally closed) | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD21R-8R-MFSize: AGD2 | Operation: NC (normally closed) | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female
AGD21R-8RJ-FMSize: AGD2 | Operation: NC (normally closed) | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD21R-8R-FMSize: AGD2 | Operation: NC (normally closed) | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male
AGD22R-6RJSize: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD22R-6WSize: AGD2 | Operation: NO (normally open) | Connection: 3/8" auto-weld fitting | Port layout: Straight 2-port
AGD22R-6RJ-MFSize: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD22R-6R-MFSize: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female | Port layout: 2-port, IN male / OUT female
AGD22R-6RJ-FMSize: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD22R-6R-FMSize: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female | Port layout: 2-port, IN female / OUT male
AGD22R-6RJ-FFFSize: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-F
AGD22R-6R-FFFSize: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female | Port layout: 3-port, F-F-F
AGD22R-6RJ-FFMSize: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-F-M
AGD22R-6R-FFMSize: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female | Port layout: 3-port, F-F-M
AGD22R-6RJ-FMMSize: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female (w/ bearing) | Port layout: 3-port, F-M-M
AGD22R-6R-FMMSize: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR female | Port layout: 3-port, F-M-M
AGD22R-6RM-MMMSize: AGD2 | Operation: NO (normally open) | Connection: 3/8" JXR male | Port layout: 3-port, M-M-M
AGD22R-6W-WWWSize: AGD2 | Operation: NO (normally open) | Connection: 3/8" auto-weld fitting | Port layout: 3-port, weld x3
AGD22R-8RJSize: AGD2 | Operation: NO (normally open) | Connection: 1/2" JXR female (w/ bearing) | Port layout: Straight 2-port
AGD22R-8RSize: AGD2 | Operation: NO (normally open) | Connection: 1/2" JXR female | Port layout: Straight 2-port
AGD22R-8RMSize: AGD2 | Operation: NO (normally open) | Connection: 1/2" JXR male | Port layout: Straight 2-port
AGD22R-8WSize: AGD2 | Operation: NO (normally open) | Connection: 1/2" auto-weld fitting | Port layout: Straight 2-port
AGD22R-8SSize: AGD2 | Operation: NO (normally open) | Connection: 1/2" bite fitting | Port layout: Straight 2-port
AGD22R-8RJ-MFSize: AGD2 | Operation: NO (normally open) | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN male / OUT female
AGD22R-8R-MFSize: AGD2 | Operation: NO (normally open) | Connection: 1/2" JXR female | Port layout: 2-port, IN male / OUT female
AGD22R-8RJ-FMSize: AGD2 | Operation: NO (normally open) | Connection: 1/2" JXR female (w/ bearing) | Port layout: 2-port, IN female / OUT male
AGD22R-8R-FMSize: AGD2 | Operation: NO (normally open) | Connection: 1/2" JXR female | Port layout: 2-port, IN female / OUT male
AGD01R-Y11-4RJ-FFFSize: AGD0 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-Y11-4R-FFFSize: AGD0 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-Y11-4RM-MMMSize: AGD0 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD01R-Y12-4RJ-FFFSize: AGD0 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-Y12-4R-FFFSize: AGD0 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-Y12-4RM-MMMSize: AGD0 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD01R-Y21-4RJ-FFFSize: AGD0 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-Y21-4R-FFFSize: AGD0 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-Y21-4RM-MMMSize: AGD0 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD01R-Y22-4RJ-FFFSize: AGD0 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-Y22-4R-FFFSize: AGD0 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-Y22-4RM-MMMSize: AGD0 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD01R-T11-4RJ-FFFSize: AGD0 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-T11-4R-FFFSize: AGD0 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-T11-4RM-MMMSize: AGD0 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD01R-T12-4RJ-FFFSize: AGD0 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-T12-4R-FFFSize: AGD0 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-T12-4RM-MMMSize: AGD0 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD01R-T21-4RJ-FFFSize: AGD0 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-T21-4R-FFFSize: AGD0 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-T21-4RM-MMMSize: AGD0 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD01R-T22-4RJ-FFFSize: AGD0 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD01R-T22-4R-FFFSize: AGD0 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD01R-T22-4RM-MMMSize: AGD0 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-Y11-4RJ-FFFSize: AGD1 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-Y11-4R-FFFSize: AGD1 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-Y11-4RM-MMMSize: AGD1 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-Y12-4RJ-FFFSize: AGD1 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-Y12-4R-FFFSize: AGD1 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-Y12-4RM-MMMSize: AGD1 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-Y21-4RJ-FFFSize: AGD1 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-Y21-4R-FFFSize: AGD1 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-Y21-4RM-MMMSize: AGD1 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-Y22-4RJ-FFFSize: AGD1 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-Y22-4R-FFFSize: AGD1 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-Y22-4RM-MMMSize: AGD1 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-T11-4RJ-FFFSize: AGD1 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-T11-4R-FFFSize: AGD1 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-T11-4RM-MMMSize: AGD1 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-T12-4RJ-FFFSize: AGD1 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-T12-4R-FFFSize: AGD1 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-T12-4RM-MMMSize: AGD1 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-T21-4RJ-FFFSize: AGD1 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-T21-4R-FFFSize: AGD1 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-T21-4RM-MMMSize: AGD1 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD11R-T22-4RJ-FFFSize: AGD1 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 1/4" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD11R-T22-4R-FFFSize: AGD1 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 1/4" JXR female | Port layout: Twin 3-port, F-F-F
AGD11R-T22-4RM-MMMSize: AGD1 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 1/4" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-Y11-6RJ-FFFSize: AGD2 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-Y11-6R-FFFSize: AGD2 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-Y11-6RM-MMMSize: AGD2 | Operation: Twin 3-port, Selector, V1 NC / V2 NC | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-Y12-6RJ-FFFSize: AGD2 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-Y12-6R-FFFSize: AGD2 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-Y12-6RM-MMMSize: AGD2 | Operation: Twin 3-port, Selector, V1 NC / V2 NO | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-Y21-6RJ-FFFSize: AGD2 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-Y21-6R-FFFSize: AGD2 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-Y21-6RM-MMMSize: AGD2 | Operation: Twin 3-port, Selector, V1 NO / V2 NC | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-Y22-6RJ-FFFSize: AGD2 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-Y22-6R-FFFSize: AGD2 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-Y22-6RM-MMMSize: AGD2 | Operation: Twin 3-port, Selector, V1 NO / V2 NO | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-T11-6RJ-FFFSize: AGD2 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-T11-6R-FFFSize: AGD2 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-T11-6RM-MMMSize: AGD2 | Operation: Twin 3-port, Divider, V1 NC / V2 NC | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-T12-6RJ-FFFSize: AGD2 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-T12-6R-FFFSize: AGD2 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-T12-6RM-MMMSize: AGD2 | Operation: Twin 3-port, Divider, V1 NC / V2 NO | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-T21-6RJ-FFFSize: AGD2 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-T21-6R-FFFSize: AGD2 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-T21-6RM-MMMSize: AGD2 | Operation: Twin 3-port, Divider, V1 NO / V2 NC | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M
AGD21R-T22-6RJ-FFFSize: AGD2 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 3/8" JXR female (w/ bearing) | Port layout: Twin 3-port, F-F-F
AGD21R-T22-6R-FFFSize: AGD2 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 3/8" JXR female | Port layout: Twin 3-port, F-F-F
AGD21R-T22-6RM-MMMSize: AGD2 | Operation: Twin 3-port, Divider, V1 NO / V2 NO | Connection: 3/8" JXR male | Port layout: Twin 3-port, M-M-M

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
