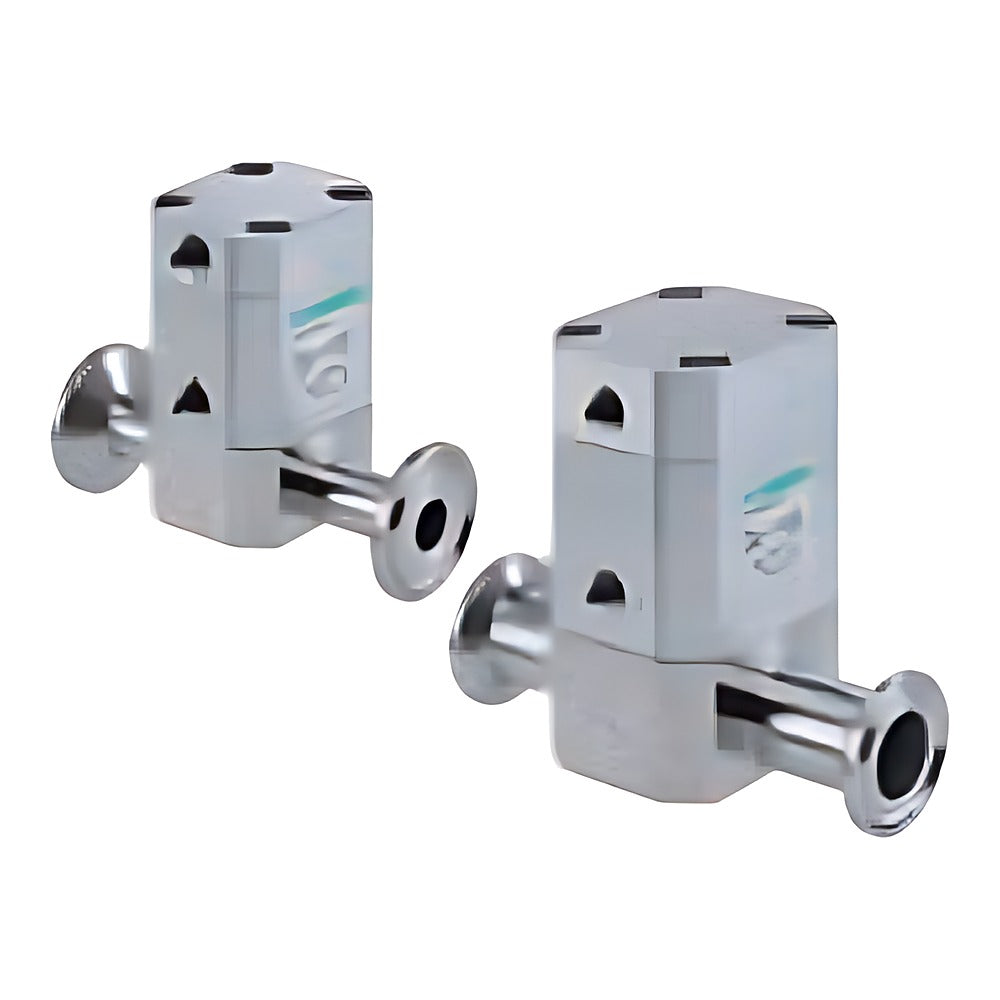

CKD SPD Poppet Type Diaphragm Valve (ISO Ferrule, NC)

CKD SPD compact, high-durability poppet type diaphragm valve with ISO ferrule clamp connection, applying semiconductor-process technology to pharmaceutical and food lines.

Key features

NC air-operated, 8A (SPD-1108YF1) and 15A (SPD-2115YF1)
PTFE diaphragm, SUS316L body buff #400 + electropolished
Repair diaphragms SPD-1PT / SPD-2PT (hex wrench bolt included)
Japan domestic sale only per catalog

Specifications

Fluid	Water, purified water, chemicals
Operating pressure	0 to 0.3 MPa
Back pressure	0 to 0.1 MPa
Proof pressure	0.9 MPa
Fluid temperature	5 to 90 C
Pilot pressure	0.3 to 0.5 MPa
Actuator	A5056 (anodized)
Source	CKD Korea catalog CC-1637KR, p. 36-38

SPD-1PT		Item: Repair diaphragm \| Size: 8A \| Cv: -
SPD-2PT		Item: Repair diaphragm \| Size: 15A \| Cv: -

Diaphragm ValvesCKD

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD SPD Poppet Type Diaphragm Valve (ISO Ferrule, NC)

Brand CKD·Diaphragm Valves

Available part numbers (2)

SPD-1PT, SPD-2PT

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
