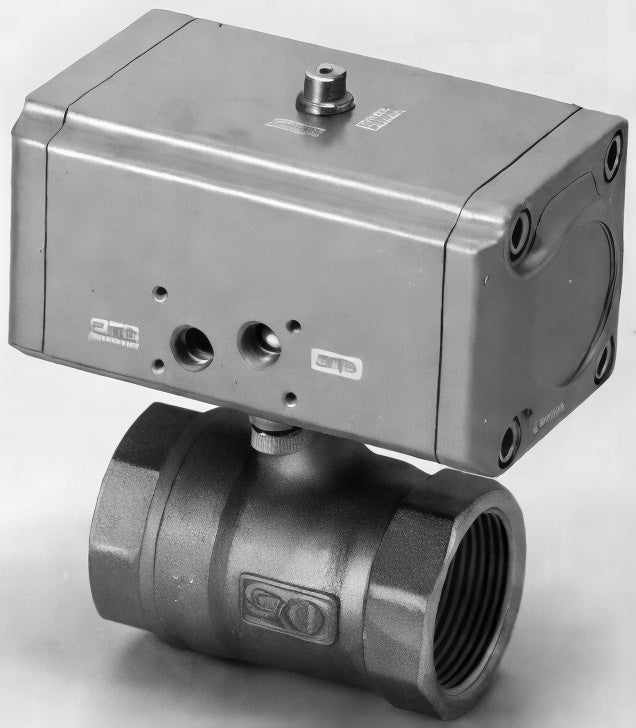

CKD Air Operated Ball Valve 2-Port (Compact Rotary Valve) CHB, CHBF Series, Double Acting

CKD Air Operated Ball Valve 2-Port (Compact Rotary Valve) CHB, CHBF Series, Double Acting

Compact air-operated 2-port ball valve driven by a double-acting rotary actuator, for water, air and oil up to 500 mm2/s.

Key features

  • CHB is standard bore and CHBF full bore; Rc3/8 to Rc2 ports, operating pressure 0 to 1.0 MPa, bronze or stainless steel body
  • Codes are the double-acting base models; single-acting (spring return) versions are ordered with an -R1/-R2 suffix

Specifications

Fluid water, air, oil (500 mm2/s or less)
Operating pressure (MPa) 0-1.0
Fluid temperature (C) 0-80
Rotary actuator double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHB-10 Port: Rc3/8 | Orifice (mm): 10 | Cv: 10 | Bore: full | Mass (kg): 1.0 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHB-15 Port: Rc1/2 | Orifice (mm): 10 | Cv: 6 | Bore: standard | Mass (kg): 1.0 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHB-20 Port: Rc3/4 | Orifice (mm): 15 | Cv: 16 | Bore: standard | Mass (kg): 1.2 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHB-25 Port: Rc1 | Orifice (mm): 20 | Cv: 29 | Bore: standard | Mass (kg): 1.3 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHB-32 Port: Rc1-1/4 | Orifice (mm): 25 | Cv: 50 | Bore: standard | Mass (kg): 2.0 (stainless 2.1) | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHB-40 Port: Rc1-1/2 | Orifice (mm): 32 | Cv: 98 | Bore: standard | Mass (kg): 2.5 (stainless 2.6) | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHB-50 Port: Rc2 | Orifice (mm): 40 | Cv: 125 | Bore: standard | Mass (kg): 3.2 (stainless 3.3) | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHBF-15 Port: Rc1/2 | Orifice (mm): 15 | Cv: 23 | Bore: full | Mass (kg): 1.1 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHBF-20 Port: Rc3/4 | Orifice (mm): 20 | Cv: 51 | Bore: full | Mass (kg): 1.3 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHBF-25 Port: Rc1 | Orifice (mm): 25 | Cv: 66 | Bore: full | Mass (kg): 2.0 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHBF-32 Port: Rc1-1/4 | Orifice (mm): 32 | Cv: 114 | Bore: full | Mass (kg): 2.5 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHBF-40 Port: Rc1-1/2 | Orifice (mm): 40 | Cv: 176 | Bore: full | Mass (kg): 3.2 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
Ball ValvesCKD
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Air Operated Ball Valve 2-Port (Compact Rotary Valve) CHB, CHBF Series, Double Acting

Brand CKD·Ball Valves

Available part numbers (12)

CHB-10, CHB-15, CHB-20, CHB-25, CHB-32, CHB-40, CHB-50, CHBF-15, CHBF-20, CHBF-25 + 2 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CHB-10Port: Rc3/8 | Orifice (mm): 10 | Cv: 10 | Bore: full | Mass (kg): 1.0 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHB-15Port: Rc1/2 | Orifice (mm): 10 | Cv: 6 | Bore: standard | Mass (kg): 1.0 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHB-20Port: Rc3/4 | Orifice (mm): 15 | Cv: 16 | Bore: standard | Mass (kg): 1.2 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHB-25Port: Rc1 | Orifice (mm): 20 | Cv: 29 | Bore: standard | Mass (kg): 1.3 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHB-32Port: Rc1-1/4 | Orifice (mm): 25 | Cv: 50 | Bore: standard | Mass (kg): 2.0 (stainless 2.1) | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHB-40Port: Rc1-1/2 | Orifice (mm): 32 | Cv: 98 | Bore: standard | Mass (kg): 2.5 (stainless 2.6) | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHB-50Port: Rc2 | Orifice (mm): 40 | Cv: 125 | Bore: standard | Mass (kg): 3.2 (stainless 3.3) | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHBF-15Port: Rc1/2 | Orifice (mm): 15 | Cv: 23 | Bore: full | Mass (kg): 1.1 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHBF-20Port: Rc3/4 | Orifice (mm): 20 | Cv: 51 | Bore: full | Mass (kg): 1.3 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHBF-25Port: Rc1 | Orifice (mm): 25 | Cv: 66 | Bore: full | Mass (kg): 2.0 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHBF-32Port: Rc1-1/4 | Orifice (mm): 32 | Cv: 114 | Bore: full | Mass (kg): 2.5 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHBF-40Port: Rc1-1/2 | Orifice (mm): 40 | Cv: 176 | Bore: full | Mass (kg): 3.2 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
