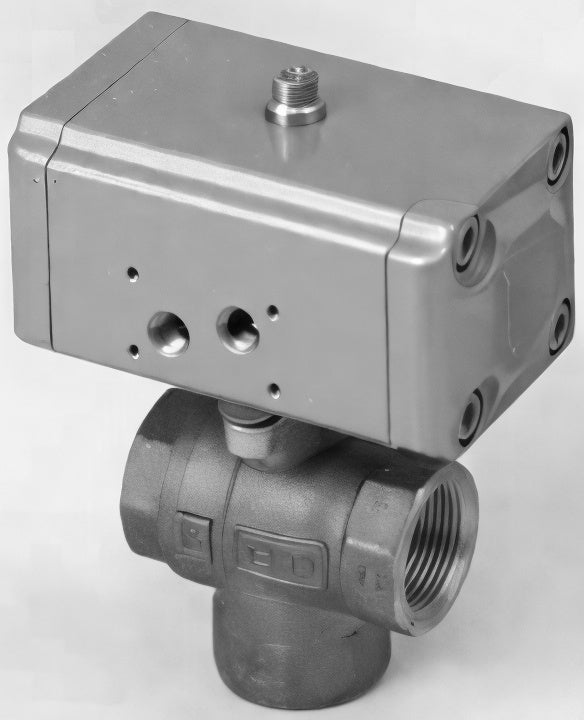

CKD Air Operated Ball Valve 3-Port (Compact Rotary Valve) CHG Series, Double Acting

CKD Air Operated Ball Valve 3-Port (Compact Rotary Valve) CHG Series, Double Acting

Compact air-operated 3-port (mixing/diverting) ball valve driven by a double-acting rotary actuator, for water, air and oil. 90-degree rotation switching, C port pressurized only; Rc1/2 to Rc2 ports, operating pressure 0 to 1.0 MPa.

Key features

  • Codes are the double-acting base models

Specifications

Fluid water, air, oil (500 mm2/s or less)
Operating pressure (MPa) 0-1.0
Fluid temperature (C) 0-80
Rotary actuator double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHG-15 Port: Rc1/2 | Orifice (mm): 10 | Cv: 3 | Mass (kg): 1.0 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHG-20 Port: Rc3/4 | Orifice (mm): 14 | Cv: 6 | Mass (kg): 1.2 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHG-25 Port: Rc1 | Orifice (mm): 19 | Cv: 11 | Mass (kg): 1.4 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHG-32 Port: Rc1-1/4 | Orifice (mm): 23 | Cv: 16 | Mass (kg): 2.2 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHG-40 Port: Rc1-1/2 | Orifice (mm): 30 | Cv: 28 | Mass (kg): 2.7 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHG-50 Port: Rc2 | Orifice (mm): 38 | Cv: 47 | Mass (kg): 3.5 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
Ball ValvesCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Air Operated Ball Valve 3-Port (Compact Rotary Valve) CHG Series, Double Acting

Brand CKD·Ball Valves

Available part numbers (6)

CHG-15, CHG-20, CHG-25, CHG-32, CHG-40, CHG-50

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CHG-15Port: Rc1/2 | Orifice (mm): 10 | Cv: 3 | Mass (kg): 1.0 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHG-20Port: Rc3/4 | Orifice (mm): 14 | Cv: 6 | Mass (kg): 1.2 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHG-25Port: Rc1 | Orifice (mm): 19 | Cv: 11 | Mass (kg): 1.4 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHG-32Port: Rc1-1/4 | Orifice (mm): 23 | Cv: 16 | Mass (kg): 2.2 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHG-40Port: Rc1-1/2 | Orifice (mm): 30 | Cv: 28 | Mass (kg): 2.7 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
CHG-50Port: Rc2 | Orifice (mm): 38 | Cv: 47 | Mass (kg): 3.5 | Fluid: water, air, oil (500 mm2/s or less) | Operating pressure (MPa): 0-1.0 | Fluid temperature (C): 0-80 | Rotary actuator: double acting, pilot pressure 0.35-0.7 MPa, pilot port Rc1/8
