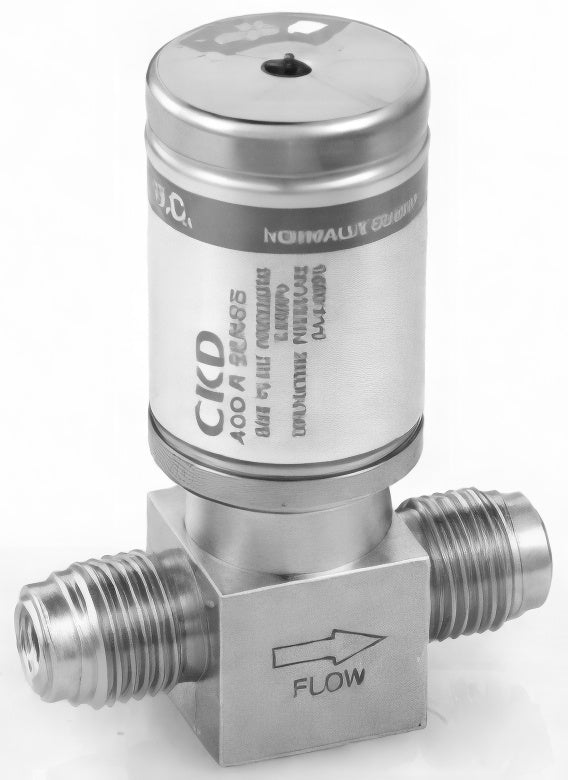

CKD Air Operated Valve for Process Gas AGD01R/AGD02R Series (Compact Type)

CKD Air Operated Valve for Process Gas AGD01R/AGD02R Series (Compact Type)

Compact metal diaphragm air operated valve for process gases with a slim 26 mm actuator and 21 mm square body.

Key features

  • Ni-Co alloy diaphragm with proven 4 million cycle life, PCTFE seat, electropolished SUS316L body
  • Cv 0.1, 1/4 in JXR (VCR-compatible) connections

Specifications

Cv 0.1
Fluid Inert gas, process gas
Working pressure 1.3x10^-6 Pa(abs) to 0.99 MPa(G)
Fluid temp. (C) 5-80
Pilot port M5
AGD01R-4RM Connection: 1/4 in JXR male fitting | Operation: Normally closed | Cv: 0.1 | Pilot pressure (MPa): 0.4-0.6 | Mass (kg): 0.15 | Fluid: Inert gas, process gas | Working pressure: 1.3x10^-6 Pa(abs) to 0.99 MPa(G) | Fluid temp. (C): 5-80 | Pilot port: M5
AGD02R-4RM Connection: 1/4 in JXR male fitting | Operation: Normally open | Cv: 0.1 | Pilot pressure (MPa): 0.4-0.5 | Fluid: Inert gas, process gas | Working pressure: 1.3x10^-6 Pa(abs) to 0.99 MPa(G) | Fluid temp. (C): 5-80 | Pilot port: M5
AGD01R-4R Connection: 1/4 in JXR female fitting | Operation: Normally closed | Cv: 0.1 | Pilot pressure (MPa): 0.4-0.6 | Fluid: Inert gas, process gas | Working pressure: 1.3x10^-6 Pa(abs) to 0.99 MPa(G) | Fluid temp. (C): 5-80 | Pilot port: M5
AGD02R-4R Connection: 1/4 in JXR female fitting | Operation: Normally open | Cv: 0.1 | Pilot pressure (MPa): 0.4-0.5 | Fluid: Inert gas, process gas | Working pressure: 1.3x10^-6 Pa(abs) to 0.99 MPa(G) | Fluid temp. (C): 5-80 | Pilot port: M5
Process Gas ValvesCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Air Operated Valve for Process Gas AGD01R/AGD02R Series (Compact Type)

Brand CKD·Process Gas Valves

Available part numbers (4)

AGD01R-4RM, AGD02R-4RM, AGD01R-4R, AGD02R-4R

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AGD01R-4RMConnection: 1/4 in JXR male fitting | Operation: Normally closed | Cv: 0.1 | Pilot pressure (MPa): 0.4-0.6 | Mass (kg): 0.15 | Fluid: Inert gas, process gas | Working pressure: 1.3x10^-6 Pa(abs) to 0.99 MPa(G) | Fluid temp. (C): 5-80 | Pilot port: M5
AGD02R-4RMConnection: 1/4 in JXR male fitting | Operation: Normally open | Cv: 0.1 | Pilot pressure (MPa): 0.4-0.5 | Fluid: Inert gas, process gas | Working pressure: 1.3x10^-6 Pa(abs) to 0.99 MPa(G) | Fluid temp. (C): 5-80 | Pilot port: M5
AGD01R-4RConnection: 1/4 in JXR female fitting | Operation: Normally closed | Cv: 0.1 | Pilot pressure (MPa): 0.4-0.6 | Fluid: Inert gas, process gas | Working pressure: 1.3x10^-6 Pa(abs) to 0.99 MPa(G) | Fluid temp. (C): 5-80 | Pilot port: M5
AGD02R-4RConnection: 1/4 in JXR female fitting | Operation: Normally open | Cv: 0.1 | Pilot pressure (MPa): 0.4-0.5 | Fluid: Inert gas, process gas | Working pressure: 1.3x10^-6 Pa(abs) to 0.99 MPa(G) | Fluid temp. (C): 5-80 | Pilot port: M5
