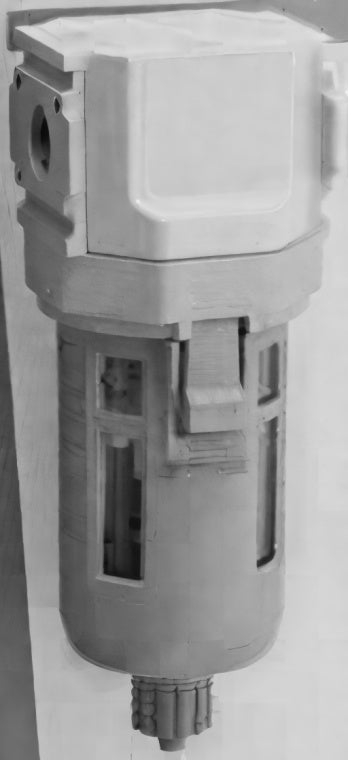

CKD Bowl Assemblies and Bowl Guards for Drain Separator FX Series

CKD Bowl Assemblies and Bowl Guards for Drain Separator FX Series

Replacement bowl assemblies (bowl with bowl O-ring set) and bowl guards for the FX series drain separators.

Key features

  • Available with polycarbonate (PC), nylon (PA) or metal bowls, with manual drain cock or with normally open (NO) or normally closed (NC) auto drain
F3000-W-BOWL-GUARD Part: Bowl guard for polycarbonate bowl | For: FX1004
F3000-W-BOWL-GUARD-Z Part: Bowl guard for nylon bowl | For: FX1004
F4000-W-BOWL-GUARD Part: Bowl guard for polycarbonate bowl | For: FX1011, FX1037
F4000-W-BOWL-GUARD-Z Part: Bowl guard for nylon bowl | For: FX1011, FX1037
F3000-W-BOWL Part: PC bowl assembly, manual cock | For: FX1004
F3000-W-BOWL-Z Part: Nylon bowl assembly, manual cock | For: FX1004
F3000-W-BOWL-M Part: Metal bowl assembly, manual fat cock | For: FX1004
FX1004-W-BOWL-M Part: Metal bowl assembly, Rc1/8 female thread | For: FX1004
F3000-W-BOWL-M1 Part: Metal bowl assembly, manual cock | For: FX1004
F4000-W-BOWL Part: PC bowl assembly, manual cock | For: FX1011, FX1037
F4000-W-BOWL-Z Part: Nylon bowl assembly, manual cock | For: FX1011, FX1037
F4000-W-BOWL-M Part: Metal bowl assembly, manual fat cock | For: FX1011, FX1037
FX1011-W-BOWL-M Part: Metal bowl assembly, Rc1/8 female thread | For: FX1011, FX1037
F4000-W-BOWL-M1 Part: Metal bowl assembly, manual cock | For: FX1011, FX1037
F3000-W-BOWL-F Part: PC bowl assembly, NO auto drain | For: FX1004
F3000-W-BOWL-FZ Part: Nylon bowl assembly, NO auto drain | For: FX1004
F3000-W-BOWL-FM Part: Metal bowl assembly, NO auto drain | For: FX1004
F3000-W-BOWL-FM1 Part: Metal bowl assembly, NO auto drain | For: FX1004
F4000-W-BOWL-F Part: PC bowl assembly, NO auto drain | For: FX1011
F4000-W-BOWL-FZ Part: Nylon bowl assembly, NO auto drain | For: FX1011
F4000-W-BOWL-FM Part: Metal bowl assembly, NO auto drain | For: FX1011
F4000-W-BOWL-FM1 Part: Metal bowl assembly, NO auto drain | For: FX1011
F8000-W-BOWL-FF Part: PC bowl assembly, NO auto drain | For: FX1037
F8000-W-BOWL-FFZ Part: Nylon bowl assembly, NO auto drain | For: FX1037
F8000-W-BOWL-FFM Part: Metal bowl assembly, NO auto drain | For: FX1037
F8000-W-BOWL-FFM1 Part: Metal bowl assembly, NO auto drain | For: FX1037
M3000-W-BOWL-F1 Part: PC bowl assembly, NC auto drain | For: FX1004
M3000-W-BOWL-F1Z Part: Nylon bowl assembly, NC auto drain | For: FX1004
M3000-W-BOWL-F1M Part: Metal bowl assembly, NC auto drain | For: FX1004
M3000-W-BOWL-F1M1 Part: Metal bowl assembly, NC auto drain | For: FX1004
M4000-W-BOWL-F1 Part: PC bowl assembly, NC auto drain | For: FX1011
M4000-W-BOWL-F1Z Part: Nylon bowl assembly, NC auto drain | For: FX1011
M4000-W-BOWL-F1M Part: Metal bowl assembly, NC auto drain | For: FX1011
M4000-W-BOWL-F1M1 Part: Metal bowl assembly, NC auto drain | For: FX1011
F8000-W-BOWL-FF1 Part: PC bowl assembly, NC auto drain | For: FX1037
F8000-W-BOWL-FF1Z Part: Nylon bowl assembly, NC auto drain | For: FX1037
F8000-W-BOWL-FF1M Part: Metal bowl assembly, NC auto drain | For: FX1037
F8000-W-BOWL-FF1M1 Part: Metal bowl assembly, NC auto drain | For: FX1037
Drain Separator PartsCKD
38 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Bowl Assemblies and Bowl Guards for Drain Separator FX Series

Brand CKD·Drain Separator Parts

Available part numbers (38)

F3000-W-BOWL-GUARD, F3000-W-BOWL-GUARD-Z, F4000-W-BOWL-GUARD, F4000-W-BOWL-GUARD-Z, F3000-W-BOWL, F3000-W-BOWL-Z, F3000-W-BOWL-M, FX1004-W-BOWL-M, F3000-W-BOWL-M1, F4000-W-BOWL + 28 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
F3000-W-BOWL-GUARDPart: Bowl guard for polycarbonate bowl | For: FX1004
F3000-W-BOWL-GUARD-ZPart: Bowl guard for nylon bowl | For: FX1004
F4000-W-BOWL-GUARDPart: Bowl guard for polycarbonate bowl | For: FX1011, FX1037
F4000-W-BOWL-GUARD-ZPart: Bowl guard for nylon bowl | For: FX1011, FX1037
F3000-W-BOWLPart: PC bowl assembly, manual cock | For: FX1004
F3000-W-BOWL-ZPart: Nylon bowl assembly, manual cock | For: FX1004
F3000-W-BOWL-MPart: Metal bowl assembly, manual fat cock | For: FX1004
FX1004-W-BOWL-MPart: Metal bowl assembly, Rc1/8 female thread | For: FX1004
F3000-W-BOWL-M1Part: Metal bowl assembly, manual cock | For: FX1004
F4000-W-BOWLPart: PC bowl assembly, manual cock | For: FX1011, FX1037
F4000-W-BOWL-ZPart: Nylon bowl assembly, manual cock | For: FX1011, FX1037
F4000-W-BOWL-MPart: Metal bowl assembly, manual fat cock | For: FX1011, FX1037
FX1011-W-BOWL-MPart: Metal bowl assembly, Rc1/8 female thread | For: FX1011, FX1037
F4000-W-BOWL-M1Part: Metal bowl assembly, manual cock | For: FX1011, FX1037
F3000-W-BOWL-FPart: PC bowl assembly, NO auto drain | For: FX1004
F3000-W-BOWL-FZPart: Nylon bowl assembly, NO auto drain | For: FX1004
F3000-W-BOWL-FMPart: Metal bowl assembly, NO auto drain | For: FX1004
F3000-W-BOWL-FM1Part: Metal bowl assembly, NO auto drain | For: FX1004
F4000-W-BOWL-FPart: PC bowl assembly, NO auto drain | For: FX1011
F4000-W-BOWL-FZPart: Nylon bowl assembly, NO auto drain | For: FX1011
F4000-W-BOWL-FMPart: Metal bowl assembly, NO auto drain | For: FX1011
F4000-W-BOWL-FM1Part: Metal bowl assembly, NO auto drain | For: FX1011
F8000-W-BOWL-FFPart: PC bowl assembly, NO auto drain | For: FX1037
F8000-W-BOWL-FFZPart: Nylon bowl assembly, NO auto drain | For: FX1037
F8000-W-BOWL-FFMPart: Metal bowl assembly, NO auto drain | For: FX1037
F8000-W-BOWL-FFM1Part: Metal bowl assembly, NO auto drain | For: FX1037
M3000-W-BOWL-F1Part: PC bowl assembly, NC auto drain | For: FX1004
M3000-W-BOWL-F1ZPart: Nylon bowl assembly, NC auto drain | For: FX1004
M3000-W-BOWL-F1MPart: Metal bowl assembly, NC auto drain | For: FX1004
M3000-W-BOWL-F1M1Part: Metal bowl assembly, NC auto drain | For: FX1004
M4000-W-BOWL-F1Part: PC bowl assembly, NC auto drain | For: FX1011
M4000-W-BOWL-F1ZPart: Nylon bowl assembly, NC auto drain | For: FX1011
M4000-W-BOWL-F1MPart: Metal bowl assembly, NC auto drain | For: FX1011
M4000-W-BOWL-F1M1Part: Metal bowl assembly, NC auto drain | For: FX1011
F8000-W-BOWL-FF1Part: PC bowl assembly, NC auto drain | For: FX1037
F8000-W-BOWL-FF1ZPart: Nylon bowl assembly, NC auto drain | For: FX1037
F8000-W-BOWL-FF1MPart: Metal bowl assembly, NC auto drain | For: FX1037
F8000-W-BOWL-FF1M1Part: Metal bowl assembly, NC auto drain | For: FX1037
