CKD CHB/CHBF-FP2 Air Operated Ball Valve 2-Port (Compact Rotary)

CKD CHB/CHBF-FP2 Air Operated Ball Valve 2-Port (Compact Rotary)

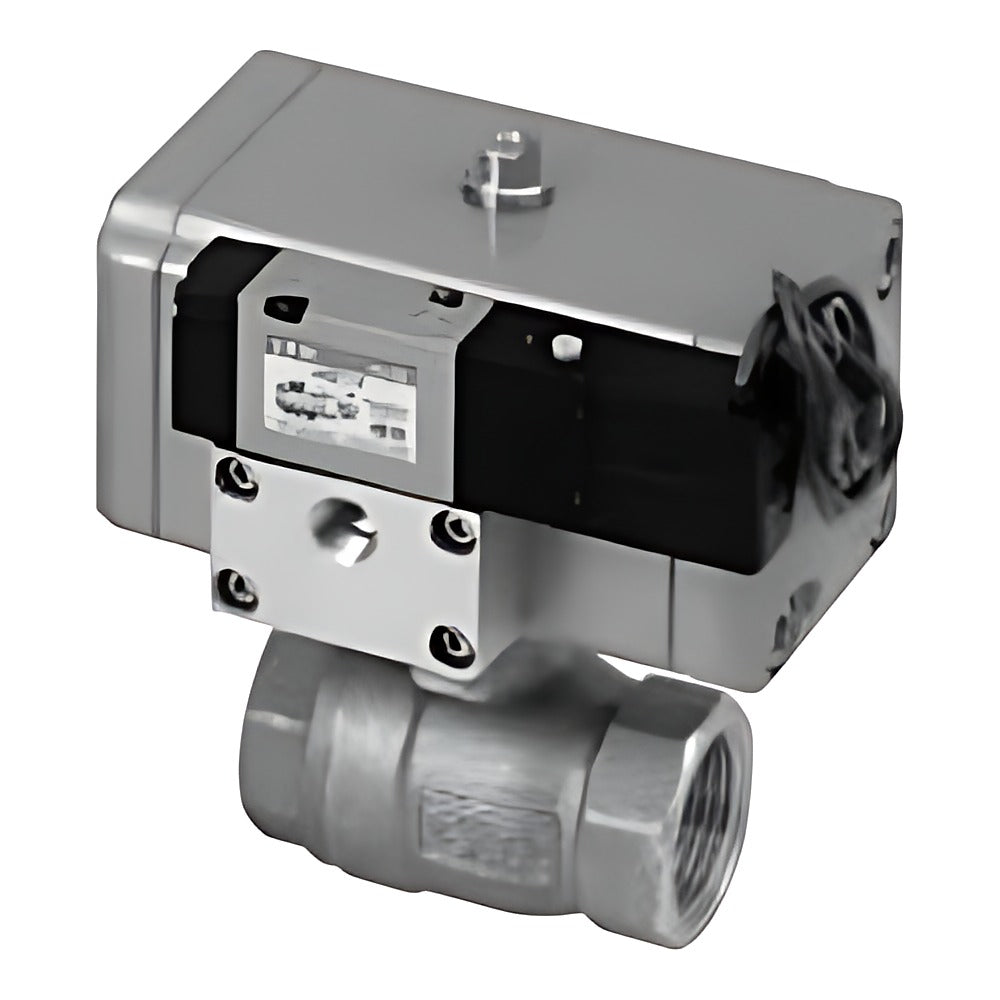

CKD CHB/CHBF-FP2 compact rotary air-operated 2-port ball valve with stainless steel oil-free body, standard or full bore.

Key features

  • Standard bore CHB (Rc3/8 to Rc2) or full bore CHBF (Rc1/2 to Rc1-1/2)
  • Double-acting or single-acting NC (R1) / NO (R2) actuator
  • Stainless steel body, oil-free specification (N)
  • CHB-10 is full bore
  • FP2 food-processing spec: wetted materials comply with the Japanese Food Sanitation Act

Specifications

Fluid Water, air, oil (500 mm2/s or less)
Operating pressure 0 to 1.0 MPa
Proof pressure 2.0 MPa
Fluid temperature 0 to 80 C
Pilot pressure 0.35-0.7 MPa (double), 0.4-0.7 (single)
Pilot port Rc1/8
Frequency 1 cycle/min or less
Source CKD Korea catalog CC-1271K-5, p. 402-402
CHB-10-N-FP2 Bore: Standard bore | Actuator: Double acting | Port: Rc3/8
CHB-15-N-FP2 Bore: Standard bore | Actuator: Double acting | Port: Rc1/2
CHB-20-N-FP2 Bore: Standard bore | Actuator: Double acting | Port: Rc3/4
CHB-25-N-FP2 Bore: Standard bore | Actuator: Double acting | Port: Rc1
CHB-32-N-FP2 Bore: Standard bore | Actuator: Double acting | Port: Rc1-1/4
CHB-40-N-FP2 Bore: Standard bore | Actuator: Double acting | Port: Rc1-1/2
CHB-50-N-FP2 Bore: Standard bore | Actuator: Double acting | Port: Rc2
CHB-R1-10-N-FP2 Bore: Standard bore | Actuator: Single acting NC | Port: Rc3/8
CHB-R1-15-N-FP2 Bore: Standard bore | Actuator: Single acting NC | Port: Rc1/2
CHB-R1-20-N-FP2 Bore: Standard bore | Actuator: Single acting NC | Port: Rc3/4
CHB-R1-25-N-FP2 Bore: Standard bore | Actuator: Single acting NC | Port: Rc1
CHB-R1-32-N-FP2 Bore: Standard bore | Actuator: Single acting NC | Port: Rc1-1/4
CHB-R1-40-N-FP2 Bore: Standard bore | Actuator: Single acting NC | Port: Rc1-1/2
CHB-R1-50-N-FP2 Bore: Standard bore | Actuator: Single acting NC | Port: Rc2
CHB-R2-10-N-FP2 Bore: Standard bore | Actuator: Single acting NO | Port: Rc3/8
CHB-R2-15-N-FP2 Bore: Standard bore | Actuator: Single acting NO | Port: Rc1/2
CHB-R2-20-N-FP2 Bore: Standard bore | Actuator: Single acting NO | Port: Rc3/4
CHB-R2-25-N-FP2 Bore: Standard bore | Actuator: Single acting NO | Port: Rc1
CHB-R2-32-N-FP2 Bore: Standard bore | Actuator: Single acting NO | Port: Rc1-1/4
CHB-R2-40-N-FP2 Bore: Standard bore | Actuator: Single acting NO | Port: Rc1-1/2
CHB-R2-50-N-FP2 Bore: Standard bore | Actuator: Single acting NO | Port: Rc2
CHBF-15-N-FP2 Bore: Full bore | Actuator: Double acting | Port: Rc1/2
CHBF-20-N-FP2 Bore: Full bore | Actuator: Double acting | Port: Rc3/4
CHBF-25-N-FP2 Bore: Full bore | Actuator: Double acting | Port: Rc1
CHBF-32-N-FP2 Bore: Full bore | Actuator: Double acting | Port: Rc1-1/4
CHBF-40-N-FP2 Bore: Full bore | Actuator: Double acting | Port: Rc1-1/2
CHBF-R1-15-N-FP2 Bore: Full bore | Actuator: Single acting NC | Port: Rc1/2
CHBF-R1-20-N-FP2 Bore: Full bore | Actuator: Single acting NC | Port: Rc3/4
CHBF-R1-25-N-FP2 Bore: Full bore | Actuator: Single acting NC | Port: Rc1
CHBF-R1-32-N-FP2 Bore: Full bore | Actuator: Single acting NC | Port: Rc1-1/4
CHBF-R1-40-N-FP2 Bore: Full bore | Actuator: Single acting NC | Port: Rc1-1/2
CHBF-R2-15-N-FP2 Bore: Full bore | Actuator: Single acting NO | Port: Rc1/2
CHBF-R2-20-N-FP2 Bore: Full bore | Actuator: Single acting NO | Port: Rc3/4
CHBF-R2-25-N-FP2 Bore: Full bore | Actuator: Single acting NO | Port: Rc1
CHBF-R2-32-N-FP2 Bore: Full bore | Actuator: Single acting NO | Port: Rc1-1/4
CHBF-R2-40-N-FP2 Bore: Full bore | Actuator: Single acting NO | Port: Rc1-1/2
