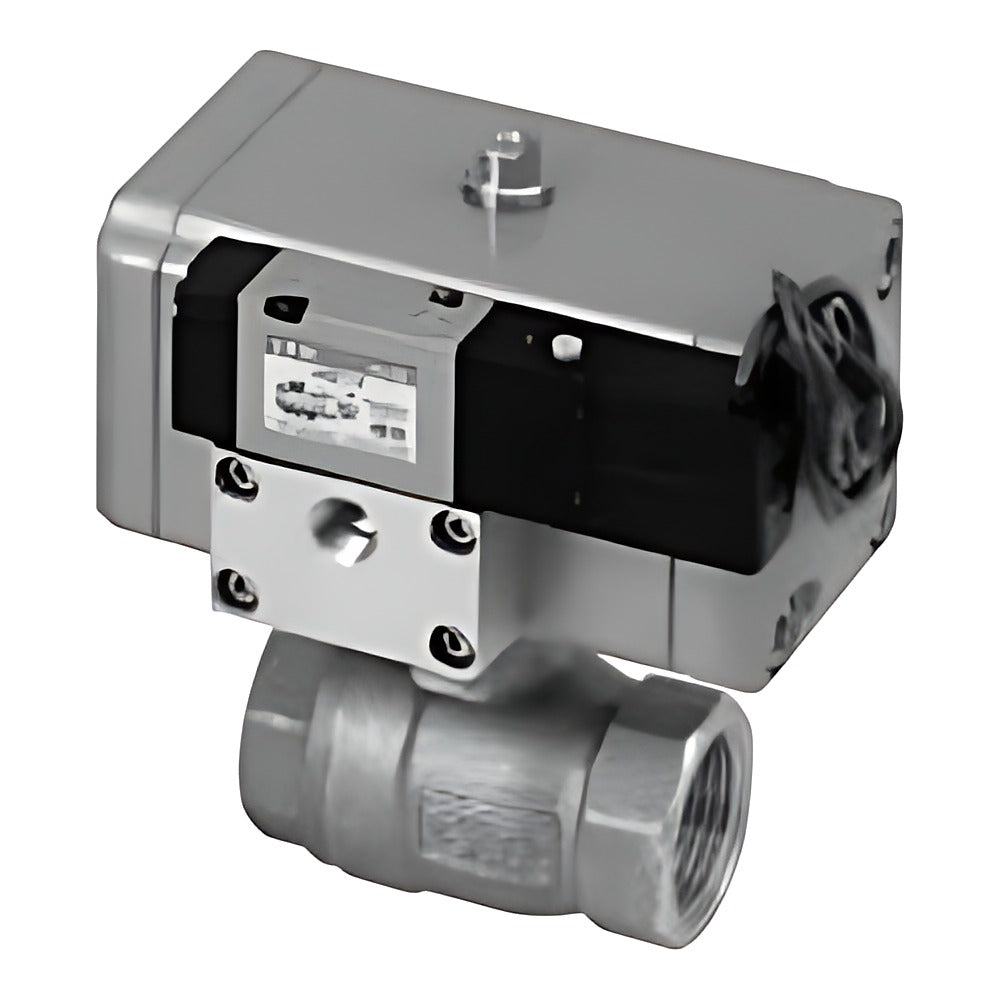

CKD CHB-V/X, CHBF-V/X Solenoid-Mounted 2-Port Ball Valve

CKD CHB-V/X, CHBF-V/X Solenoid-Mounted 2-Port Ball Valve

CKD CHB-V/X (standard bore) and CHBF-V/X (full bore) are compact air-operated 2-port ball valves with a mounted switching solenoid valve, Rc3/8 to Rc2.

Key features

  • Pilot solenoid valve mounted on the rack-and-pinion actuator
  • V1/V2 double acting NC/NO; X1/X2 single acting NC/NO
  • Coil options: grommet lead (standard), small terminal box (B/L), C or D connector (with lamp/surge)
  • Limit switch H/V/W (OMRON D4E-1G20N) and silencer with metering valve S (SMW2-6A) options
  • Bronze, stainless or stainless oil-free body

Specifications

Fluid Water, air, oil (500 mm2/s or less)
Operating pressure 0 to 1.0 MPa
Proof pressure 2.0 MPa (water)
Fluid temperature 0 to 80 C (no freezing)
Ambient temperature -10 to 60 C
Pilot pressure 0.35-0.7 MPa (double), 0.4-0.7 MPa (single)
Insulation class Class B (130 C)
Allowable voltage fluctuation +/-10%
Code format CHB[F]-[V/X][1/2]-[size]-[body][coil]-[switch][S]-[voltage]
Source CKD Korea catalog CB-03-1SK-9, p. 788-793
CHB-V1-10-0-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V1-10-0-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V1-10-0-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Bronze | Voltage: DC24V
CHB-V1-10-E-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V1-10-E-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V1-10-E-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Stainless steel | Voltage: DC24V
CHB-V1-10-N-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V1-10-N-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V1-10-N-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V1-15-0-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V1-15-0-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V1-15-0-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHB-V1-15-E-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V1-15-E-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V1-15-E-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHB-V1-15-N-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V1-15-N-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V1-15-N-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V1-20-0-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V1-20-0-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V1-20-0-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHB-V1-20-E-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V1-20-E-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V1-20-E-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHB-V1-20-N-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V1-20-N-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V1-20-N-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V1-25-0-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V1-25-0-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V1-25-0-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHB-V1-25-E-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V1-25-E-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V1-25-E-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHB-V1-25-N-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V1-25-N-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V1-25-N-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V1-32-0-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V1-32-0-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V1-32-0-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHB-V1-32-E-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V1-32-E-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V1-32-E-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHB-V1-32-N-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V1-32-N-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V1-32-N-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V1-40-0-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V1-40-0-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V1-40-0-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHB-V1-40-E-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V1-40-E-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V1-40-E-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHB-V1-40-N-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V1-40-N-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V1-40-N-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V1-50-0-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V1-50-0-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V1-50-0-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHB-V1-50-E-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V1-50-E-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V1-50-E-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHB-V1-50-N-AC100V Bore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V1-50-N-AC200V Bore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V1-50-N-DC24V Bore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V2-10-0-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V2-10-0-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V2-10-0-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Bronze | Voltage: DC24V
CHB-V2-10-E-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V2-10-E-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V2-10-E-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Stainless steel | Voltage: DC24V
CHB-V2-10-N-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V2-10-N-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V2-10-N-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V2-15-0-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V2-15-0-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V2-15-0-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHB-V2-15-E-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V2-15-E-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V2-15-E-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHB-V2-15-N-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V2-15-N-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V2-15-N-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V2-20-0-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V2-20-0-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V2-20-0-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHB-V2-20-E-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V2-20-E-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V2-20-E-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHB-V2-20-N-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V2-20-N-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V2-20-N-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V2-25-0-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V2-25-0-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V2-25-0-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHB-V2-25-E-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V2-25-E-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V2-25-E-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHB-V2-25-N-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V2-25-N-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V2-25-N-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V2-32-0-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V2-32-0-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V2-32-0-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHB-V2-32-E-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V2-32-E-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V2-32-E-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHB-V2-32-N-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V2-32-N-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V2-32-N-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V2-40-0-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V2-40-0-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V2-40-0-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHB-V2-40-E-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V2-40-E-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V2-40-E-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHB-V2-40-N-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V2-40-N-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V2-40-N-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V2-50-0-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V2-50-0-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V2-50-0-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHB-V2-50-E-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V2-50-E-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V2-50-E-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHB-V2-50-N-AC100V Bore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V2-50-N-AC200V Bore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V2-50-N-DC24V Bore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X1-10-0-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X1-10-0-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X1-10-0-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Bronze | Voltage: DC24V
CHB-X1-10-E-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X1-10-E-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X1-10-E-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Stainless steel | Voltage: DC24V
CHB-X1-10-N-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X1-10-N-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X1-10-N-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X1-15-0-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X1-15-0-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X1-15-0-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHB-X1-15-E-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X1-15-E-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X1-15-E-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHB-X1-15-N-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X1-15-N-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X1-15-N-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X1-20-0-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X1-20-0-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X1-20-0-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHB-X1-20-E-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X1-20-E-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X1-20-E-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHB-X1-20-N-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X1-20-N-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X1-20-N-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X1-25-0-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X1-25-0-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X1-25-0-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHB-X1-25-E-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X1-25-E-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X1-25-E-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHB-X1-25-N-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X1-25-N-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X1-25-N-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X1-32-0-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X1-32-0-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X1-32-0-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHB-X1-32-E-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X1-32-E-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X1-32-E-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHB-X1-32-N-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X1-32-N-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X1-32-N-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X1-40-0-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X1-40-0-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X1-40-0-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHB-X1-40-E-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X1-40-E-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X1-40-E-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHB-X1-40-N-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X1-40-N-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X1-40-N-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X1-50-0-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X1-50-0-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X1-50-0-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHB-X1-50-E-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X1-50-E-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X1-50-E-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHB-X1-50-N-AC100V Bore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X1-50-N-AC200V Bore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X1-50-N-DC24V Bore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X2-10-0-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X2-10-0-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X2-10-0-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Bronze | Voltage: DC24V
CHB-X2-10-E-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X2-10-E-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X2-10-E-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Stainless steel | Voltage: DC24V
CHB-X2-10-N-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X2-10-N-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X2-10-N-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X2-15-0-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X2-15-0-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X2-15-0-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHB-X2-15-E-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X2-15-E-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X2-15-E-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHB-X2-15-N-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X2-15-N-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X2-15-N-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X2-20-0-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X2-20-0-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X2-20-0-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHB-X2-20-E-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X2-20-E-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X2-20-E-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHB-X2-20-N-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X2-20-N-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X2-20-N-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X2-25-0-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X2-25-0-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X2-25-0-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHB-X2-25-E-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X2-25-E-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X2-25-E-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHB-X2-25-N-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X2-25-N-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X2-25-N-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X2-32-0-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X2-32-0-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X2-32-0-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHB-X2-32-E-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X2-32-E-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X2-32-E-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHB-X2-32-N-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X2-32-N-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X2-32-N-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X2-40-0-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X2-40-0-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X2-40-0-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHB-X2-40-E-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X2-40-E-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X2-40-E-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHB-X2-40-N-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X2-40-N-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X2-40-N-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X2-50-0-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X2-50-0-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X2-50-0-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHB-X2-50-E-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X2-50-E-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X2-50-E-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHB-X2-50-N-AC100V Bore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X2-50-N-AC200V Bore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X2-50-N-DC24V Bore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V1-15-0-AC100V Bore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V1-15-0-AC200V Bore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V1-15-0-DC24V Bore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHBF-V1-15-E-AC100V Bore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V1-15-E-AC200V Bore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V1-15-E-DC24V Bore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-V1-15-N-AC100V Bore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V1-15-N-AC200V Bore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V1-15-N-DC24V Bore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V1-20-0-AC100V Bore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V1-20-0-AC200V Bore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V1-20-0-DC24V Bore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHBF-V1-20-E-AC100V Bore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V1-20-E-AC200V Bore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V1-20-E-DC24V Bore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHBF-V1-20-N-AC100V Bore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V1-20-N-AC200V Bore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V1-20-N-DC24V Bore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V1-25-0-AC100V Bore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V1-25-0-AC200V Bore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V1-25-0-DC24V Bore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHBF-V1-25-E-AC100V Bore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V1-25-E-AC200V Bore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V1-25-E-DC24V Bore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHBF-V1-25-N-AC100V Bore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V1-25-N-AC200V Bore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V1-25-N-DC24V Bore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V1-32-0-AC100V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V1-32-0-AC200V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V1-32-0-DC24V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHBF-V1-32-E-AC100V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V1-32-E-AC200V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V1-32-E-DC24V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHBF-V1-32-N-AC100V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V1-32-N-AC200V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V1-32-N-DC24V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V1-40-0-AC100V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V1-40-0-AC200V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V1-40-0-DC24V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHBF-V1-40-E-AC100V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V1-40-E-AC200V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V1-40-E-DC24V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-V1-40-N-AC100V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V1-40-N-AC200V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V1-40-N-DC24V Bore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V2-15-0-AC100V Bore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V2-15-0-AC200V Bore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V2-15-0-DC24V Bore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHBF-V2-15-E-AC100V Bore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V2-15-E-AC200V Bore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V2-15-E-DC24V Bore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-V2-15-N-AC100V Bore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V2-15-N-AC200V Bore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V2-15-N-DC24V Bore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V2-20-0-AC100V Bore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V2-20-0-AC200V Bore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V2-20-0-DC24V Bore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHBF-V2-20-E-AC100V Bore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V2-20-E-AC200V Bore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V2-20-E-DC24V Bore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHBF-V2-20-N-AC100V Bore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V2-20-N-AC200V Bore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V2-20-N-DC24V Bore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V2-25-0-AC100V Bore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V2-25-0-AC200V Bore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V2-25-0-DC24V Bore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHBF-V2-25-E-AC100V Bore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V2-25-E-AC200V Bore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V2-25-E-DC24V Bore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHBF-V2-25-N-AC100V Bore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V2-25-N-AC200V Bore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V2-25-N-DC24V Bore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V2-32-0-AC100V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V2-32-0-AC200V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V2-32-0-DC24V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHBF-V2-32-E-AC100V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V2-32-E-AC200V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V2-32-E-DC24V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHBF-V2-32-N-AC100V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V2-32-N-AC200V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V2-32-N-DC24V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V2-40-0-AC100V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V2-40-0-AC200V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V2-40-0-DC24V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHBF-V2-40-E-AC100V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V2-40-E-AC200V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V2-40-E-DC24V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-V2-40-N-AC100V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V2-40-N-AC200V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V2-40-N-DC24V Bore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X1-15-0-AC100V Bore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X1-15-0-AC200V Bore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X1-15-0-DC24V Bore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHBF-X1-15-E-AC100V Bore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X1-15-E-AC200V Bore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X1-15-E-DC24V Bore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-X1-15-N-AC100V Bore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X1-15-N-AC200V Bore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X1-15-N-DC24V Bore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X1-20-0-AC100V Bore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X1-20-0-AC200V Bore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X1-20-0-DC24V Bore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHBF-X1-20-E-AC100V Bore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X1-20-E-AC200V Bore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X1-20-E-DC24V Bore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHBF-X1-20-N-AC100V Bore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X1-20-N-AC200V Bore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X1-20-N-DC24V Bore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X1-25-0-AC100V Bore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X1-25-0-AC200V Bore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X1-25-0-DC24V Bore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHBF-X1-25-E-AC100V Bore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X1-25-E-AC200V Bore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X1-25-E-DC24V Bore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHBF-X1-25-N-AC100V Bore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X1-25-N-AC200V Bore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X1-25-N-DC24V Bore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X1-32-0-AC100V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X1-32-0-AC200V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X1-32-0-DC24V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHBF-X1-32-E-AC100V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X1-32-E-AC200V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X1-32-E-DC24V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHBF-X1-32-N-AC100V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X1-32-N-AC200V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X1-32-N-DC24V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X1-40-0-AC100V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X1-40-0-AC200V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X1-40-0-DC24V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHBF-X1-40-E-AC100V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X1-40-E-AC200V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X1-40-E-DC24V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-X1-40-N-AC100V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X1-40-N-AC200V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X1-40-N-DC24V Bore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X2-15-0-AC100V Bore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X2-15-0-AC200V Bore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X2-15-0-DC24V Bore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHBF-X2-15-E-AC100V Bore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X2-15-E-AC200V Bore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X2-15-E-DC24V Bore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-X2-15-N-AC100V Bore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X2-15-N-AC200V Bore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X2-15-N-DC24V Bore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X2-20-0-AC100V Bore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X2-20-0-AC200V Bore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X2-20-0-DC24V Bore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHBF-X2-20-E-AC100V Bore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X2-20-E-AC200V Bore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X2-20-E-DC24V Bore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHBF-X2-20-N-AC100V Bore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X2-20-N-AC200V Bore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X2-20-N-DC24V Bore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X2-25-0-AC100V Bore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X2-25-0-AC200V Bore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X2-25-0-DC24V Bore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHBF-X2-25-E-AC100V Bore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X2-25-E-AC200V Bore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X2-25-E-DC24V Bore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHBF-X2-25-N-AC100V Bore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X2-25-N-AC200V Bore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X2-25-N-DC24V Bore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X2-32-0-AC100V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X2-32-0-AC200V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X2-32-0-DC24V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHBF-X2-32-E-AC100V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X2-32-E-AC200V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X2-32-E-DC24V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHBF-X2-32-N-AC100V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X2-32-N-AC200V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X2-32-N-DC24V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X2-40-0-AC100V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X2-40-0-AC200V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X2-40-0-DC24V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHBF-X2-40-E-AC100V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X2-40-E-AC200V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X2-40-E-DC24V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-X2-40-N-AC100V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X2-40-N-AC200V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X2-40-N-DC24V Bore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
Ball ValvesCKD
432 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CHB-V/X, CHBF-V/X Solenoid-Mounted 2-Port Ball Valve

Brand CKD·Ball Valves

Available part numbers (432)

CHB-V1-10-0-AC100V, CHB-V1-10-0-AC200V, CHB-V1-10-0-DC24V, CHB-V1-10-E-AC100V, CHB-V1-10-E-AC200V, CHB-V1-10-E-DC24V, CHB-V1-10-N-AC100V, CHB-V1-10-N-AC200V, CHB-V1-10-N-DC24V, CHB-V1-15-0-AC100V + 422 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CHB-V1-10-0-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V1-10-0-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V1-10-0-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Bronze | Voltage: DC24V
CHB-V1-10-E-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V1-10-E-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V1-10-E-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Stainless steel | Voltage: DC24V
CHB-V1-10-N-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V1-10-N-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V1-10-N-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V1-15-0-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V1-15-0-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V1-15-0-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHB-V1-15-E-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V1-15-E-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V1-15-E-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHB-V1-15-N-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V1-15-N-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V1-15-N-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V1-20-0-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V1-20-0-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V1-20-0-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHB-V1-20-E-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V1-20-E-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V1-20-E-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHB-V1-20-N-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V1-20-N-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V1-20-N-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V1-25-0-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V1-25-0-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V1-25-0-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHB-V1-25-E-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V1-25-E-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V1-25-E-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHB-V1-25-N-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V1-25-N-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V1-25-N-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V1-32-0-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V1-32-0-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V1-32-0-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHB-V1-32-E-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V1-32-E-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V1-32-E-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHB-V1-32-N-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V1-32-N-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V1-32-N-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V1-40-0-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V1-40-0-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V1-40-0-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHB-V1-40-E-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V1-40-E-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V1-40-E-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHB-V1-40-N-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V1-40-N-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V1-40-N-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V1-50-0-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V1-50-0-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V1-50-0-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHB-V1-50-E-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V1-50-E-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V1-50-E-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHB-V1-50-N-AC100VBore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V1-50-N-AC200VBore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V1-50-N-DC24VBore: Standard | Actuator: Double acting NC | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V2-10-0-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V2-10-0-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V2-10-0-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Bronze | Voltage: DC24V
CHB-V2-10-E-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V2-10-E-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V2-10-E-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Stainless steel | Voltage: DC24V
CHB-V2-10-N-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V2-10-N-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V2-10-N-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V2-15-0-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V2-15-0-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V2-15-0-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHB-V2-15-E-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V2-15-E-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V2-15-E-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHB-V2-15-N-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V2-15-N-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V2-15-N-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V2-20-0-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V2-20-0-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V2-20-0-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHB-V2-20-E-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V2-20-E-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V2-20-E-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHB-V2-20-N-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V2-20-N-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V2-20-N-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V2-25-0-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V2-25-0-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V2-25-0-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHB-V2-25-E-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V2-25-E-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V2-25-E-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHB-V2-25-N-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V2-25-N-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V2-25-N-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V2-32-0-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V2-32-0-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V2-32-0-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHB-V2-32-E-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V2-32-E-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V2-32-E-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHB-V2-32-N-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V2-32-N-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V2-32-N-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V2-40-0-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V2-40-0-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V2-40-0-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHB-V2-40-E-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V2-40-E-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V2-40-E-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHB-V2-40-N-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V2-40-N-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V2-40-N-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-V2-50-0-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-V2-50-0-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-V2-50-0-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHB-V2-50-E-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-V2-50-E-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-V2-50-E-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHB-V2-50-N-AC100VBore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-V2-50-N-AC200VBore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-V2-50-N-DC24VBore: Standard | Actuator: Double acting NO | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X1-10-0-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X1-10-0-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X1-10-0-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Bronze | Voltage: DC24V
CHB-X1-10-E-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X1-10-E-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X1-10-E-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Stainless steel | Voltage: DC24V
CHB-X1-10-N-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X1-10-N-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X1-10-N-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X1-15-0-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X1-15-0-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X1-15-0-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHB-X1-15-E-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X1-15-E-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X1-15-E-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHB-X1-15-N-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X1-15-N-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X1-15-N-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X1-20-0-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X1-20-0-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X1-20-0-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHB-X1-20-E-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X1-20-E-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X1-20-E-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHB-X1-20-N-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X1-20-N-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X1-20-N-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X1-25-0-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X1-25-0-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X1-25-0-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHB-X1-25-E-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X1-25-E-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X1-25-E-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHB-X1-25-N-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X1-25-N-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X1-25-N-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X1-32-0-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X1-32-0-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X1-32-0-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHB-X1-32-E-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X1-32-E-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X1-32-E-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHB-X1-32-N-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X1-32-N-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X1-32-N-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X1-40-0-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X1-40-0-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X1-40-0-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHB-X1-40-E-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X1-40-E-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X1-40-E-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHB-X1-40-N-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X1-40-N-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X1-40-N-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X1-50-0-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X1-50-0-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X1-50-0-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHB-X1-50-E-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X1-50-E-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X1-50-E-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHB-X1-50-N-AC100VBore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X1-50-N-AC200VBore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X1-50-N-DC24VBore: Standard | Actuator: Single acting NC | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X2-10-0-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X2-10-0-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X2-10-0-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Bronze | Voltage: DC24V
CHB-X2-10-E-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X2-10-E-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X2-10-E-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Stainless steel | Voltage: DC24V
CHB-X2-10-N-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X2-10-N-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X2-10-N-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc3/8 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X2-15-0-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X2-15-0-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X2-15-0-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHB-X2-15-E-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X2-15-E-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X2-15-E-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHB-X2-15-N-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X2-15-N-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X2-15-N-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X2-20-0-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X2-20-0-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X2-20-0-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHB-X2-20-E-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X2-20-E-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X2-20-E-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHB-X2-20-N-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X2-20-N-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X2-20-N-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X2-25-0-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X2-25-0-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X2-25-0-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHB-X2-25-E-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X2-25-E-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X2-25-E-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHB-X2-25-N-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X2-25-N-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X2-25-N-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X2-32-0-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X2-32-0-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X2-32-0-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHB-X2-32-E-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X2-32-E-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X2-32-E-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHB-X2-32-N-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X2-32-N-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X2-32-N-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X2-40-0-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X2-40-0-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X2-40-0-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHB-X2-40-E-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X2-40-E-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X2-40-E-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHB-X2-40-N-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X2-40-N-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X2-40-N-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHB-X2-50-0-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHB-X2-50-0-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHB-X2-50-0-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHB-X2-50-E-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHB-X2-50-E-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHB-X2-50-E-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHB-X2-50-N-AC100VBore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHB-X2-50-N-AC200VBore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHB-X2-50-N-DC24VBore: Standard | Actuator: Single acting NO | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V1-15-0-AC100VBore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V1-15-0-AC200VBore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V1-15-0-DC24VBore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHBF-V1-15-E-AC100VBore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V1-15-E-AC200VBore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V1-15-E-DC24VBore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-V1-15-N-AC100VBore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V1-15-N-AC200VBore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V1-15-N-DC24VBore: Full | Actuator: Double acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V1-20-0-AC100VBore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V1-20-0-AC200VBore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V1-20-0-DC24VBore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHBF-V1-20-E-AC100VBore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V1-20-E-AC200VBore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V1-20-E-DC24VBore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHBF-V1-20-N-AC100VBore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V1-20-N-AC200VBore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V1-20-N-DC24VBore: Full | Actuator: Double acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V1-25-0-AC100VBore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V1-25-0-AC200VBore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V1-25-0-DC24VBore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHBF-V1-25-E-AC100VBore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V1-25-E-AC200VBore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V1-25-E-DC24VBore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHBF-V1-25-N-AC100VBore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V1-25-N-AC200VBore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V1-25-N-DC24VBore: Full | Actuator: Double acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V1-32-0-AC100VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V1-32-0-AC200VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V1-32-0-DC24VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHBF-V1-32-E-AC100VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V1-32-E-AC200VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V1-32-E-DC24VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHBF-V1-32-N-AC100VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V1-32-N-AC200VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V1-32-N-DC24VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V1-40-0-AC100VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V1-40-0-AC200VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V1-40-0-DC24VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHBF-V1-40-E-AC100VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V1-40-E-AC200VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V1-40-E-DC24VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-V1-40-N-AC100VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V1-40-N-AC200VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V1-40-N-DC24VBore: Full | Actuator: Double acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V2-15-0-AC100VBore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V2-15-0-AC200VBore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V2-15-0-DC24VBore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHBF-V2-15-E-AC100VBore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V2-15-E-AC200VBore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V2-15-E-DC24VBore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-V2-15-N-AC100VBore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V2-15-N-AC200VBore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V2-15-N-DC24VBore: Full | Actuator: Double acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V2-20-0-AC100VBore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V2-20-0-AC200VBore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V2-20-0-DC24VBore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHBF-V2-20-E-AC100VBore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V2-20-E-AC200VBore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V2-20-E-DC24VBore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHBF-V2-20-N-AC100VBore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V2-20-N-AC200VBore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V2-20-N-DC24VBore: Full | Actuator: Double acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V2-25-0-AC100VBore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V2-25-0-AC200VBore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V2-25-0-DC24VBore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHBF-V2-25-E-AC100VBore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V2-25-E-AC200VBore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V2-25-E-DC24VBore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHBF-V2-25-N-AC100VBore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V2-25-N-AC200VBore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V2-25-N-DC24VBore: Full | Actuator: Double acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V2-32-0-AC100VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V2-32-0-AC200VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V2-32-0-DC24VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHBF-V2-32-E-AC100VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V2-32-E-AC200VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V2-32-E-DC24VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHBF-V2-32-N-AC100VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V2-32-N-AC200VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V2-32-N-DC24VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-V2-40-0-AC100VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-V2-40-0-AC200VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-V2-40-0-DC24VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHBF-V2-40-E-AC100VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-V2-40-E-AC200VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-V2-40-E-DC24VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-V2-40-N-AC100VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-V2-40-N-AC200VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-V2-40-N-DC24VBore: Full | Actuator: Double acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X1-15-0-AC100VBore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X1-15-0-AC200VBore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X1-15-0-DC24VBore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHBF-X1-15-E-AC100VBore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X1-15-E-AC200VBore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X1-15-E-DC24VBore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-X1-15-N-AC100VBore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X1-15-N-AC200VBore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X1-15-N-DC24VBore: Full | Actuator: Single acting NC | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X1-20-0-AC100VBore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X1-20-0-AC200VBore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X1-20-0-DC24VBore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHBF-X1-20-E-AC100VBore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X1-20-E-AC200VBore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X1-20-E-DC24VBore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHBF-X1-20-N-AC100VBore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X1-20-N-AC200VBore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X1-20-N-DC24VBore: Full | Actuator: Single acting NC | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X1-25-0-AC100VBore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X1-25-0-AC200VBore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X1-25-0-DC24VBore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHBF-X1-25-E-AC100VBore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X1-25-E-AC200VBore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X1-25-E-DC24VBore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHBF-X1-25-N-AC100VBore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X1-25-N-AC200VBore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X1-25-N-DC24VBore: Full | Actuator: Single acting NC | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X1-32-0-AC100VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X1-32-0-AC200VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X1-32-0-DC24VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHBF-X1-32-E-AC100VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X1-32-E-AC200VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X1-32-E-DC24VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHBF-X1-32-N-AC100VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X1-32-N-AC200VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X1-32-N-DC24VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X1-40-0-AC100VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X1-40-0-AC200VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X1-40-0-DC24VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHBF-X1-40-E-AC100VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X1-40-E-AC200VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X1-40-E-DC24VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-X1-40-N-AC100VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X1-40-N-AC200VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X1-40-N-DC24VBore: Full | Actuator: Single acting NC | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X2-15-0-AC100VBore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X2-15-0-AC200VBore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X2-15-0-DC24VBore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHBF-X2-15-E-AC100VBore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X2-15-E-AC200VBore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X2-15-E-DC24VBore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-X2-15-N-AC100VBore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X2-15-N-AC200VBore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X2-15-N-DC24VBore: Full | Actuator: Single acting NO | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X2-20-0-AC100VBore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X2-20-0-AC200VBore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X2-20-0-DC24VBore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHBF-X2-20-E-AC100VBore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X2-20-E-AC200VBore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X2-20-E-DC24VBore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHBF-X2-20-N-AC100VBore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X2-20-N-AC200VBore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X2-20-N-DC24VBore: Full | Actuator: Single acting NO | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X2-25-0-AC100VBore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X2-25-0-AC200VBore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X2-25-0-DC24VBore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHBF-X2-25-E-AC100VBore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X2-25-E-AC200VBore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X2-25-E-DC24VBore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHBF-X2-25-N-AC100VBore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X2-25-N-AC200VBore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X2-25-N-DC24VBore: Full | Actuator: Single acting NO | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X2-32-0-AC100VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X2-32-0-AC200VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X2-32-0-DC24VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHBF-X2-32-E-AC100VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X2-32-E-AC200VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X2-32-E-DC24VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHBF-X2-32-N-AC100VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X2-32-N-AC200VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X2-32-N-DC24VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHBF-X2-40-0-AC100VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHBF-X2-40-0-AC200VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHBF-X2-40-0-DC24VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHBF-X2-40-E-AC100VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHBF-X2-40-E-AC200VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHBF-X2-40-E-DC24VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHBF-X2-40-N-AC100VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHBF-X2-40-N-AC200VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHBF-X2-40-N-DC24VBore: Full | Actuator: Single acting NO | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
