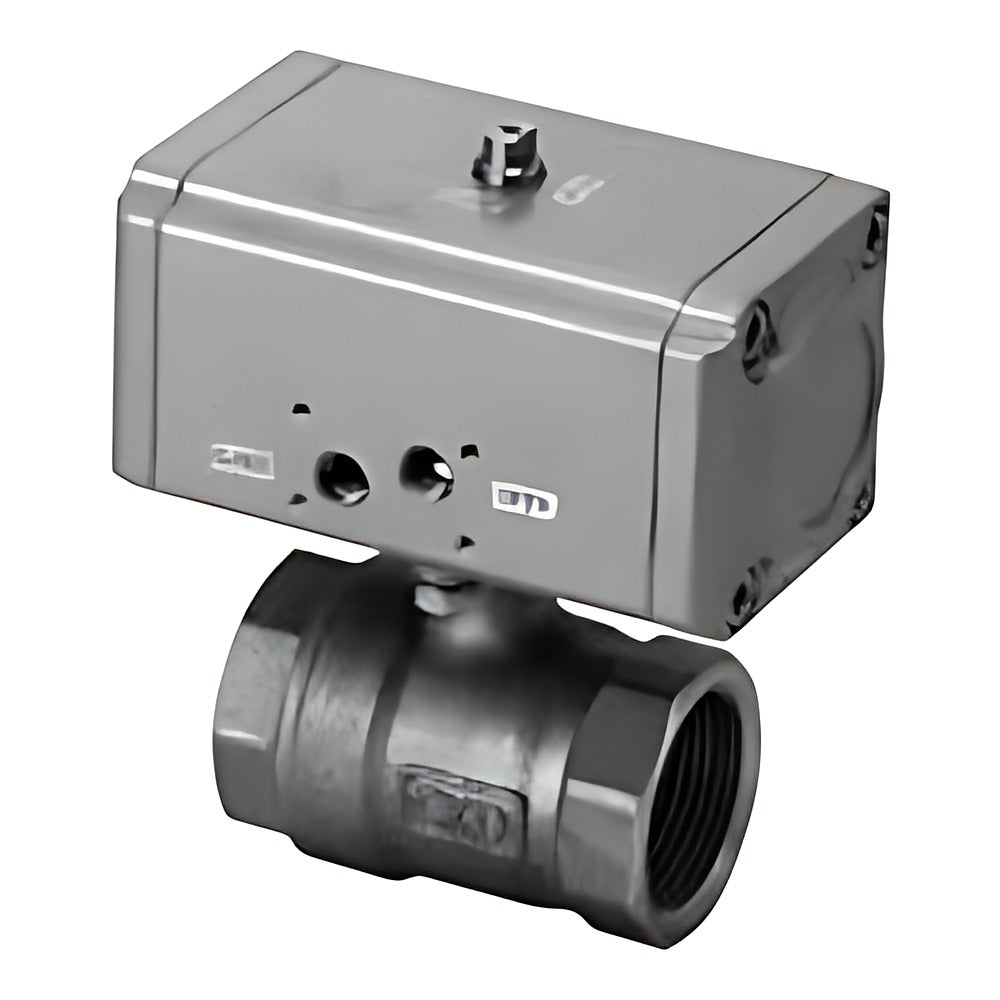

CKD CHB-W/CHB-WR Air Operated 2-Port Ball Valve (Outdoor)

CKD CHB-W/CHB-WR Air Operated 2-Port Ball Valve (Outdoor)

CKD CHB-W outdoor air-operated 2-port ball valve (compact rotary valve), double or single acting, Rc3/8 to Rc2.

Key features

  • Outdoor WEATHER PROOF series rated for indoor and outdoor use
  • Compact rack-and-pinion rotary actuator, pilot port Rc1/8, non-lube
  • Double acting (CHB-W) or spring return single acting NC (WR1) / NO (WR2)
  • Stainless steel body; FKM (E) or special FKM (F, -20 C) seals
  • For water, air and oil up to 500 mm2/s; seat leakage 0
  • WG 3-year warranty option not multiplied

Specifications

Fluid Water, air, oil
Operating pressure 0 to 1.0 MPa
Proof pressure 2.0 MPa (hydraulic)
Fluid temperature Water/oil 0 to 80 C; air -20 to 80 C
Pilot pressure 0.35-0.7 (DA), 0.4-0.7 MPa (SA)
Seat leakage 0 cm3/min
Mounting Any
Source CKD Korea catalog CC-1276K, p. 68-71
CHB-W-10-F Actuator: Double acting | Port: Rc3/8 | Body/rubber: SUS / Special FKM
CHB-W-15-F Actuator: Double acting | Port: Rc1/2 | Body/rubber: SUS / Special FKM
CHB-W-20-F Actuator: Double acting | Port: Rc3/4 | Body/rubber: SUS / Special FKM
CHB-W-25-F Actuator: Double acting | Port: Rc1 | Body/rubber: SUS / Special FKM
CHB-W-32-F Actuator: Double acting | Port: Rc1 1/4 | Body/rubber: SUS / Special FKM
CHB-W-40-F Actuator: Double acting | Port: Rc1 1/2 | Body/rubber: SUS / Special FKM
CHB-W-50-F Actuator: Double acting | Port: Rc2 | Body/rubber: SUS / Special FKM
CHB-WR1-10-F Actuator: Single acting NC | Port: Rc3/8 | Body/rubber: SUS / Special FKM
CHB-WR1-15-F Actuator: Single acting NC | Port: Rc1/2 | Body/rubber: SUS / Special FKM
CHB-WR1-20-F Actuator: Single acting NC | Port: Rc3/4 | Body/rubber: SUS / Special FKM
CHB-WR1-25-F Actuator: Single acting NC | Port: Rc1 | Body/rubber: SUS / Special FKM
CHB-WR1-32-F Actuator: Single acting NC | Port: Rc1 1/4 | Body/rubber: SUS / Special FKM
CHB-WR1-40-F Actuator: Single acting NC | Port: Rc1 1/2 | Body/rubber: SUS / Special FKM
CHB-WR1-50-F Actuator: Single acting NC | Port: Rc2 | Body/rubber: SUS / Special FKM
CHB-WR2-10-F Actuator: Single acting NO | Port: Rc3/8 | Body/rubber: SUS / Special FKM
CHB-WR2-15-F Actuator: Single acting NO | Port: Rc1/2 | Body/rubber: SUS / Special FKM
CHB-WR2-20-F Actuator: Single acting NO | Port: Rc3/4 | Body/rubber: SUS / Special FKM
CHB-WR2-25-F Actuator: Single acting NO | Port: Rc1 | Body/rubber: SUS / Special FKM
CHB-WR2-32-F Actuator: Single acting NO | Port: Rc1 1/4 | Body/rubber: SUS / Special FKM
CHB-WR2-40-F Actuator: Single acting NO | Port: Rc1 1/2 | Body/rubber: SUS / Special FKM
CHB-WR2-50-F Actuator: Single acting NO | Port: Rc2 | Body/rubber: SUS / Special FKM
Ball ValvesCKD
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
