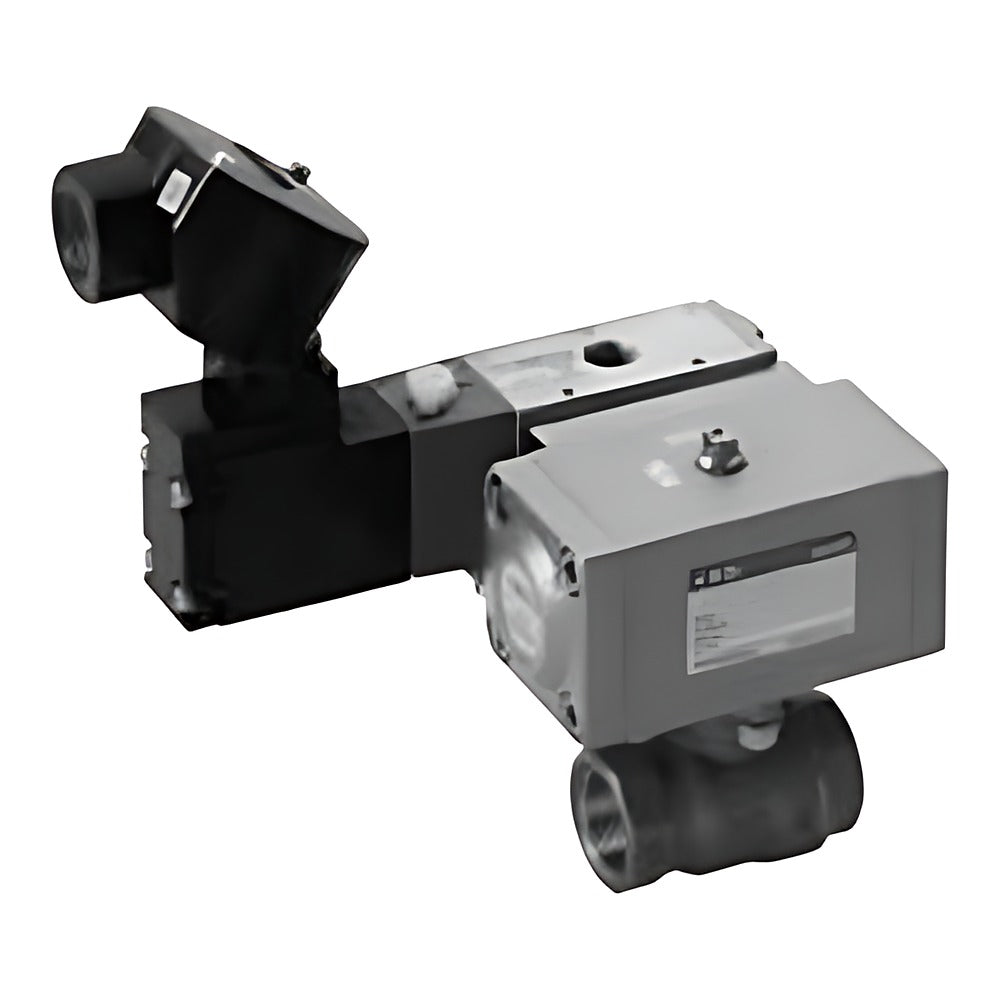

CKD CHB-WV1/WX1 Outdoor Ball Valve 2-Port with Solenoid (Rc3/8-Rc2)

CKD CHB-WV1/WX1 Outdoor Ball Valve 2-Port with Solenoid (Rc3/8-Rc2)

CKD CHB-WV1/CHB-WX1 outdoor compact rotary 2-port ball valve with mounted pilot solenoid valve, double or single acting NC, Rc3/8 to Rc2.

Key features

  • Outdoor W series: passed 960 h combined cycle test (JIS H8502), 1000 h accelerated weathering and 400 h ozone exposure
  • Pilot solenoid valve mounted on the rotary actuator: WV1 double acting NC, WX1 single acting NC
  • Round metal terminal box (B) or with lamp (BL); IP65; Class 130 (B) coil
  • Silencer option S (SL-8A-W: 2 pcs for WV1, 1 pc for WX1) not expanded
  • Stainless steel body (E); zero seat leakage
  • Order example: CHB-WV1-25-EB-S-AC100V

Specifications

Fluid Water, air, oil (500 mm2/s or less)
Operating pressure 0-1.0 MPa
Proof pressure 2.0 MPa
Fluid temperature 0 to 80 C
Ambient temperature -10 to 60 C
Pilot pressure 0.35-0.7 MPa (WV1), 0.4-0.7 MPa (WX1)
Power consumption AC 5.0/4.0 W, DC 6.0 W
Protection IP65
Mounting Actuator upward, vertical
Body material Stainless steel
Source CKD Korea catalog CB-03-1SK-9, p. 1154-1157
CHB-WV1-10-EB-AC100V Actuator: Double acting NC | Port: Rc3/8 | Coil: Round terminal box | Voltage: AC100V | Cv: 10
CHB-WV1-10-EB-AC200V Actuator: Double acting NC | Port: Rc3/8 | Coil: Round terminal box | Voltage: AC200V | Cv: 10
CHB-WV1-10-EB-DC24V Actuator: Double acting NC | Port: Rc3/8 | Coil: Round terminal box | Voltage: DC24V | Cv: 10
CHB-WV1-10-EBL-AC100V Actuator: Double acting NC | Port: Rc3/8 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 10
CHB-WV1-10-EBL-AC200V Actuator: Double acting NC | Port: Rc3/8 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 10
CHB-WV1-10-EBL-DC24V Actuator: Double acting NC | Port: Rc3/8 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 10
CHB-WV1-15-EB-AC100V Actuator: Double acting NC | Port: Rc1/2 | Coil: Round terminal box | Voltage: AC100V | Cv: 6
CHB-WV1-15-EB-AC200V Actuator: Double acting NC | Port: Rc1/2 | Coil: Round terminal box | Voltage: AC200V | Cv: 6
CHB-WV1-15-EB-DC24V Actuator: Double acting NC | Port: Rc1/2 | Coil: Round terminal box | Voltage: DC24V | Cv: 6
CHB-WV1-15-EBL-AC100V Actuator: Double acting NC | Port: Rc1/2 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 6
CHB-WV1-15-EBL-AC200V Actuator: Double acting NC | Port: Rc1/2 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 6
CHB-WV1-15-EBL-DC24V Actuator: Double acting NC | Port: Rc1/2 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 6
CHB-WV1-20-EB-AC100V Actuator: Double acting NC | Port: Rc3/4 | Coil: Round terminal box | Voltage: AC100V | Cv: 16
CHB-WV1-20-EB-AC200V Actuator: Double acting NC | Port: Rc3/4 | Coil: Round terminal box | Voltage: AC200V | Cv: 16
CHB-WV1-20-EB-DC24V Actuator: Double acting NC | Port: Rc3/4 | Coil: Round terminal box | Voltage: DC24V | Cv: 16
CHB-WV1-20-EBL-AC100V Actuator: Double acting NC | Port: Rc3/4 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 16
CHB-WV1-20-EBL-AC200V Actuator: Double acting NC | Port: Rc3/4 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 16
CHB-WV1-20-EBL-DC24V Actuator: Double acting NC | Port: Rc3/4 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 16
CHB-WV1-25-EB-AC100V Actuator: Double acting NC | Port: Rc1 | Coil: Round terminal box | Voltage: AC100V | Cv: 29
CHB-WV1-25-EB-AC200V Actuator: Double acting NC | Port: Rc1 | Coil: Round terminal box | Voltage: AC200V | Cv: 29
CHB-WV1-25-EB-DC24V Actuator: Double acting NC | Port: Rc1 | Coil: Round terminal box | Voltage: DC24V | Cv: 29
CHB-WV1-25-EBL-AC100V Actuator: Double acting NC | Port: Rc1 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 29
CHB-WV1-25-EBL-AC200V Actuator: Double acting NC | Port: Rc1 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 29
CHB-WV1-25-EBL-DC24V Actuator: Double acting NC | Port: Rc1 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 29
CHB-WV1-32-EB-AC100V Actuator: Double acting NC | Port: Rc1-1/4 | Coil: Round terminal box | Voltage: AC100V | Cv: 50
CHB-WV1-32-EB-AC200V Actuator: Double acting NC | Port: Rc1-1/4 | Coil: Round terminal box | Voltage: AC200V | Cv: 50
CHB-WV1-32-EB-DC24V Actuator: Double acting NC | Port: Rc1-1/4 | Coil: Round terminal box | Voltage: DC24V | Cv: 50
CHB-WV1-32-EBL-AC100V Actuator: Double acting NC | Port: Rc1-1/4 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 50
CHB-WV1-32-EBL-AC200V Actuator: Double acting NC | Port: Rc1-1/4 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 50
CHB-WV1-32-EBL-DC24V Actuator: Double acting NC | Port: Rc1-1/4 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 50
CHB-WV1-40-EB-AC100V Actuator: Double acting NC | Port: Rc1-1/2 | Coil: Round terminal box | Voltage: AC100V | Cv: 98
CHB-WV1-40-EB-AC200V Actuator: Double acting NC | Port: Rc1-1/2 | Coil: Round terminal box | Voltage: AC200V | Cv: 98
CHB-WV1-40-EB-DC24V Actuator: Double acting NC | Port: Rc1-1/2 | Coil: Round terminal box | Voltage: DC24V | Cv: 98
CHB-WV1-40-EBL-AC100V Actuator: Double acting NC | Port: Rc1-1/2 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 98
CHB-WV1-40-EBL-AC200V Actuator: Double acting NC | Port: Rc1-1/2 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 98
CHB-WV1-40-EBL-DC24V Actuator: Double acting NC | Port: Rc1-1/2 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 98
CHB-WV1-50-EB-AC100V Actuator: Double acting NC | Port: Rc2 | Coil: Round terminal box | Voltage: AC100V | Cv: 125
CHB-WV1-50-EB-AC200V Actuator: Double acting NC | Port: Rc2 | Coil: Round terminal box | Voltage: AC200V | Cv: 125
CHB-WV1-50-EB-DC24V Actuator: Double acting NC | Port: Rc2 | Coil: Round terminal box | Voltage: DC24V | Cv: 125
CHB-WV1-50-EBL-AC100V Actuator: Double acting NC | Port: Rc2 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 125
CHB-WV1-50-EBL-AC200V Actuator: Double acting NC | Port: Rc2 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 125
CHB-WV1-50-EBL-DC24V Actuator: Double acting NC | Port: Rc2 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 125
CHB-WX1-10-EB-AC100V Actuator: Single acting NC | Port: Rc3/8 | Coil: Round terminal box | Voltage: AC100V | Cv: 10
CHB-WX1-10-EB-AC200V Actuator: Single acting NC | Port: Rc3/8 | Coil: Round terminal box | Voltage: AC200V | Cv: 10
CHB-WX1-10-EB-DC24V Actuator: Single acting NC | Port: Rc3/8 | Coil: Round terminal box | Voltage: DC24V | Cv: 10
CHB-WX1-10-EBL-AC100V Actuator: Single acting NC | Port: Rc3/8 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 10
CHB-WX1-10-EBL-AC200V Actuator: Single acting NC | Port: Rc3/8 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 10
CHB-WX1-10-EBL-DC24V Actuator: Single acting NC | Port: Rc3/8 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 10
CHB-WX1-15-EB-AC100V Actuator: Single acting NC | Port: Rc1/2 | Coil: Round terminal box | Voltage: AC100V | Cv: 6
CHB-WX1-15-EB-AC200V Actuator: Single acting NC | Port: Rc1/2 | Coil: Round terminal box | Voltage: AC200V | Cv: 6
CHB-WX1-15-EB-DC24V Actuator: Single acting NC | Port: Rc1/2 | Coil: Round terminal box | Voltage: DC24V | Cv: 6
CHB-WX1-15-EBL-AC100V Actuator: Single acting NC | Port: Rc1/2 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 6
CHB-WX1-15-EBL-AC200V Actuator: Single acting NC | Port: Rc1/2 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 6
CHB-WX1-15-EBL-DC24V Actuator: Single acting NC | Port: Rc1/2 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 6
CHB-WX1-20-EB-AC100V Actuator: Single acting NC | Port: Rc3/4 | Coil: Round terminal box | Voltage: AC100V | Cv: 16
CHB-WX1-20-EB-AC200V Actuator: Single acting NC | Port: Rc3/4 | Coil: Round terminal box | Voltage: AC200V | Cv: 16
CHB-WX1-20-EB-DC24V Actuator: Single acting NC | Port: Rc3/4 | Coil: Round terminal box | Voltage: DC24V | Cv: 16
CHB-WX1-20-EBL-AC100V Actuator: Single acting NC | Port: Rc3/4 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 16
CHB-WX1-20-EBL-AC200V Actuator: Single acting NC | Port: Rc3/4 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 16
CHB-WX1-20-EBL-DC24V Actuator: Single acting NC | Port: Rc3/4 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 16
CHB-WX1-25-EB-AC100V Actuator: Single acting NC | Port: Rc1 | Coil: Round terminal box | Voltage: AC100V | Cv: 29
CHB-WX1-25-EB-AC200V Actuator: Single acting NC | Port: Rc1 | Coil: Round terminal box | Voltage: AC200V | Cv: 29
CHB-WX1-25-EB-DC24V Actuator: Single acting NC | Port: Rc1 | Coil: Round terminal box | Voltage: DC24V | Cv: 29
CHB-WX1-25-EBL-AC100V Actuator: Single acting NC | Port: Rc1 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 29
CHB-WX1-25-EBL-AC200V Actuator: Single acting NC | Port: Rc1 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 29
CHB-WX1-25-EBL-DC24V Actuator: Single acting NC | Port: Rc1 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 29
CHB-WX1-32-EB-AC100V Actuator: Single acting NC | Port: Rc1-1/4 | Coil: Round terminal box | Voltage: AC100V | Cv: 50
CHB-WX1-32-EB-AC200V Actuator: Single acting NC | Port: Rc1-1/4 | Coil: Round terminal box | Voltage: AC200V | Cv: 50
CHB-WX1-32-EB-DC24V Actuator: Single acting NC | Port: Rc1-1/4 | Coil: Round terminal box | Voltage: DC24V | Cv: 50
CHB-WX1-32-EBL-AC100V Actuator: Single acting NC | Port: Rc1-1/4 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 50
CHB-WX1-32-EBL-AC200V Actuator: Single acting NC | Port: Rc1-1/4 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 50
CHB-WX1-32-EBL-DC24V Actuator: Single acting NC | Port: Rc1-1/4 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 50
CHB-WX1-40-EB-AC100V Actuator: Single acting NC | Port: Rc1-1/2 | Coil: Round terminal box | Voltage: AC100V | Cv: 98
CHB-WX1-40-EB-AC200V Actuator: Single acting NC | Port: Rc1-1/2 | Coil: Round terminal box | Voltage: AC200V | Cv: 98
CHB-WX1-40-EB-DC24V Actuator: Single acting NC | Port: Rc1-1/2 | Coil: Round terminal box | Voltage: DC24V | Cv: 98
CHB-WX1-40-EBL-AC100V Actuator: Single acting NC | Port: Rc1-1/2 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 98
CHB-WX1-40-EBL-AC200V Actuator: Single acting NC | Port: Rc1-1/2 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 98
CHB-WX1-40-EBL-DC24V Actuator: Single acting NC | Port: Rc1-1/2 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 98
CHB-WX1-50-EB-AC100V Actuator: Single acting NC | Port: Rc2 | Coil: Round terminal box | Voltage: AC100V | Cv: 125
CHB-WX1-50-EB-AC200V Actuator: Single acting NC | Port: Rc2 | Coil: Round terminal box | Voltage: AC200V | Cv: 125
CHB-WX1-50-EB-DC24V Actuator: Single acting NC | Port: Rc2 | Coil: Round terminal box | Voltage: DC24V | Cv: 125
CHB-WX1-50-EBL-AC100V Actuator: Single acting NC | Port: Rc2 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 125
CHB-WX1-50-EBL-AC200V Actuator: Single acting NC | Port: Rc2 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 125
CHB-WX1-50-EBL-DC24V Actuator: Single acting NC | Port: Rc2 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 125
