CKD CHG-FP2 Air Operated Ball Valve 3-Port (Compact Rotary Valve)

CKD CHG-FP2 Air Operated Ball Valve 3-Port (Compact Rotary Valve)

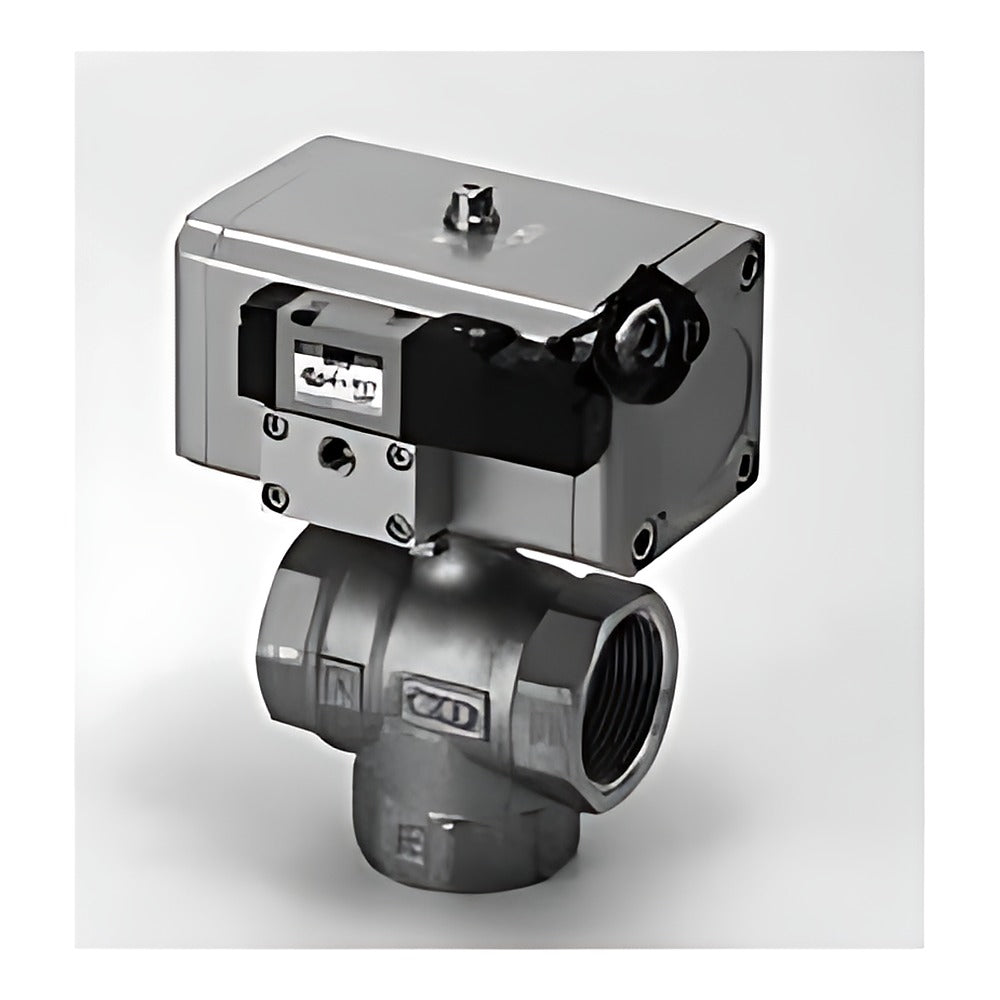

CKD CHG-FP2 compact rotary air-operated 3-port ball valve with stainless steel oil-free body for flow switching.

Key features

  • Double-acting or single-acting actuator (R1 normally B-C, R2 normally A-C)
  • Rc1/2 to Rc2 ports
  • Stainless steel body, oil-free (N)
  • Mixing type flow path, 90-degree rotation, C-port pressurised
  • FP2 food-processing spec: wetted materials comply with the Japanese Food Sanitation Act

Specifications

Fluid Water, air, oil (500 mm2/s or less)
Operating pressure 0 to 1.0 MPa
Proof pressure 2.0 MPa
Fluid temperature 0 to 80 C
Pilot pressure 0.35-0.7 MPa (double), 0.4-0.7 (single)
Pilot port Rc1/8
Source CKD Korea catalog CC-1271K-5, p. 403-403
CHG-15-N-FP2 Actuator: Double acting | Port: Rc1/2
CHG-20-N-FP2 Actuator: Double acting | Port: Rc3/4
CHG-25-N-FP2 Actuator: Double acting | Port: Rc1
CHG-32-N-FP2 Actuator: Double acting | Port: Rc1-1/4
CHG-40-N-FP2 Actuator: Double acting | Port: Rc1-1/2
CHG-50-N-FP2 Actuator: Double acting | Port: Rc2
CHG-R1-15-N-FP2 Actuator: Single, normally B-C | Port: Rc1/2
CHG-R1-20-N-FP2 Actuator: Single, normally B-C | Port: Rc3/4
CHG-R1-25-N-FP2 Actuator: Single, normally B-C | Port: Rc1
CHG-R1-32-N-FP2 Actuator: Single, normally B-C | Port: Rc1-1/4
CHG-R1-40-N-FP2 Actuator: Single, normally B-C | Port: Rc1-1/2
CHG-R1-50-N-FP2 Actuator: Single, normally B-C | Port: Rc2
CHG-R2-15-N-FP2 Actuator: Single, normally A-C | Port: Rc1/2
CHG-R2-20-N-FP2 Actuator: Single, normally A-C | Port: Rc3/4
CHG-R2-25-N-FP2 Actuator: Single, normally A-C | Port: Rc1
CHG-R2-32-N-FP2 Actuator: Single, normally A-C | Port: Rc1-1/4
CHG-R2-40-N-FP2 Actuator: Single, normally A-C | Port: Rc1-1/2
CHG-R2-50-N-FP2 Actuator: Single, normally A-C | Port: Rc2
