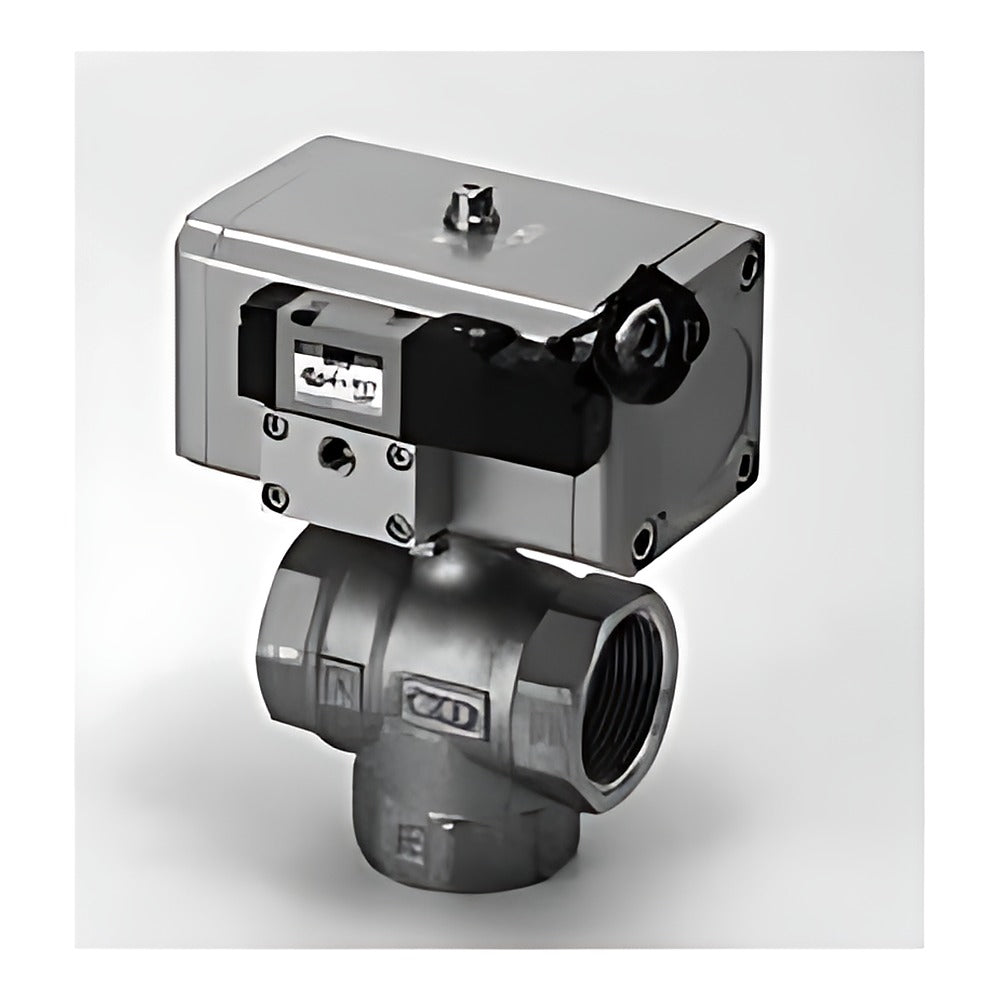

CKD CHG-V/X Solenoid-Mounted 3-Port Ball Valve (Rc1/2-Rc2)

CKD CHG-V/X Solenoid-Mounted 3-Port Ball Valve (Rc1/2-Rc2)

CKD CHG-V/X is a compact air-operated 3-port ball valve with a mounted switching solenoid valve, Rc1/2 to Rc2.

Key features

  • Mounted pilot solenoid valve, double acting (V) or single acting (X)
  • Normally B-C (V1/X1) or normally A-C (V2/X2) flow path
  • Coil options: grommet lead (standard), small terminal box, C or D connector
  • Limit switch H/V/W and silencer with metering valve S options
  • Bronze, stainless or stainless oil-free body; pressurization at C port

Specifications

Fluid Water, air, oil (500 mm2/s or less)
Operating pressure 0 to 1.0 MPa
Proof pressure 2.0 MPa (water)
Fluid temperature 0 to 80 C (no freezing)
Ambient temperature -10 to 60 C
Pilot pressure 0.35-0.7 MPa (double), 0.4-0.7 MPa (single)
Pressurizing direction C port only
Code format CHG-[V/X][1/2]-[size]-[body][coil]-[switch][S]-[voltage]
Source CKD Korea catalog CB-03-1SK-9, p. 794-800
CHG-V1-15-0-AC100V Actuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V1-15-0-AC200V Actuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V1-15-0-DC24V Actuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHG-V1-15-E-AC100V Actuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V1-15-E-AC200V Actuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V1-15-E-DC24V Actuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHG-V1-15-N-AC100V Actuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V1-15-N-AC200V Actuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V1-15-N-DC24V Actuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V1-20-0-AC100V Actuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V1-20-0-AC200V Actuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V1-20-0-DC24V Actuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHG-V1-20-E-AC100V Actuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V1-20-E-AC200V Actuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V1-20-E-DC24V Actuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHG-V1-20-N-AC100V Actuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V1-20-N-AC200V Actuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V1-20-N-DC24V Actuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V1-25-0-AC100V Actuator: Double acting, normally B-C | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V1-25-0-AC200V Actuator: Double acting, normally B-C | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V1-25-0-DC24V Actuator: Double acting, normally B-C | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHG-V1-25-E-AC100V Actuator: Double acting, normally B-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V1-25-E-AC200V Actuator: Double acting, normally B-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V1-25-E-DC24V Actuator: Double acting, normally B-C | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHG-V1-25-N-AC100V Actuator: Double acting, normally B-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V1-25-N-AC200V Actuator: Double acting, normally B-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V1-25-N-DC24V Actuator: Double acting, normally B-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V1-32-0-AC100V Actuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V1-32-0-AC200V Actuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V1-32-0-DC24V Actuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHG-V1-32-E-AC100V Actuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V1-32-E-AC200V Actuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V1-32-E-DC24V Actuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHG-V1-32-N-AC100V Actuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V1-32-N-AC200V Actuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V1-32-N-DC24V Actuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V1-40-0-AC100V Actuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V1-40-0-AC200V Actuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V1-40-0-DC24V Actuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHG-V1-40-E-AC100V Actuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V1-40-E-AC200V Actuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V1-40-E-DC24V Actuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHG-V1-40-N-AC100V Actuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V1-40-N-AC200V Actuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V1-40-N-DC24V Actuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V1-50-0-AC100V Actuator: Double acting, normally B-C | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V1-50-0-AC200V Actuator: Double acting, normally B-C | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V1-50-0-DC24V Actuator: Double acting, normally B-C | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHG-V1-50-E-AC100V Actuator: Double acting, normally B-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V1-50-E-AC200V Actuator: Double acting, normally B-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V1-50-E-DC24V Actuator: Double acting, normally B-C | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHG-V1-50-N-AC100V Actuator: Double acting, normally B-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V1-50-N-AC200V Actuator: Double acting, normally B-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V1-50-N-DC24V Actuator: Double acting, normally B-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V2-15-0-AC100V Actuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V2-15-0-AC200V Actuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V2-15-0-DC24V Actuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHG-V2-15-E-AC100V Actuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V2-15-E-AC200V Actuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V2-15-E-DC24V Actuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHG-V2-15-N-AC100V Actuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V2-15-N-AC200V Actuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V2-15-N-DC24V Actuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V2-20-0-AC100V Actuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V2-20-0-AC200V Actuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V2-20-0-DC24V Actuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHG-V2-20-E-AC100V Actuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V2-20-E-AC200V Actuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V2-20-E-DC24V Actuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHG-V2-20-N-AC100V Actuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V2-20-N-AC200V Actuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V2-20-N-DC24V Actuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V2-25-0-AC100V Actuator: Double acting, normally A-C | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V2-25-0-AC200V Actuator: Double acting, normally A-C | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V2-25-0-DC24V Actuator: Double acting, normally A-C | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHG-V2-25-E-AC100V Actuator: Double acting, normally A-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V2-25-E-AC200V Actuator: Double acting, normally A-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V2-25-E-DC24V Actuator: Double acting, normally A-C | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHG-V2-25-N-AC100V Actuator: Double acting, normally A-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V2-25-N-AC200V Actuator: Double acting, normally A-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V2-25-N-DC24V Actuator: Double acting, normally A-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V2-32-0-AC100V Actuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V2-32-0-AC200V Actuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V2-32-0-DC24V Actuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHG-V2-32-E-AC100V Actuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V2-32-E-AC200V Actuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V2-32-E-DC24V Actuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHG-V2-32-N-AC100V Actuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V2-32-N-AC200V Actuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V2-32-N-DC24V Actuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V2-40-0-AC100V Actuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V2-40-0-AC200V Actuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V2-40-0-DC24V Actuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHG-V2-40-E-AC100V Actuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V2-40-E-AC200V Actuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V2-40-E-DC24V Actuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHG-V2-40-N-AC100V Actuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V2-40-N-AC200V Actuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V2-40-N-DC24V Actuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V2-50-0-AC100V Actuator: Double acting, normally A-C | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V2-50-0-AC200V Actuator: Double acting, normally A-C | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V2-50-0-DC24V Actuator: Double acting, normally A-C | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHG-V2-50-E-AC100V Actuator: Double acting, normally A-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V2-50-E-AC200V Actuator: Double acting, normally A-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V2-50-E-DC24V Actuator: Double acting, normally A-C | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHG-V2-50-N-AC100V Actuator: Double acting, normally A-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V2-50-N-AC200V Actuator: Double acting, normally A-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V2-50-N-DC24V Actuator: Double acting, normally A-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X1-15-0-AC100V Actuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X1-15-0-AC200V Actuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X1-15-0-DC24V Actuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHG-X1-15-E-AC100V Actuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X1-15-E-AC200V Actuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X1-15-E-DC24V Actuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHG-X1-15-N-AC100V Actuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X1-15-N-AC200V Actuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X1-15-N-DC24V Actuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X1-20-0-AC100V Actuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X1-20-0-AC200V Actuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X1-20-0-DC24V Actuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHG-X1-20-E-AC100V Actuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X1-20-E-AC200V Actuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X1-20-E-DC24V Actuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHG-X1-20-N-AC100V Actuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X1-20-N-AC200V Actuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X1-20-N-DC24V Actuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X1-25-0-AC100V Actuator: Single acting, normally B-C | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X1-25-0-AC200V Actuator: Single acting, normally B-C | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X1-25-0-DC24V Actuator: Single acting, normally B-C | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHG-X1-25-E-AC100V Actuator: Single acting, normally B-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X1-25-E-AC200V Actuator: Single acting, normally B-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X1-25-E-DC24V Actuator: Single acting, normally B-C | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHG-X1-25-N-AC100V Actuator: Single acting, normally B-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X1-25-N-AC200V Actuator: Single acting, normally B-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X1-25-N-DC24V Actuator: Single acting, normally B-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X1-32-0-AC100V Actuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X1-32-0-AC200V Actuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X1-32-0-DC24V Actuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHG-X1-32-E-AC100V Actuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X1-32-E-AC200V Actuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X1-32-E-DC24V Actuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHG-X1-32-N-AC100V Actuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X1-32-N-AC200V Actuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X1-32-N-DC24V Actuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X1-40-0-AC100V Actuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X1-40-0-AC200V Actuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X1-40-0-DC24V Actuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHG-X1-40-E-AC100V Actuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X1-40-E-AC200V Actuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X1-40-E-DC24V Actuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHG-X1-40-N-AC100V Actuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X1-40-N-AC200V Actuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X1-40-N-DC24V Actuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X1-50-0-AC100V Actuator: Single acting, normally B-C | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X1-50-0-AC200V Actuator: Single acting, normally B-C | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X1-50-0-DC24V Actuator: Single acting, normally B-C | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHG-X1-50-E-AC100V Actuator: Single acting, normally B-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X1-50-E-AC200V Actuator: Single acting, normally B-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X1-50-E-DC24V Actuator: Single acting, normally B-C | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHG-X1-50-N-AC100V Actuator: Single acting, normally B-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X1-50-N-AC200V Actuator: Single acting, normally B-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X1-50-N-DC24V Actuator: Single acting, normally B-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X2-15-0-AC100V Actuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X2-15-0-AC200V Actuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X2-15-0-DC24V Actuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHG-X2-15-E-AC100V Actuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X2-15-E-AC200V Actuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X2-15-E-DC24V Actuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHG-X2-15-N-AC100V Actuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X2-15-N-AC200V Actuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X2-15-N-DC24V Actuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X2-20-0-AC100V Actuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X2-20-0-AC200V Actuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X2-20-0-DC24V Actuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHG-X2-20-E-AC100V Actuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X2-20-E-AC200V Actuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X2-20-E-DC24V Actuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHG-X2-20-N-AC100V Actuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X2-20-N-AC200V Actuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X2-20-N-DC24V Actuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X2-25-0-AC100V Actuator: Single acting, normally A-C | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X2-25-0-AC200V Actuator: Single acting, normally A-C | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X2-25-0-DC24V Actuator: Single acting, normally A-C | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHG-X2-25-E-AC100V Actuator: Single acting, normally A-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X2-25-E-AC200V Actuator: Single acting, normally A-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X2-25-E-DC24V Actuator: Single acting, normally A-C | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHG-X2-25-N-AC100V Actuator: Single acting, normally A-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X2-25-N-AC200V Actuator: Single acting, normally A-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X2-25-N-DC24V Actuator: Single acting, normally A-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X2-32-0-AC100V Actuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X2-32-0-AC200V Actuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X2-32-0-DC24V Actuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHG-X2-32-E-AC100V Actuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X2-32-E-AC200V Actuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X2-32-E-DC24V Actuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHG-X2-32-N-AC100V Actuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X2-32-N-AC200V Actuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X2-32-N-DC24V Actuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X2-40-0-AC100V Actuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X2-40-0-AC200V Actuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X2-40-0-DC24V Actuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHG-X2-40-E-AC100V Actuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X2-40-E-AC200V Actuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X2-40-E-DC24V Actuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHG-X2-40-N-AC100V Actuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X2-40-N-AC200V Actuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X2-40-N-DC24V Actuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X2-50-0-AC100V Actuator: Single acting, normally A-C | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X2-50-0-AC200V Actuator: Single acting, normally A-C | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X2-50-0-DC24V Actuator: Single acting, normally A-C | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHG-X2-50-E-AC100V Actuator: Single acting, normally A-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X2-50-E-AC200V Actuator: Single acting, normally A-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X2-50-E-DC24V Actuator: Single acting, normally A-C | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHG-X2-50-N-AC100V Actuator: Single acting, normally A-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X2-50-N-AC200V Actuator: Single acting, normally A-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X2-50-N-DC24V Actuator: Single acting, normally A-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V
Ball ValvesCKD
216 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CHG-V/X Solenoid-Mounted 3-Port Ball Valve (Rc1/2-Rc2)

Brand CKD·Ball Valves

Available part numbers (216)

CHG-V1-15-0-AC100V, CHG-V1-15-0-AC200V, CHG-V1-15-0-DC24V, CHG-V1-15-E-AC100V, CHG-V1-15-E-AC200V, CHG-V1-15-E-DC24V, CHG-V1-15-N-AC100V, CHG-V1-15-N-AC200V, CHG-V1-15-N-DC24V, CHG-V1-20-0-AC100V + 206 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CHG-V1-15-0-AC100VActuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V1-15-0-AC200VActuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V1-15-0-DC24VActuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHG-V1-15-E-AC100VActuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V1-15-E-AC200VActuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V1-15-E-DC24VActuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHG-V1-15-N-AC100VActuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V1-15-N-AC200VActuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V1-15-N-DC24VActuator: Double acting, normally B-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V1-20-0-AC100VActuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V1-20-0-AC200VActuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V1-20-0-DC24VActuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHG-V1-20-E-AC100VActuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V1-20-E-AC200VActuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V1-20-E-DC24VActuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHG-V1-20-N-AC100VActuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V1-20-N-AC200VActuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V1-20-N-DC24VActuator: Double acting, normally B-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V1-25-0-AC100VActuator: Double acting, normally B-C | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V1-25-0-AC200VActuator: Double acting, normally B-C | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V1-25-0-DC24VActuator: Double acting, normally B-C | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHG-V1-25-E-AC100VActuator: Double acting, normally B-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V1-25-E-AC200VActuator: Double acting, normally B-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V1-25-E-DC24VActuator: Double acting, normally B-C | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHG-V1-25-N-AC100VActuator: Double acting, normally B-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V1-25-N-AC200VActuator: Double acting, normally B-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V1-25-N-DC24VActuator: Double acting, normally B-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V1-32-0-AC100VActuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V1-32-0-AC200VActuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V1-32-0-DC24VActuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHG-V1-32-E-AC100VActuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V1-32-E-AC200VActuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V1-32-E-DC24VActuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHG-V1-32-N-AC100VActuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V1-32-N-AC200VActuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V1-32-N-DC24VActuator: Double acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V1-40-0-AC100VActuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V1-40-0-AC200VActuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V1-40-0-DC24VActuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHG-V1-40-E-AC100VActuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V1-40-E-AC200VActuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V1-40-E-DC24VActuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHG-V1-40-N-AC100VActuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V1-40-N-AC200VActuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V1-40-N-DC24VActuator: Double acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V1-50-0-AC100VActuator: Double acting, normally B-C | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V1-50-0-AC200VActuator: Double acting, normally B-C | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V1-50-0-DC24VActuator: Double acting, normally B-C | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHG-V1-50-E-AC100VActuator: Double acting, normally B-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V1-50-E-AC200VActuator: Double acting, normally B-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V1-50-E-DC24VActuator: Double acting, normally B-C | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHG-V1-50-N-AC100VActuator: Double acting, normally B-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V1-50-N-AC200VActuator: Double acting, normally B-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V1-50-N-DC24VActuator: Double acting, normally B-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V2-15-0-AC100VActuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V2-15-0-AC200VActuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V2-15-0-DC24VActuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHG-V2-15-E-AC100VActuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V2-15-E-AC200VActuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V2-15-E-DC24VActuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHG-V2-15-N-AC100VActuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V2-15-N-AC200VActuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V2-15-N-DC24VActuator: Double acting, normally A-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V2-20-0-AC100VActuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V2-20-0-AC200VActuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V2-20-0-DC24VActuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHG-V2-20-E-AC100VActuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V2-20-E-AC200VActuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V2-20-E-DC24VActuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHG-V2-20-N-AC100VActuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V2-20-N-AC200VActuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V2-20-N-DC24VActuator: Double acting, normally A-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V2-25-0-AC100VActuator: Double acting, normally A-C | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V2-25-0-AC200VActuator: Double acting, normally A-C | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V2-25-0-DC24VActuator: Double acting, normally A-C | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHG-V2-25-E-AC100VActuator: Double acting, normally A-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V2-25-E-AC200VActuator: Double acting, normally A-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V2-25-E-DC24VActuator: Double acting, normally A-C | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHG-V2-25-N-AC100VActuator: Double acting, normally A-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V2-25-N-AC200VActuator: Double acting, normally A-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V2-25-N-DC24VActuator: Double acting, normally A-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V2-32-0-AC100VActuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V2-32-0-AC200VActuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V2-32-0-DC24VActuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHG-V2-32-E-AC100VActuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V2-32-E-AC200VActuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V2-32-E-DC24VActuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHG-V2-32-N-AC100VActuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V2-32-N-AC200VActuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V2-32-N-DC24VActuator: Double acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V2-40-0-AC100VActuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V2-40-0-AC200VActuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V2-40-0-DC24VActuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHG-V2-40-E-AC100VActuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V2-40-E-AC200VActuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V2-40-E-DC24VActuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHG-V2-40-N-AC100VActuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V2-40-N-AC200VActuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V2-40-N-DC24VActuator: Double acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-V2-50-0-AC100VActuator: Double acting, normally A-C | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-V2-50-0-AC200VActuator: Double acting, normally A-C | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-V2-50-0-DC24VActuator: Double acting, normally A-C | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHG-V2-50-E-AC100VActuator: Double acting, normally A-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-V2-50-E-AC200VActuator: Double acting, normally A-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-V2-50-E-DC24VActuator: Double acting, normally A-C | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHG-V2-50-N-AC100VActuator: Double acting, normally A-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-V2-50-N-AC200VActuator: Double acting, normally A-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-V2-50-N-DC24VActuator: Double acting, normally A-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X1-15-0-AC100VActuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X1-15-0-AC200VActuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X1-15-0-DC24VActuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHG-X1-15-E-AC100VActuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X1-15-E-AC200VActuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X1-15-E-DC24VActuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHG-X1-15-N-AC100VActuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X1-15-N-AC200VActuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X1-15-N-DC24VActuator: Single acting, normally B-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X1-20-0-AC100VActuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X1-20-0-AC200VActuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X1-20-0-DC24VActuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHG-X1-20-E-AC100VActuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X1-20-E-AC200VActuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X1-20-E-DC24VActuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHG-X1-20-N-AC100VActuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X1-20-N-AC200VActuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X1-20-N-DC24VActuator: Single acting, normally B-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X1-25-0-AC100VActuator: Single acting, normally B-C | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X1-25-0-AC200VActuator: Single acting, normally B-C | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X1-25-0-DC24VActuator: Single acting, normally B-C | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHG-X1-25-E-AC100VActuator: Single acting, normally B-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X1-25-E-AC200VActuator: Single acting, normally B-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X1-25-E-DC24VActuator: Single acting, normally B-C | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHG-X1-25-N-AC100VActuator: Single acting, normally B-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X1-25-N-AC200VActuator: Single acting, normally B-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X1-25-N-DC24VActuator: Single acting, normally B-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X1-32-0-AC100VActuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X1-32-0-AC200VActuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X1-32-0-DC24VActuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHG-X1-32-E-AC100VActuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X1-32-E-AC200VActuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X1-32-E-DC24VActuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHG-X1-32-N-AC100VActuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X1-32-N-AC200VActuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X1-32-N-DC24VActuator: Single acting, normally B-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X1-40-0-AC100VActuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X1-40-0-AC200VActuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X1-40-0-DC24VActuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHG-X1-40-E-AC100VActuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X1-40-E-AC200VActuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X1-40-E-DC24VActuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHG-X1-40-N-AC100VActuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X1-40-N-AC200VActuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X1-40-N-DC24VActuator: Single acting, normally B-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X1-50-0-AC100VActuator: Single acting, normally B-C | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X1-50-0-AC200VActuator: Single acting, normally B-C | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X1-50-0-DC24VActuator: Single acting, normally B-C | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHG-X1-50-E-AC100VActuator: Single acting, normally B-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X1-50-E-AC200VActuator: Single acting, normally B-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X1-50-E-DC24VActuator: Single acting, normally B-C | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHG-X1-50-N-AC100VActuator: Single acting, normally B-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X1-50-N-AC200VActuator: Single acting, normally B-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X1-50-N-DC24VActuator: Single acting, normally B-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X2-15-0-AC100VActuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X2-15-0-AC200VActuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X2-15-0-DC24VActuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Bronze | Voltage: DC24V
CHG-X2-15-E-AC100VActuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X2-15-E-AC200VActuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X2-15-E-DC24VActuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Stainless steel | Voltage: DC24V
CHG-X2-15-N-AC100VActuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X2-15-N-AC200VActuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X2-15-N-DC24VActuator: Single acting, normally A-C | Port size: Rc1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X2-20-0-AC100VActuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X2-20-0-AC200VActuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X2-20-0-DC24VActuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Bronze | Voltage: DC24V
CHG-X2-20-E-AC100VActuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X2-20-E-AC200VActuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X2-20-E-DC24VActuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Stainless steel | Voltage: DC24V
CHG-X2-20-N-AC100VActuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X2-20-N-AC200VActuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X2-20-N-DC24VActuator: Single acting, normally A-C | Port size: Rc3/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X2-25-0-AC100VActuator: Single acting, normally A-C | Port size: Rc1 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X2-25-0-AC200VActuator: Single acting, normally A-C | Port size: Rc1 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X2-25-0-DC24VActuator: Single acting, normally A-C | Port size: Rc1 | Body: Bronze | Voltage: DC24V
CHG-X2-25-E-AC100VActuator: Single acting, normally A-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X2-25-E-AC200VActuator: Single acting, normally A-C | Port size: Rc1 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X2-25-E-DC24VActuator: Single acting, normally A-C | Port size: Rc1 | Body: Stainless steel | Voltage: DC24V
CHG-X2-25-N-AC100VActuator: Single acting, normally A-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X2-25-N-AC200VActuator: Single acting, normally A-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X2-25-N-DC24VActuator: Single acting, normally A-C | Port size: Rc1 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X2-32-0-AC100VActuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X2-32-0-AC200VActuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X2-32-0-DC24VActuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Bronze | Voltage: DC24V
CHG-X2-32-E-AC100VActuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X2-32-E-AC200VActuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X2-32-E-DC24VActuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless steel | Voltage: DC24V
CHG-X2-32-N-AC100VActuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X2-32-N-AC200VActuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X2-32-N-DC24VActuator: Single acting, normally A-C | Port size: Rc1 1/4 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X2-40-0-AC100VActuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X2-40-0-AC200VActuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X2-40-0-DC24VActuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Bronze | Voltage: DC24V
CHG-X2-40-E-AC100VActuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X2-40-E-AC200VActuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X2-40-E-DC24VActuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless steel | Voltage: DC24V
CHG-X2-40-N-AC100VActuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X2-40-N-AC200VActuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X2-40-N-DC24VActuator: Single acting, normally A-C | Port size: Rc1 1/2 | Body: Stainless, oil-free | Voltage: DC24V
CHG-X2-50-0-AC100VActuator: Single acting, normally A-C | Port size: Rc2 | Body: Bronze | Voltage: AC100V/AC110V
CHG-X2-50-0-AC200VActuator: Single acting, normally A-C | Port size: Rc2 | Body: Bronze | Voltage: AC200V/AC220V
CHG-X2-50-0-DC24VActuator: Single acting, normally A-C | Port size: Rc2 | Body: Bronze | Voltage: DC24V
CHG-X2-50-E-AC100VActuator: Single acting, normally A-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC100V/AC110V
CHG-X2-50-E-AC200VActuator: Single acting, normally A-C | Port size: Rc2 | Body: Stainless steel | Voltage: AC200V/AC220V
CHG-X2-50-E-DC24VActuator: Single acting, normally A-C | Port size: Rc2 | Body: Stainless steel | Voltage: DC24V
CHG-X2-50-N-AC100VActuator: Single acting, normally A-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC100V/AC110V
CHG-X2-50-N-AC200VActuator: Single acting, normally A-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: AC200V/AC220V
CHG-X2-50-N-DC24VActuator: Single acting, normally A-C | Port size: Rc2 | Body: Stainless, oil-free | Voltage: DC24V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Plumbing & Hoses →
