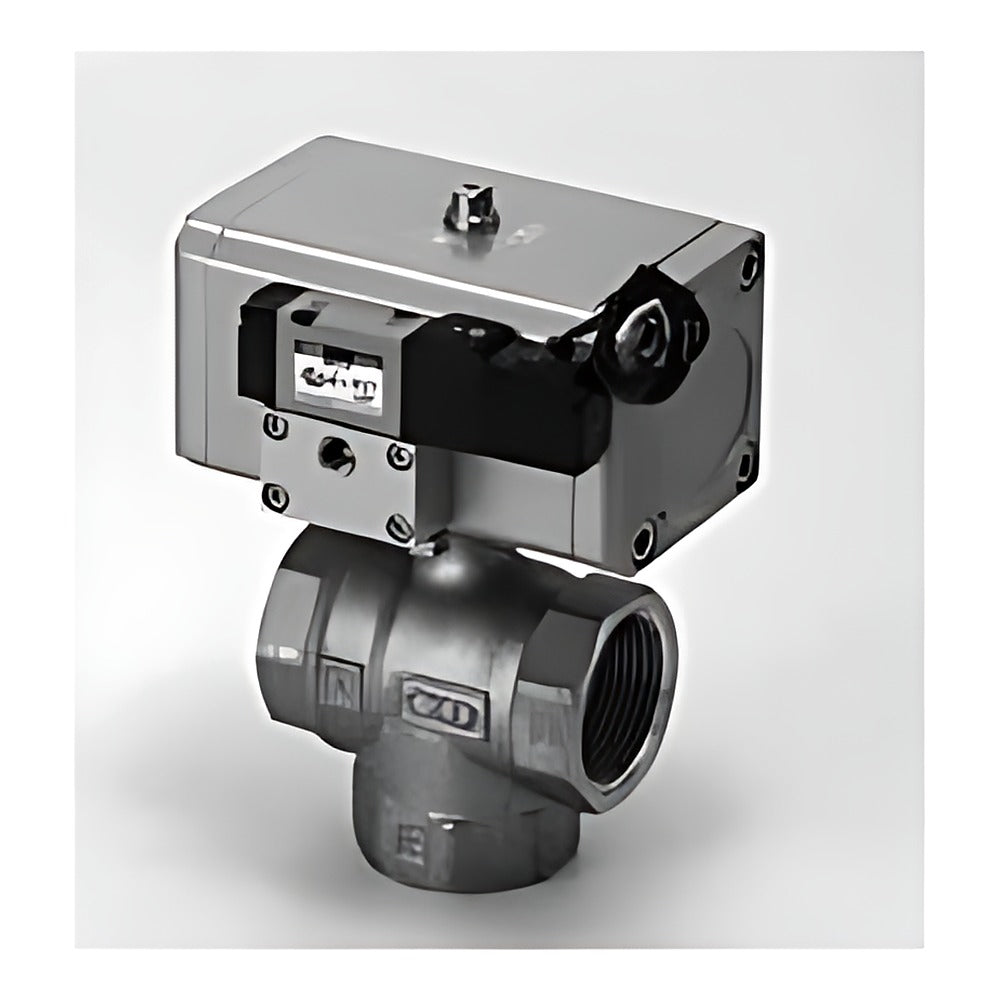

CKD CHG-WV1/WX1 Outdoor Ball Valve 3-Port with Solenoid (Rc1/2-Rc2)

CKD CHG-WV1/WX1 Outdoor Ball Valve 3-Port with Solenoid (Rc1/2-Rc2)

CKD CHG-WV1/CHG-WX1 outdoor compact rotary 3-port ball valve with mounted pilot solenoid valve, normally B-C flow, Rc1/2 to Rc2.

Key features

  • Outdoor W series: passed 960 h combined cycle test (JIS H8502), 1000 h accelerated weathering and 400 h ozone exposure
  • Pilot solenoid valve mounted: WV1 double acting, WX1 single acting, both normally B-C
  • Mixing type flow path with 90 deg rotary switching; pressurize from C port only
  • Round metal terminal box (B) or with lamp (BL); IP65; silencer option S not expanded
  • Order example: CHG-WX1-15-EB-S-AC200V

Specifications

Fluid Water, air, oil (500 mm2/s or less)
Operating pressure 0-1.0 MPa
Proof pressure 2.0 MPa
Fluid temperature 0 to 80 C
Ambient temperature -10 to 60 C
Pilot pressure 0.35-0.7 MPa (WV1), 0.4-0.7 MPa (WX1)
Power consumption AC 5.0/4.0 W, DC 6.0 W
Protection IP65
Body material Stainless steel
Source CKD Korea catalog CB-03-1SK-9, p. 1158-1161
CHG-WV1-15-EB-AC100V Actuator: Double acting, normally B-C | Port: Rc1/2 | Coil: Round terminal box | Voltage: AC100V | Cv: 3
CHG-WV1-15-EB-AC200V Actuator: Double acting, normally B-C | Port: Rc1/2 | Coil: Round terminal box | Voltage: AC200V | Cv: 3
CHG-WV1-15-EB-DC24V Actuator: Double acting, normally B-C | Port: Rc1/2 | Coil: Round terminal box | Voltage: DC24V | Cv: 3
CHG-WV1-15-EBL-AC100V Actuator: Double acting, normally B-C | Port: Rc1/2 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 3
CHG-WV1-15-EBL-AC200V Actuator: Double acting, normally B-C | Port: Rc1/2 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 3
CHG-WV1-15-EBL-DC24V Actuator: Double acting, normally B-C | Port: Rc1/2 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 3
CHG-WV1-20-EB-AC100V Actuator: Double acting, normally B-C | Port: Rc3/4 | Coil: Round terminal box | Voltage: AC100V | Cv: 6
CHG-WV1-20-EB-AC200V Actuator: Double acting, normally B-C | Port: Rc3/4 | Coil: Round terminal box | Voltage: AC200V | Cv: 6
CHG-WV1-20-EB-DC24V Actuator: Double acting, normally B-C | Port: Rc3/4 | Coil: Round terminal box | Voltage: DC24V | Cv: 6
CHG-WV1-20-EBL-AC100V Actuator: Double acting, normally B-C | Port: Rc3/4 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 6
CHG-WV1-20-EBL-AC200V Actuator: Double acting, normally B-C | Port: Rc3/4 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 6
CHG-WV1-20-EBL-DC24V Actuator: Double acting, normally B-C | Port: Rc3/4 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 6
CHG-WV1-25-EB-AC100V Actuator: Double acting, normally B-C | Port: Rc1 | Coil: Round terminal box | Voltage: AC100V | Cv: 11
CHG-WV1-25-EB-AC200V Actuator: Double acting, normally B-C | Port: Rc1 | Coil: Round terminal box | Voltage: AC200V | Cv: 11
CHG-WV1-25-EB-DC24V Actuator: Double acting, normally B-C | Port: Rc1 | Coil: Round terminal box | Voltage: DC24V | Cv: 11
CHG-WV1-25-EBL-AC100V Actuator: Double acting, normally B-C | Port: Rc1 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 11
CHG-WV1-25-EBL-AC200V Actuator: Double acting, normally B-C | Port: Rc1 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 11
CHG-WV1-25-EBL-DC24V Actuator: Double acting, normally B-C | Port: Rc1 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 11
CHG-WV1-32-EB-AC100V Actuator: Double acting, normally B-C | Port: Rc1-1/4 | Coil: Round terminal box | Voltage: AC100V | Cv: 16
CHG-WV1-32-EB-AC200V Actuator: Double acting, normally B-C | Port: Rc1-1/4 | Coil: Round terminal box | Voltage: AC200V | Cv: 16
CHG-WV1-32-EB-DC24V Actuator: Double acting, normally B-C | Port: Rc1-1/4 | Coil: Round terminal box | Voltage: DC24V | Cv: 16
CHG-WV1-32-EBL-AC100V Actuator: Double acting, normally B-C | Port: Rc1-1/4 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 16
CHG-WV1-32-EBL-AC200V Actuator: Double acting, normally B-C | Port: Rc1-1/4 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 16
CHG-WV1-32-EBL-DC24V Actuator: Double acting, normally B-C | Port: Rc1-1/4 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 16
CHG-WV1-40-EB-AC100V Actuator: Double acting, normally B-C | Port: Rc1-1/2 | Coil: Round terminal box | Voltage: AC100V | Cv: 28
CHG-WV1-40-EB-AC200V Actuator: Double acting, normally B-C | Port: Rc1-1/2 | Coil: Round terminal box | Voltage: AC200V | Cv: 28
CHG-WV1-40-EB-DC24V Actuator: Double acting, normally B-C | Port: Rc1-1/2 | Coil: Round terminal box | Voltage: DC24V | Cv: 28
CHG-WV1-40-EBL-AC100V Actuator: Double acting, normally B-C | Port: Rc1-1/2 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 28
CHG-WV1-40-EBL-AC200V Actuator: Double acting, normally B-C | Port: Rc1-1/2 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 28
CHG-WV1-40-EBL-DC24V Actuator: Double acting, normally B-C | Port: Rc1-1/2 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 28
CHG-WV1-50-EB-AC100V Actuator: Double acting, normally B-C | Port: Rc2 | Coil: Round terminal box | Voltage: AC100V | Cv: 47
CHG-WV1-50-EB-AC200V Actuator: Double acting, normally B-C | Port: Rc2 | Coil: Round terminal box | Voltage: AC200V | Cv: 47
CHG-WV1-50-EB-DC24V Actuator: Double acting, normally B-C | Port: Rc2 | Coil: Round terminal box | Voltage: DC24V | Cv: 47
CHG-WV1-50-EBL-AC100V Actuator: Double acting, normally B-C | Port: Rc2 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 47
CHG-WV1-50-EBL-AC200V Actuator: Double acting, normally B-C | Port: Rc2 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 47
CHG-WV1-50-EBL-DC24V Actuator: Double acting, normally B-C | Port: Rc2 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 47
CHG-WX1-15-EB-AC100V Actuator: Single acting, normally B-C | Port: Rc1/2 | Coil: Round terminal box | Voltage: AC100V | Cv: 3
CHG-WX1-15-EB-AC200V Actuator: Single acting, normally B-C | Port: Rc1/2 | Coil: Round terminal box | Voltage: AC200V | Cv: 3
CHG-WX1-15-EB-DC24V Actuator: Single acting, normally B-C | Port: Rc1/2 | Coil: Round terminal box | Voltage: DC24V | Cv: 3
CHG-WX1-15-EBL-AC100V Actuator: Single acting, normally B-C | Port: Rc1/2 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 3
CHG-WX1-15-EBL-AC200V Actuator: Single acting, normally B-C | Port: Rc1/2 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 3
CHG-WX1-15-EBL-DC24V Actuator: Single acting, normally B-C | Port: Rc1/2 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 3
CHG-WX1-20-EB-AC100V Actuator: Single acting, normally B-C | Port: Rc3/4 | Coil: Round terminal box | Voltage: AC100V | Cv: 6
CHG-WX1-20-EB-AC200V Actuator: Single acting, normally B-C | Port: Rc3/4 | Coil: Round terminal box | Voltage: AC200V | Cv: 6
CHG-WX1-20-EB-DC24V Actuator: Single acting, normally B-C | Port: Rc3/4 | Coil: Round terminal box | Voltage: DC24V | Cv: 6
CHG-WX1-20-EBL-AC100V Actuator: Single acting, normally B-C | Port: Rc3/4 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 6
CHG-WX1-20-EBL-AC200V Actuator: Single acting, normally B-C | Port: Rc3/4 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 6
CHG-WX1-20-EBL-DC24V Actuator: Single acting, normally B-C | Port: Rc3/4 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 6
CHG-WX1-25-EB-AC100V Actuator: Single acting, normally B-C | Port: Rc1 | Coil: Round terminal box | Voltage: AC100V | Cv: 11
CHG-WX1-25-EB-AC200V Actuator: Single acting, normally B-C | Port: Rc1 | Coil: Round terminal box | Voltage: AC200V | Cv: 11
CHG-WX1-25-EB-DC24V Actuator: Single acting, normally B-C | Port: Rc1 | Coil: Round terminal box | Voltage: DC24V | Cv: 11
CHG-WX1-25-EBL-AC100V Actuator: Single acting, normally B-C | Port: Rc1 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 11
CHG-WX1-25-EBL-AC200V Actuator: Single acting, normally B-C | Port: Rc1 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 11
CHG-WX1-25-EBL-DC24V Actuator: Single acting, normally B-C | Port: Rc1 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 11
CHG-WX1-32-EB-AC100V Actuator: Single acting, normally B-C | Port: Rc1-1/4 | Coil: Round terminal box | Voltage: AC100V | Cv: 16
CHG-WX1-32-EB-AC200V Actuator: Single acting, normally B-C | Port: Rc1-1/4 | Coil: Round terminal box | Voltage: AC200V | Cv: 16
CHG-WX1-32-EB-DC24V Actuator: Single acting, normally B-C | Port: Rc1-1/4 | Coil: Round terminal box | Voltage: DC24V | Cv: 16
CHG-WX1-32-EBL-AC100V Actuator: Single acting, normally B-C | Port: Rc1-1/4 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 16
CHG-WX1-32-EBL-AC200V Actuator: Single acting, normally B-C | Port: Rc1-1/4 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 16
CHG-WX1-32-EBL-DC24V Actuator: Single acting, normally B-C | Port: Rc1-1/4 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 16
CHG-WX1-40-EB-AC100V Actuator: Single acting, normally B-C | Port: Rc1-1/2 | Coil: Round terminal box | Voltage: AC100V | Cv: 28
CHG-WX1-40-EB-AC200V Actuator: Single acting, normally B-C | Port: Rc1-1/2 | Coil: Round terminal box | Voltage: AC200V | Cv: 28
CHG-WX1-40-EB-DC24V Actuator: Single acting, normally B-C | Port: Rc1-1/2 | Coil: Round terminal box | Voltage: DC24V | Cv: 28
CHG-WX1-40-EBL-AC100V Actuator: Single acting, normally B-C | Port: Rc1-1/2 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 28
CHG-WX1-40-EBL-AC200V Actuator: Single acting, normally B-C | Port: Rc1-1/2 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 28
CHG-WX1-40-EBL-DC24V Actuator: Single acting, normally B-C | Port: Rc1-1/2 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 28
CHG-WX1-50-EB-AC100V Actuator: Single acting, normally B-C | Port: Rc2 | Coil: Round terminal box | Voltage: AC100V | Cv: 47
CHG-WX1-50-EB-AC200V Actuator: Single acting, normally B-C | Port: Rc2 | Coil: Round terminal box | Voltage: AC200V | Cv: 47
CHG-WX1-50-EB-DC24V Actuator: Single acting, normally B-C | Port: Rc2 | Coil: Round terminal box | Voltage: DC24V | Cv: 47
CHG-WX1-50-EBL-AC100V Actuator: Single acting, normally B-C | Port: Rc2 | Coil: Round terminal box + lamp | Voltage: AC100V | Cv: 47
CHG-WX1-50-EBL-AC200V Actuator: Single acting, normally B-C | Port: Rc2 | Coil: Round terminal box + lamp | Voltage: AC200V | Cv: 47
CHG-WX1-50-EBL-DC24V Actuator: Single acting, normally B-C | Port: Rc2 | Coil: Round terminal box + lamp | Voltage: DC24V | Cv: 47
