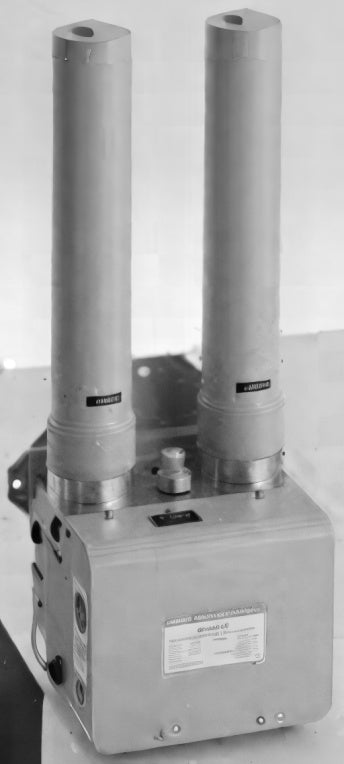

CKD Compact Heatless Air Dryer HD Series

CKD Compact Heatless Air Dryer HD Series

Compact heatless (desiccant) air dryer supplying ultra-dry air with an atmospheric dew point of -72 C.

Key features

  • Self-regenerating non-heated twin-tower method with synthetic zeolite desiccant
  • Flow range 75 to 1235 L/min (ANR) at 0.7 MPa
  • Dew point indicator and silencer are standard equipment

Specifications

Inlet pressure (MPa) 0.2-1.0
Inlet temp. (C) 5-52
Power supply 1-phase AC100/200 V
HD-0.5 Port (Rc): 3/8 | Regeneration cycle: 1 min | Power consumption (W): 26 | Mass (kg): 6.5 | Desiccant case no.: 15-8771 | Inlet pressure (MPa): 0.2-1.0 | Inlet temp. (C): 5-52 | Power supply: 1-phase AC100/200 V
HD-1 Port (Rc): 3/8 | Regeneration cycle: 1 min | Power consumption (W): 26 | Mass (kg): 7.0 | Desiccant case no.: 15-8772 | Inlet pressure (MPa): 0.2-1.0 | Inlet temp. (C): 5-52 | Power supply: 1-phase AC100/200 V
HD-1.5 Port (Rc): 3/8 | Regeneration cycle: 1 min | Power consumption (W): 26 | Mass (kg): 7.5 | Desiccant case no.: 15-8773 | Inlet pressure (MPa): 0.2-1.0 | Inlet temp. (C): 5-52 | Power supply: 1-phase AC100/200 V
HD-2 Port (Rc): 3/8 | Regeneration cycle: 1 min | Power consumption (W): 26 | Mass (kg): 9.5 | Desiccant case no.: 15-8774 | Inlet pressure (MPa): 0.2-1.0 | Inlet temp. (C): 5-52 | Power supply: 1-phase AC100/200 V
HD-4 Port (Rc): 3/8 | Regeneration cycle: 1 min | Power consumption (W): 26 | Mass (kg): 11.5 | Desiccant case no.: 15-8775 | Inlet pressure (MPa): 0.2-1.0 | Inlet temp. (C): 5-52 | Power supply: 1-phase AC100/200 V
HD-6 Port (Rc): 3/8 | Regeneration cycle: 4 min | Power consumption (W): 26 | Mass (kg): 21.5 | Desiccant case no.: F3-505026 | Inlet pressure (MPa): 0.2-1.0 | Inlet temp. (C): 5-52 | Power supply: 1-phase AC100/200 V
HD-9 Port (Rc): 3/4 | Regeneration cycle: 4 min | Power consumption (W): 52 | Mass (kg): 42.5 | Desiccant case no.: F3-505026 | Inlet pressure (MPa): 0.2-1.0 | Inlet temp. (C): 5-52 | Power supply: 1-phase AC100/200 V
Air DryersCKD
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Compact Heatless Air Dryer HD Series

Brand CKD·Air Dryers

Available part numbers (7)

HD-0.5, HD-1, HD-1.5, HD-2, HD-4, HD-6, HD-9

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HD-0.5Port (Rc): 3/8 | Regeneration cycle: 1 min | Power consumption (W): 26 | Mass (kg): 6.5 | Desiccant case no.: 15-8771 | Inlet pressure (MPa): 0.2-1.0 | Inlet temp. (C): 5-52 | Power supply: 1-phase AC100/200 V
HD-1Port (Rc): 3/8 | Regeneration cycle: 1 min | Power consumption (W): 26 | Mass (kg): 7.0 | Desiccant case no.: 15-8772 | Inlet pressure (MPa): 0.2-1.0 | Inlet temp. (C): 5-52 | Power supply: 1-phase AC100/200 V
HD-1.5Port (Rc): 3/8 | Regeneration cycle: 1 min | Power consumption (W): 26 | Mass (kg): 7.5 | Desiccant case no.: 15-8773 | Inlet pressure (MPa): 0.2-1.0 | Inlet temp. (C): 5-52 | Power supply: 1-phase AC100/200 V
HD-2Port (Rc): 3/8 | Regeneration cycle: 1 min | Power consumption (W): 26 | Mass (kg): 9.5 | Desiccant case no.: 15-8774 | Inlet pressure (MPa): 0.2-1.0 | Inlet temp. (C): 5-52 | Power supply: 1-phase AC100/200 V
HD-4Port (Rc): 3/8 | Regeneration cycle: 1 min | Power consumption (W): 26 | Mass (kg): 11.5 | Desiccant case no.: 15-8775 | Inlet pressure (MPa): 0.2-1.0 | Inlet temp. (C): 5-52 | Power supply: 1-phase AC100/200 V
HD-6Port (Rc): 3/8 | Regeneration cycle: 4 min | Power consumption (W): 26 | Mass (kg): 21.5 | Desiccant case no.: F3-505026 | Inlet pressure (MPa): 0.2-1.0 | Inlet temp. (C): 5-52 | Power supply: 1-phase AC100/200 V
HD-9Port (Rc): 3/4 | Regeneration cycle: 4 min | Power consumption (W): 52 | Mass (kg): 42.5 | Desiccant case no.: F3-505026 | Inlet pressure (MPa): 0.2-1.0 | Inlet temp. (C): 5-52 | Power supply: 1-phase AC100/200 V
